Product Overview
Description
High precision professional hard rail cnc milling machine programming
Product Description
Machine Type | Unit | VMC1370(hard rail) |
Worktable | ||
Worktable(length×width) | mm | 1500×700 |
Maximum load of table | kg | 1200 |
T-slot(number of slot × slot width × pitch) | mm | 5-18×140 |
Triaxial itinerary | ||
Travel for X/Y/Z axes | mm | 1300/700/650 |
Distance from spindle nose to table surface | mm | 100-750 |
Distance from spindle center to column guide surface | mm | 820 |
Feed system | ||
CNC system |
| Mitsubishi M70/FANUC-Oi MF |
Rapid shift of axes of X/Y/Z | m/min | 16 |
Maximum cutting feed speed | m/min | 7 |
Automatic tool transform system(CNC milling without) | ||
Standard tool quality | bundle | Disc type 24 |
The largest diameter cutter knife/length | mm | Φ110/300 |
Tool exchanging manner |
| Air-operated |
Average tool exchanging time | sec | Disc type: 5s |
Precision | ||
Positioning accuracy | mm | 0.012 |
Accuracy of repeated positioning | Mm | 0.006 |
Spindle system | ||
Spindle speed | r.p.m | 6000 |
Spindle specifications(model/installation diameter) |
| BT50/Φ155 |
Drive manner of spindle |
| Belt drive |
Motor power of spindle | kw | 15/18.5 |
Air pressure | ||
Requirements for air compressing | Kg/cm² | ≥6 |
Air pressure flux | m³/min | ≥0.3 |
Machine specifications | ||
Integrated weight(kg) | kg | 10500 |
Overall dimension(weight×width×height) | mm | 3900×3060×2650 |
1).professional cnc milling machine programming VMC-1370 (hard rail) Electric:
Travel No. | Name | Brand Habitat | Remark |
1 | CNC System | MITSUBISHI/FANUC(Japan) | M70 |
2 | Drive motor | MITSUBISHI/FANUC(Japan) |
|
3 | Spindle motor | MITSUBISHI/FANUC(Japan) |
|
4 | Relay | OMRON(Germany) |
|
5 | Contactor | SCHNEIDER(France) |
|
6 | Breaker | SIEMENS(Germany) |
|
7 | Transformer | JUCHE(China) |
|
8 | Switch power supply | MEAN WELL(Taiwan) |
|
9 | Electron hand wheel | Japan |
|
10 | Water tank motor | China |
|

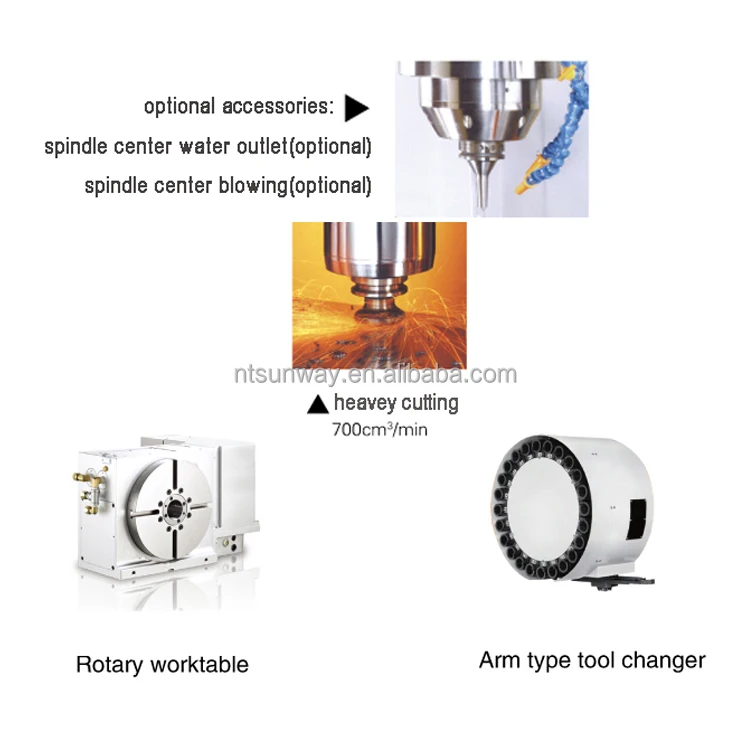

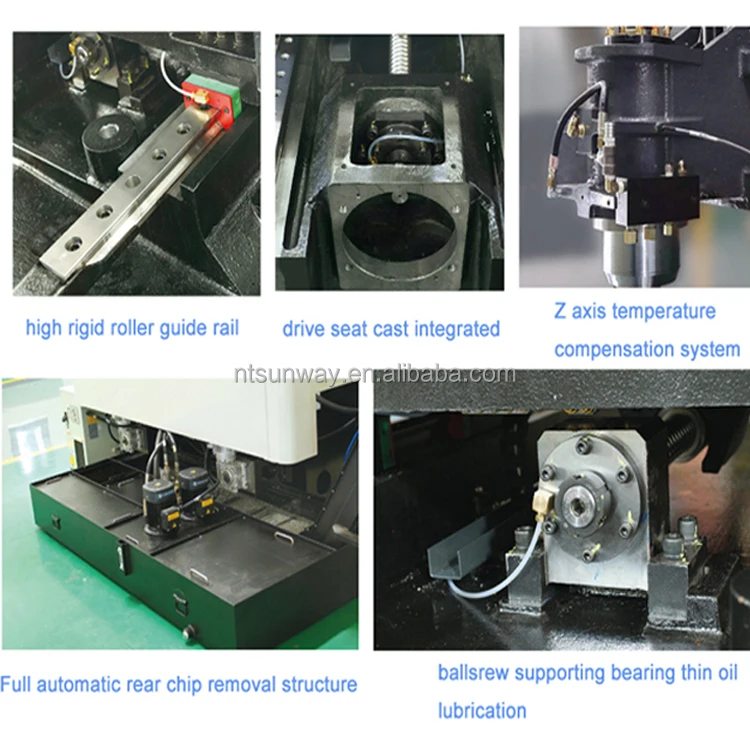

2).professional cnc milling machine programming VMC-1370 (hard rail) Machinery:
Travel No. | Name | Brand Habitat | Remarks |
1 | Spindle | PUSON(Taiwan ) | 6000r/ min |
2 | Coupling shaft | Germany R+W |
|
3 | Pressurizes vat | HAOCHENG or SHENGYU(Taiwan ) |
|
4 | Lead screw of three axles | HIWIN C3(Taiwan) |
|
5 | Lubricant oil road | NIKKA YUKI(Japan ) |
|
6 | Axletree | NSK (Japan ) | (P level of high accurate avoid matching axletrees) |
7 | 20 bamboo hat style or 24 manipulator tool store |
|
|
8 | Accurate round nut | Taiwan |
|
9 | Whole machine bolts | Taiwan | (High intensity 12.9 grade) |

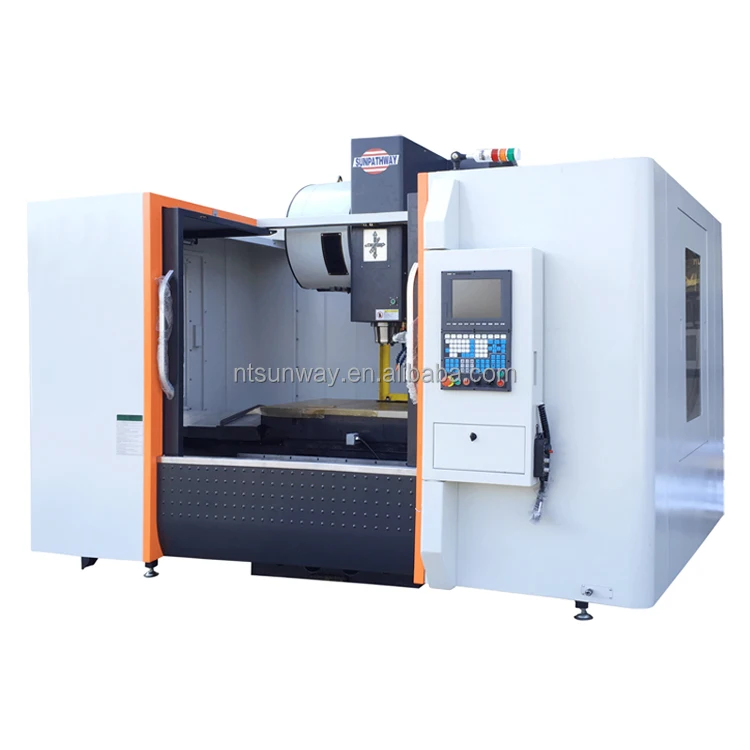

Photos for professional cnc milling machine programming VMC-1370 (hard rail)
Company Proflie

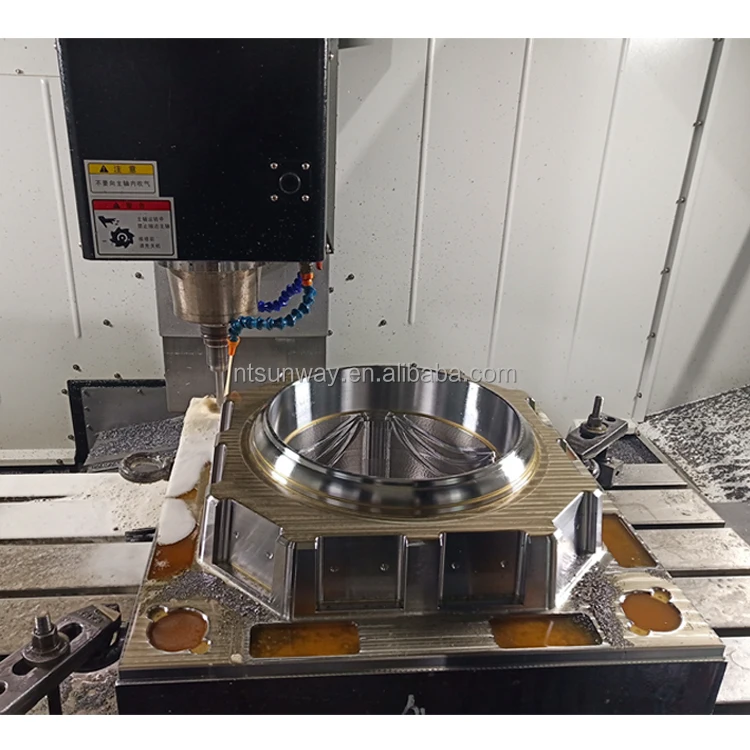

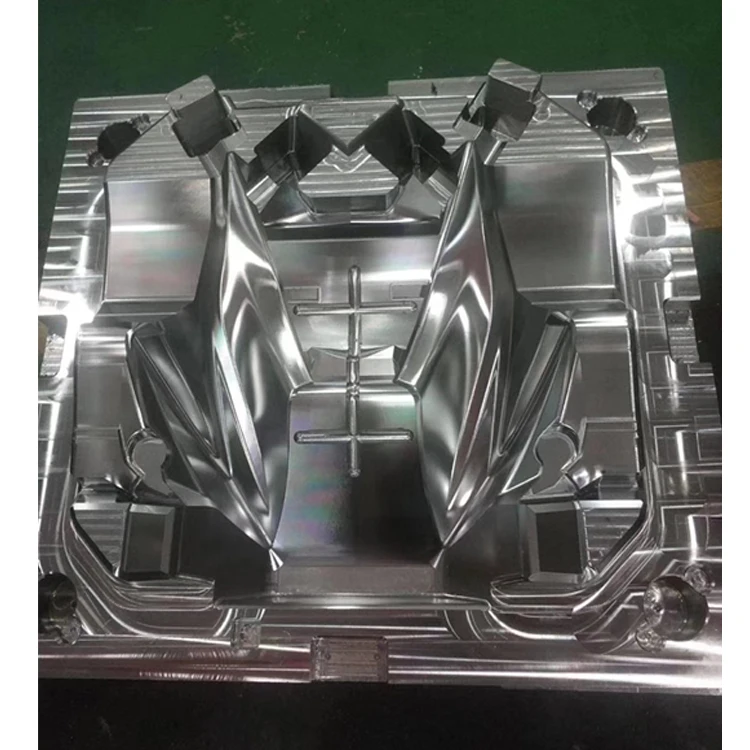

Machining Samples

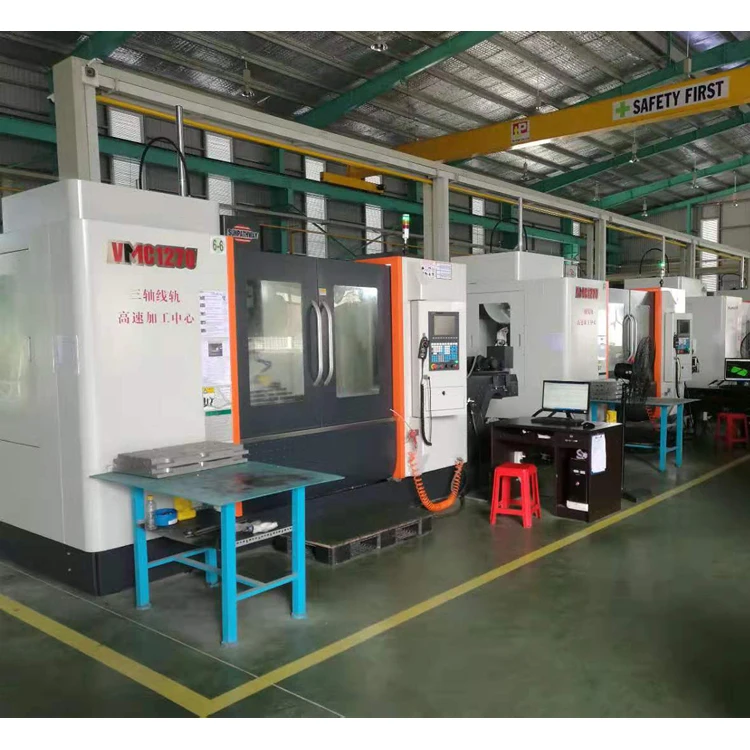

Factory Environment
