Сделано в Китае, солнечный коллектор европейского стиля, солнечный коллектор (вакуумная трубка)

Сделано в Китае, солнечный коллектор европейского стиля, солнечный коллектор (вакуумная трубка)

Price:

Price in USD:Details

Quantity:

Made in China European Style Solar Collector, Colector Solar (Vacuum tube)

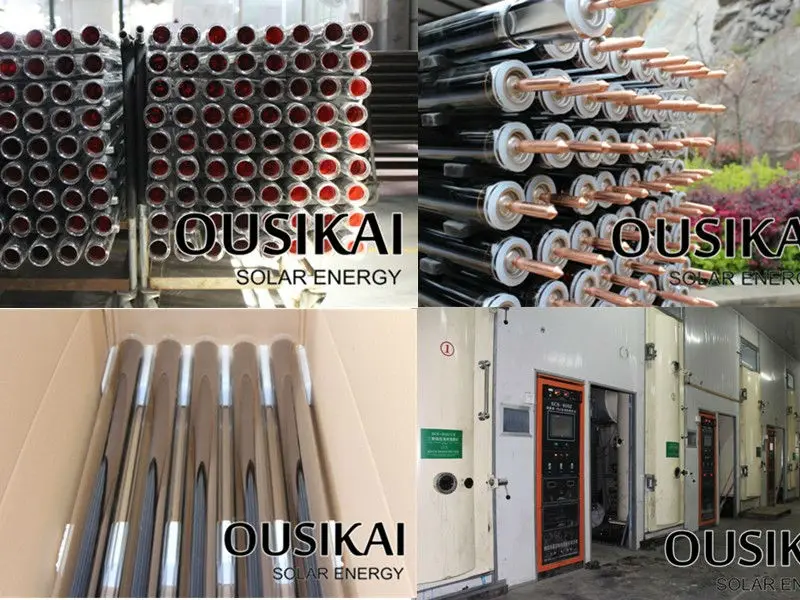

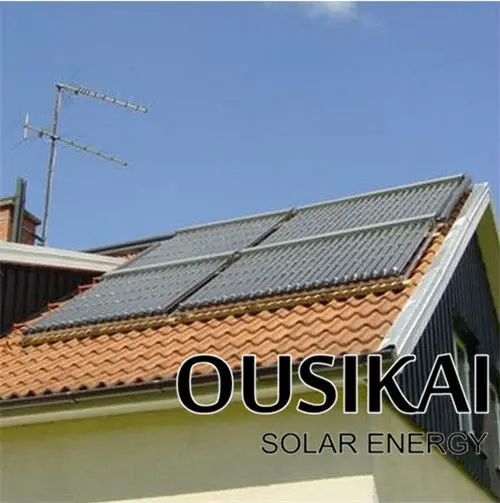

1. Picture

2. Production description

Features of pressurized solar water heating system :

1 Strong hydraulic pressure makes your bathe more comfortable

2 module design, arbitrary combination, harmonious with the building perfectly

3 Intelligent controlling and multiple functions

4 Arbitrary combination with structure of your beautiful constructions

5 Separate installation conveniently

6 workable at anytime and enjoyable.

7 Working with assistant resource

8 Full set of original equipment, the life time will be much longer to ensure better using.

Model	Tube specification	Tube quantity	Packing size(CBM)	Loading quantity(Sets)
Model	Tube specification	Tube quantity	Packing size(CBM)	20'GP	40'GP	40'HQ
OS-HPB-10	Φ58mm*1800mm	10	0.170	171	347	406
OS-HPB-15	Φ58mm*1800mm	15	0.230	126	257	300
OS-HPB-18	Φ58mm*1800mm	18	0.260	111	227	265
OS-HPB-20	Φ58mm*1800mm	20	0.290	97	200	234
OS-HPB-25	Φ58mm*1800mm	25	0.340	82	171	200
OS-HPB-30	Φ58mm*1800mm	30	0.420	67	138	162
Material:
1. Heat pipe: Red copper, anti-freezing ≥ -35 °C 0.6mm thickness heat pipe
2. Manifold: Red copper Dia22mm thickness 2mm
3. Glass tube dimensions: 58*1800mm
4. Bracket: 2.0 mm thickness aluminum alloy
5. Coating of vacuum tube: ALN/AIN-SS/CU
6. Max pressure: 1MPa
7. Operating fluid pressure (MPa): 0.6
8. Max. service temperature (degree): 95
9. Max. stagnation temperature (degree): 200
10. Distance from tube to tube (mm): 75
11. Flow range recommendation (l/m2h): 50-150
12. Insulation thickness (mm): 40
13. Collector angle (degree): from 0,25,38,45

3. Payment

1) T/T

2) L/C at sight

3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder

4) We also provide west union, escrow and paypal for small order.

4. Our advantage

We promise:

Company Overview	Ousikai(DINXING) Industry&Trade Co.Ltd.
Company Overview	Owns a factory covering an area of 9,000 square meters
Certificates	CE/TUV rheinland
Capability	Total annual sales volume reaches above US$150,000.00
	Able to source across multiple industries
	OEM&ODM service for Sunlux/ Sol sen/ G energia and so on.
Techniques	Professional in most kinds of solar water heaters and accessories
Service	Strongly support our clients in sourcing, sample development, merchandising follow up, shipping handling, etc.
