Bowl type gear shaper cutters

Product Overview

Description

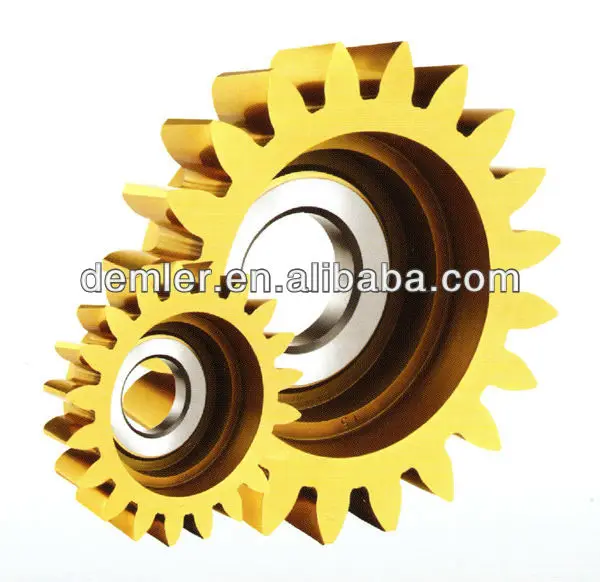

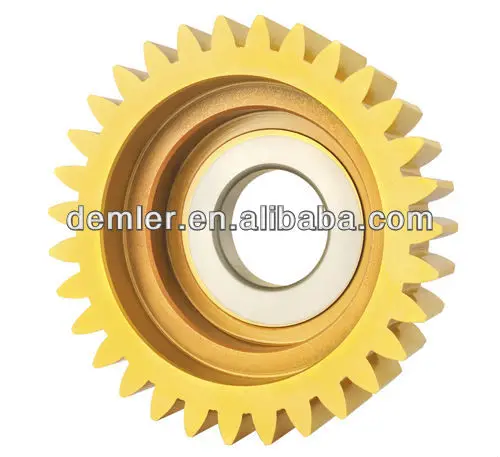

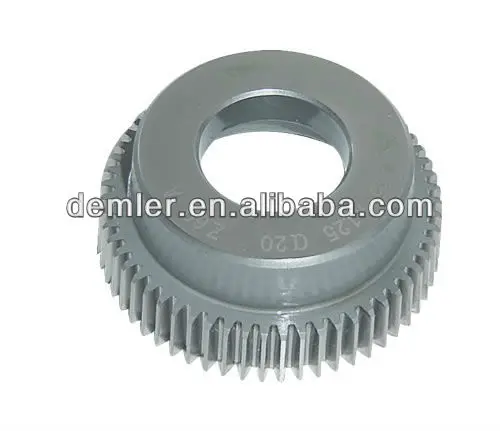

Bowl type gear shaper cutters

Specifications

1. Accuracy: Class AA. A

2.Delivery Times: 20 days.

3.16 years manufacture of gear hobs, Shaving butter, shape cutter and broaches.

4.Type: gear shaping cutter - bowl type



Announcements for Customers

Please tell us those important data!

1.What's the module, pressure angle, outside diameter, pitch diameter, tooth number, pore diameter , depth, for nonstandard or your standard gear shaper cutter?

2.What's the material?

We provide you HSS M2(W6Mo5Cr4V2), HSS M35(S705), W9341, and power metallurgy(S390)

3. What's the coating?

We provide you TIN couting, TIAIN Coating or uncoated

4.What's the Accuracy level?

You can have  Accuracy gade AA and Accuracy gade A

5.Which do you perfer, standard gear shaping cutter or Non-standard gear shaper cutter?

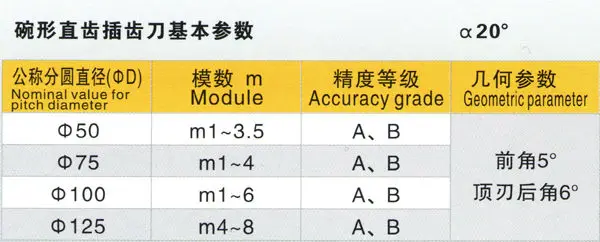

Technical Specification

1. Module: m1~m6

2. Material: Steel  M2 (W6Mo5Cr4V2)

3. Accuracy: Class AA, A

4. Pressure Angle: α 20°

5.pitch diameter: 99mm~108mm

6.Tooth number: 18~100

7.Pore diameter: 31.743mm

8. Depth:32 mm~36mm

Coating and material

(for material weprovide you material as follows you reference)



For Material



1.High speed Steel M2 .

Component: W6Mo5Cr4V2, .

Delivery Hardness ≤ 255HB .

Harding Temperature: 1220-1240 Degrees .

Hardness ≤ 63 .

Common Used Material



2. High Speed Steel M35(S705) Provided by the Bohler in Austria.

Co4.8% .Hardness≥ 64HRC .

High Toughness HSS .

High wearability .

High Pressure Resistant .

Resistance to Sintering .

Better Material



3. Powder Metallurgy .The Best Material



For Coating

TiN Coating Microhardness(HV): 2300

Coefficient of Friction(COF): 0.40

Innerstress(Gpa): -2.5

Maximum Reaction Temperature: 600

Centigrade Color: Golden Yellow

Coating Structure: Monolayer .



TiALN Coating Microhardness(HV): 3300

Coefficient of Friction(COF): 0.30-0.35

Innerstress(Gpa): -1.3/-1.5

Maximum Reaction Temperature: 900 Centigrade

Color: Purplish Gray

Coating Structure: Nano-Stuture



Wide Range of Option(Supply for  the following Gear hobs)



. Bowl type straight teeth gear shaping cutter

. Disc type straight teeth gear shaping cutter

. Gear shaping cutter with morse taper shank ( More gear shaping cutter)

. Timing belt gear shaping cutter

. Sprocket gear shaping cutter

. Smaller Gear Hobs

. Novikow gear Hobs

. Pre-shaving Hobs

. Pre-grinding Hobs

. Standard Gear Hobs

. Involute spline Hobs

. Worm Wheel Hobs

. Sprocket Hobs

. Chamfering Hobs

. Timing belts pulley hobs

. Fine-pitch gear hobs

. Rising stem worm wheel hobs

. Hole worm wheel hobs





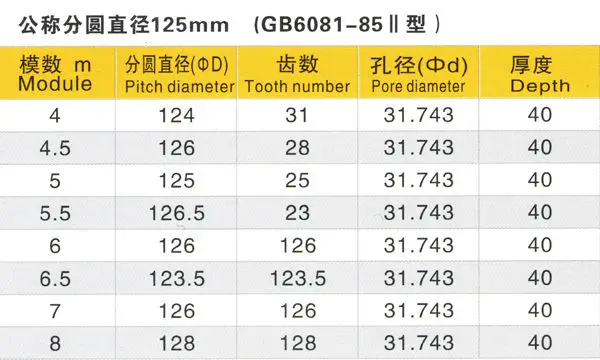

Specification of gear shaper cutter ø125mm (bowl type)





Production Process& Brief view of the factory

Taizhou Sudi tools factory is a professional manufacture, Which is  famous for standard and non-standard Hobs, various types of broaches an milling cutter, it was established in 1997,with16 years history in metal ctting Tools field.



Packing &Shipping

.For Packing .The products are wrapped with Oiledpaper and the bittle box as inner packing.

. The products are wrapped with Cartons as outside packing . If you have special requirements, such as wooden cases, please    mention that in advance.



. For Shipping .We provide air transportation and ocean transportation.

.Port of Shanghai or Ningbo is our port of loading, because the factory closes to those two city.
