Product Overview
Description
Product Description
1) Automatic screen printing machine printing head is vertical up-and-down for easy change of the silkscreen.
2) Japan servo motors and PLC systems are used in the automatic screen printing machine to ensure high precision and stability.
3) Automatic screen printing machine can feed material, screen printing, drying and rewinding printed material continuously.
4) This automatic screen printing machine has a compact design. It doesn't take much space in your production facility.
5) One operator is enough for the whole production to help you reduce labor cost.
2) Japan servo motors and PLC systems are used in the automatic screen printing machine to ensure high precision and stability.
3) Automatic screen printing machine can feed material, screen printing, drying and rewinding printed material continuously.
4) This automatic screen printing machine has a compact design. It doesn't take much space in your production facility.
5) One operator is enough for the whole production to help you reduce labor cost.
Model | LTA-7060 |
Print Area | 730*650mm |
Print Speed | 0-2500t/h |
Screen Frame Area | 1000*1000mm |
Max. Paper Width | 720mm |
Inspection Table Max. Size | 600*800mm |
Air Source | 0.4-0.6mpa |
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) |
Printing Material Thickness | 0.05-0.5mm |
Weight | 2000kg |
Machine Size | L2950*W1360*H1865mm |
Application
The printing material should be films in roll, eg. PET, PVC, PP, PC, BOPP films.

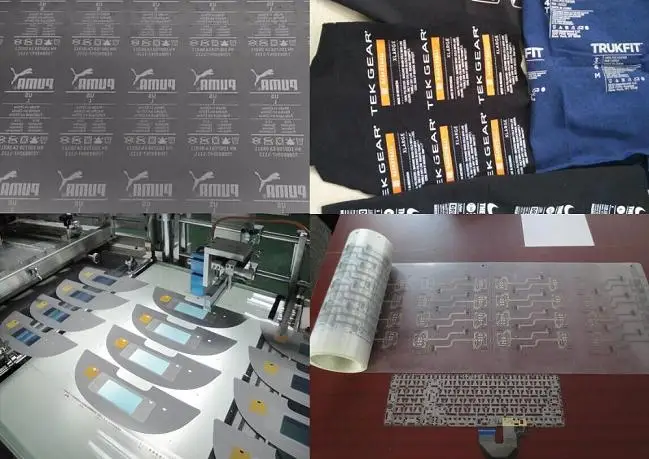

The LTA-7060 automatic screen printing machine can print labels and stickers, water and heat transfer film, membrane switches, IMD, IML, RFID, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.
Detailed Images
Components
An automatic screen printing machine is a roll to roll screen printing line.
It includes a feeding machine, a printing machine and a hot air dryer. (UV dryer is available for option.)

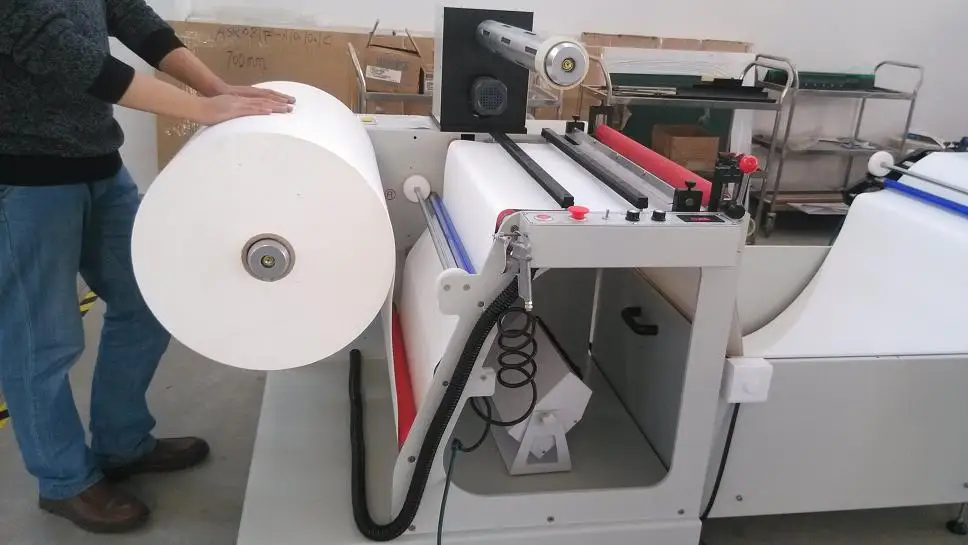

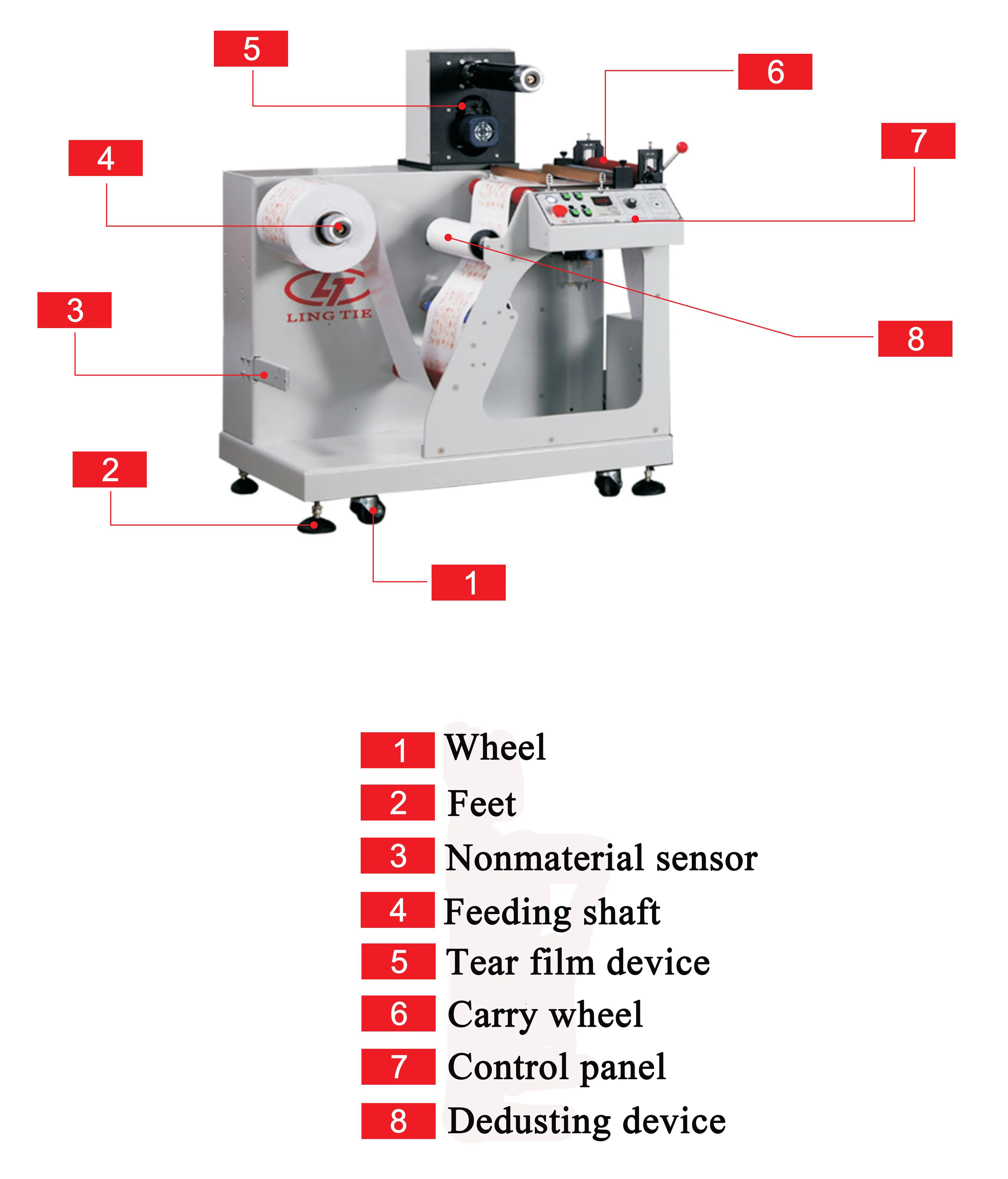

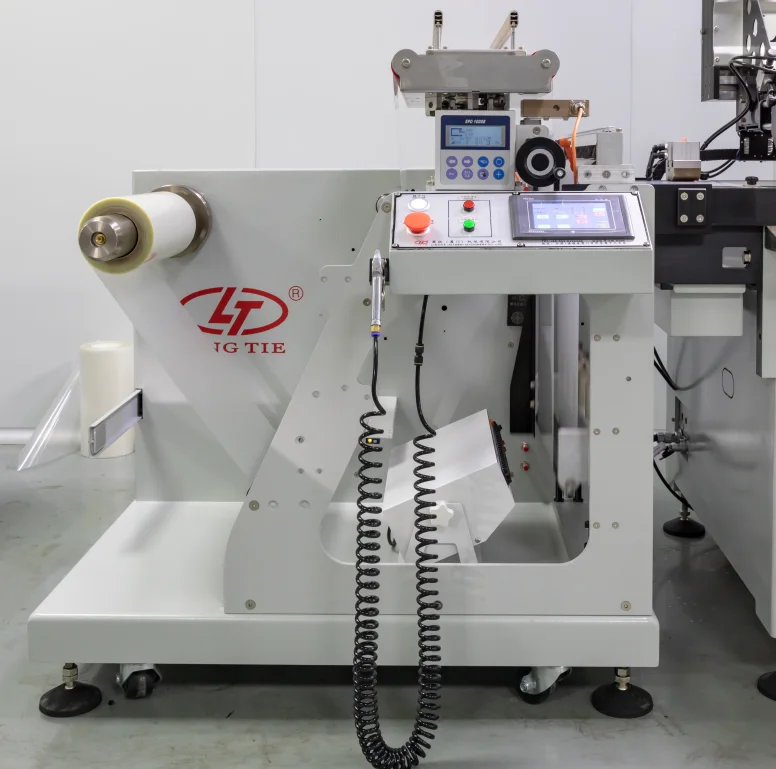

Automatic Feeding Machine
1. Mitsubishi frequency converter is adopted to control the feeding speed automatically.
2. Adopt German precision motor and reducer to ensure stable operation of the machine.
3. The feeder is controlled by an imported photoelectric switch to avoid scratching the material, and the feeding length can be automatically adjusted.
4. Using electromagnetic tension control, tension size can be arbitrarily adjusted.
5. Simultaneous double-sided dust removal for printing materials to reduce waste and improve yield.
6. Automatic stops without material.
2. Adopt German precision motor and reducer to ensure stable operation of the machine.
3. The feeder is controlled by an imported photoelectric switch to avoid scratching the material, and the feeding length can be automatically adjusted.
4. Using electromagnetic tension control, tension size can be arbitrarily adjusted.
5. Simultaneous double-sided dust removal for printing materials to reduce waste and improve yield.
6. Automatic stops without material.
Technical Parameters | ||||||||
Name | Automatic feeding machine | |||||||
Model | LTC-480B | LTC-600B | LTC-700B | LTC-900B | ||||
Max.Wed Width | 490mm | 610mm | 710mm | 910mm | ||||
Power | 0.3kw | |||||||
Tension | ≤0.1N | |||||||
Weight | 300kg | 320kg | 350kg | 400kg | ||||
Machine Size | L1100*W1000*H1200mm | L1100*W1080*H1200mm | L1100*W1220*H1200mm | L1750*W1250*H1260mm | ||||
Optional functions: 1) Electromagnetic tension control 2) Double-sided dust removal 3) Automatic deviation correction function 4) Electrostatic removal function 5) Tear film function 6) Splice station 7) Anti-scratch device | ||||||||

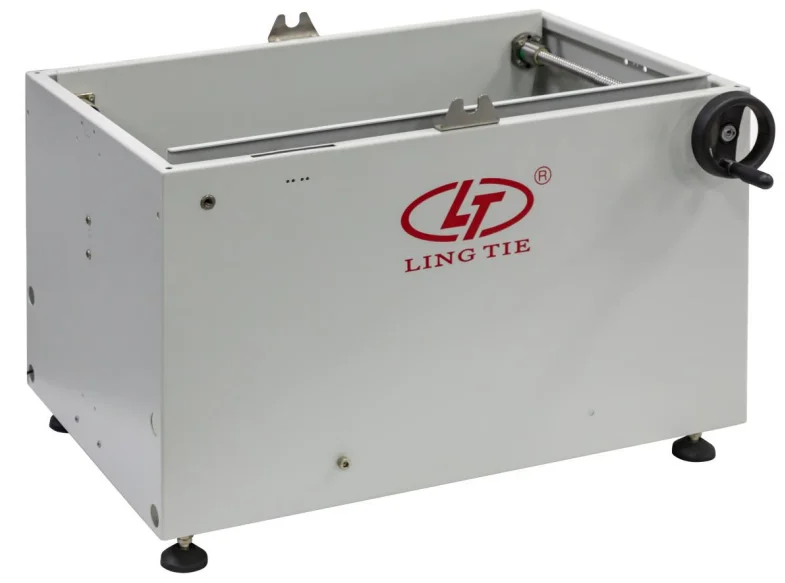

The Feeding Box
If the feeding machine has not the suspended function, the feeding box should be equipped after the feeding machine.

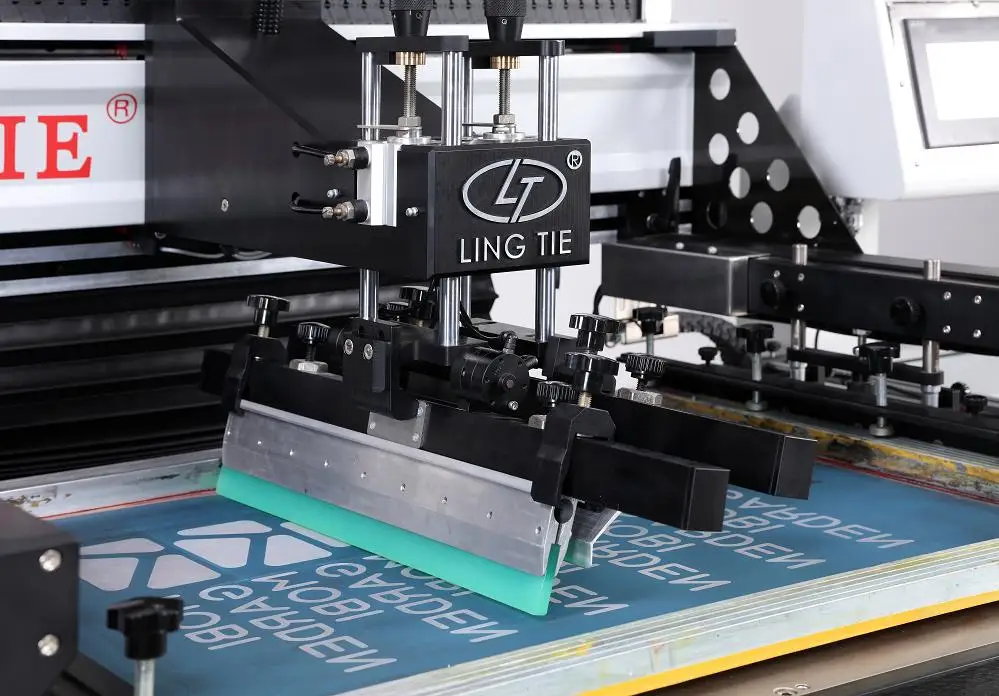

Automatic Printing Machine
1. Printing pedestal adopts 4 columns precision linear guide rail, high repeatable positioning accuracy, strong stability and durability.

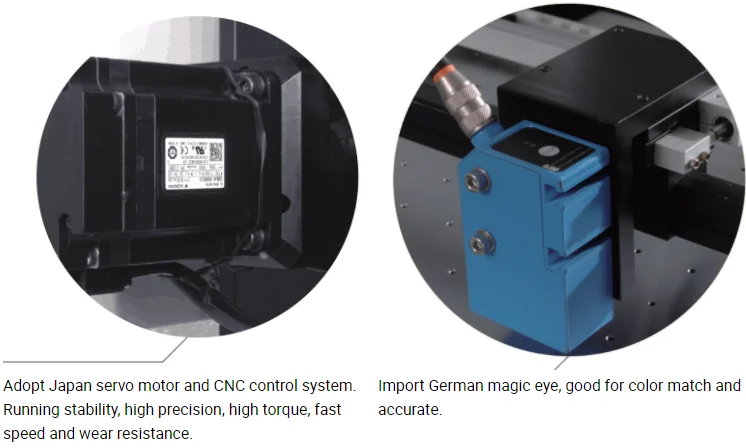

2. Japan Yaskawa servo motor, good quality, high precision, machine printing precision is guaranteed.
3. Adopt Taiwan's original brand reducer, large output torque, smooth operation, low noise.
4. Using Taiwan Shilin electrical control is safe and efficient.
5. Mitsubishi touch screen, the latest PLC, fast running speed, high precision, user experience is good.
6. Adopt automatic alignment function, automatic version correction, so that the printing set position is more accurate, can repeat overprint many times.
7. The secondary printing electric eye adopts the Japanese panasonic brand, and automatically stops when the fault occurs.
2. Japan Yaskawa servo motor, good quality, high precision, machine printing precision is guaranteed.
3. Adopt Taiwan's original brand reducer, large output torque, smooth operation, low noise.
4. Using Taiwan Shilin electrical control is safe and efficient.
5. Mitsubishi touch screen, the latest PLC, fast running speed, high precision, user experience is good.
6. Adopt automatic alignment function, automatic version correction, so that the printing set position is more accurate, can repeat overprint many times.
7. The secondary printing electric eye adopts the Japanese panasonic brand, and automatically stops when the fault occurs.
Technical Parameters | ||||||||
Name | Automatic Roll to Roll Screen Printing Machine | |||||||
Model | LTA-3040 | LTA-4050 | LTA-5070 | LTA-6080 | ||||
Print Area | 330*450mm | 430*550mm | 530*750mm | 630*850mm | ||||
Print Speed | 0-6000t/h | 0-6000t/h | 0-2500t/h | 0-2500t/h | ||||
Screen Frame Area | 600*800mm | 700*900mm | 800*1100mm | 900*1200mm | ||||
Max. Paper Width | 320mm | 420mm | 520mm | 620mm | ||||
Inspection Table Max. Size | 400*400mm | 500*500mm | 600*600mm | 700*800mm | ||||
Air Source | 0.4-0.6mpa | |||||||
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) | |||||||
Printing Material Thickness | 0.02-0.5mm | |||||||
Weight | 1200kg | 1500kg | 1700kg | 2000kg | ||||
Machine Size | L2560*W980*H1865mm | L2620*W1100*H1865mm | L2950*W1160*H1865mm | L3150*W1260*H1865mm | ||||
Optional functions: 1) Automatic punching function 2) automatic register system 3) dust elimination roller 4) pneumatic frame fixing function 5) CCD optical device | ||||||||
Hot Air Dryer
1. Mitsubishi frequency control device, more energy saving and accurate control of speed.
2. To ensure the stable operation of the machine, it is equipped with the quality inspection lamp to facilitate the operator to inspect printing and operate.
3. The function of uniform speed ensures that the material stays in the oven for a consistent time and the winding speed at any position.
4. The oven uses 4 sides, 4 sides heating, air circulation is smoother.
5. Independent 4 digital display temperature controllers respectively control the temperature, the temperature control is more convenient, more accurate.
6. Equipped with heat insulation layer, so as not to burn operators, energy saving, energy saving, environmental protection.
2. To ensure the stable operation of the machine, it is equipped with the quality inspection lamp to facilitate the operator to inspect printing and operate.
3. The function of uniform speed ensures that the material stays in the oven for a consistent time and the winding speed at any position.
4. The oven uses 4 sides, 4 sides heating, air circulation is smoother.
5. Independent 4 digital display temperature controllers respectively control the temperature, the temperature control is more convenient, more accurate.
6. Equipped with heat insulation layer, so as not to burn operators, energy saving, energy saving, environmental protection.
Technical Parameters | ||||||||
Name | Hot air dryer | |||||||
Model | LTB-350 | LTB-460 | LTB-600 | LTB-800 | ||||
Material quality | Baogang-45#steel plate | |||||||
Power | 14kw | 14kw | 22kw | 22kw | ||||
temperature | Room temperature-140℃ | |||||||
Insulation layer thickness | 50mm | 50mm | 50mm | 100mm | ||||
Temperaturer controller | 2pcs | 2pcs | 4pcs | 4pcs | ||||
Weight | 400kg | 500kg | 600kg | 700kg | ||||
Machine Size | L1970*W780*H1810mm | L1970*W900*H1810mm | L2830*W1060*H2150mm | L3000*W1260*H2260mm | ||||
Optional functions: 1) Uniform speed device 2) Radiator fan 3) Automatic double-side dust elimination 4) Correction device 5) Anti-pull device 6) Laminating device | ||||||||
