pattern rubber conveyor belt, conveyor rubber strips

Product Overview

Description

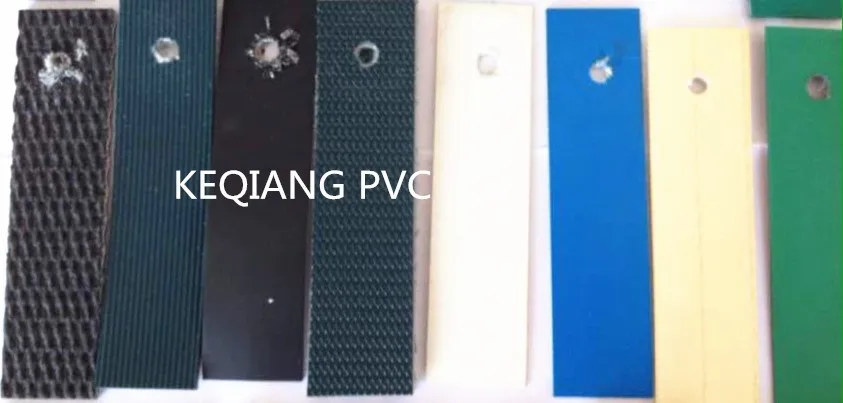

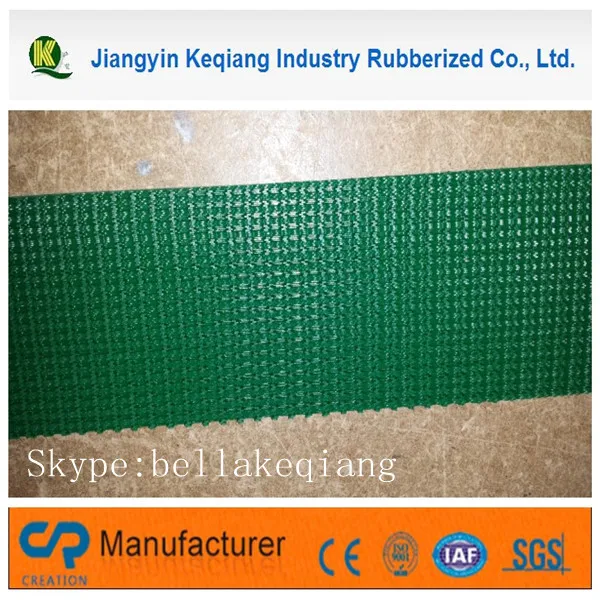

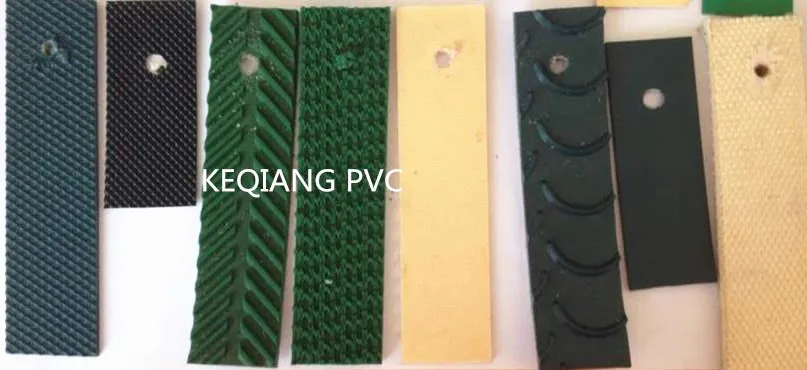

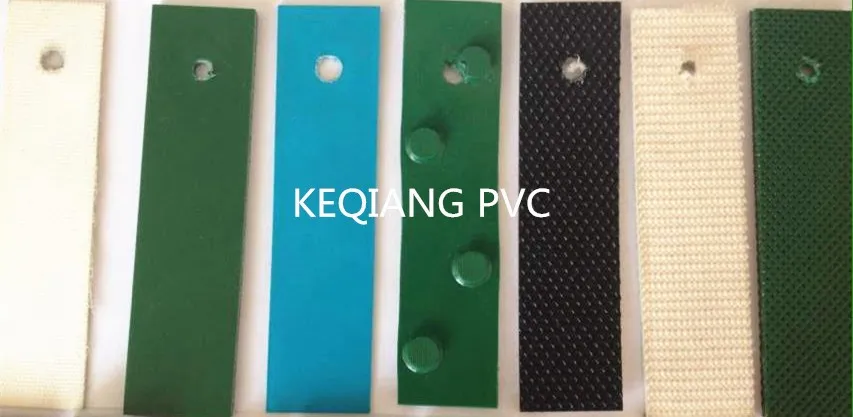

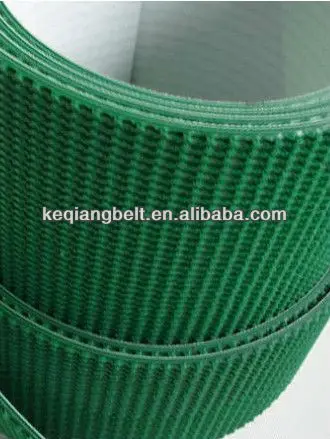

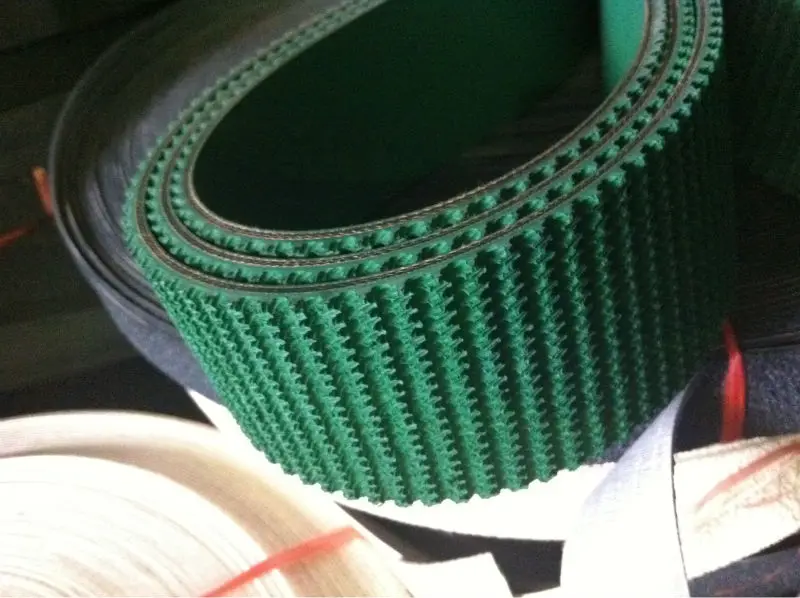

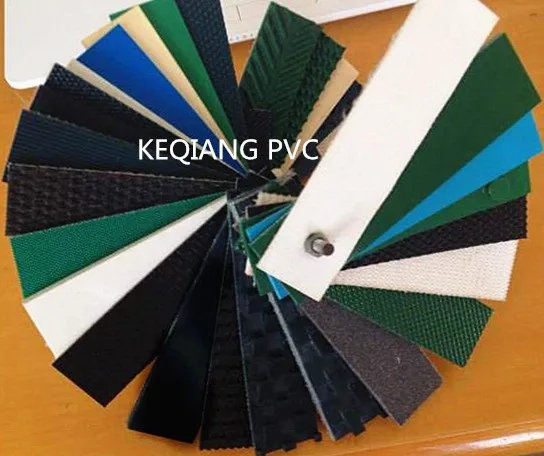

  Grass pattern rubber conveyor belt, conveyor rubber strips



1.conveyor belt
2.great strength,
3.little elongation,
4.good bending and long service life.

Product use: 1) widely used for conveying light-weight materials in food, electronic, tobacco, printing, packaging, textiles and other industries. 2) widely used for conveying medium-weight materials in food, electronic, tobacco, printing, packaging, textiles, dyeing, chemical, post and other industries.3) widely used for conveying heavy-weight materials in metallurgy, building materials, post, chemical and other industries.

Product features: One or both sides are coated with rubber or PVC, it has great strength, little elongation, good bending and long service life.



The main types and technical index:



Rubber conveyor belt	Specification	framework material	elastomer	Total Thickness mm	color	Tensile strength N/mm	1% elongation at specified load N/mm	Temperature Range
	One fabric- One rubberized	E0 E1 E2	NBR/PVC	0.5-1.5	Green, White, Or other	80	4	-15-110
	One fabric- Two rubberized			1.0-1.5		80	4
	Two fabric- Two rubberized			1.5-2.0		160	8
	Two fabric- Three rubberized			2.0-3.0		160	8
	Two fabric- One rubberized			1.0-2.0		160	8
	Three fabric- Three rubberized			3.0-3.5		240	12
	Three fabric- Four rubberized			3.0-4.0		240	12
	Three fabric- Two rubberized			2.5-3.0		240	12
	Four fabric- Four rubberized			4.0-4.5		320	16
	Four fabric- Five rubberized			4.0-5.0		320	16
	Four fabric- Three rubberized			3.5-4.0		320	16
	Five fabric- Six rubberized			5.0		400	20
