Product Overview

Description


Flange Sleeve Bushings





Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) wrapped bronze bushing

FB092 wrapped bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



sample bushing

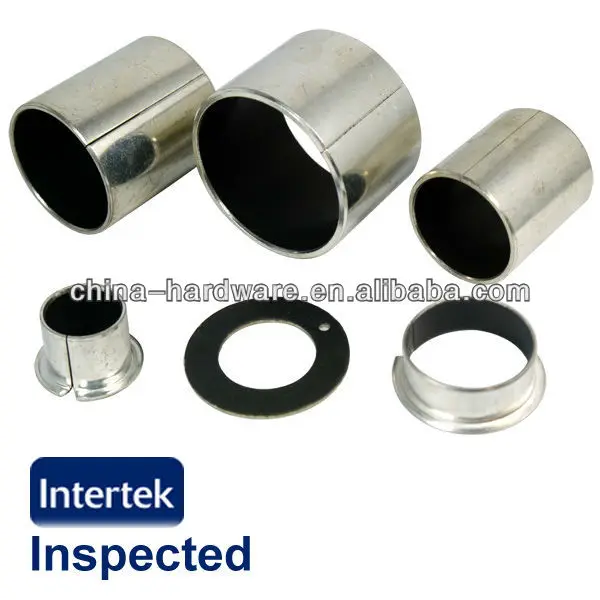

DU SF-1 Oilless Bushing

draw0

  • Specifications:

Material

Steel backing

Steel+Sinterd Bronze powder+PTFE+Pb+Polymer

Bronze backing

Bronze+Sinterd Bronze powder+PTFE+Pb+Polymer

Stainless steel

S.S.+Sinterd Bronze powder+PTFE+Pb+Polymer

Stainless steel

Stainless Steel+PTFE +Polymer

Pb Free(RoHS)

All above types without Pb available

DX SF-2 Marginal lubricating Bushing


  • Specifications:

Material

Steel backing

Steel+Sinterd Bronze powder+ Pb+POM

Pb Free(RoHS)

Steel+Sinterd Bronze powder+POM

JF Bimetal Bushing

draw-bimetal

  • Specifications:

Material

JF-800

Steel+Bronze(CuSn10Pb10)

JF850

Steel+ Bronze(CuSn6Zn6Pb3)

JF-720

Steel+ Bronze(CuSn4Pb24)

JF-20

Steel+ Bronze(AlSn20Cu)

JF700

Steel+ Bronze(CuPb30

FB090 Bronze Roll Wrapped Bushing

FB092 Bronze Roll Wrapped Bushing

draw1

draw-FB092

  • Specifications:

Material

FB090

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB091

 Bronze(CuZn31Si)

FB092

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB094

Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings

FB090G

Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite

JDB Solid Lubricating Bushing

draw3-1

draw3-2

  • Specifications:

Material

Bronze

CuZn25Al6Fe3Mn3 + Graphite

Iron

Cast-iron + Graphite

FU Sintered Bushing

draw4

  • Specifications:

Material

Bronze

Bronze(CuSn6Zn6Pb3/CuSn10) + 12~18%Oil

Iron

Fe + 12~18%Oil

Cu-Fe

Cu20Fe80 + 12~18%Oil

Customized is available

FZ Ball Cage Retainer

draw2

  • Specifications:

Cage Material

FZB

Bronze + balls

FZA

Aluminium + balls

FZP

POM + balls

FR Self-lubricating Meshed Composite Bushing

FD Self-lubricating Polymer Soft Plates


  • Production Line



sample bushing



  • Inspection

P-3

  • Packings

packing

  • Also we can make customized bushings as per your drawings or samples.

    Welcome inquiry us for details so that we can offer you related information at the first time!
