machines Bushing du sf 1x sf 1h 1b 1w 1t oilless bush PTFE steel backed bronze bushings

Product Overview

Description

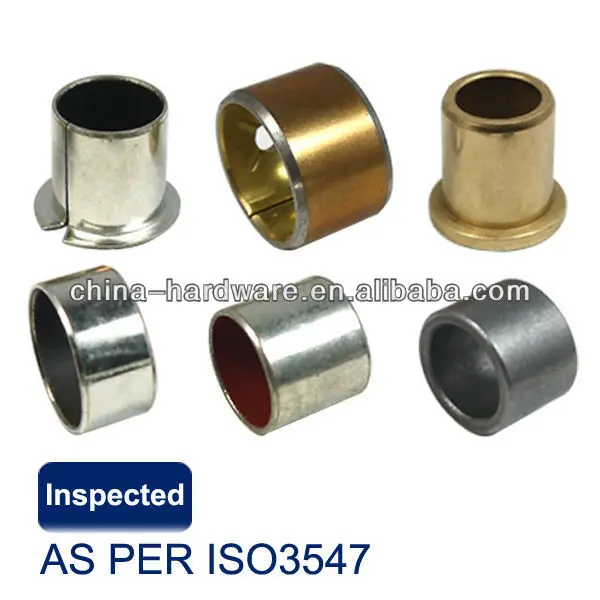

Bushing du bushing/ oilless bush/ steel bush steel backed bronze bushings





Introduction of plain bushing
A plain bearing is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore the journal (i.e., the part of the shaft in contact with the bearing) slides over the bearing surface. The simplest example of a plain bearing is a shaft rotating in a hole. A simple linear bearing can be a pair of flat surfaces designed to allow motion; e.g., a drawer and the slides it rests on or the ways on the bed of a lathe.
Plain bearings, in general, are the least expensive type of bearing. They are also compact and lightweight, and they have a high load-carrying capacity.

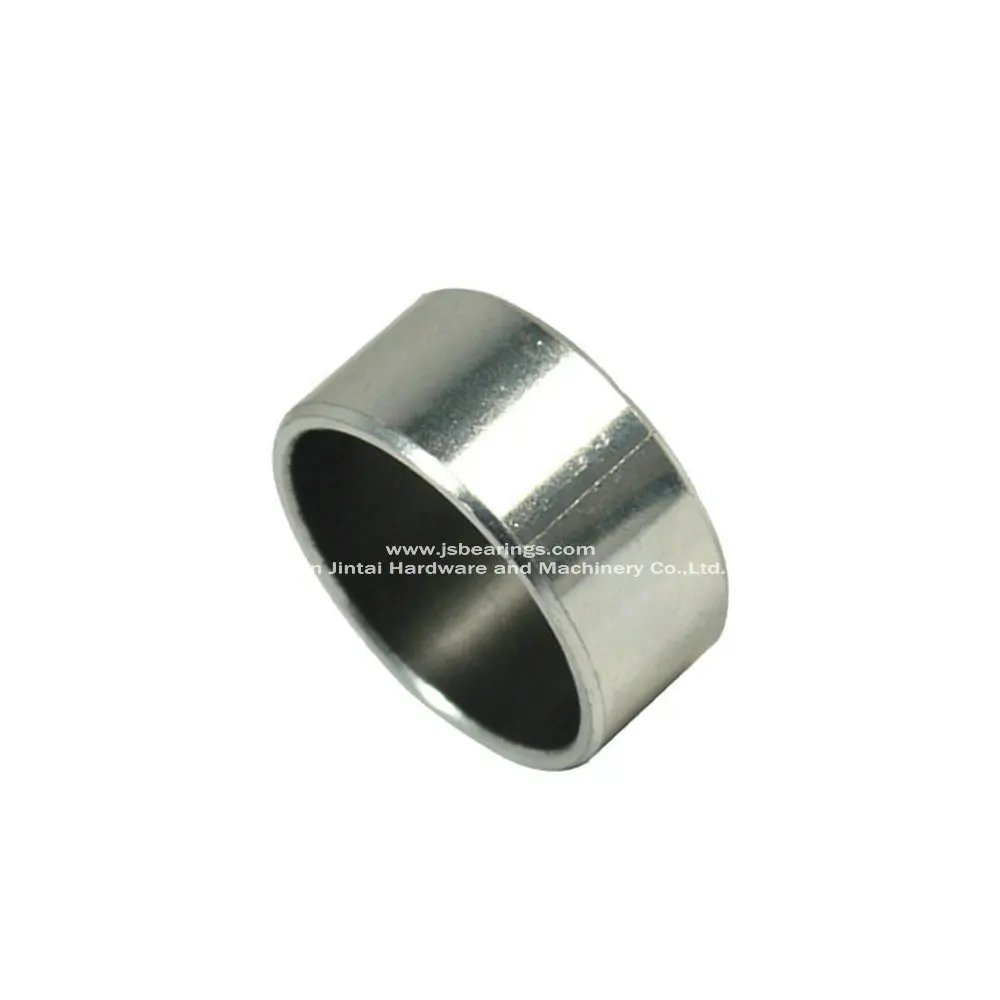

Introduction of SF-1(DU) PTFE composit bushing

SF-1 is wall wrapped bushing made of triple layer composites material which be consisted of a steel backing a sintered prrous bronze particles interlayer and calendared with PTFE and Pb mixture as surface layer. It is of low friction coefficient, anti-wear , anti-corrosion and can be used without oil, or only a trace of oil if needed. Moreover, it is of low cost, low vibration and low noise, compacted and light, SF-1 is widely applied in various sliding articles of different kind of machines, such as textile machines, tobacco machinese, hydraulic vechicles, automobiles, agriculture and forests machinese and so on.



1  Features:

  1.1 It fits for low speed, heavy duty

  1.2 Well anti-wear
  1.3 Low vibration, low noise. compact and light





2  Specifications:

2.1 Material	Steel backing	Steel+Sinterd Bronze powder+PTFE+Pb+Polymer
	Bronze backing	Bronze+Sinterd Bronze powder+PTFE+Pb+Polymer
	Stainless steel	S.S.+Sinterd Bronze powder+PTFE+Pb+Polymer
	Stainless steel	Stainless Steel+PTFE +Polymer
	Pb Free(RoHS)	All above types without Pb available
2.2 Load capacity	Static load	250N/mm2
	Dynamic load	140 N/mm2
	Oscillating	60 N/mm2
2.3 Speed Limit	Oil lubricating	5m/s
	Dry friction	2.5m/s
2.4 PV value limit	Oil lubricating	50N/mm2.m/s
	Dry friction	3.6 N/mm2.m/s
2.5 Friction coef		0.04¬0.20
2.6 Working temperature		-195~+280°C



3  Cross of composit



4  Sizes List

  4.1 sleeve



  4.2 flanged

  4.3 washer

5  Production

6  Plant

7  Production Line

8  Inspection

9  Packings:



10  Other bushings are available too:

Wrapped bronze bushing / bronze bushing / Bimetal bushing / Solid bronze bushing / sintered bushing / graphite bushing





11  Our sliding bearings including:

11.1 SF-1(du) oilless bearing bushing (PTFE Composite)

11.2 SF-2(dx) slide bearing bushing (POM Composite)

11.3 FB090(FB090G) bronze bushing

11.4 FB092 bronze bushing

11.5 JDB,JFB solid graphite lubricating bushing

11.6 JF bi-metal bushing

11.7 FU sintered bronze or iron bushing

11.8 FZ POM/Al/Cu ball cage retainer

11.9 JGB Graphite bearing



Welcome inquiry us for details so that we can offer you related information at the first time!

Also we can make customized bushings as per your drawings or samples.
