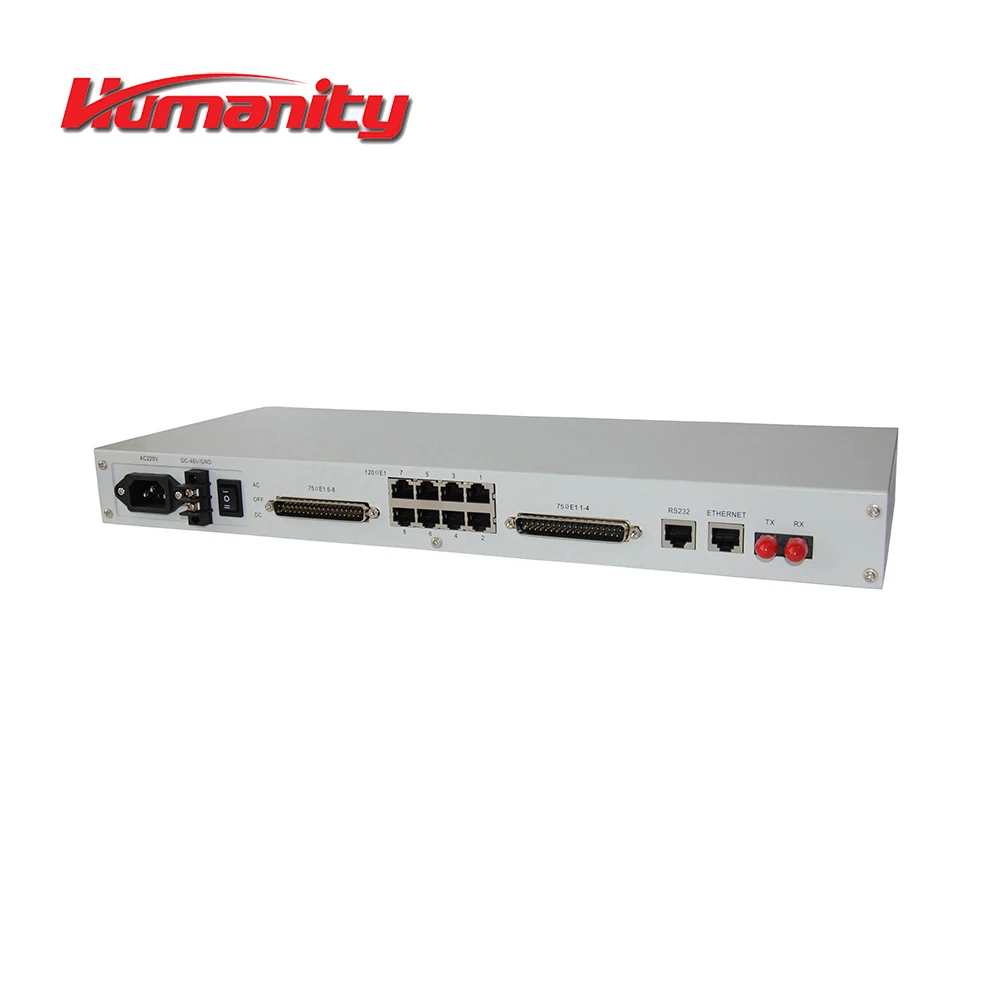

Humanity PDH E1 and Ethernet Multiplexers

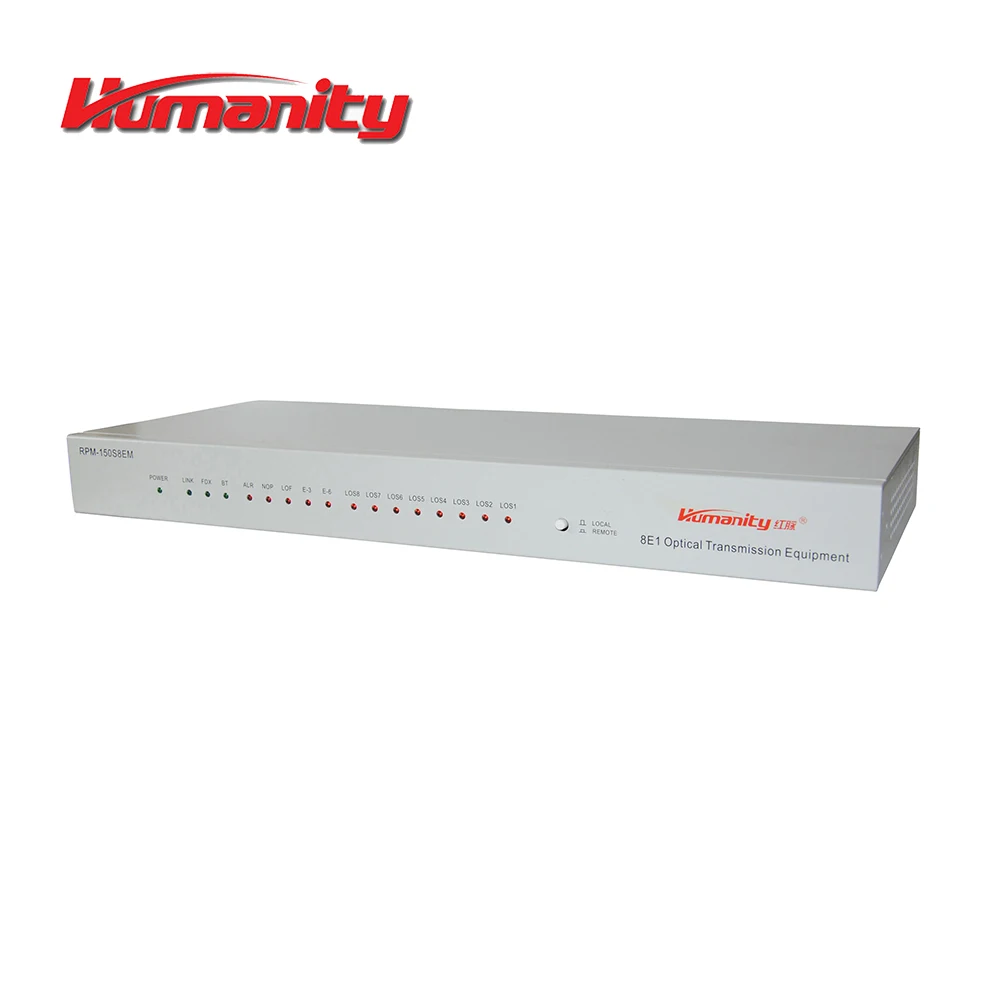

RPM-150S8EM Humanity( telecommunication equipment supplier ) PDH 8E1 and Ethernet Multiplexers realizes maximum 8E1 and RS232 transmission over fiber. Ethernet is option. It's with full alarm monitor, high integration, low power consumption, stable performance and easy to use.



Main Features

• Single board design, 1U, 19inches
• Comply with ITU-T G.703, G.823 and G.742
• Optical rate with 150Mbps
• Ethernet option with 10/100M, MDI/MDIX, full/half duplex adaptive
• One RS232 available for transmission
• Full alarm indicators, easy to monitor the local and remote device status
• AC and DC dual power supply





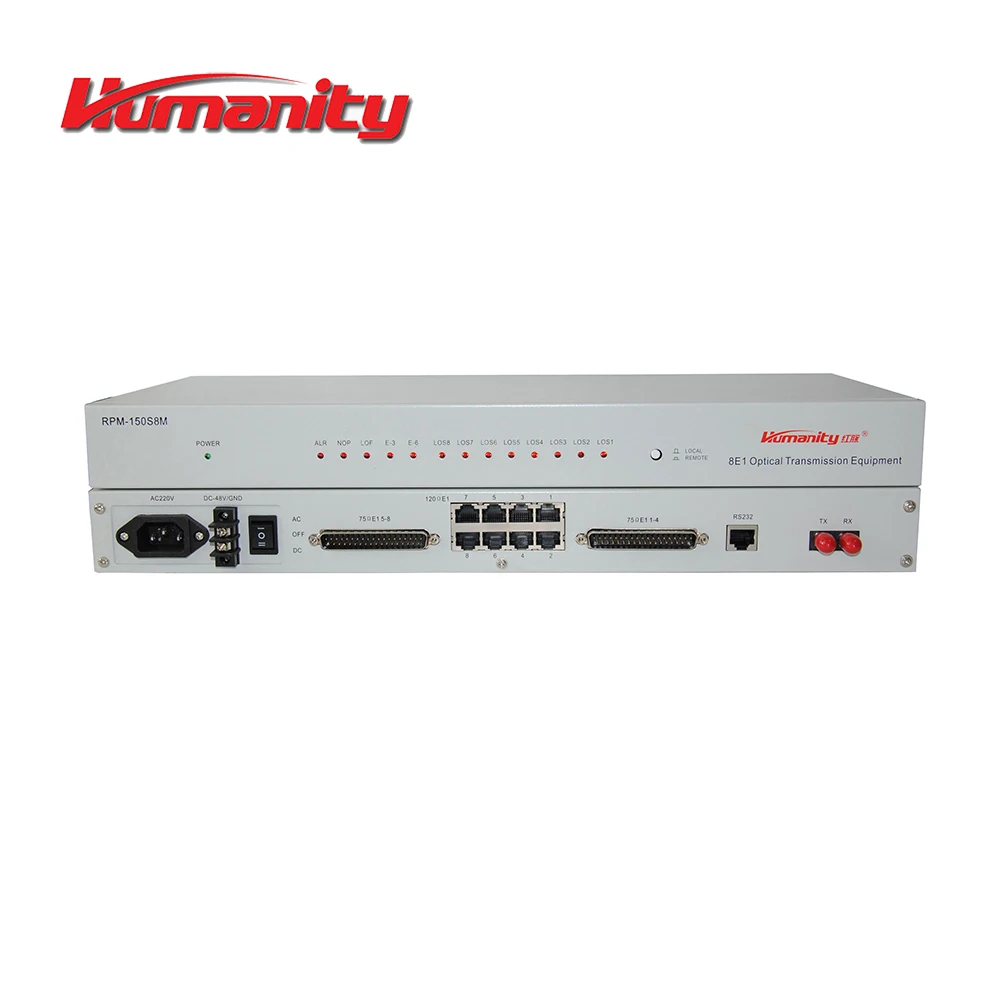

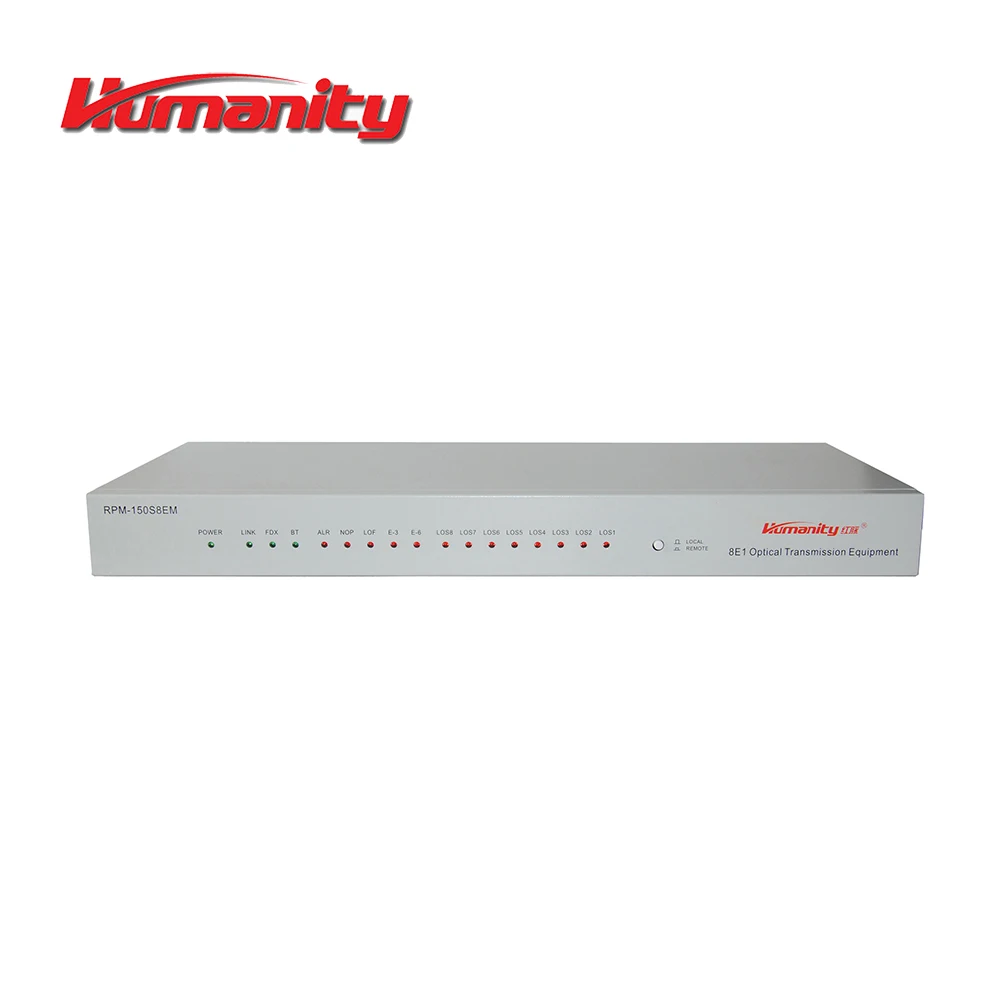

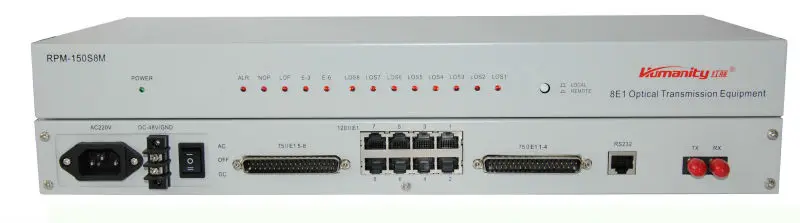

                                                                                               Front Panel

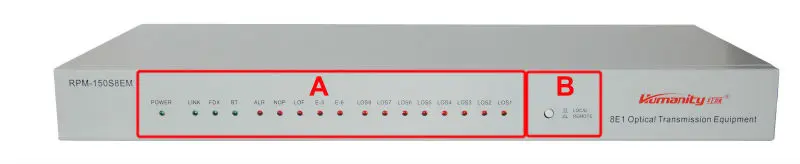

             A:  Indicators, easy to monitor the local and remote device status

             B: Button. Easy to set whether the indicators are for local or remote device







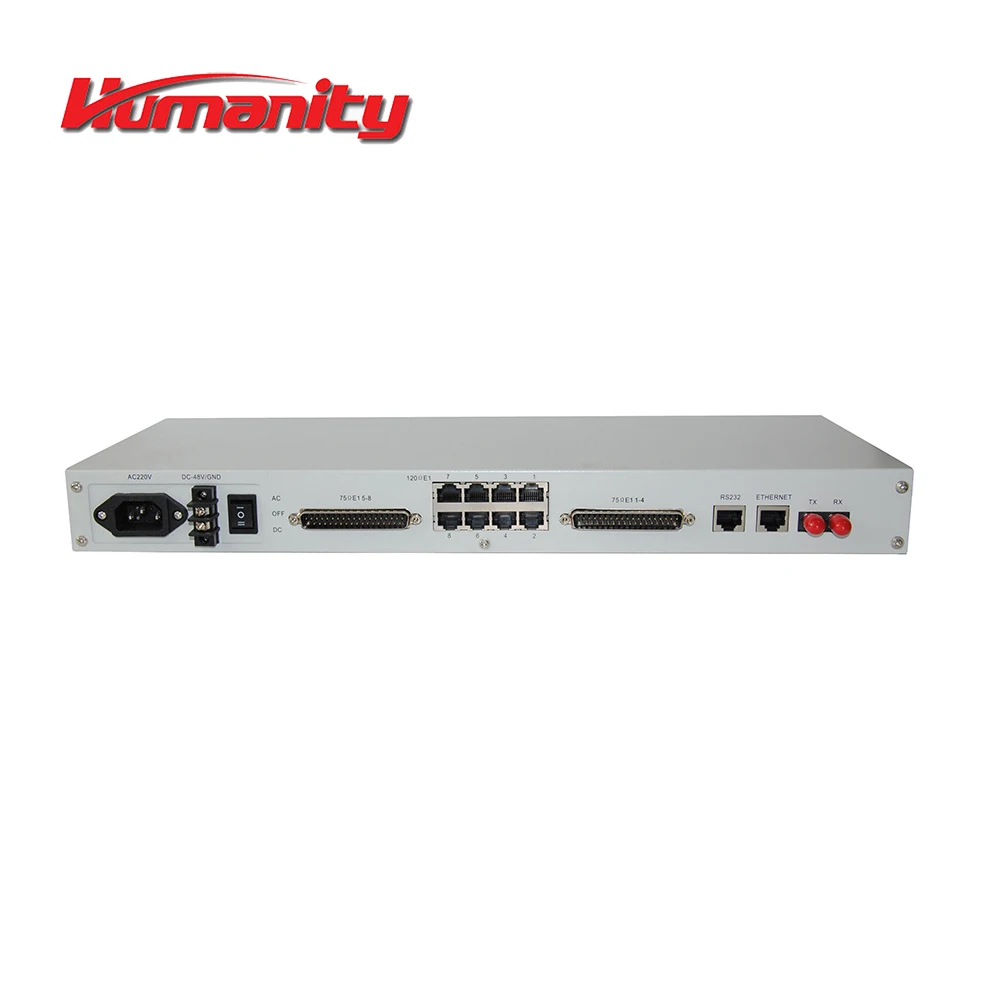

                                                                                              Rear Panel

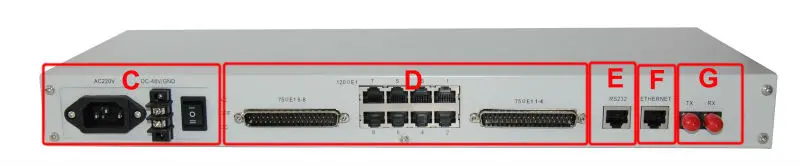

          C: Power. AC and DC dual power.

             D: E1: RJ45 for 120ohm, DB37/BNC for 75ohm

             E: RS232 interface.

             F: Ethernet interface.

            G: Optical interface.





Technical Parameters



Optical interface	Default: dual fiber, single mode, 1310nm, 40km, FC
	Optical fiber type: dual fiber/single fiber optional
	Connector: FC/SC/ST optional
	Wavelength: 850nm/1310nm/1550nm optional
	Distance: 2km/40km/60km/120km optional
E1 interface	8E1
	Comply with ITU-T G.703, G.823, G.742
	Rate: 2.048Mbps±50ppm
	Code: HDB3
	Connector: RJ45 for 120Ohm, DB37/BNC for 75Ohm
Ethernet interface	1Ethernet port available
	Connector: RJ45
	Frame length: 64kbps~1536kbps
	Auto adapt 10/100M, MDI/MDIX, full/half duplex
	MAC address table: 1024
Environment	Power: 220V±20%, -36 ~ -72V
	Power consumption: less than 15W
	Operating temperature: -5°C~50°C
	Relative humidity: ≤95%, non-condensing
	Power consumption: less than 15W
Dimensions	483*160*44mm
Weight	2.5 kg

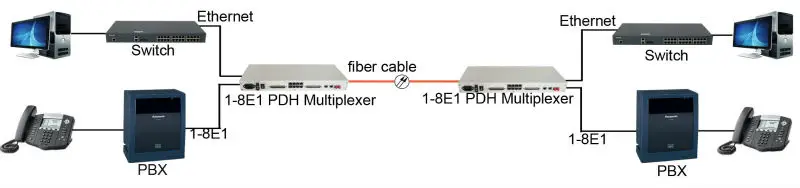

Application Diagram





 Order Information



P/N	Product Information	E1	Ethernet	RS232
RPM-150S4M	4E1 PDH Multiplexer	4	×	1
RPM-150S4EM	4E1+Ethernet PDH Multiplexer	4	1	1
RPM-150S8M	8E1 PDH Multiplexer	8	×	1
RPM-150S8EM	8E1+Ethernet PDH Multiplexer	8	1	1
RPM-150S16M	16E1 PDH Multiplexer, RJ45 or BNC optional	16	×	1
RPM-150S16EM	16E1+2Ethernet PDH Multiplexer, RJ45 or BNC optional	16	1	1
