Sewer camera with 20/30/40m cable 23mm camera head and 7 inch LCD DVR
- Category: >>>
- Supplier: TVBTECH (Shenzhen) Co. Ltd.
Share on (1051326736):
Product Overview
Description
TVBTECH NEW Pipe drain Sewer Duct Inspection Camera
With super short stainless steel 135° wide view angle 1/3” SONY CCD camera (Dia. 23mm), 7" color TFT LCD monitor and DVR recording feature
With long lasting battery for 8 hours continuous working
Cable reel is mounted and rotatablein the case
Advantages compared with competitors:
> 1/3 inch Sony CCD camera,
> 135° wide vision angle
> Sapphire glass lens cove

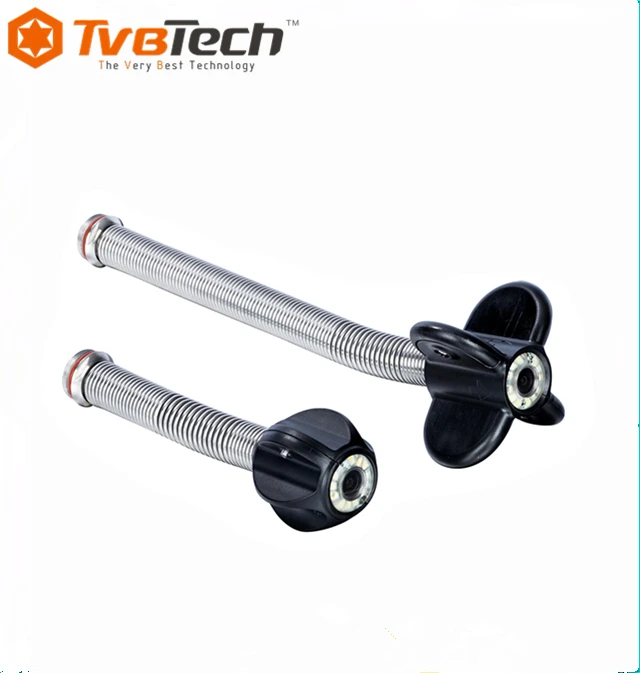

> 304# Stainless super short Camera head
> Cable reel is fixed and rotatable in the case, no need to take out and hold on hand when in using.
> Battery lasts up to 8 hours continuous working
Applications:

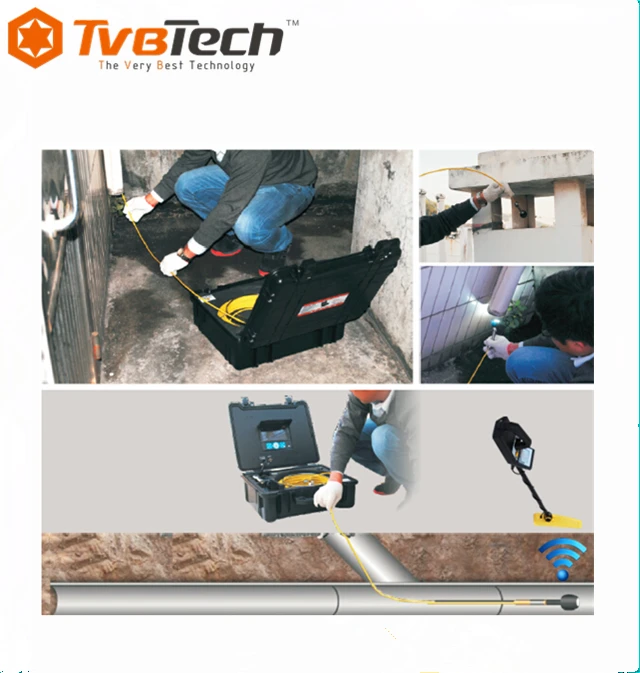

> For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
> For Maintenance of Plumbing and Wiring behind walls
Selling Features:
Video pipe inspection camera with 30m fiberglass
cable and 7" monitor with DVR feature
> 1/3 inch Sony CCD camera, 135° wide vision angle
> Stainless steel super short camera head, IP 68 water proof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 23 mm
> Rubber ring and plastic center protectors for camera head
> 7” LCD color monitor
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> Video image rotate button
> With microphone for audio recording
> Video-Out to connect to TV
> Rechargeable battery lasts up to 8 hours
> On-Screen date and time
> 30m fiberglass push rod
> Rotatable cable reel mounted in case for convenient operation
> Ability to go through bend pipes at diameter of 45mm
> Waterproof ABS suitcase with all parts included

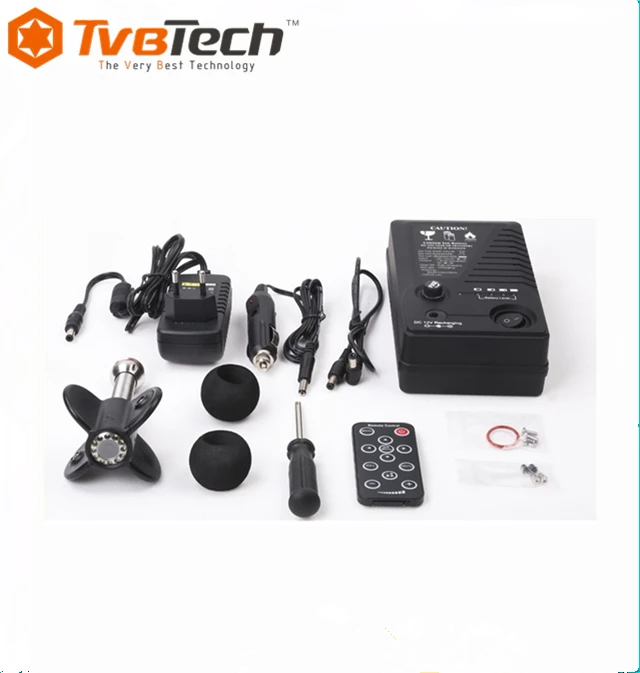

What’s included?
> Inspection camera with 12 LEDs
> USB digital video recorder with remote control
> 30m fiberglass cable and stainless steel reel
> 12v rechargeable battery
> 18cm (7") TFT LCD screen
> Sturdy storage box into which all items mount/fit
Packing details:
> Each unit in a professional tool case
> 1 unit in one carton
> Carton G.W.: 12kg
> Carton Measurement: 61 x 54 x 30cm
Specifications:
Camera Head |
| |
Sensor: | 1/3” Sony CCD |
|
Head Dimension: | 23mm (dia.) ×45mm (length) |
|
Camera Material: | 304# Stainless Steel |
|
View Angle: | 135° wide angle |
|
Lens Cover: | Sapphire glass |
|
Leds: | 12 High Bright White LEDs |
|
Water Proof: | IP68 |
|
Cable Reel |
| |
Material: | Fiberglass rod cable | |
Wheel: | Stainless steel wheel | |
Cable Length: | 20, 30 or 40m optional | |
Connector: | Gold touch-point connector | |
Rotation: | Rotable in the suitcase | |
Wheel diameter: | 33cm | |
Cable diameter: | 5.4mm | |
LCD Display and DVR |
| |
LCD Resolution: | 800*480 pixels |
|
Video Compress: | MPEG-4 |
|
Recording: | Video and audio recording |
|
Picture: | Picture shot function |
|
LCD Size: | 7 inch |
|
Language: | 9 Languages |
|
Panel Control: | Any Funtions through buttons |
|
External Memory: | SD Card (Max. 32GB) |
|
