Split Stainless Steel Solar Boiler for Solar Water Heating System(100/150/200/250/300/400/500/600/700/750/800/900/1000 Liters)

Product Overview

Description

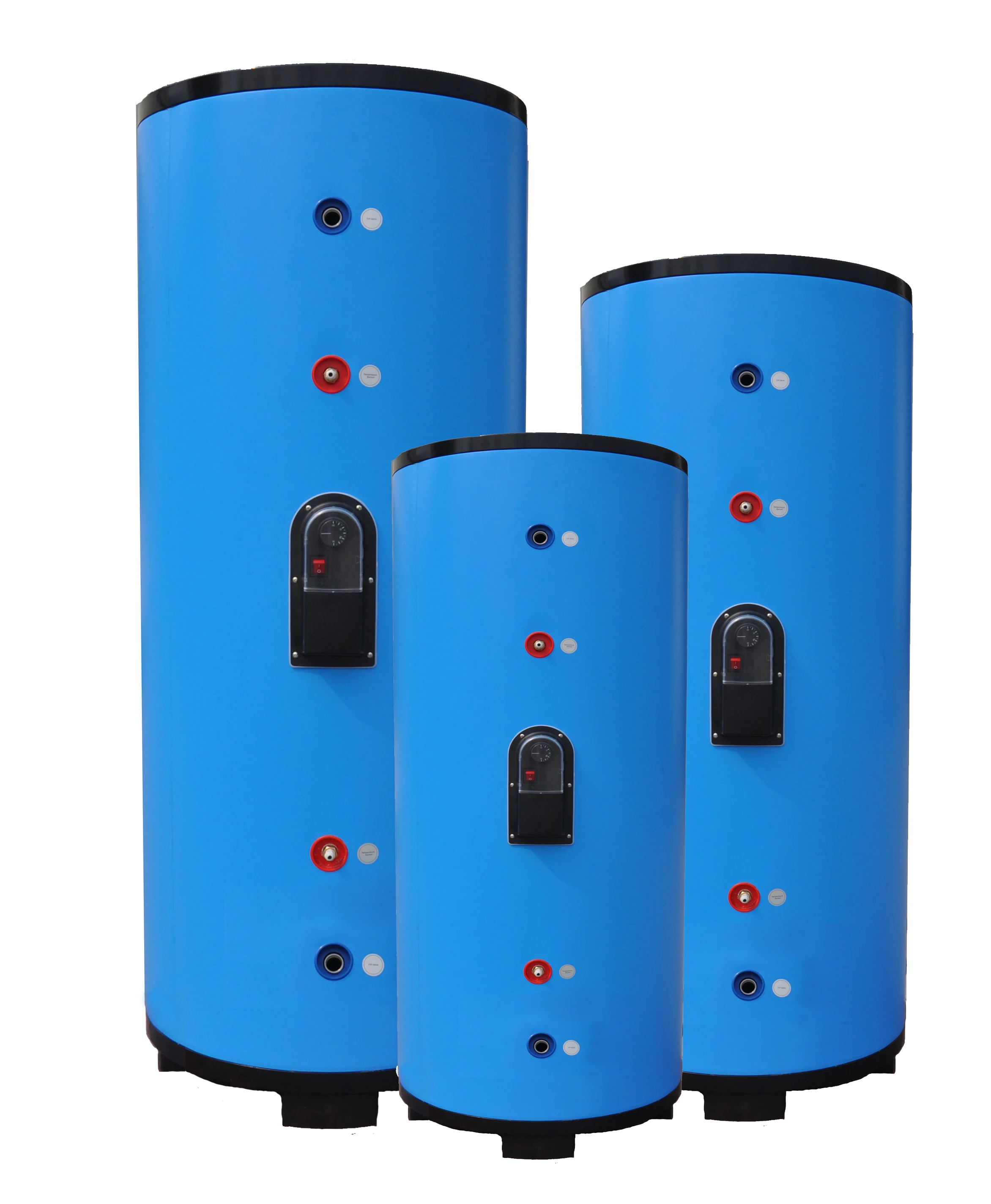

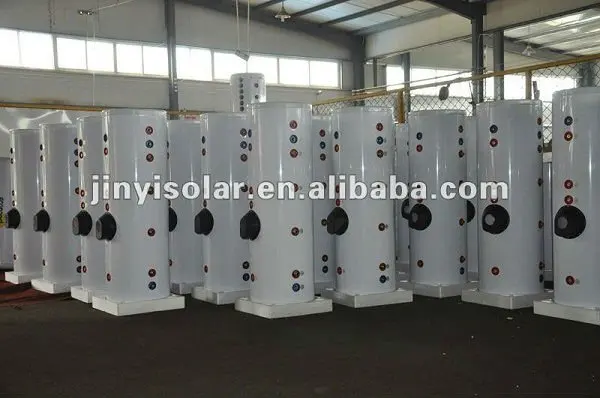

Split Stainless Steel Solar Boiler for Solar Water Heating System(100/150/200/250/300/400/500/600/700/750/800/900/1000 Liters)









 Advantages



1. Extremely low heat loss: all Jinyi stainless steel hot water boilers are very well PU foam insulated, compared to traditional mineral wool is about 40 % better, for a normal household this equals a saving of approximately 450 kWh per year. Under one-off modling/high pressure foam technology, with 50-60mm thickness, 42Kg/m³ density, the heat loss is extremely low.

 2. Anti-corrosive protection: Use super bigger magnesium anode for additional anti-corrosive protection, long service life.

 3. High heat exchange efficiency: Large heat exchanger surfaces make cylinders ideal for solar water heating system.

4. Inspection flange easily used for inspection and cleaning the inside of cylinder for maintenance purposes, guarantee the water quality.

5. Available with one or two heat exchangers, suitable for every application.

6. Adopt special Incoloy 800 electric heater, which have super anti-corrosion, dry-heat resistant, super heat conduction, etc feature.

7. Inner tank and internal heat-exchanger coils made of same material-stainless steel, can welded together, avoid potential leakage problem.

8. Each inner tank is individually tested for high pressure up to 10Bar/1.0MPa pressure





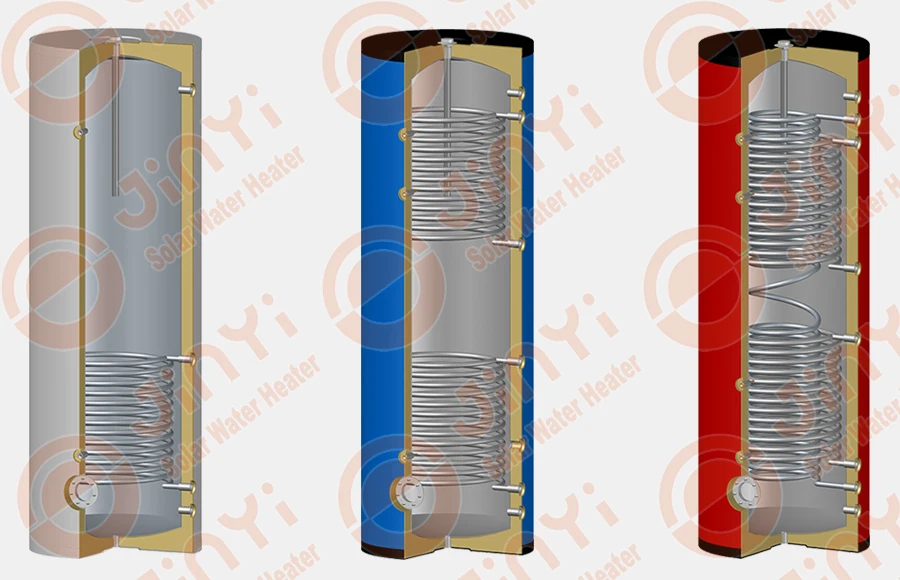

Schematic Anatomical diagram











Solar water heating system schematic diagram (2 coil)



Specification



Jinyi Stainless Steel Pressurized Solar Water Boiler Parameter Sheet
No	Item		JPT2-500
1	Tank	Capacity	500Liters
2		Inner material	SS304-2B
3		Inner diameter	Φ580mm
4		Outer diameter	Φ700mm
5		Outer material	Color steel
6		Outer color	Blue
7		Insulation layer(density)	PU foam, 43Kg/m3
8		Insulation thickness	60mm
9	Heat exchanger     (Coil)	Heat-exchanger quantity	Double/Two

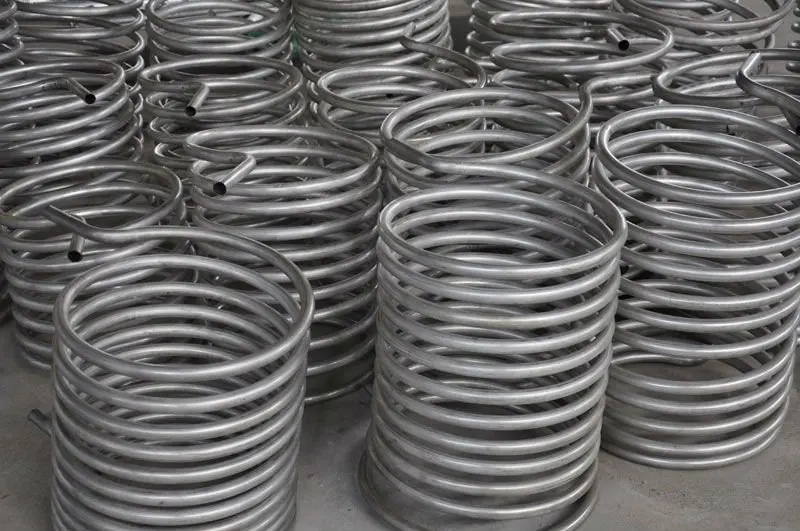

10		Heat-exchanger material	SS304-2B stainless pipe
11		Heat-exchanger location	Up side + Under side
12		Heat-exchange area	0.75m2+1.5m2
13		Heat-exchanger Max. Hydraulic Flow(m3/h)	3
14	Connector	Cold inlet	3/4''
15		Hot outlet	3/4''
16		Circulation inlet	3/4''
17		Circulation outlet	3/4''
18		Air vent hole	3/4''
19		Magnesium anode	3/4''
20		Drain outlet	3/4''
21		Temperature sensor	1/2''
22		Electric heater	1''
23		Electric heater power	1500W
24		Temperature sensor quantity	2 pieces
25	Max test pressure		1.2MPa
26	Operation pressure		0.6MPa
27	Max temperature		90°C
28	Package	Package material	Carton box & foam
29		Package size	77×77×197cm
30		Container load QTY-20'/40'	24/ 48 unit
31	Certification		CE, ISO
32	Commercial term	Loading port	Shanghai, China.
33		Sample order	Yes
34		MOQ	1 unit
35		Delivery time-sample	7 days
36		Delivery time-full container	10-15days
37		OEM	Yes
Note
1	Material option	Outer: stainless steel SS304-2B or Color steel(galvanized): Blue, white, silver gray.
		Inner: stainless stee lSS316 or SS304-2B, thickness is option too.
		Heat exchanger/coil: stainless stee lSS316 or SS304-2B pipe, pipe diameter and length are option too.
2	Logo	PVC decal, pasted on the outer tank body, print on carton package.

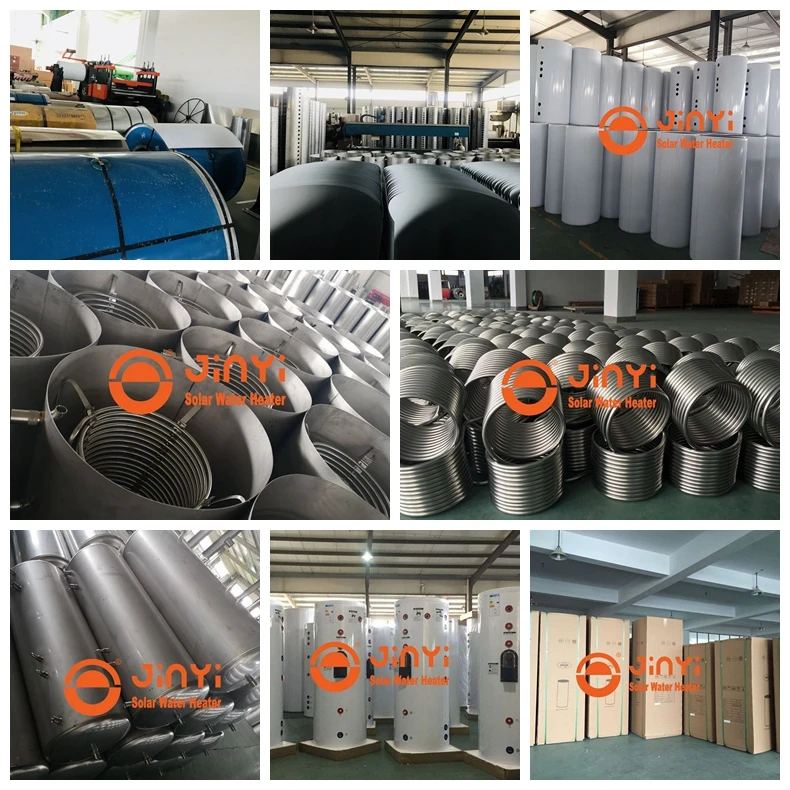

3	Production capacity	2000 units/month.
4	Price	Based on cylinder material, capacity, thickness, quantity and payment term.
5	Wedling technology	Argon arc welding.
6	Warranty	Depend on cold water quality.
7	The above product picture just for your reference.
8	Other products	Heat pipe solar collector, U type solar collector, Pumpstation, Solar hose, Compact pressurized system, Compact nonpressure system, etc.
Service
1	Customized production	Make cylinder accord to your own drawing and special request.
2	Rapid response	We anser your inquiry and email in 24hours,
3	Sample packing	Use plywood pallet to re-package and protect, make itarrival at good condition
4	Logistic	We can arrange the shipping for you.
