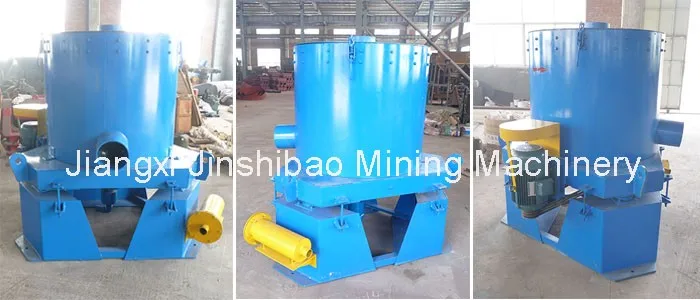

Automatic Working Gravity Separation Water Jacket Centrifugal Gold Separator
Product Description
CC (Centrifugal Concentrator) is a new type of gravity concentration equipment for concentrating gold and other high density minerals. It gets many competitive advantages compared with other concentration machines which create high returns for the investors. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator

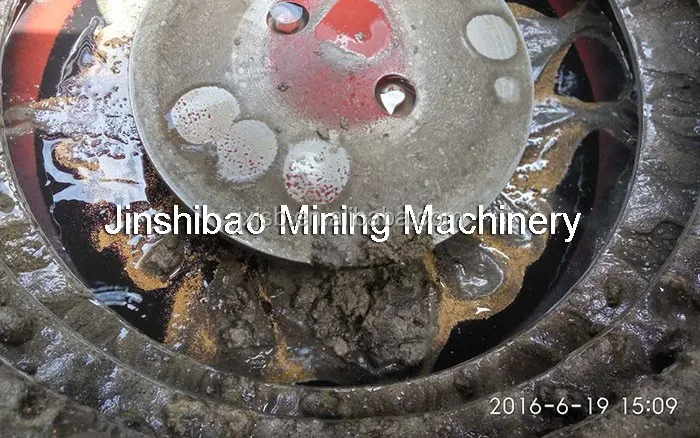

As a gravity separation equipment, CC enlarges the specific gravity differences of different minerals with the help of centrifugal force, thus it has a much better separation efficiency than other traditional equipment.
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator

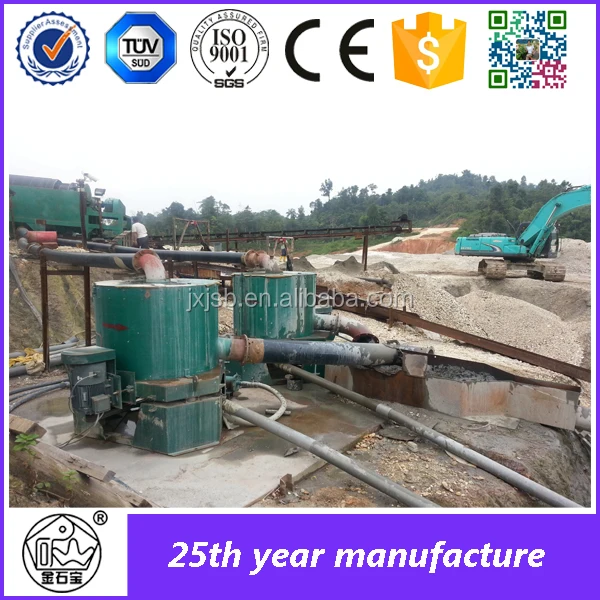

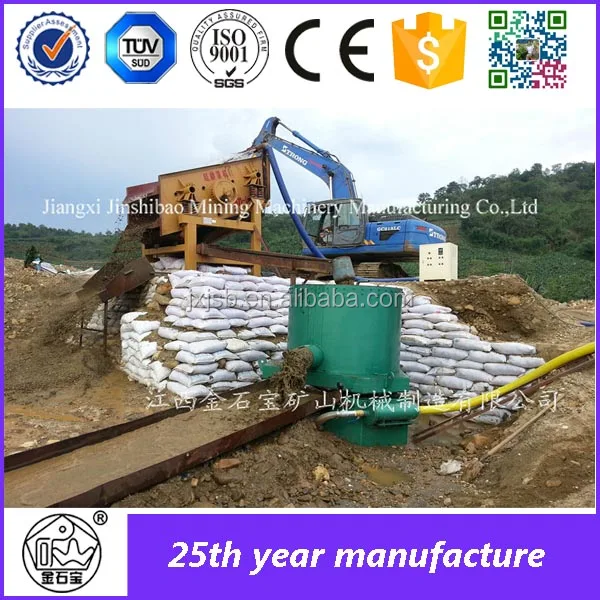

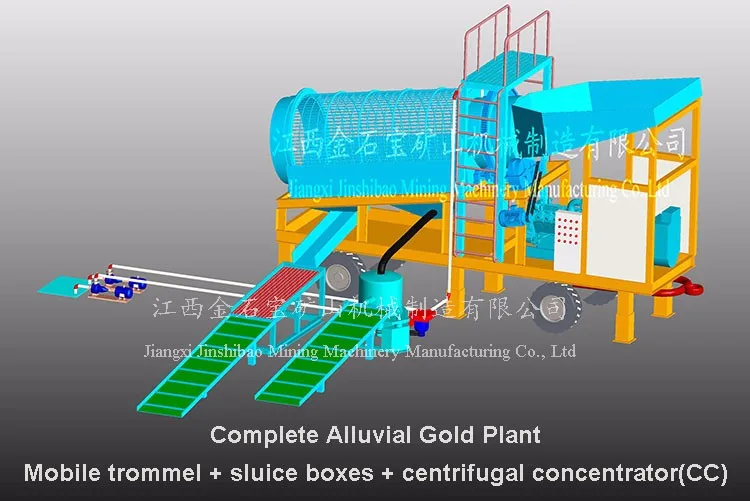

For alluvial gold processing, the concentrator is usually applied after the gold trommel to enrich the heavy minerals.
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator
Technical Parameter
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 |
Capacity (T/H) | 1-3 | 2-7 | 15-30 | 30-70 | 60-100 |
Feeding size (mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-6 |
Feeding density | <50% | <50% | <50% | <50% | <50% |
Fluidization water(m3/H) | 1-2 | 4-6 | 10-20 | 20-35 | 40-60 |
Concentrates weight(kg) | 2-3 | 8-15 | 25-40 | 60-70 | 70-80 |
Water pressure(Mpa) | 0.06-0.1 | 0.1-0.15 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
Motor power(kw) | 0.75 | 1.5 | 4 | 11 | 18.5 |
Dimension(mm) | 800×700×980 | 1050×900×1150 | 1600×1400×1800 | 2100×1800×2100 | 2300×2000×2200 |
Weight(kg) | 270 | 420 | 1600 | 2500 | 3750 |
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator
Why choose us
| Jinshibao Concentrator | Others concentrator | |
| Automation of concentrates discharge | Automatic | Manual |
| Time of concentrates discharge | 2-5 min | 20-30 min |

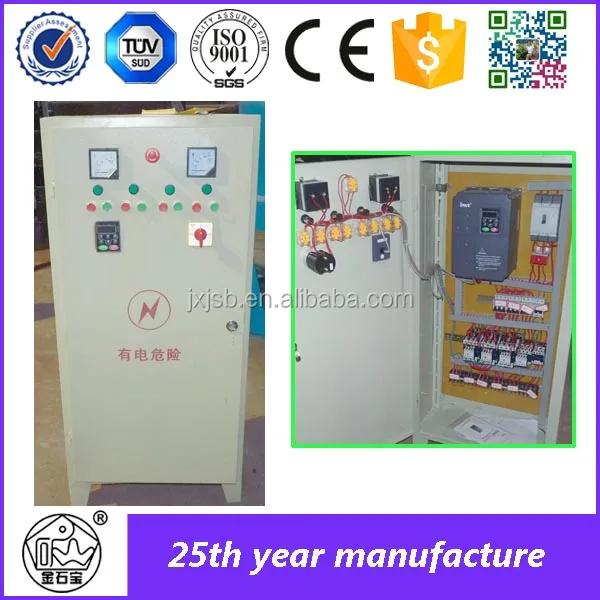

| Frequency control box | Can be configured | Cannot be configured |
Automation after configuring frequency control box | Full-automatic Fluidization water feeding, concentrates discharging, flushing water feeding, machine start and stop all can be fully automated. | Cannot be configured |
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator

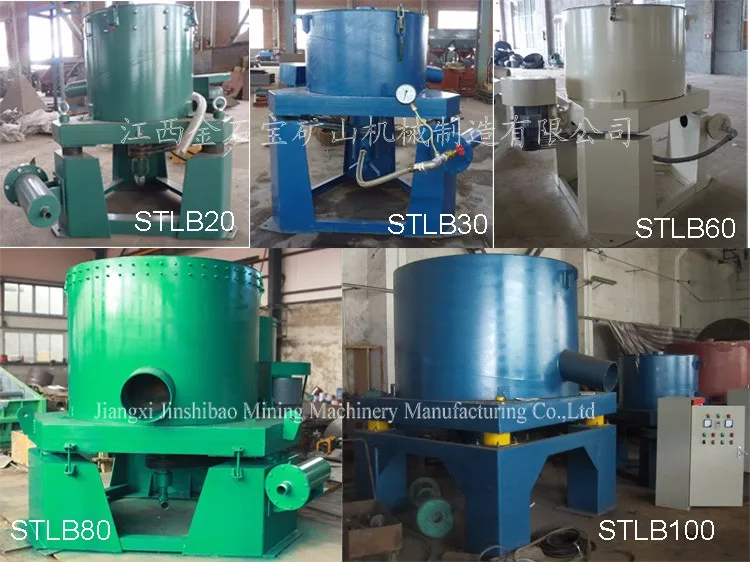

Below are the hot selling models:
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator

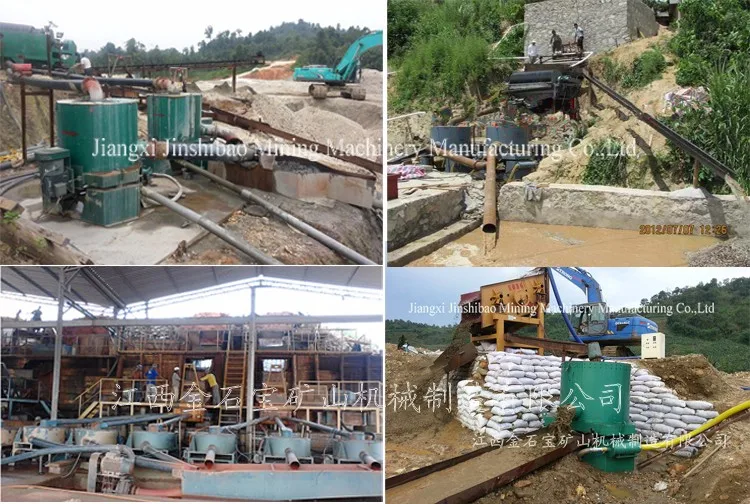

Engineer cases
Jinshibao centrifugal concentrators have been widely applied on different mining sites and gotten very good feedbacks from customers.
Centrifugal Gold Separator Centrifugal Gold Separator Centrifugal Gold Separator

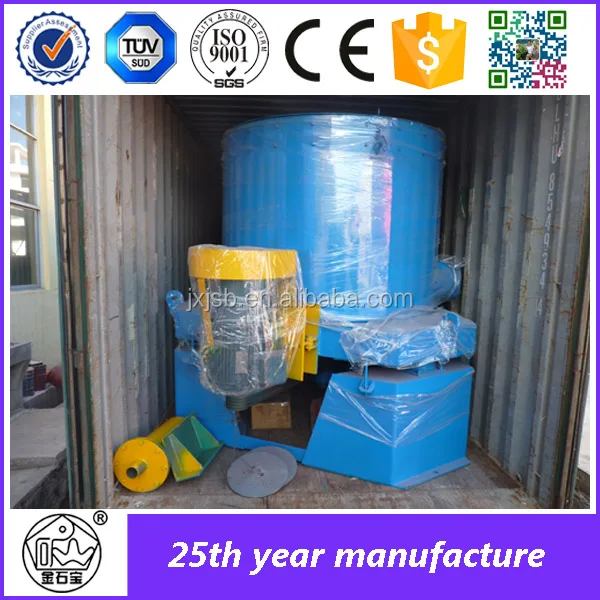

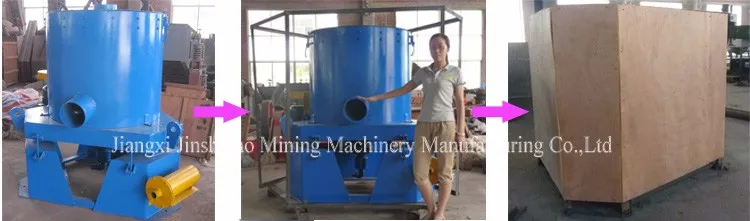

Packaging & Shipping
LCL: The machine body is usually packed in steel frame together with plywood. The convertor is packed in plywood box.

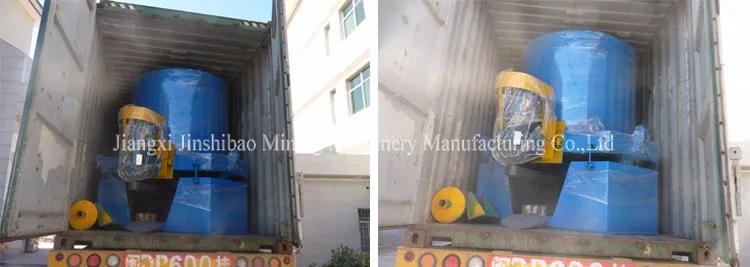

FCL: The concentrator is fixed in the container after wrapped by thin film.
Company Information
Jiangxi Jinshibao Mining Machinery Manufacturing Co, Ltd was founded in 2001. It is mainly engaged in:
1. Mining machinery manufacturing
2. Experimental analysis on sample ore
3. Flow chart designing
4. Installation and debugging
5. Technical support services
Its main products contain shaking table, ore washing machine, centrifugal concentrator, spiral chute, crusher, ball mill, vibrating screen, classifier, flotation machine, Jigger and so on.
