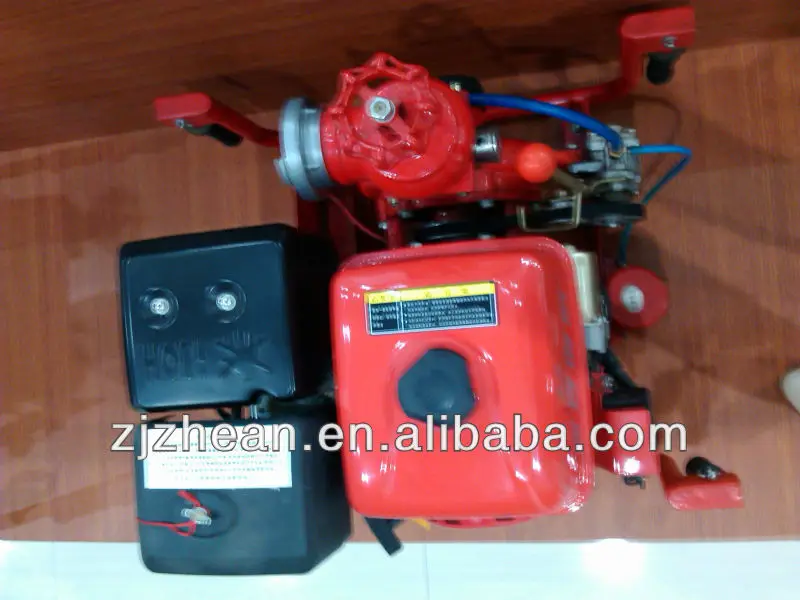

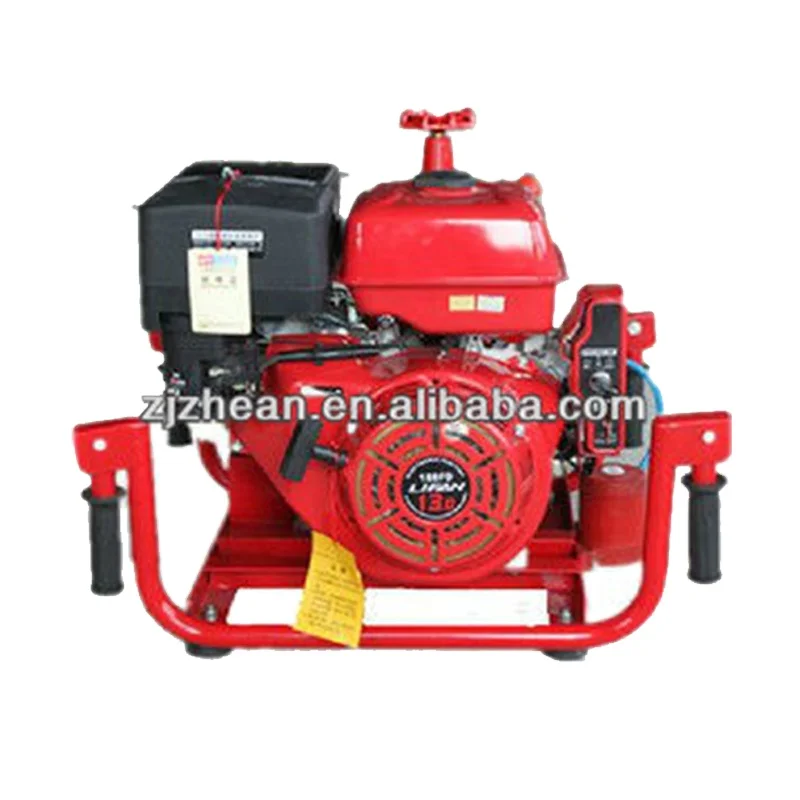

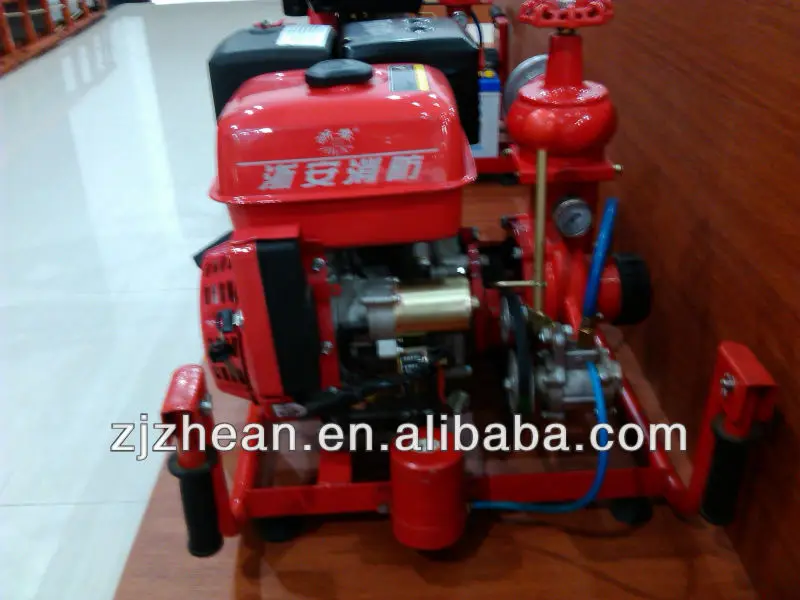

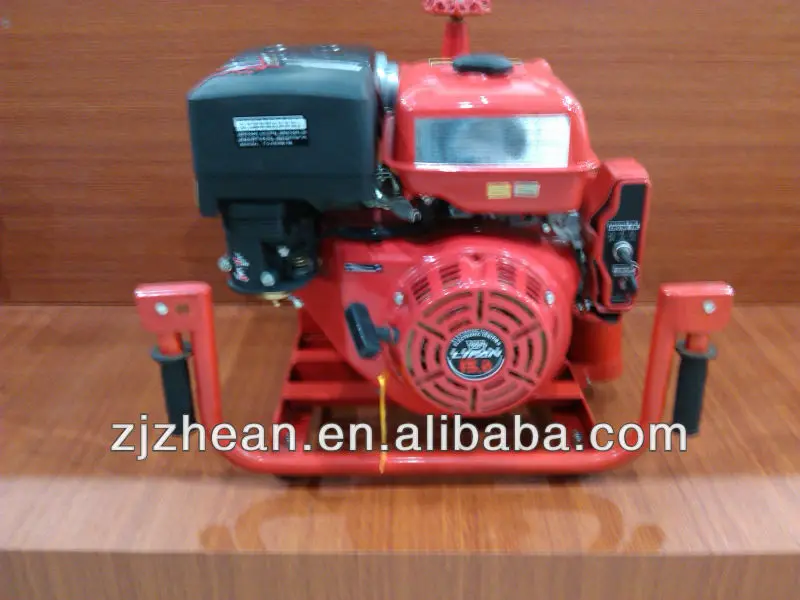

fire pump with engine for 13HP

Product Overview

Description

portable fire pump with engine



single-stage centrifugal pump









1. The engine: type: forced air cooling, four stroke, OHV25 ° oblique, single cylinder;



    Cylinder diameter X stroke: 88 x64;



    Compression ratio: eight-to-one,



    Maximum power and speed KW / (r/min) : 9.7/3600;



    Maximum torque and rotational speed N.M (r/min) : 26.5/2500;



    Ignition mode: transistor ignition;



    Start way: since the return type hand pull start, electric start-up.



2. Water pump: type: single-stage centrifugal pump;



Flow: 35 m ³ / h,



Head: 50 m;



Pilot ways: vane vacuum pump water diversion;



Maximum imbibition depth: 7 m;



Pilot time: 7 m suction deep in 30 seconds or less;



Outlet diameter: 65 mm



Water caliber: 65 mm



Physical size: 620 x590x525mm



the method of use



1. Before using check: (1) check oil cup of oil is in the police scale line above, if not, it should add full;



(2) the gas tank cap open, add in 90 # gasoline;



(3) check the pump shell of the drain valve is closed.



2. Starting engine:

(1) the electric START, will electric START switch switch to "START" position;



(2) the people control cable device starting engine;



(3) after the engine starting, the choke the largest open, adjust speed control knob, the desired speed;



3. Pilot: (1) the closed water pump pump body of water valve;



(2) the clockwise rotation the handwheel at the top of the discharge valve, shut off the water valve,



(3) will speed control knob transferred to the appropriate location;



(4) stay vane pump bottom nozzle continuous extrusion vapour, take a little water valve;



(5) such as nozzle outlet continuous normal, and loosen the pilot handle, make the vane pump in non-working status;



6 will discharge valve fully open.



 Stop:

(1) the first shed load, no-load running 2-3 minutes, the cut-off switches OFF (shut) position or unplug spark plug can stop;



(2) the closed water valve;



(3) open water pump pump body of water drain valve, put all water.
