computerized gear roll tester model p1
- Category: >>>
- Supplier: KUDALE INSTRUMENTS PVT LTD
Share on (105497640):
Product Overview
Description
Products Description

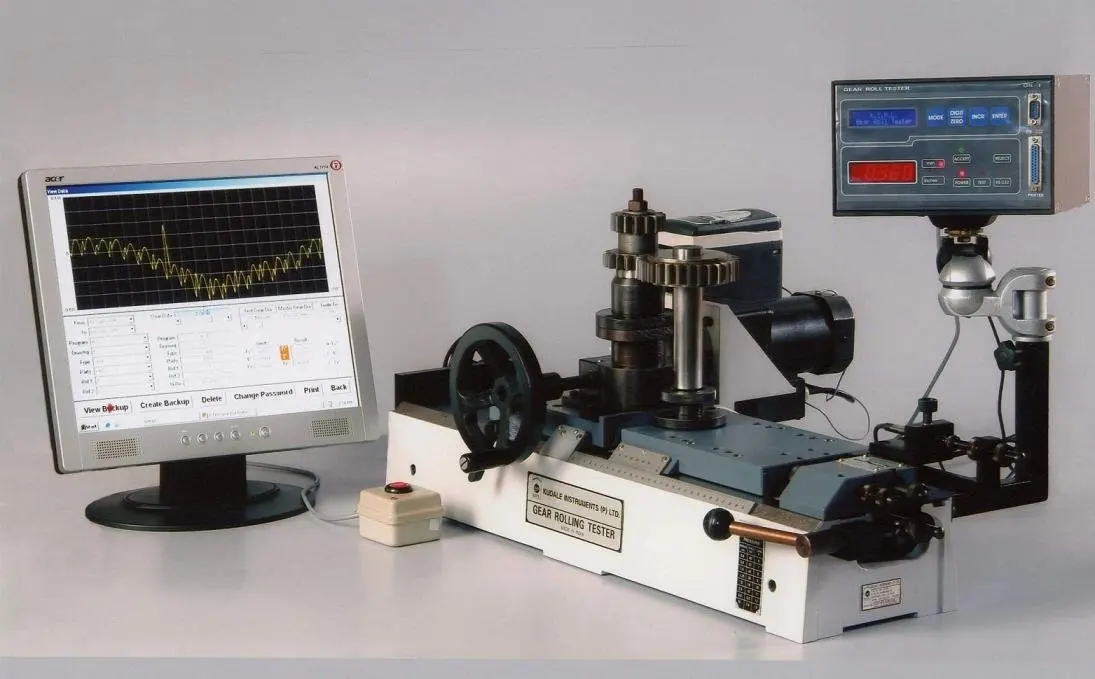

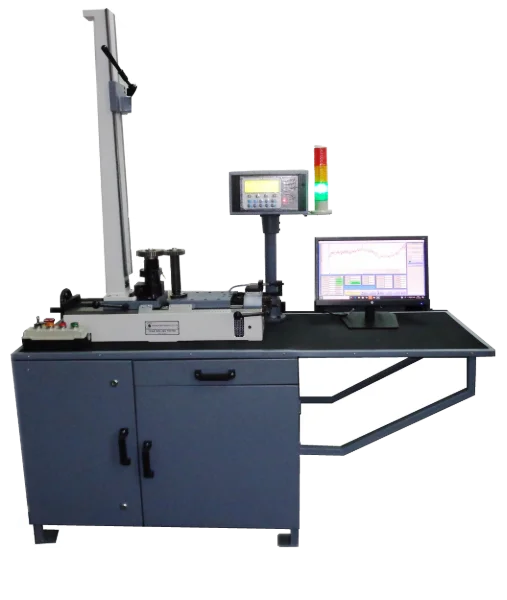

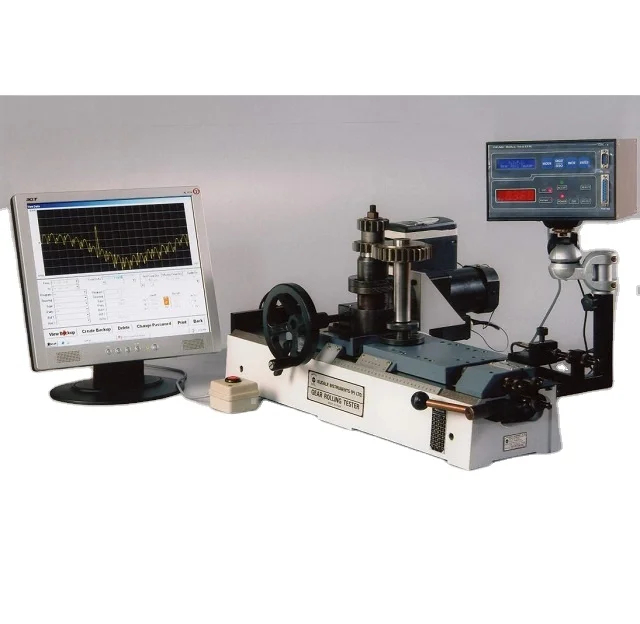

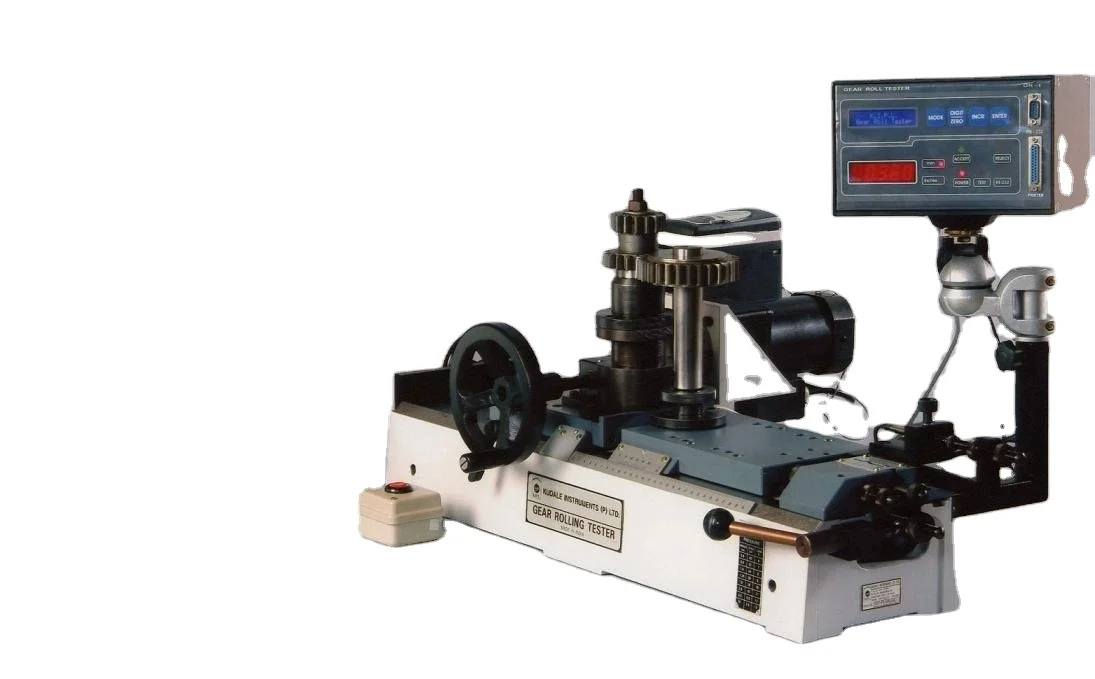

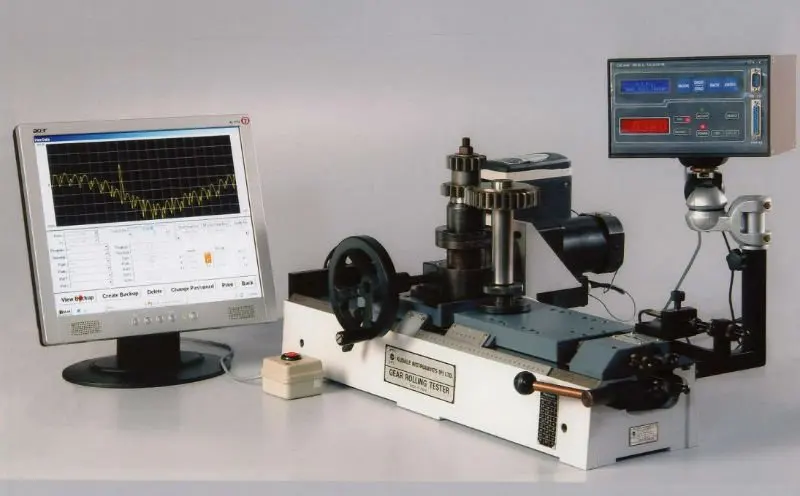

Computerized Gear Roll Tester
The fully automatic Computerized and Motorized Gear Roll Tester is useful for inspection of total composite error, tooth to tooth error and Run out of gears. The test report is generated in graphical format and indicating unit shows the accept / reject results based on pre-determined entered values. The high spot pen marking attachment is also offered as per demand. This instrument is offered with our models P-1 and P-2. Useful for checking Total Composite Error, Tooth-to-Tooth error and Radial Runout error of spur and helical gears.
TECHNICAL SPECIFICATIONS | ||||||
Parameter Model | CGRT-PO | CGRT-P1 | CGRT-P2 | |||
Overall Dimensions (Basic unit) | L545 x W500 x H300 (mm approx) | L725 x W500 x H300 (mm approx) | L975 x W540 x H350 (mm approx) | |||
Center Distance | 35-200 mm | 60 to 220 mm | 80 to 350 mm | |||
Shaft gear length | 250 mm | 500 to 700 mm (Max.) | 700 mm (Max) | |||
Weight of Basic equipment a)without column b)with column | 85 kg (approx.) | 175 kg. (approx.) | ||||
Measurement System | High Precision LVDT Probe L.C.001 mm Range 2 mm | High Precision LVDT ProbeLC.001 mm Range 2 mm | High Precision LVDT Probe L.C.001 mm Range 2 mm | |||
Repeatability | Within 0.005 mm | Within 0.005 mm | Within 0.005 mm | |||
Power Requirements | Single phase 230 V, 50 Hz (±10%) | Single phase 230 V, 50 Hz (±1 0%) | Single phase 230 V, 50 Hz (±10%) | |||
Testing Speed | 3- 15 RPM | 3-15 RPM | 3-15 RPM | |||
Product packaging
Certifications
Manufacturing Technique
Company Profile
Kudale Instruments (P) Ltd. –
KIPL is an ISO 9001-2015 certified, growth oriented, technology-driven organization, engaged in manufacturing Precision Measuring Instruments and Testing Equipments, since 1974. The products manufactured by us are used for Force, Torque and Dimensional Measurement Applications and Calibration solutions. We offer high quality products at reasonable price, which gives value for money to our customers.
With the experience of over 40 years and expertise in Dimensional, Force and Torque Metrology, the Company has become a Pioneer in design and manufacture of the range of products in this category. Since inception, our products are well received by Automotive, Machine tools, Auto Components and other Engineering industries.
Why Choose Us
Our products are also popularly used in Quality Assurance and R&D Departments in Government establishments, Railways, Technical institutes etc. The unit is recognized by the Department of Science and Industrial Research, Govt. of India, New Delhi as the R & D Unit.. and Industrial Research, Govt. of India, New Delhi as the R & D Unit.
FAQ
1. Who are we?
We are based in MAHARASHTRA, India, start from 1989, sell to Domestic Market (40.00%), Eastern Asia (20.00%),
We are based in MAHARASHTRA, India, start from 1989, sell to Domestic Market (40.00%), Eastern Asia (20.00%),
Southeast Asia (10.00%), Northern Europe (7.00%), North America (5.00%), South America (5.00%), Central America
(3.00%), Mid East (2.00%), South Asia (2.00%), Africa (2.00%), Oceania (1.00%), Western Europe (1.00%), Southern
Europe (1.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Gear Roll Tester, Bevel Gear Tester, Dial Calibration Tester, Check Master (The Inspection Gauging Unit),Scale And Tape
Calibration Unit
4. Why should you buy from us not from other suppliers?
We are expert in metrology instruments used for force measurement, Torque Measurement, Dimensional Instruments
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Gear Roll Tester, Bevel Gear Tester, Dial Calibration Tester, Check Master (The Inspection Gauging Unit),Scale And Tape
Calibration Unit
4. Why should you buy from us not from other suppliers?
We are expert in metrology instruments used for force measurement, Torque Measurement, Dimensional Instruments
and calibration solutions. We are 40 years old company and employ about 50 staff members. We are ISO 9001 - 2015
Certified Company.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T,L/C;
Language Spoken: English, Hindi
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T,L/C;
Language Spoken: English, Hindi
