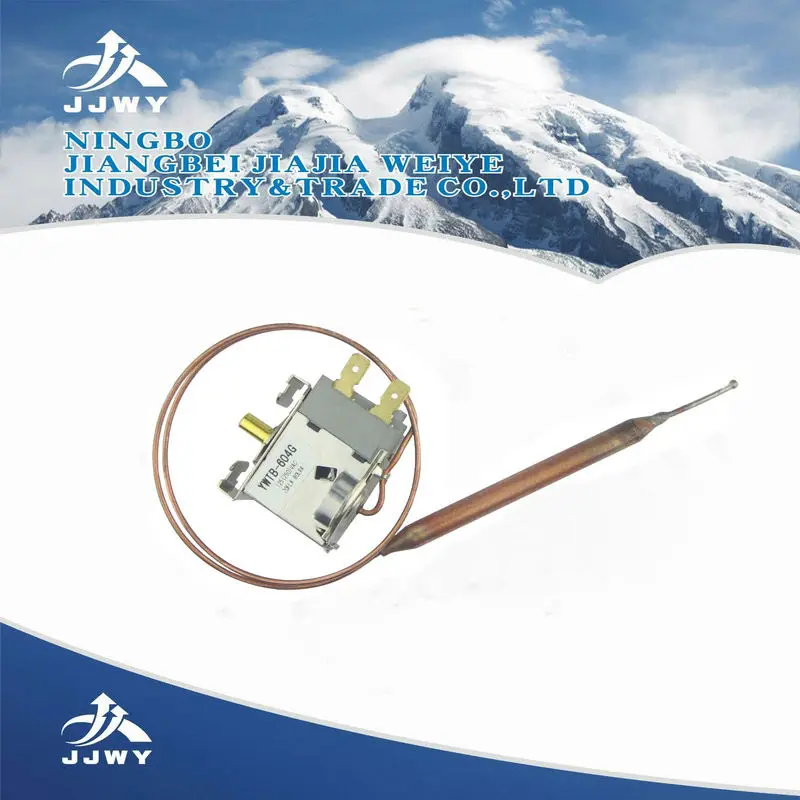

YWTB 604G saginomiya thermostat

Product Overview

Description



S Series
Model	Operating Temperature °C								Additional Functions	(mm) Capillary   length	(mm) Bulb	Contact style	(VAC)	(A)
	Force Cold		Cold		Normal		Warm
	On	Off	On	Off	On	Off	On	Off
4A					7	4				1800		S.P.S.T.	120/250	16
2202			-21	-30	---	---	-11	-20		300	8-100	S.P.S.T.	120/250	6
887846			-25	-30	-16	-20	-11.5	-15.5		240		S.P.S.T.	120/250	20
9096220			-23	-30	---	---	-10	-14		550		S.P.S.T.	120/250	6
9096241			22	19	28.5	---	---	31	Force Off	470	8-100	S.P.D.T.	120/250	6
AWTB-124GS			-25	-30	---	---	(-10)	-14	Force Off	650		S.P.S.T.	120/250	16
AWTB-173-05			(-21)	-27.5	-17	-23.5	-13	(-19.5)		230	10-60	S.P.S.T.	120/250	20
AWTB-C134			11.5	5.5	---	---	---	12.5	Force Off	1200		S.P.S.T.	120/250	6
AWTB-F133			-21	-29	---	---	-9	---	Force Off	1200		S.P.S.T.	120/250	6
AWTB-R132			-10.5	-18	---	---	11	6		1200		S.P.S.T.	120/250	6
KCR-25					5	-6				495	6-80	S.P.S.T.	120/250	6
KCR-35			(18.5)	15.5	---	---	(35)	32		400	8-100	S.P.S.T.	120/250	16
KCR-50			(18.5)	15.5	---	---	(35)	32		400	8-100	S.P.S.T.	120/250	16
PFA-606S		(11)	21	18.5	---	---	(34)	---		500		S.P.S.T.	120/250	20
PFN-124G			-25	-30	---	---	(-10)	-14		650		S.P.S.T.	120/250	6
PFN-C171			-25	-30	-16	-20	-11.5	-15.5		240		S.P.S.T.	120/250	20
QTH-004			13.5	10	---	---	32	28.5		1200		S.P.S.T.	120/250	20
SWTB-R130A			-14	-24	---	---	-2.5	-10	5	1200		S.P.S.T.	120/250	6
TH64			18	15	---	---	(33)	(30)	Force Off	500		S.P.S.T.	120/250	16
WDAS18C					18	15				1200	8-100	S.P.S.T.	120/250	16
WDF-19			3.5	-19	---	---	3.5	-8		800		S.P.D.T.	120/250	6
WDF-19S			3.5	-19	---	---	3.5	-8		800		S.P.D.T.	120/250	6
WK30-606S			22	19	---	---	34.5	32		500		S.P.S.T.	120/250	20
WL-1.5B			5.5	1.5	---	---	16	12		550		S.P.S.T.	6/12/24/36VDC	6
WP-2			6	2	---	---	14	10		800		S.P.S.T.	120/250	6
WP-4			8	4	---	---	16	12		800		S.P.S.T.	120/250	6
WP-4.5			8.5	4.5	---	---	(13)	(9)		800		S.P.S.T.	120/250	4
WP-4A					7	4				1800		S.P.S.T.	120/250	16
WP-4E			8	4	---	---	16	12		550		S.P.S.T.	120/250	6
WP-5					5	2				1200	8-100	S.P.D.T.	120/250	16
WP-5E			-2	-5	---	---	12	7		800		S.P.S.T.	120/250	6
WP-6			10	6	---	---	(14.5)	(10.5)	Force Off	800		S.P.S.T.	120/250	6
WPF-2			6	2	---	---	11	7		800		S.P.S.T.	120/250	6
WPF-5			-2	-5	---	---	12	7		1350		S.P.S.T.	120/250	6
WPF-5E			-2	-5	---	---	12	7		800		S.P.S.T.	120/250	6
WPF-8.5S			-4	-5	---	---	-8.5	-10		300		S.P.S.T.	120/250	6
WPF-20S			-9	-20	---	---	-3	-12		300		S.P.S.T.	120/250	6
WPF-22			-16	-22	---	---	-5	-10		800		S.P.S.T.	120/250	6
WR-30			15	18	---	---	27	30		240	8-100	S.P.S.T.	120/250	16
WR-30-2					5	10				1200	8-100	S.P.S.T.	120/250	16
WR-30-5					5	10				200	8-100	S.P.S.T.	120/250	20
WR-30-5b					5	10				300		S.P.S.T.	120/250	20
WR-30-5c					5	10				200	8-100	S.P.S.T.	120/250	6
WR-30C			15	18	---	---	41.5	45	Force On	450		S.P.S.T.	120/250	16
WR-30L			15	18	---	---	27	30	Force On	2000		S.P.S.T.	120/250	16
WR-33B			(18.7)	(15.7)	---	---	(35)	33	Force On	250	8-100	S.P.S.T.	120/250	16
WR-33C			(18.7)	(15.7)	---	---	(35)	33	Force On	250	8-100	S.P.S.T.	120/250	6
WR-33D					8	-11			Force On	700	6-80	S.P.S.T.	120/250	6
WR-35GD			(18.7)	(15.7)	---	---	(35)	33	Force On	350	8-100	S.P.S.T.	120/250	6
WR-35M			15	18	---	---	31.5	35		2000	8-100	S.P.D.T.	120/250	20
WR-45			15	18	---	---	41.5	45	Force Off	200	8-100	S.P.S.T.	120/250	16
WR-50-S			15	18	---	---	46.5	50	Force Off	200	8-100	S.P.S.T.	120/250	16
WSLS1.5C			5	1.5	---	---	21	18	Force Off	600		S.P.S.T.	120/250	6
WSLS12C					12	8				450	6-80	S.P.S.T.	120/250	16
WSLS-11T-8					-11	-8				500	6-80	S.P.S.T.	120/250	16
WSPS-5C					5	2				450	6-80	S.P.S.T.	120/250	16
WSPS-5S			0	-5	---	---	8	4		1000	6-80	S.P.S.T.	120/250	6
WSPS-20T-3C			-14	-20	---	---	-8	-3		1500		S.P.S.T.	120/250	6
WSPS-28T-9C			-24	-28	---	---	-9	-13	Force Off	500		S.P.S.T.	120/250	8
WSRS5C					2	5				450	6-80	S.P.S.T.	120/250	16
Y8121570S					-3	-6				790	6-80	S.P.S.T.	120/250	6
YTB-334			18.5	16	---	---	(30)	(27)		600		S.P.D.T.	120/250	20
YWTB-604G			18	15	---	---	(33)	(30)	Force On	460	8-100	S.P.S.T.	120/250	16
YWTB-604GH			18	15	---	---	(33)	(30)	Force On	460	8-100	S.P.D.T.	120/250	16
