Maggi fried Instant Noodle Making Machine Price
Instant Noodle Making Machine Price

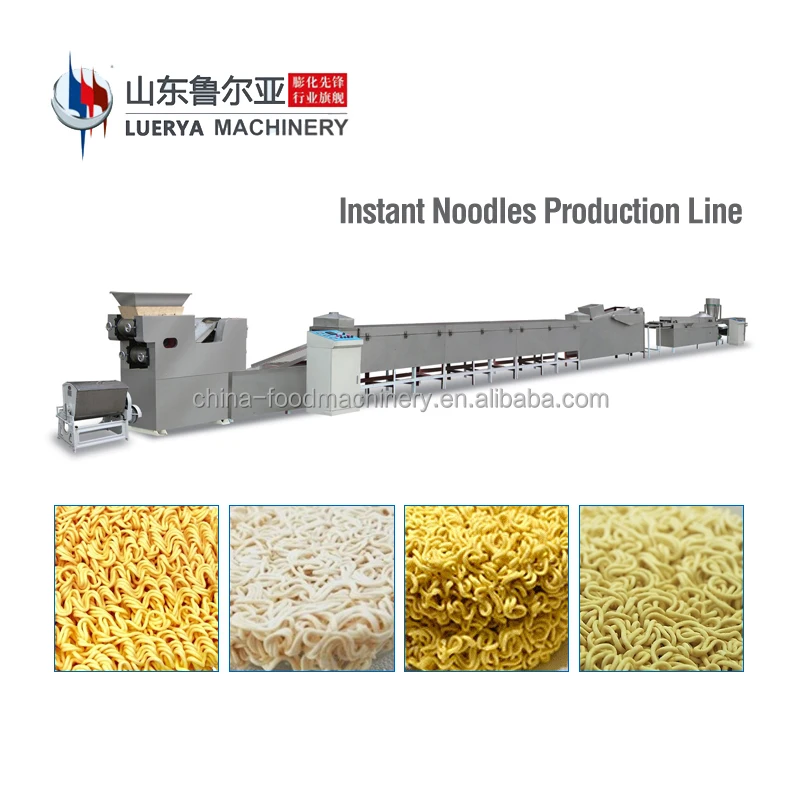

Automatic Maggi fried Instant Noodle Making Machine with price, with perfect technology, compact structure, original design and stable performance, is developed on the base of similar products and requirements in the world market.
It realizes high automation, convenient operation, low energy and small floor space that assures all working procedures from feeding flour to finished products can be accomplished once. The investment of this line is only one tenth of large size equipment, especially suitable to small-size or self-owned enterprises.

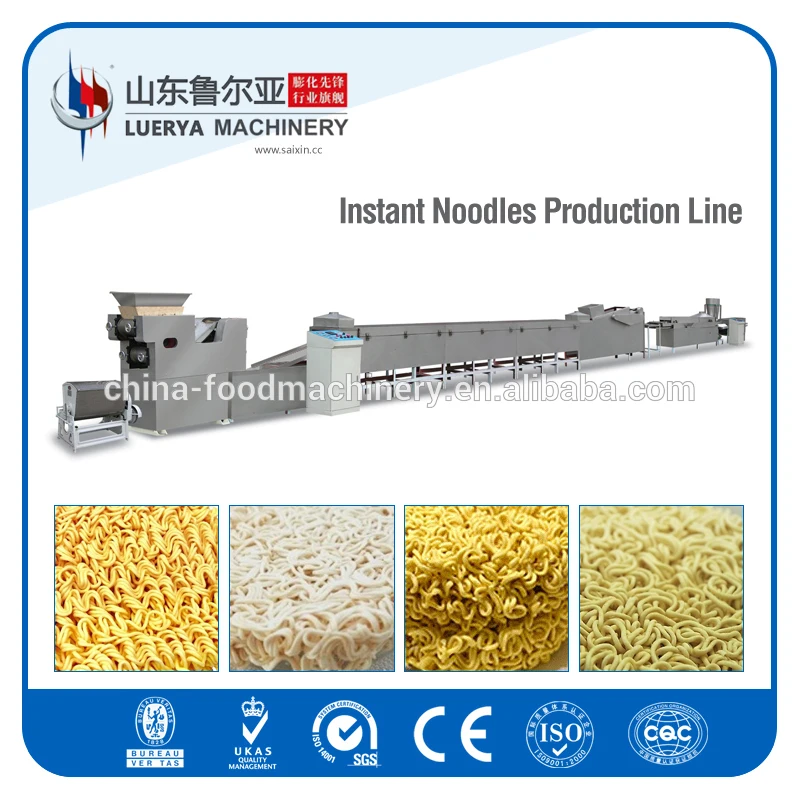

Flow chart of Maggi fried Instant Noodle Making Machine Price:
Dough maker -- Shape Former -- Boiling Machine -- Cutting Machine -- Electric Fryer/Steam Fryer -- Cooler
Depending on different request, the line could adjust as your special request.
Technical Parameter
Voltage of instant noodle making machine:
Three phases of indomie noodle production line: 380 V/50 Hz, Single phase: 220 V/50 Hz in china, we can make it according to customers' local voltage in different countries.
Technical Parameter of instant noodle making machine：
Model | Installed Powder | Steam pressure | Acting width | Throughput | Dimension |
XBF-III Electrical | 88kw | 1.5kg/cm2 | 210mm | 11000pcs/8h | 20*0.8*1.6m |
XBF-III Steam | 8kw | 6kg/cm2 | 210mm | 11000pcs/8h | 20*0.9*1.6m |
XBF-IV Steam | 8kw | 6kg/cm2 | 310mm | 30000pcs/8h | 45*1.2*1.8m |

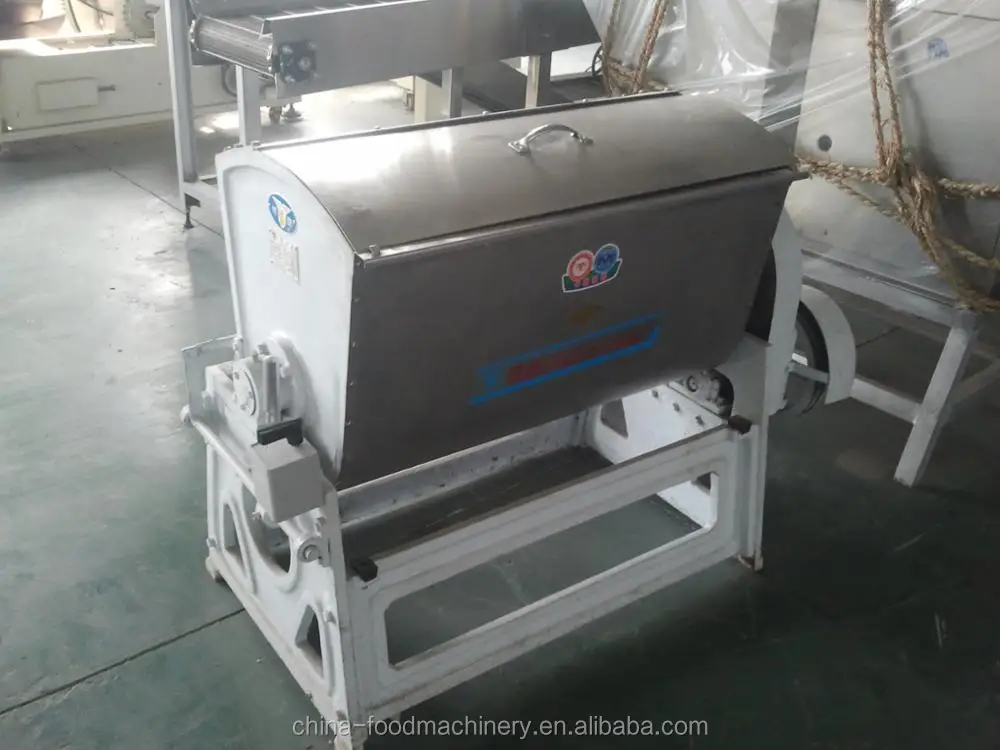

1. Mixer / Dough maker
The main function of Flour Mixer is to mix flour, salt, alkali, water and other additives evenly, this is the first step of instant noodle producing.
Technical parameter:
Power: 3 KW
Capacity: 50 kg/time
Dimension:1100×650×800 mm

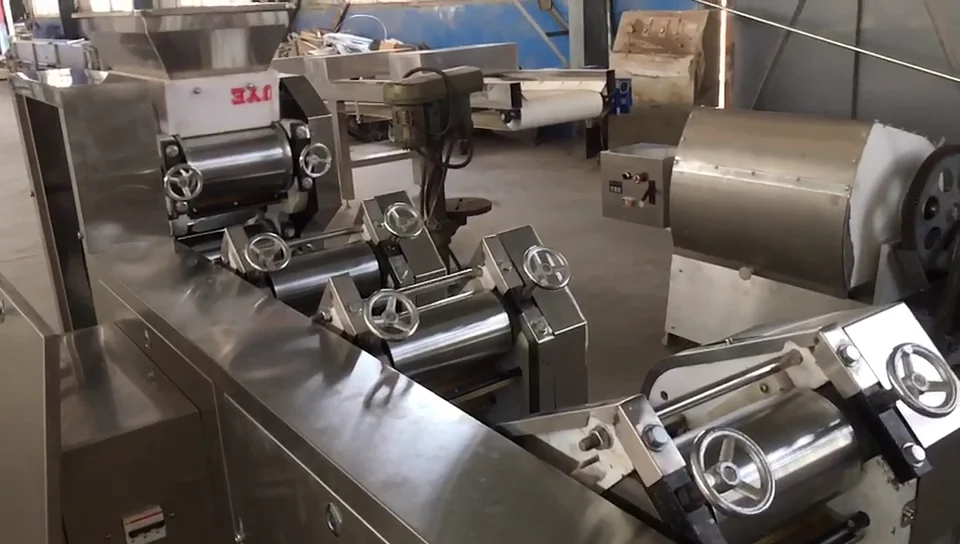

2. Double pressing shaper
1. This equipment consists of five pairs of down rollers and wave formers.
2. Function: press the mixed raw material to belt shape, and roller pressing the belt make it thinner, at last a cutting knife will cut it to strips and the wave former will make wave shape on each strip.
3. The speed of this equipment is adjusted by a transducer which is easy to control and operate.

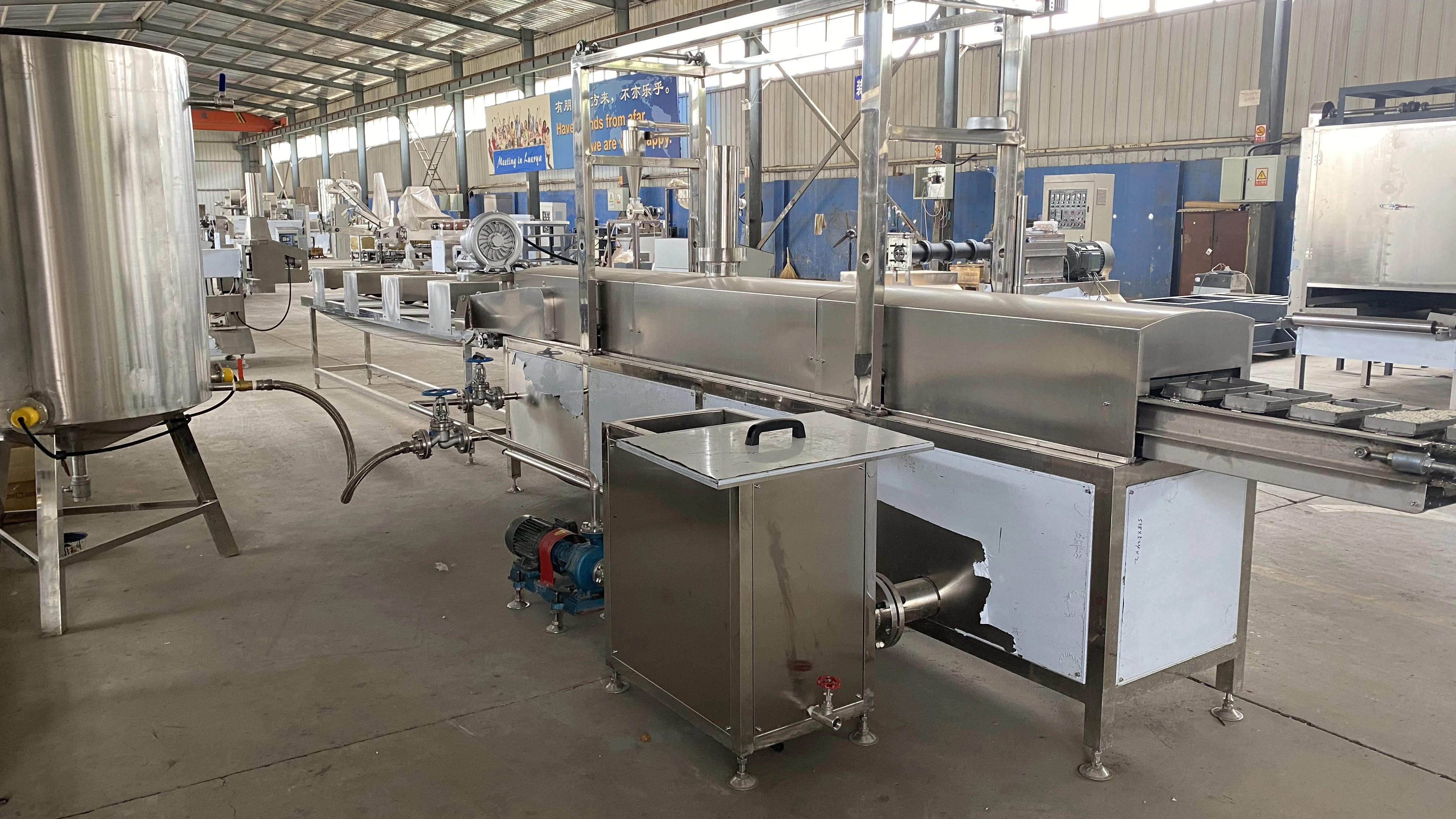

3. Boiling Machine
1. This equipment consists of body frame, boiling cases, conveying belt and steam pipelines.
2. Wave shaped noodle strips will be cooked by the steam when it goes through the case and it will have the strength and transparency characteristic after boiling.
3. The speed is adjustable which can be compatible with the Pressing shaper

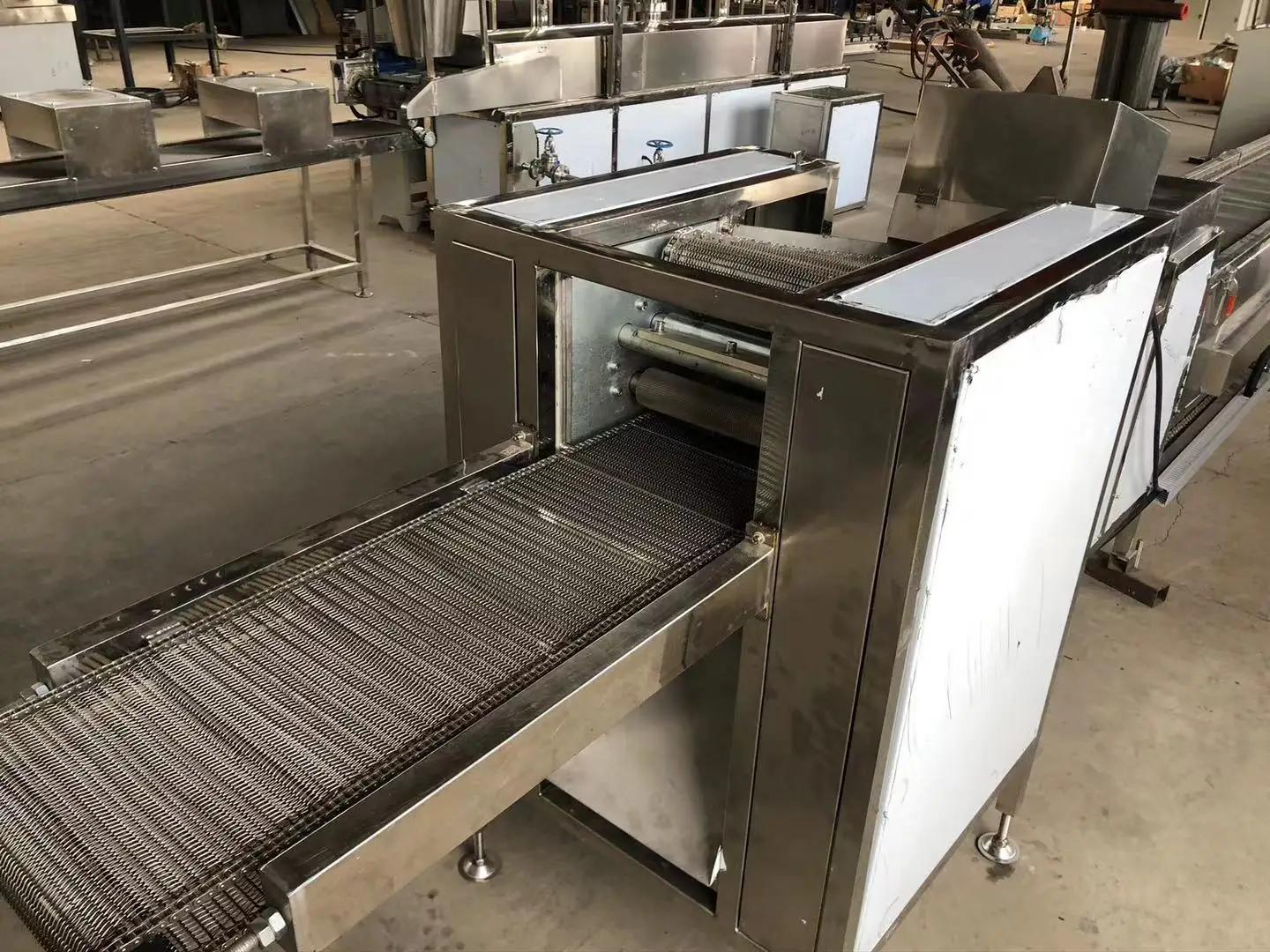

4. Auto pucker and cutting machine
1. This equipment consists of cutting knife, folding part, conveying net, machine frame and driving part.
2. The main function: Cutting the noodles in a certain length, different length means different weight, after the automaticlly folding process the noodle pieces will be putted into the fried container more easily.
5. Frying machine
1. This equipment consists of stainless frame, oil container, heat exchanger, driving part, fried shaping case and shaper part.
2. The main function of this equipment is to fry the boiled noodle and dehydrate it, after the frying, the noodle pieces will become square shape or round shape, each piece will be identical.

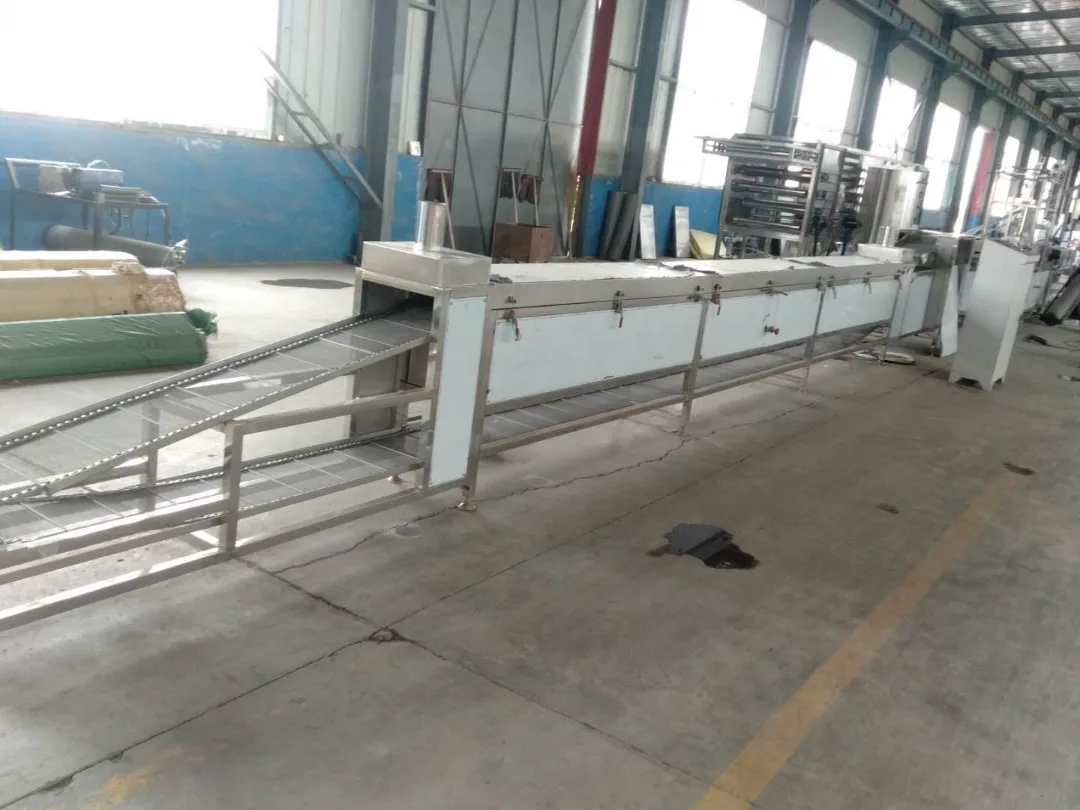

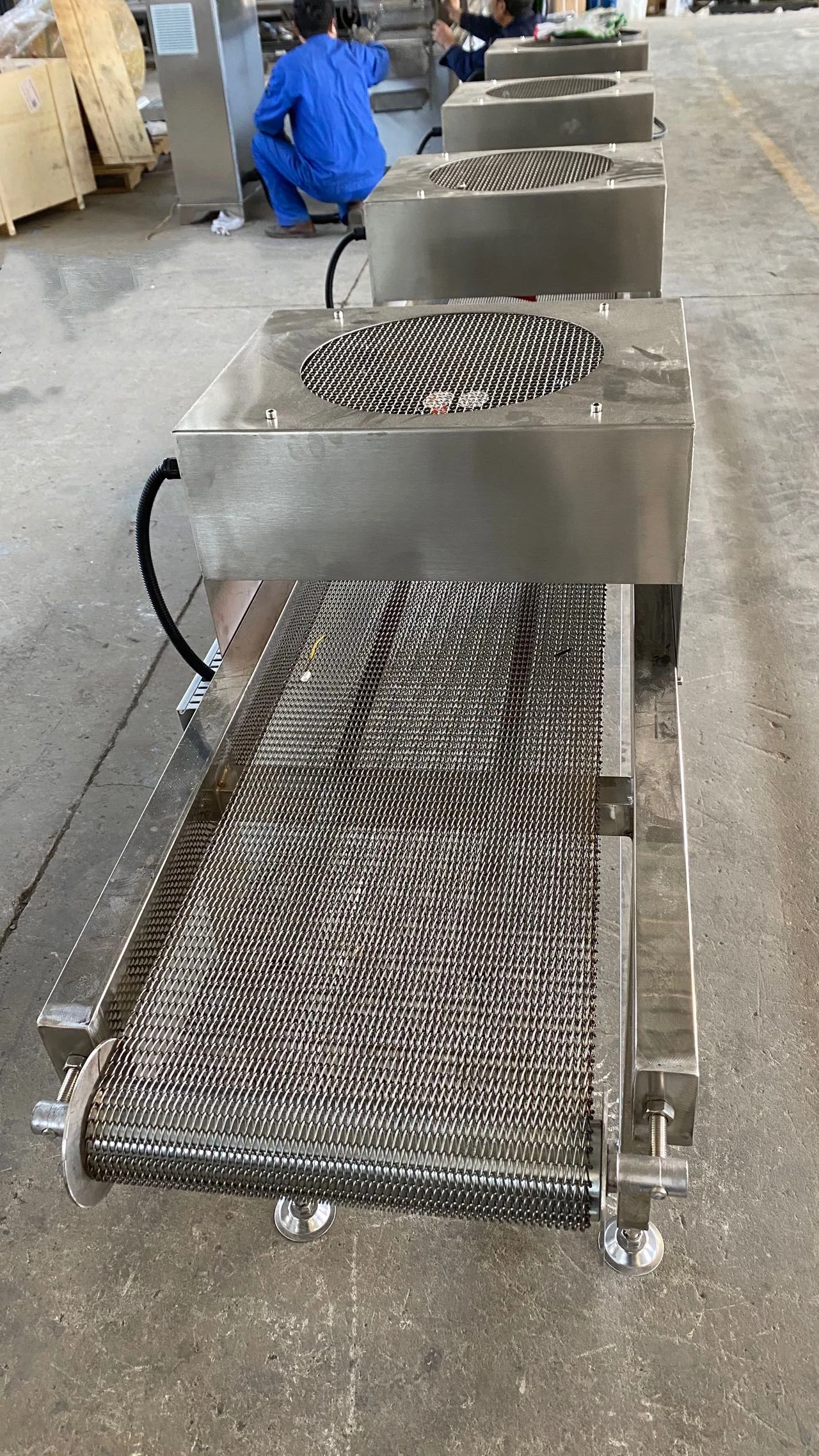

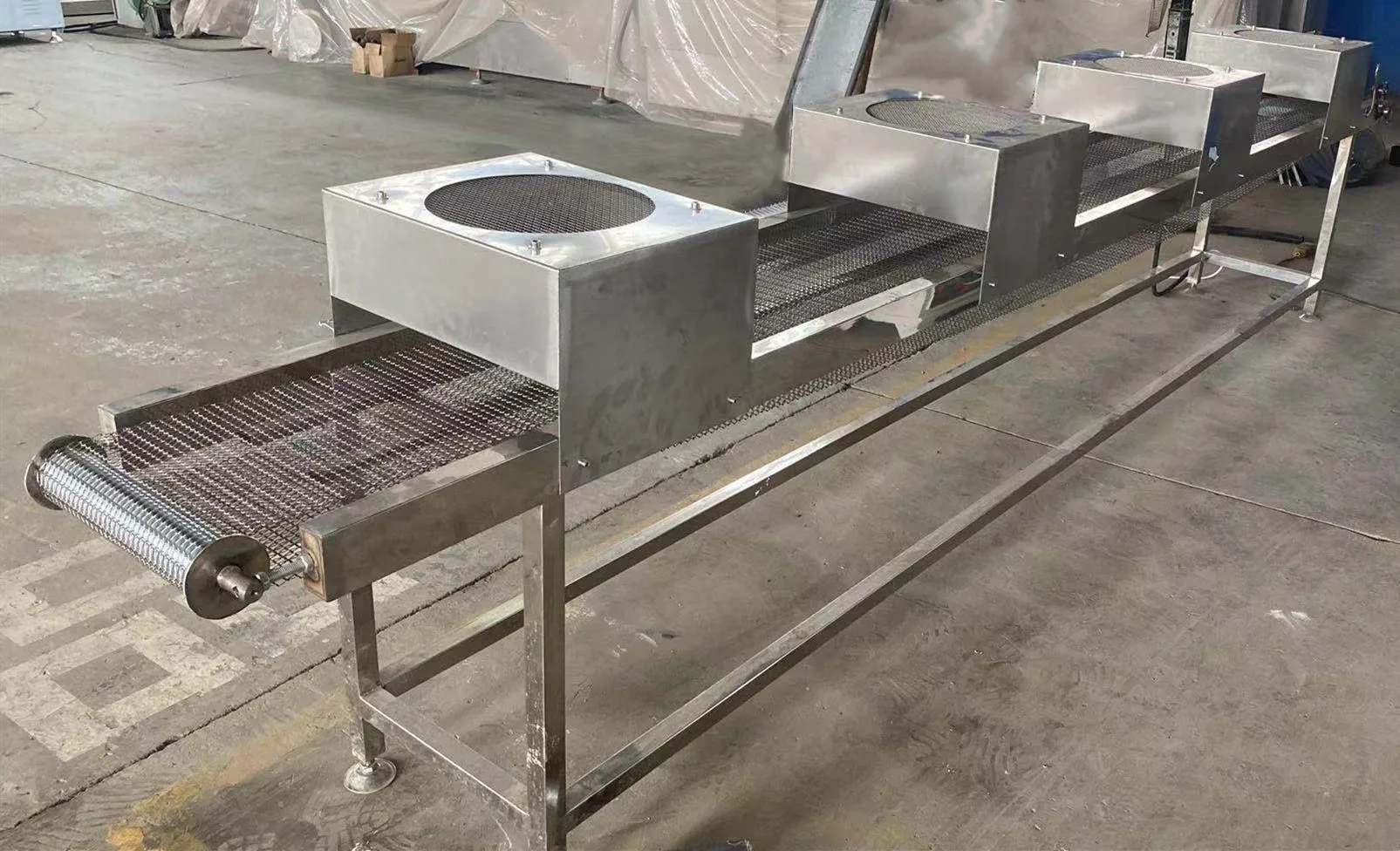

6. Cooling machine
This equipment consists of body frame, cooling machine and conveying bet, its duty is to cool the fried noodle piece rapidly.
Technical parameter:
Conveying speed: auto shift gears
