Product Description

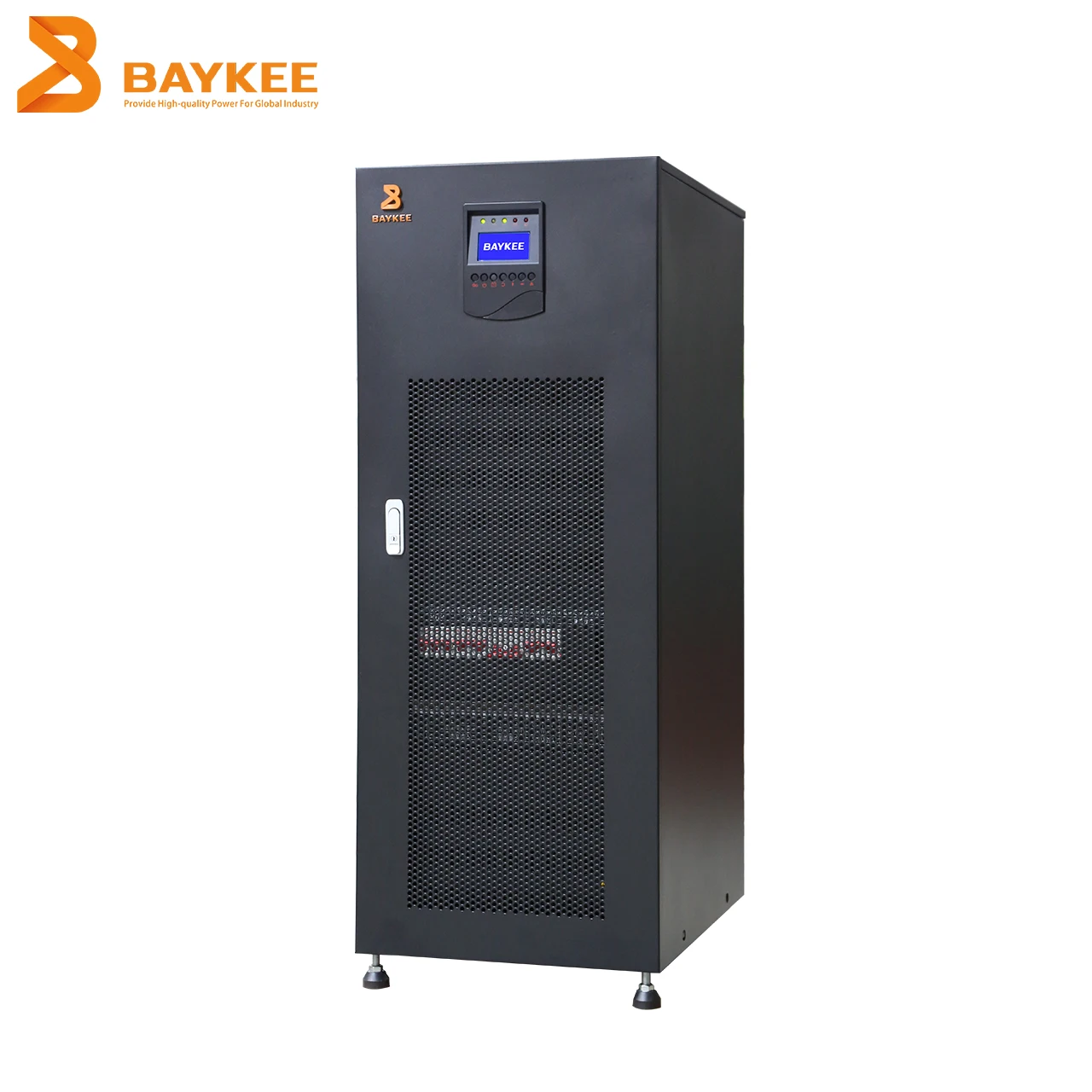

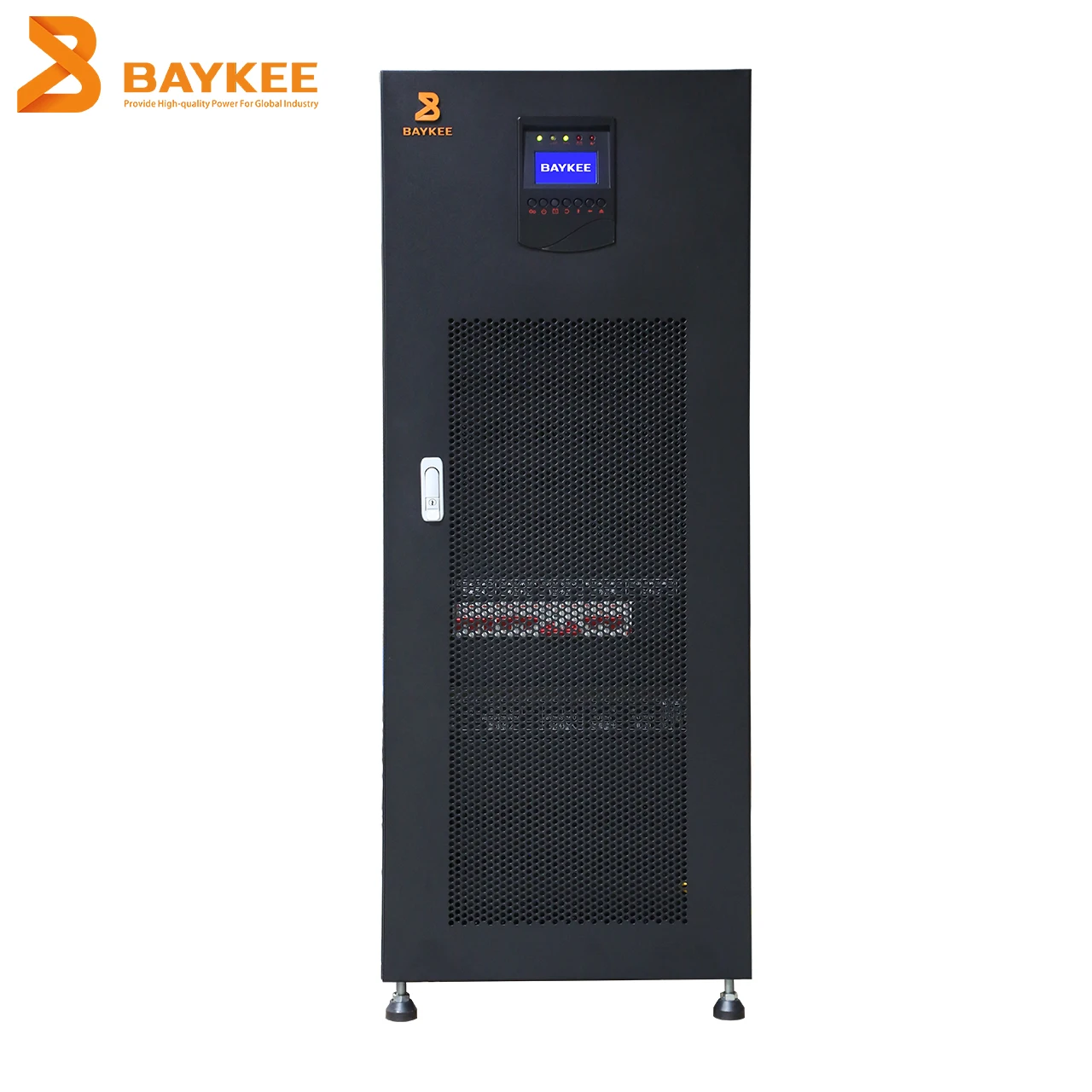

MP3100 Series Three Phase In Single Phase Out Online UPS
MP3100 Series online ups is online double conversion low frequency UPS. This ups is three phase in single phase out, from 6kva to 60kva, input voltage can be 380vac/400vac/415vac or Optional 200vac/208vac/220vac as clients’ need.
This series online UPS adopts high-speed microprocessor (MCU), programmable logic device (CPLD) program which are controlled by software, the switch as power components. This series product combines the world’s newest control spare parts and the most advanced software. It is designed to meet high availability and high power quality needs of a wide variety of critical applications.
As mentioned, this type of low frequency ups suit for the non-linear load like air-conditioner, motors, printers, and some other manufacturing field.
MP3100 Series online ups is widely used in telecom, bank, security, transporting, utility, manufacture, industry, commerce,
government, medical equipment etc.
* Low frequency true online double-conversion technology.
* Advanced digital circuit system design, increase the ups stability.

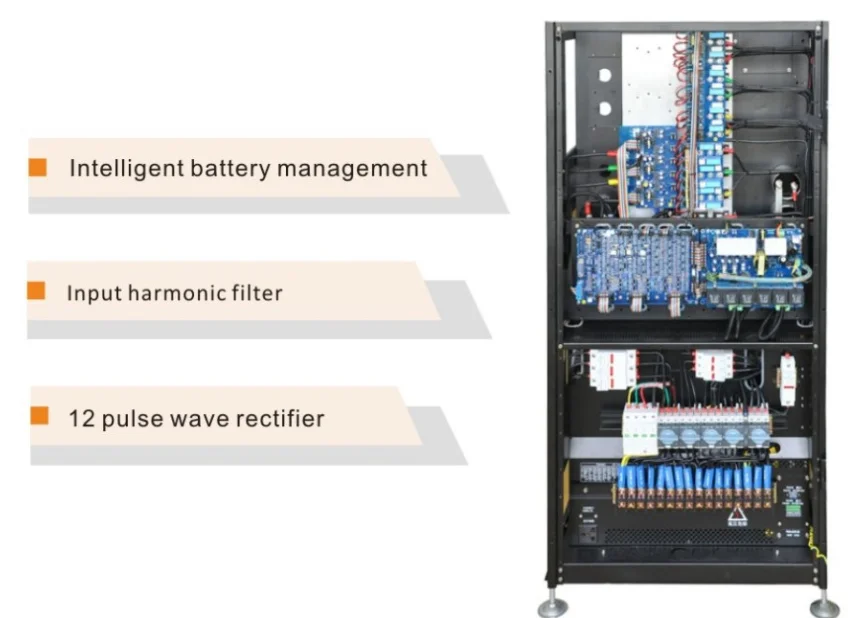

* Advanced & Intelligent battery management, extend the battery life.
* Intelligent inspection system, inspect all kinds of ups work status.
* SMD technique, improve the circuit reliability and running precision.
* IGBT PWM inverter technology, provide the highest quality output power, efficiency is higher to 92%.
* Static bypass operation, provide safe failure to mains if ups is overloaded or develops a fault.
* Manual bypass operation, make the technical personnel work on faulty UPS, safe to change the inner units.
* 256 real time event log with detailed parameters.
* Standard RS232 & RS485, optional dry contacts or SNMP card for remote control.
* Excellent load characters, fulfill saltus from 0-100% without switching to bypass, safeguard stable output.

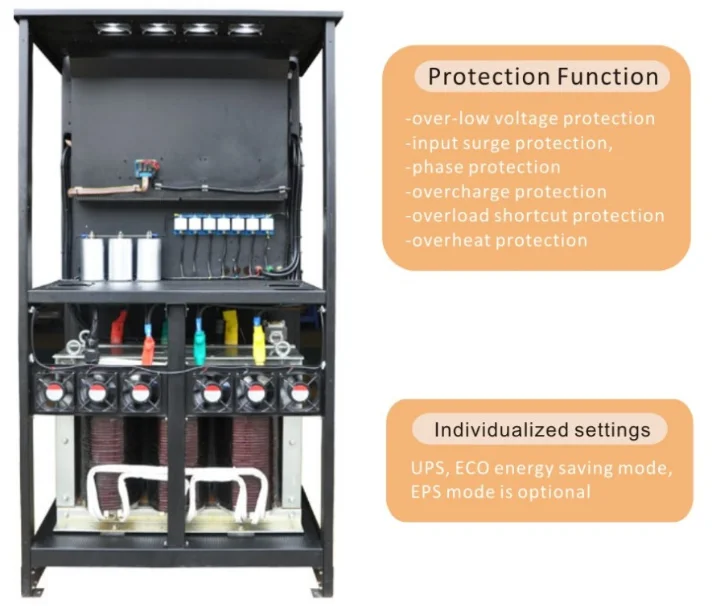

* Input & output voltage, battery charge & discharge, temperature, short circuit and overload etc. protections.
* Different working mode for chooses: UPS, ECO, or inverter work mode .
* Auto restart function.
* Perfect generator compatibility.
* EPO & surge protection.
* Optional battery detecting module.
* Optional N+1 redundancy parallel, increase system’s reliability.
This series online UPS adopts high-speed microprocessor (MCU), programmable logic device (CPLD) program which are controlled by software, the switch as power components. This series product combines the world’s newest control spare parts and the most advanced software. It is designed to meet high availability and high power quality needs of a wide variety of critical applications.
As mentioned, this type of low frequency ups suit for the non-linear load like air-conditioner, motors, printers, and some other manufacturing field.
MP3100 Series online ups is widely used in telecom, bank, security, transporting, utility, manufacture, industry, commerce,
government, medical equipment etc.
Main Advantages

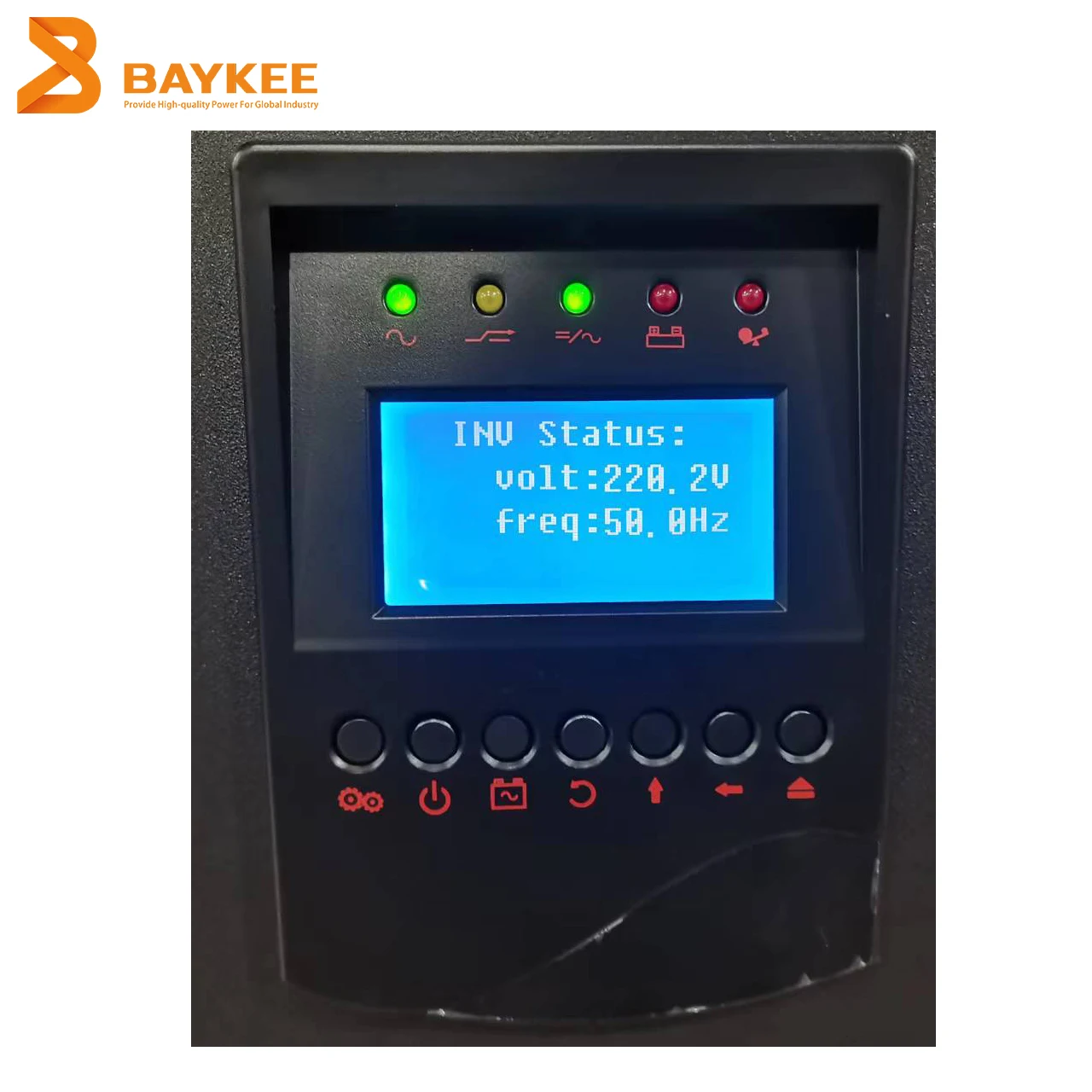

* LED+LCD display, make the operation easier via LCD panel.* Low frequency true online double-conversion technology.
* Advanced digital circuit system design, increase the ups stability.
* Advanced & Intelligent battery management, extend the battery life.
* Intelligent inspection system, inspect all kinds of ups work status.
* SMD technique, improve the circuit reliability and running precision.
* IGBT PWM inverter technology, provide the highest quality output power, efficiency is higher to 92%.
* Static bypass operation, provide safe failure to mains if ups is overloaded or develops a fault.
* Manual bypass operation, make the technical personnel work on faulty UPS, safe to change the inner units.
* 256 real time event log with detailed parameters.
* Standard RS232 & RS485, optional dry contacts or SNMP card for remote control.
* Excellent load characters, fulfill saltus from 0-100% without switching to bypass, safeguard stable output.
* Input & output voltage, battery charge & discharge, temperature, short circuit and overload etc. protections.
* Different working mode for chooses: UPS, ECO, or inverter work mode .
* Auto restart function.
* Perfect generator compatibility.
* EPO & surge protection.
* Optional battery detecting module.
* Optional N+1 redundancy parallel, increase system’s reliability.
Specification
Model | MP3106kVA | MP3110kVA | MP3120kVA | MP3130kVA | MP3140kVA | MP3160kVA | MP3180kVA | MP31100kVA | MP31120kVA | |||||||||
Nominal capacity (kVA/kW) | 6kVA/4.8kW | 10kVA/8KW | 20kVA/16kW | 30kVA/24kW | 40kVA/32kW | 60kVA/48kW | 80kVA/64kW | 100kVA/80kW | 120kVA/96kW | |||||||||
Work principle | Pure sine wave on line | |||||||||||||||||
Phase | 3phase+N+G | |||||||||||||||||
Rectifier | ||||||||||||||||||
Nominal input voltage | 380vac/400vac/415vac or customized 200vac/208vac/220vac | |||||||||||||||||
Voltage range | ±25% | |||||||||||||||||
Nominal input frequency | 50Hz±10%, 60Hz±10% | |||||||||||||||||
Output ripple | <2% | |||||||||||||||||
Soft start | 0～100% 5s | |||||||||||||||||
Charge | ||||||||||||||||||
Charge mode | Constant current to constant voltage; with Auto change | |||||||||||||||||
Float voltage | 216VDC | 405VDC | ||||||||||||||||
Charge current | 0.1C（ Automatically change follow the batteries ） | |||||||||||||||||
Charge frequency | 20％ of Rated capacity | |||||||||||||||||
Battery | ||||||||||||||||||
Battery type | Maintenance-free lead acid battery | |||||||||||||||||
Battery capacity | 7～999AH settable (according to the capacity) | |||||||||||||||||
Battery number | 16pcs | 30pcs 12V，or 180pcs 2V（Nominal voltage 360VDC） | ||||||||||||||||
Inverter | ||||||||||||||||||
Phase | Single L+N＋G | |||||||||||||||||
Output power factor | 0.8 | |||||||||||||||||
Nominal voltage | 220VAC/230VAC/240VAC ( customized 100VAC/110VAC/120VAC) | |||||||||||||||||
Output voltage stability | ±1%( Stable load), ±3%( fluctuant load) | |||||||||||||||||
Output frequency stability | 50Hz/60Hz＜±0. 5% | |||||||||||||||||
Crest factor | > 3:1 | |||||||||||||||||
Output waveform distortion | Sine wave, linear load<3%, non-linear load<5% | |||||||||||||||||
Dynamic characteristics | Instant voltage<±5%(from 0 to100% ), Instant recover time<10mS | |||||||||||||||||
Unbalanced load voltage | ＜±5% | |||||||||||||||||
Overload protection | 115%10 min, 125%1min, 150％1s | |||||||||||||||||
Efficiency | >93%（full load） | |||||||||||||||||
Bypass | ||||||||||||||||||
Phase | Single L+N | |||||||||||||||||
Nominal voltage | 220VAC/230VAC/240VAC ( customized 100VAC/110VAC/120VAC) | |||||||||||||||||
Transfer time | <1mS ( static switch with 0 transfer time ) | |||||||||||||||||
Protection | ||||||||||||||||||
Input protection | Input voltage/frequency over limited, wrong phase, lack phase | |||||||||||||||||
Output protection | Over current short circuit, factor low protection | |||||||||||||||||
Battery protection | Over charge, over-discharge protection | |||||||||||||||||
Temperature protection | Ambient over temperature protection, inverter over temperature protection | |||||||||||||||||
Hardware failure protection | Assistant power abnormal, breaker cut off , breaker overload, power components over current/over voltage etc protection | |||||||||||||||||
System Parameters | ||||||||||||||||||
Working environment | Temp: 0～40℃, relative humidity 30%～90 %, ( a 1% decrease against 100 meters’ rise. Altitude 4000m MAX) | |||||||||||||||||
Cooling –down method | Compulsive ventilation (with temperature control) | |||||||||||||||||
Communication Interface | RS232, RS485, (optional SNMP card/ dry contact interface) | |||||||||||||||||
Redundancy function | In series or N+1 parallel | |||||||||||||||||
Anti-surge capacity | 10/700μS, 5KA , 8/20μS, 20KA(Optional) | |||||||||||||||||
Protection level | IP31 | IP20 | ||||||||||||||||
Safety performance | Vin-n Vout-n 3000Vac, creepage<3.5mA isolation resistance >3M(500VDC) | |||||||||||||||||
Noise dB | 45~50 | 50~55 | 55~58 | 55~60 | ||||||||||||||
Mechanical size (W×D×H)mm | 220×540×640 | 450×600×1200 | 600×720×1520 | 980×800×1800 | ||||||||||||||
Net weight(Kg) | 65 | 168 | 210 | 246 | 338 | 420 | 570 | 640 | 720 | |||||||||
