Germany Titanium Coating Evacuated Tube Solar Collector

Product Overview

Description

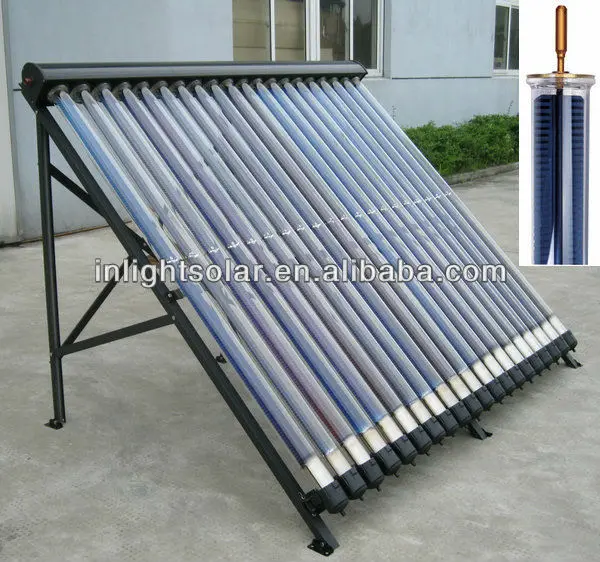

Germany Titanium Coating Evacuated Tube Solar Collector



Feature

1. With special copper heat pipes,rapid heat transfer,more reliable,higher efficient

2. Perfect appearance anti-freeze,can be used in extreme cold area

3. No water in the vacuum tubes,even one glass vacuum tube broke,the whole system still can work as usual,no leakage

4. Can be connected with high pressure water pipe directly(max working pressure reach to 700 kPa)

5. Solar collector and storage tank is seperated installation

6. Pretty free installation of solar collector and storage tank according to building.

7. Easy plug-in installation and free maintenance



Wide applications

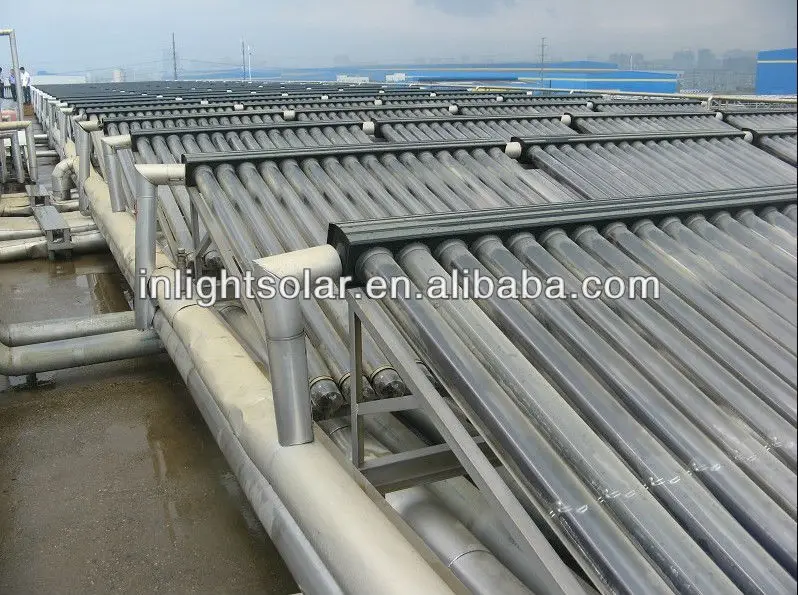

1. Hotels, resorts, hospitals and hostels

2. Process industry, boiler feed, laundry and canteens

3. Agricultural sector, hatcheries and dairies

4. Boiler feed, Laundry and canteens

5. Agricultural sector, hatcheries, and dairies

6. Swimming pool heating

7. In-process heating 8. Health clubs



 Specification:



Item No.	Solar Heat-pipe Tube		Aperture	Collector Size	Fluid	Packing	Loading
	Tube Nos.	Tube Size/ mm	Area (M2)	L*W (mm)	Liter (L)	Volume/cbm	20GP	40HQ
ILHCT-5812H	12	Φ58*1800	1.12	1950*960	0.8	0.21	138	334
ILHCT-5815H	15	Φ58*1800	1.40	1950*1185	0.9	0.24	122	295
ILHCT-5818H	18	Φ58*1800	1.68	1950*1410	1.1	0.30	98	237
ILHCT-5820H	20	Φ58*1800	1.87	1950*1560	1.2	0.32	92	221
ILHCT-5825H	25	Φ58*1800	2.33	1950*1935	1.6	0.36	81	195
ILHCT-5830H	30	Φ58*1800	2.80	1950*2130	1.8	0.45	64	155



Details:

1. Direct-flow Header: High quality red copper Φ35*1.0mm, inlet & outlet Φ22mm

2. Manifold Shell: High-quality black/ gray aluminum alloy 2mm

3. Insulation: High-density compression-moulded rockwool 50mm

4. Vacuum Tube: Borosilicate glas 3.3

5. Copper heat pipe: Φ 14mm*65mm pipe header and Φ 8mm*1650mm pipe stern

6. Absorber fins: Copper with Germany high selective titanium coating

7. Mounting Frame: Black/ gray aluminum alloy 1.8mm, universal bracket suitable for roof or exterior wall installation

8. Accessories: Thermal paste,copper connectors,Stainless fasteners,Heat-resisting rubber seal,adjustable tube holder

9. Working Pressure: 6.0 Bar

10. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°)

11. Hail Resistance: < Φ30 mm

12. Anti-freezing: > - 40°C
