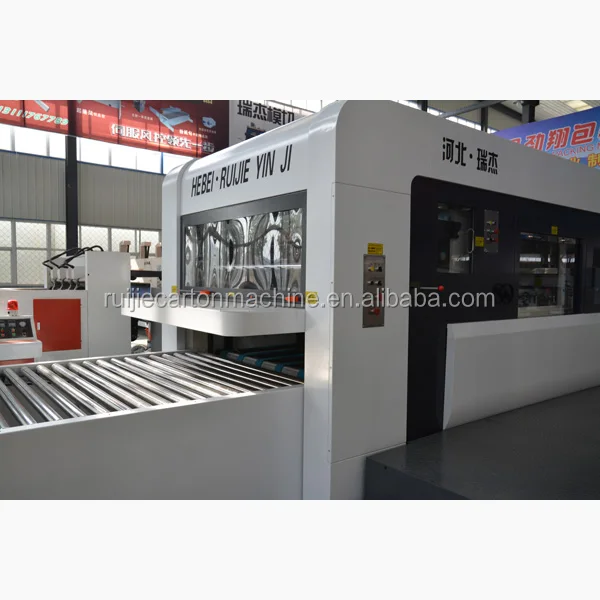

High Quality Automatic Creasing Machine with CE MYQ1500
Product Description
Technical Parameters
Item | Parameters |
Model | MYQ-1500 |
Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
Max paper transmitting size | 1510*1120mm |
Min paper transmitting size | 450*550mm |
Max die cutting size | 1490*1100mm |
Min gripper size | 8mm |
Max die cutting pressure | 320N/cm² |
Paper processed | Corrugated board 3-10mm
|
Max die cutting speed | 4500 sheets/h |
Main motor power | 15 kw |
Total power | ~32 kw |
Total weight | 23 T |
Overall size | 10600*2300*2400mm (without platform and pre-paper) |
| 12000*4300*2400 |
System Introduction

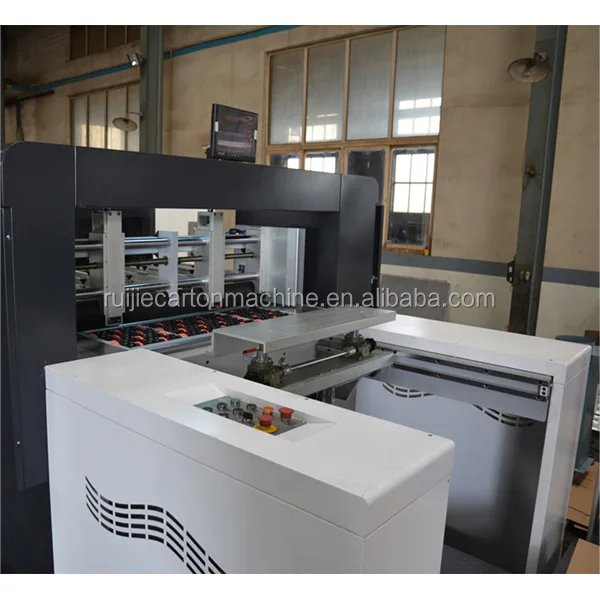

♣Lead edge feeder(Under suction feeder)
l Equipped with lead edge feeder ,it can prevent the cardboard damage by the black wheels.
l Independent servo actuator can assure the cardboard send to right position and avoid crash on the paper
l The big power suction fan and the adjusted wind system work for 3-9mm corrugated box.

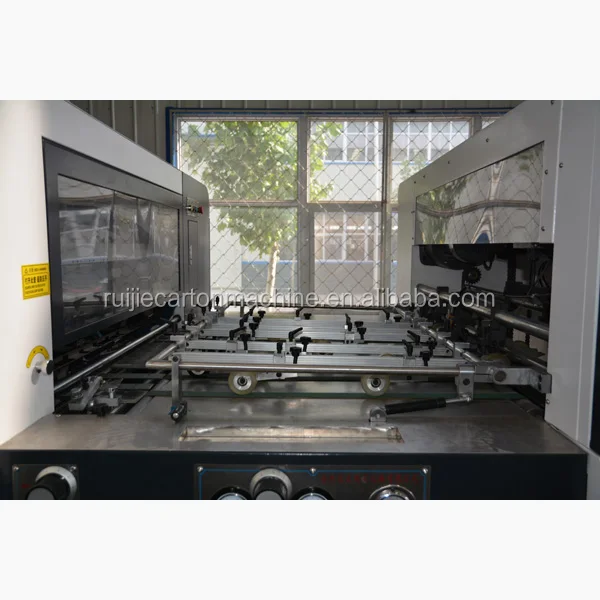

♣Feeding table
l Adjustable brush wheels and pressing wheels to ensure precise position to enter into front and side lay
l Advance push and pull lay of registration can assure the die cutting precision
l Rikko light front lay detection system prevent the slanting paper move in main body
l The lifting of the brush wheel frame is controlled by cylinder. Easy to operate.
♣Main body
l Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
l Patented design shock absorption system can prolong the life of main body and increase the pressure
l The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack

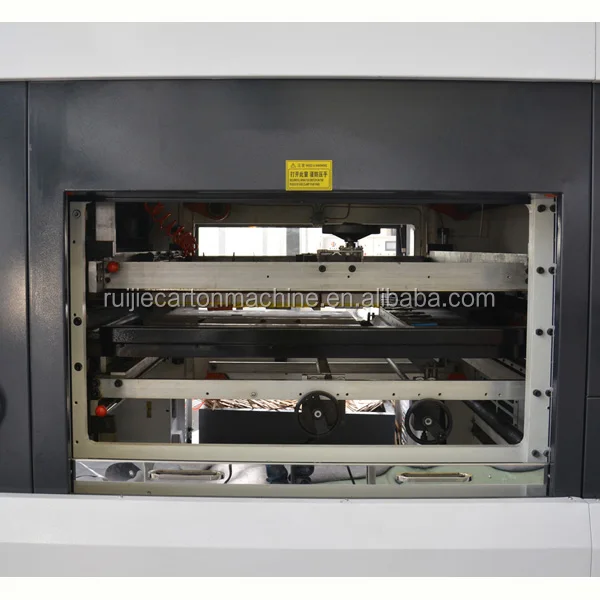

♣Stripping section
l Double action movement structure with upper and lower stripping frame facilitates die change
l Male/female diecutter model are available for different carton
l Match with the centerline registration system in diecutting area, there is a same system in the stripping section.Accurate positions can increase production efficiency
l Gripper front edge waste removal system for higher production efficiency
♣Diecutting part and Delivery system
l Diecutting chase fixed accurately by pneumatic lock system
l Diecutting plate is putted in and out by air floating device
l Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
l Main chain and assist chain is lubricated periodically controlled by PLC
l Protection window of diecutting can hold the main body clean
l Lightweight and durable aluminum alloy 9-piece gripper bars with chain of Renold UK ensure accurate
♣ Electrical Control Part
PLC adopts electronic control system.There are various safe guarding devies that when accident occurs,it will give an alarm by sound and light and shutdown automatically to protect sfety of man and machine.

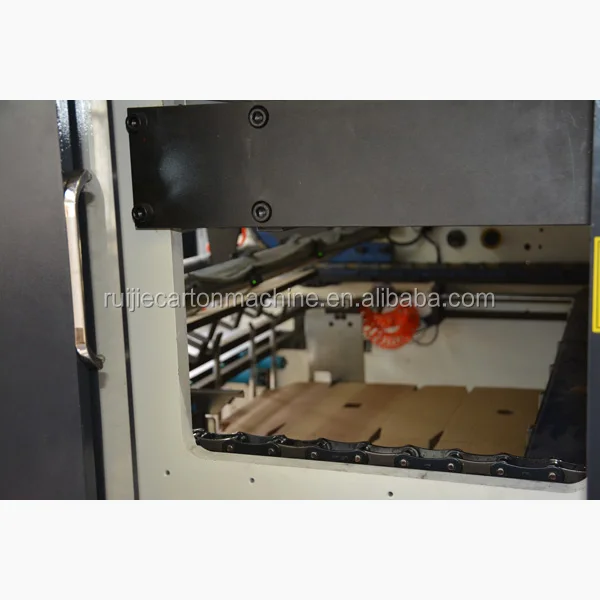

♣Gripper bars
Lightweight and durable aluminum alloy 9 pieces gripper bars with ultra hard coat and anodized finish ensure accurate and consistent paper registration,gripper bar chain imported from Renold UK
Packaging & Shipping
Acceptance standard
l When we have finished the main body,we will run it without chain system 72 hours no-stopping. Then the important parts (Crankshaft, Copper sheathing, Bearing) will be checked about the temperature every three hours. If the temperature of the part will not increase by hour, it will be ok.
l When we have finished the delivery system, we will check the diecutting accurate with 250gsm paper card and 3-player corrugated board. We must insure the accurate within ±0.1mm, it will be ok.
l About the machine speed, we will text it in high and low, the frequency converter is normally, the noise is little. We also will run the speed extend the 4500sheet/h, in this environment, the machine will be also good.
Our Services
1.We provide the quality assurance of our product
2.We offer the details of install mechanical parts and circuit diagram, it will help you to know our machine
3.We can train your workers in our company freely or send our engineer to your company costly
4.We can provide long-distance guidance with e-mail or video freely or transport the broken part
Company Information
Cangzhou Ruijie Carton Machinery Co., ltd is located in Dongguang, Cangzhou city, Hebei province,China. It’s a direct factory who is professional in the auto/semi-automatic die cutting and creasing machine combined with researching, developing, manufacturing and selling. By insisting to the long-term goals of “taking technology as the precursor, product quality as the core”, we also equip the modern processing working equipment the advanced die cutting technologies, which brings much more profit to our customers.
Since established ,we fulfilled our machine models,improved our machine quality and extended our market gradually. It ensures the high precision ,high steady and high efficiency of our machines.
Certificate
We have got the ISO9001:2008 International Quality Certificate and CE Certificate for European Union, and exported to more than twenty countries, like India, Mexico,Agentina,Iran,Egypt,UZ…
Exhibition
FAQ
1. Are you a factory or trading company?
Ruijie Machinery is a factory and manufacturer in this field about 10 years since 2004.
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin. You can fly to Bejing airport directly and we will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority.We always regard great importane to quality controlling from the very small thing(even a small screw we will choose the best quality) from the begining.
5. Why we choose Ruijie Machinery?
Exporting to over 20 countries such as Mexico, Russia, Turkey, we have gained a lot of experience that enable us to meet more and more customers.
