Zanottic Ceiling Mounted Monoblock Condensing Unit Compressor

Product Overview

Description

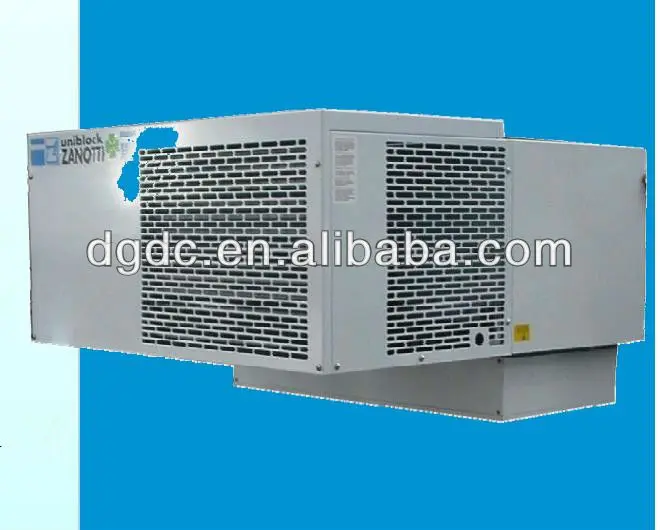

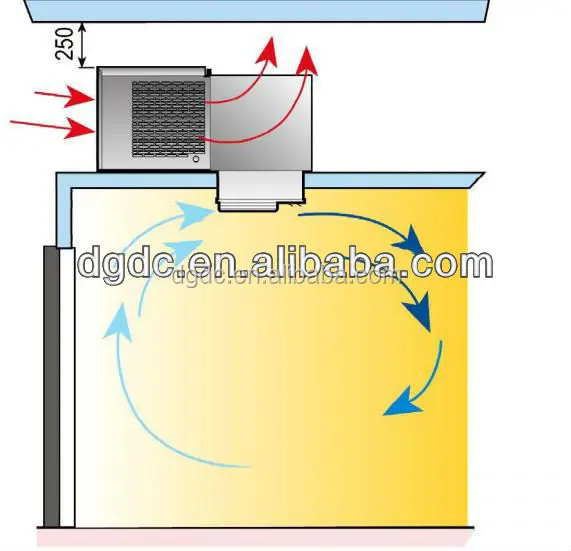

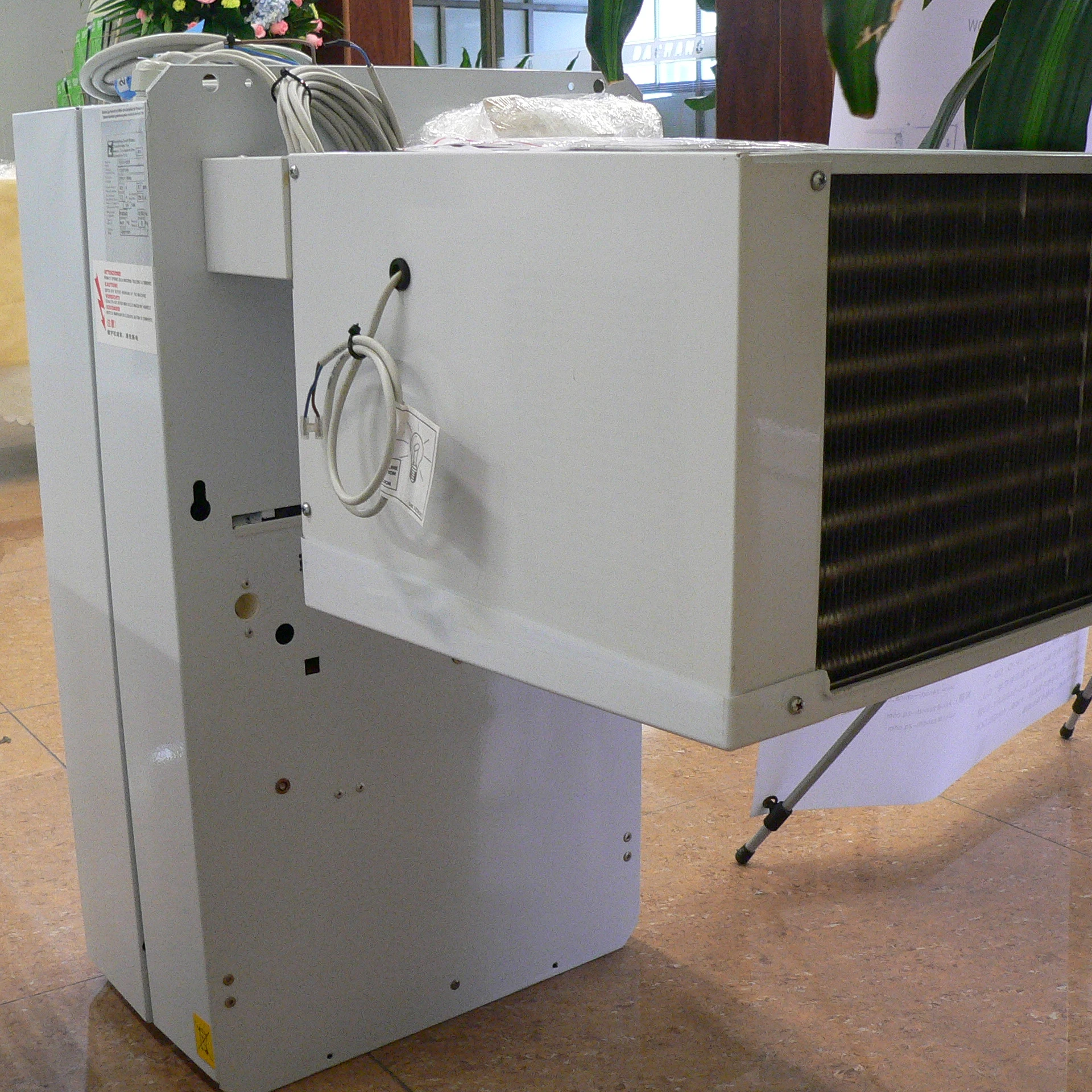

Ceiling mounted Monoblock Condensing Unit



Ceiling mounted Monoblock Compressor Unit

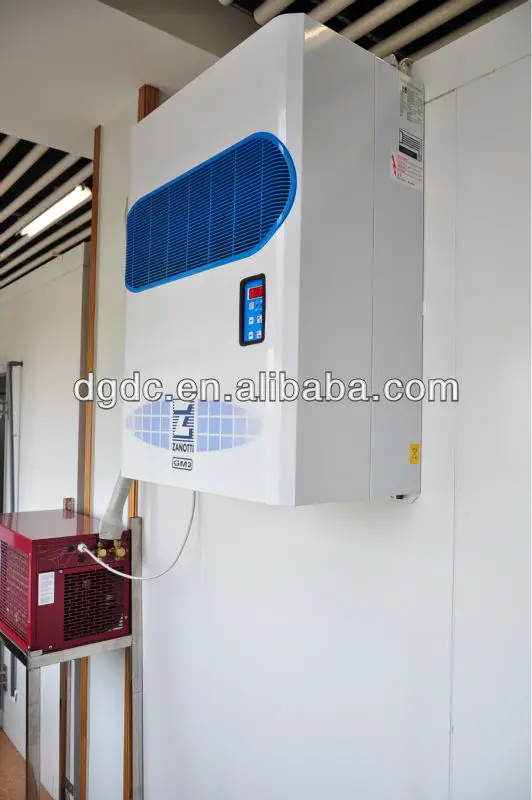

Wall type Drop In Compressor Unit



Uniblock refrgeration compressor unit

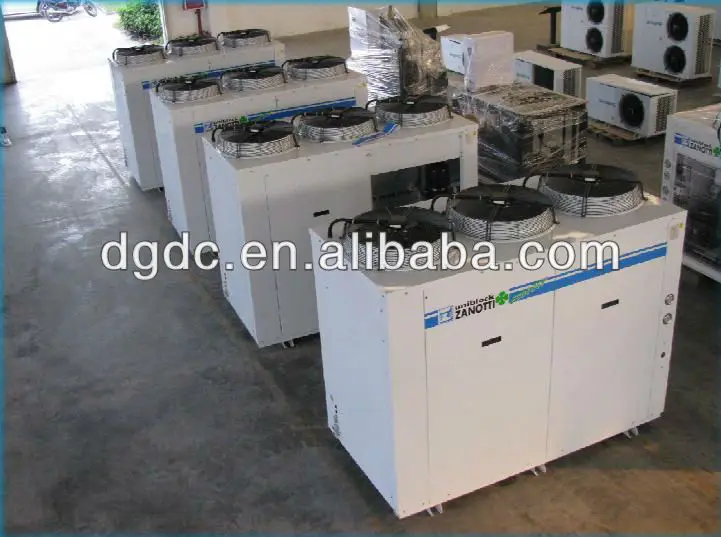

Italy Brand ZANOTTI Uniblock compressor unit



Feature:





1. A unique way of cooling better than traditional high-efficiency.



2. All the parts have been installed and it can be use after being plugged into electrical outlet



3. Hot air defrost automa system make the defrosting more fast than the tradnditional cool storage.



 4. the ac fluid has been filled, and temperature has been set before it leave factory



5. all the test has been completed in factory, so the performance will be of stable



6. using refrigerate R404a our units are Freon free



7.Using mico-chain integrated and alarm system make our units more humanity and safe.



8. components are from foreign famous brand, which strengthens our quality.
9.mute design, low noise,levaing you the peaceful working condition



Model		BSB120N002F	BSB125T02F	BSB225T02F	BSB135T02F	BSB235N02F	BSB235T02F
TC °C	TA °C	PF WATT	PF WATT	PF WATT	PF WATT	PF WATT	PF WATT
-15	30	814	1496	2194	3147	4736	5346
	35	774	1420	2095	2960	4397	4940
	40	734	1346	1998	2776	10180	4535
	45	*	*	1902	2592	*	*
-20	30	636	1249	1782	2611	3867	4459
	35	598	1184	1686	2456	3548	4068
	40	559	1117	1590	2302	3191	3679
	45	*	*	1494	2146	*	*
-25	30	501	1004	1398	2100	3136	3621
	35	468	945	1314	1960	2842	3250
	40	435	888	1232	1824	2490	2889
	45	*	*	1150	1688	*	*
Mark:	TA °C: Cold room temperature
	TA °C: Ambient temperature
	PF WATT: Refrigeration capacity
