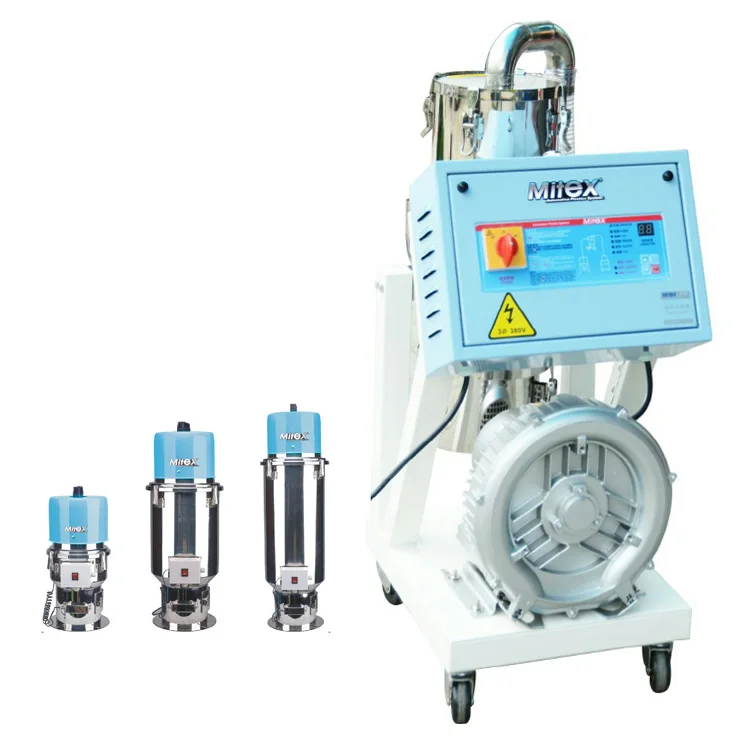

Отдельный пластиковый зернопогрузчик, вакуумный бункерный погрузчик
- Category: Plastic Loader >>>
- Supplier: Dongguan Mitex Automation Machinery Co. Ltd.
Share on (1068107494):
Product Overview
Description
Product Description
Full automatic programmed operation | ||
Automatic alarm for overload or shortof material. | ||
Stainless steel hopper construction | ||
Main controller and hopper designed separated, to ensure safety and convenient. | ||
Separated filter installation , easyu to remove pooling of powder | ||
Automatioc reverse to clean filter | ||
Maxinmum 6 feeding station available. | ||
New Products
Two set in one: Loader+ Storage tank
TANK Volume :25-50KG
Sensor switch hopper - SV
Equipped with photoelectric sensor
Hopper receiver- MS-E
Magnetic sensor
Detailed Images
Product Paramenters
Model | MVL | |||||||||||||||
T310 | T515 | 800G | 2HP | 3HP | 5HP | 7.5HP | 10HP | |||||||||
Power specifications | AC380V 3 PH 50HZ | |||||||||||||||
Blower type | Inductive blower | |||||||||||||||
Motor Power (KW) | 0.75 | 1.1 | 0.75 | 1.5 | 2.2 | 3.75 | 5.5 | 7.5 | ||||||||
Conveying capacity (kg/hr) | 300 | 400 | 300 | 400 | 600 | 1200 | 1500 | 2000 | ||||||||
Loading height ( M) | 4 | 4 | 4 | 5 | 5 | 6 | 6 | 8 | ||||||||
Dimensions (CM) | 45*60*102 | 48*64*112 | 37*45*70 | 37*45*70 | 48*60*121 | 48*60*150 | 48*60*150 | 48*60*150 | ||||||||
Hopper reeiver volume (L) | ||||||||||||||||
Model | SV-3L | SV-6L | SV-10L | SV-12L | MS-7.5E | MS-12E | MS-25E | MS-50E | ||||||||
Receiver | 3L | 6L | 10L | 12L | 7.5L | 12L | 25L | 50L | ||||||||
Mateiral pipe dia. | 1.5 inches | 2 inches | 2.5 inches | |||||||||||||
Air suction pipe dia | 1.5 inches | 2 inches | 2.5 inches | |||||||||||||
Dimensions (CM) | 35*20*75 | 33*23*50 | 30*30*53 | 43*35*72 | 40*40*50 | 40*40*93 | 40*40*105 | 54*54*105 | ||||||||
Net weight (kgs) | 4.5 | 5 | 8 | 8 | 10 | 12 | 15 | 20 | ||||||||
Related Products

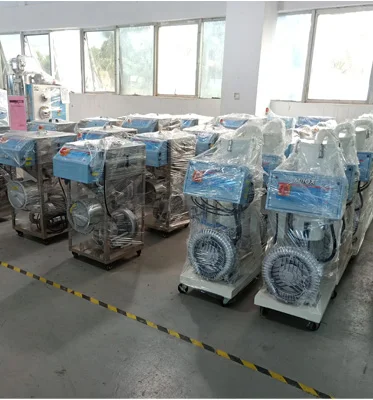

Packing&Shipping
Plywood packing
Company Introduction
Mitex Automation Machinery Co., Ltd is a national-level High-Tech enterprise that established in July, 2007. Also a plastic
machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design modern industry 4.0 resolution.
The main products include: Centrazed feeding system, dehumidifying and drying system. automatic metering and mixing sytem, crushing and recovery system, mold temperature controll system and automation solution etc.
machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design modern industry 4.0 resolution.
The main products include: Centrazed feeding system, dehumidifying and drying system. automatic metering and mixing sytem, crushing and recovery system, mold temperature controll system and automation solution etc.
