Metal Pipe Chamfer Machine

Product Overview

Description

Metal Tube Chamfer Machine







Features:

• The clamp mould and knife wheel are designed finished to guarantee the central line of workpiece and knife wheel is exact. Thus, the outer angle, inner angle and pipe end machining may be finished evenly at one time.


• It makes use of the change of belt wheel to shift different rotate speeds, so the life of blade may be as long s possible according to different metal materials.


• The double-step feeding system saves working time. And the speed is slow for regulating easily.



Technical data:

Single head chamfering machine

Metal round pipe/ round-bar end chamfering machine

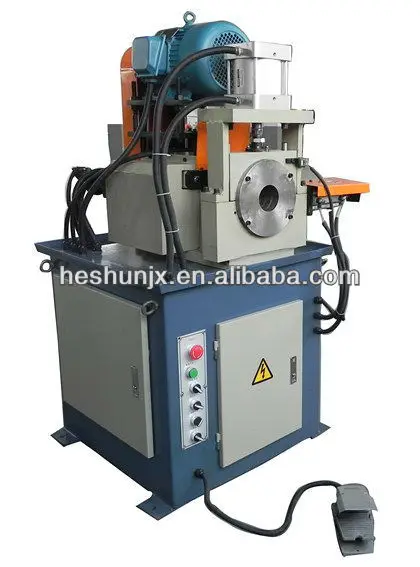

	EF-PV/52	EF-AC/80
Motor power	1HP×4P	3HP×6P
Rotate speed of main shaft	Choose right rotate speed according to different belt wheel.
Diameter of processed pipe	9-52(mm)	30-82(mm)
Outer angle of processed round bar	9-25(mm)	2-50(mm)
Compressed air	6-8KGS/cm2	6-8KGS/cm2
Air	60ml/min	120ml/min

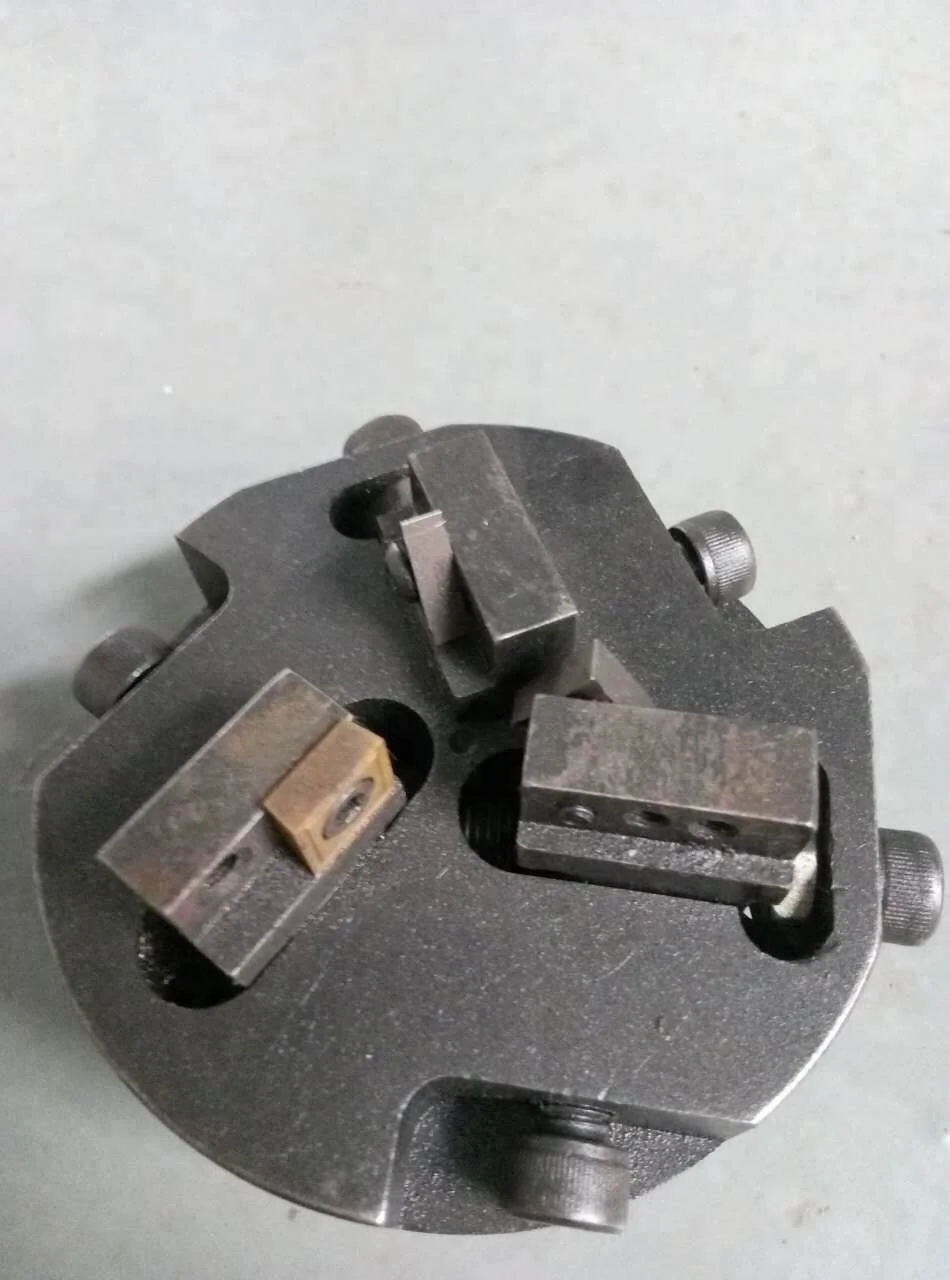

Standard equipment	1.machine table 2.1 clamp 3.1 standard knife head 4.1 knife head
Particular fittings	1.different size of clamps 2.particular knife seat and knife blade 3.particular knife head

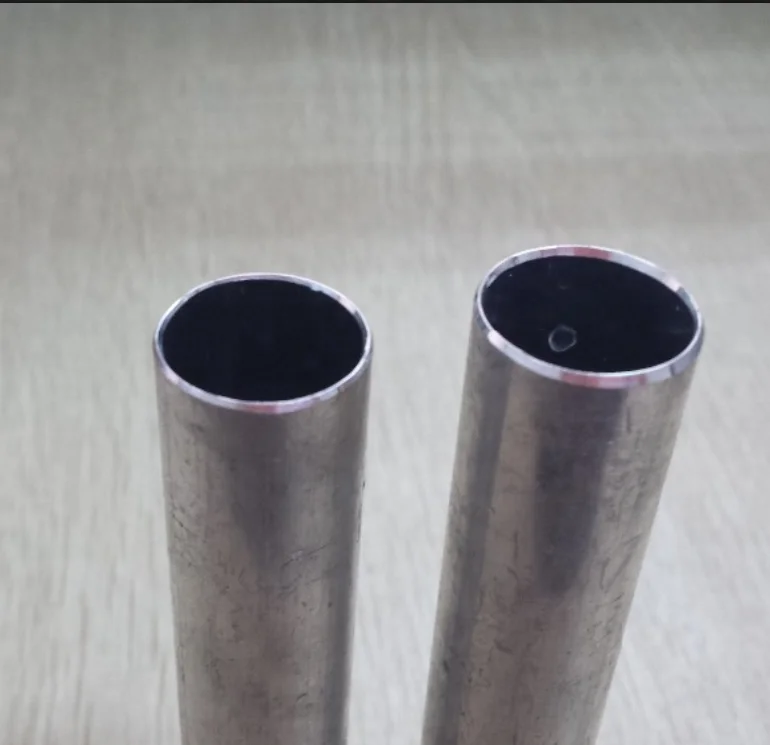

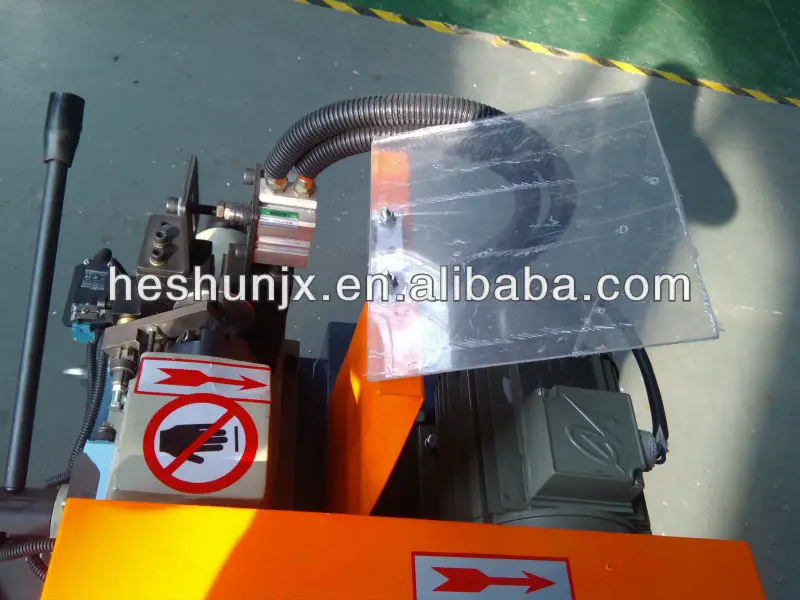

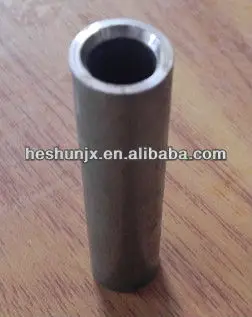

Single head tube chamfer machine show:
