Product Overview
Description

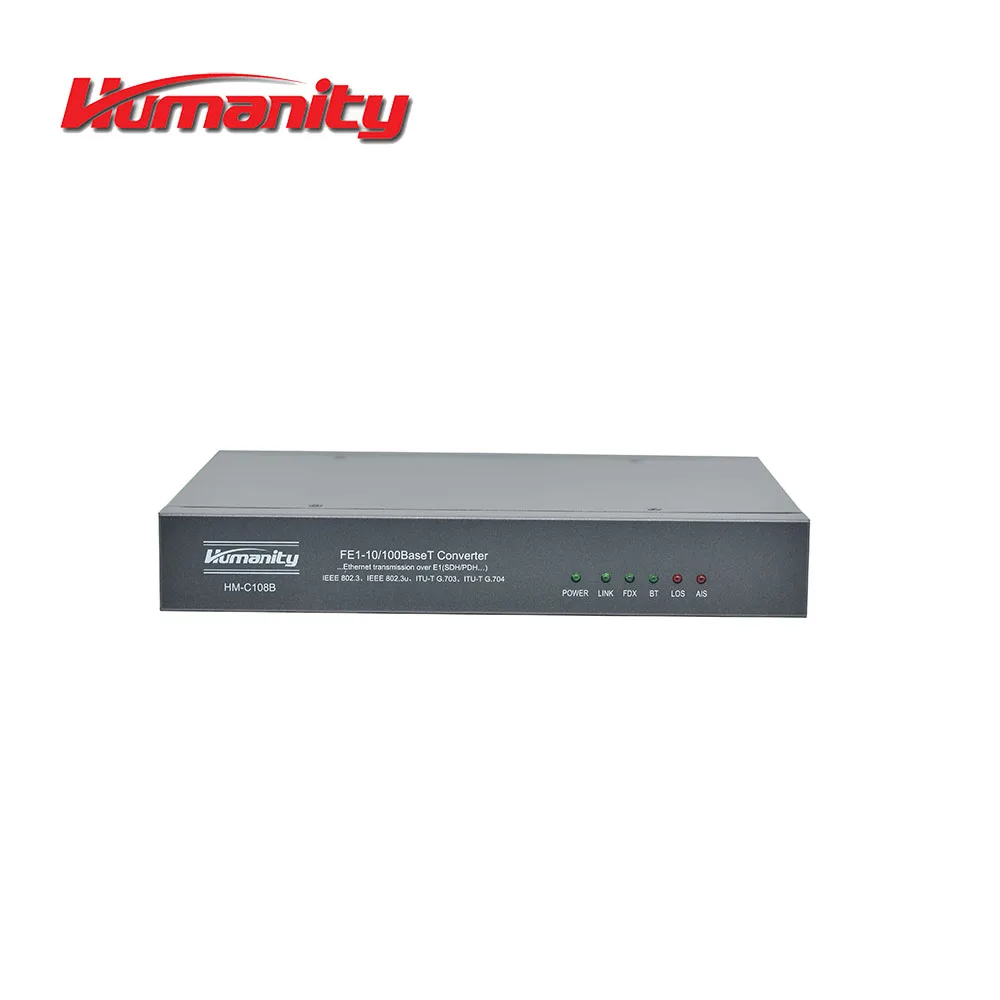

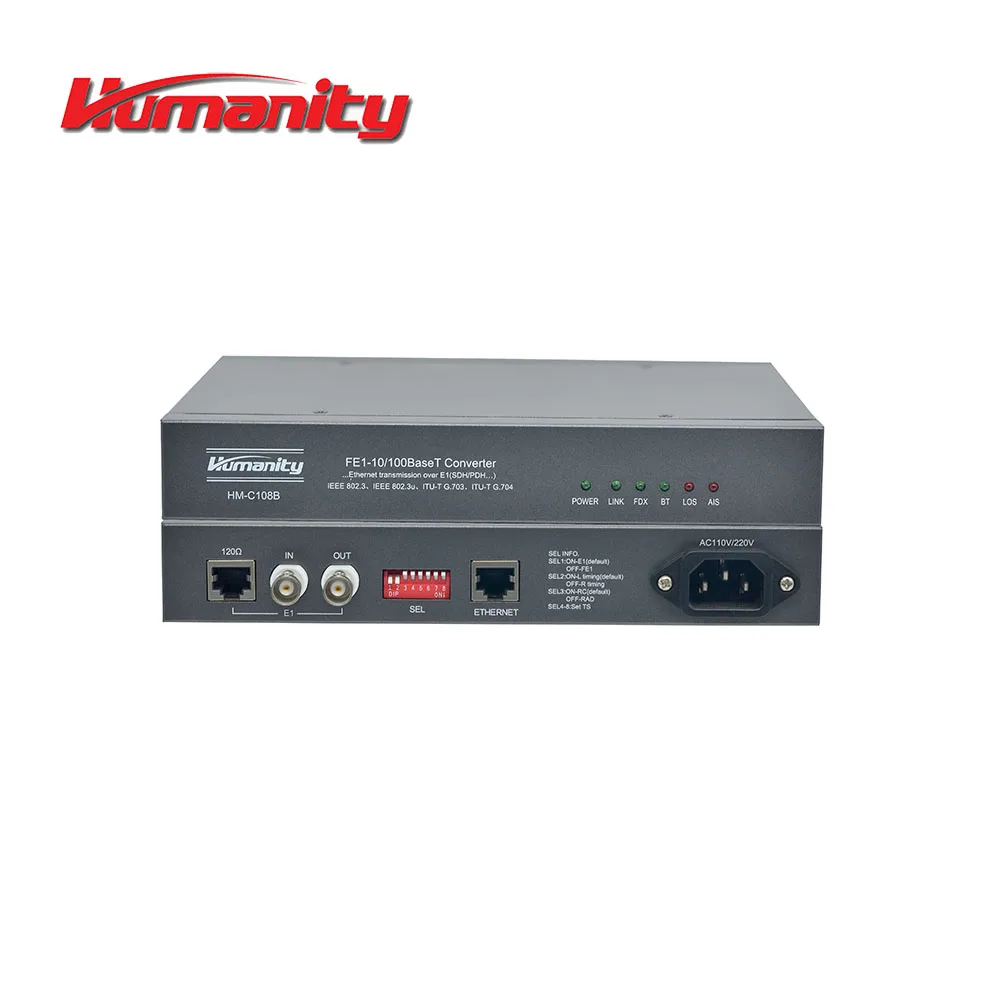

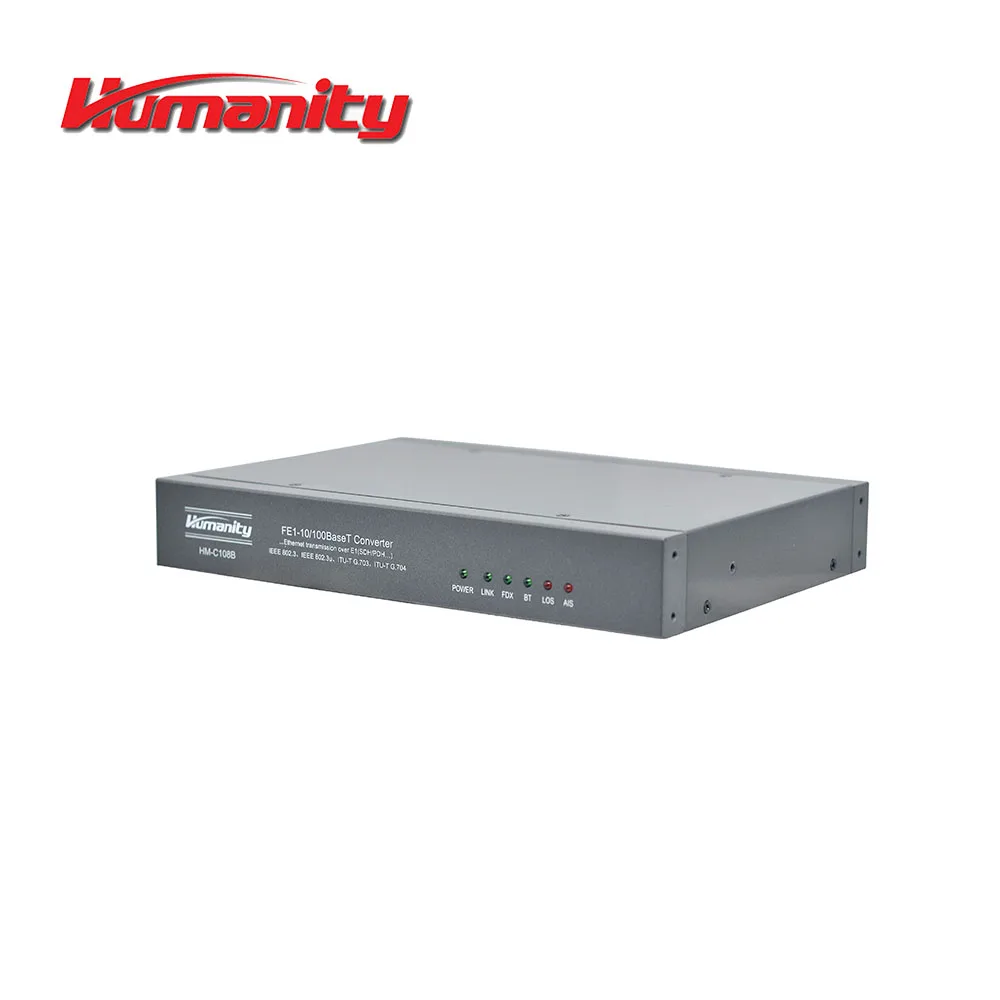

Humanity HM-C108B E1 G.703 to RJ45 10/100M Ethernet protocol converter
Humanity HM-C108B E1 G.703 to RJ45 10/100M Ethernet protocol converter is for Ethernet over E1 solution.
Main Features
- Ethernet transmission over E1
- E1 both with BNC and RJ45
- Bandwidth: 64-2048kbps
- AC or DC option
Technical Parameters
E1 interface | Bandwidth: 64-2048Kbps configurable |
Line code: HDB3 | |
Electric characteristic: comply with ITU-TG.703, G.704 standard | |
Jitter index: comply with ITU-T G.823 standard | |
Interface impedance: 75Ω unbalance and 120Ω balance | |
Connector: BNC for 75Ω and RJ45 for 120Ω | |
Ethernet interface | One Ethernet interface |
Auto adapt 10/100M, full/half duplex | |
Connector: RJ45 | |
Indicator light | POWER: power indicator light |
LINK: Ethernet connection indicator | |
FDX: Ethernet full/half duplex indicator | |
BT: Ethernet working in 10M or 100M status | |
LOS: lose E1 signal | |
AIS: alarm for remote failure | |
Power supply | Voltage: AC or DC power option when in order for HM-C106C AC and DC power supply for HM-C106CU |
Power consumption: <5W | |
Environment | Operating temperature: 0°C~50°C |

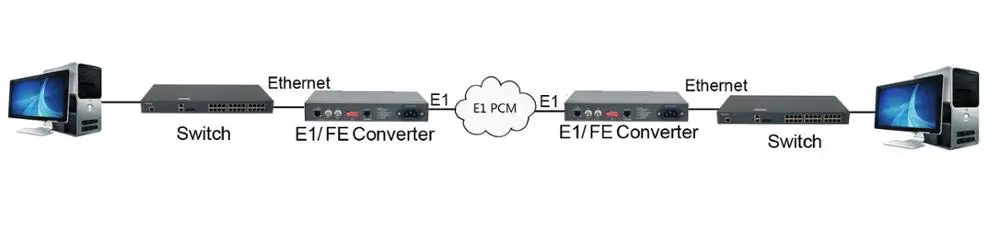

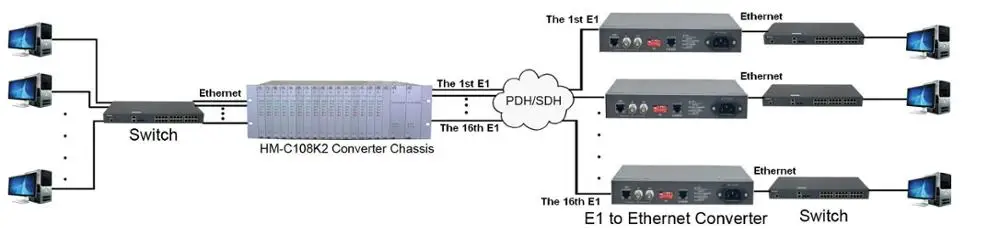

Application Diagram
