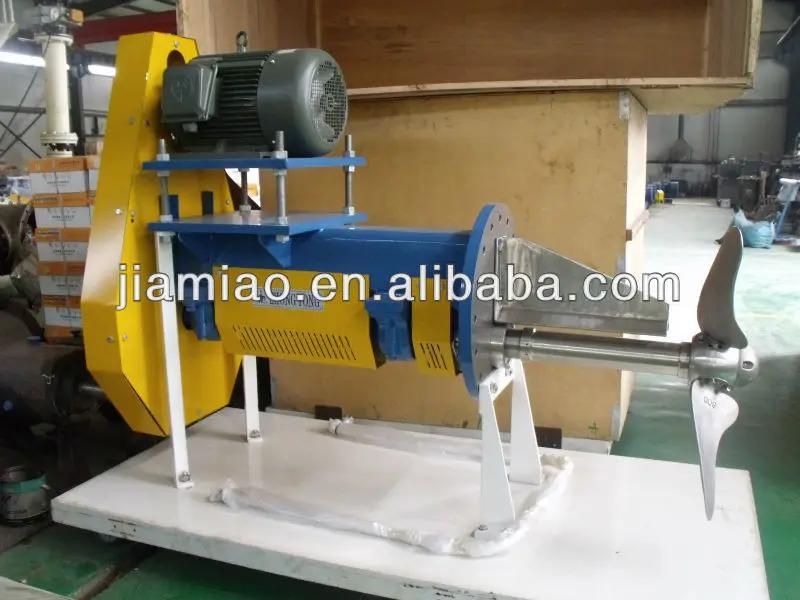

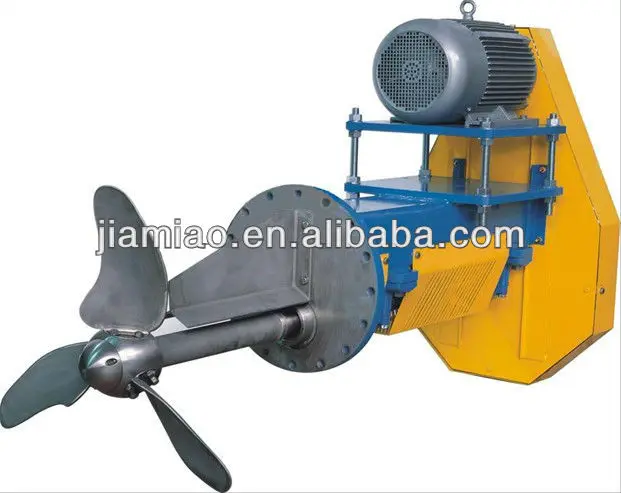

paper pulp chest use stainless steel mixer

Product Overview

Description

paper pulp chest use stainless steel agitator/mixer







Technical Parameter:



model No.	impeller diameter(mm)	speed (r/min)	No. of blades	motor power
ZJB600	Φ600	280-400	3	Y160M-6/7.5
				Y160L-6/11
ZJB800	Φ800	216-302	3	Y160L-6/11
				Y180M-6/15
ZJB1000	Φ1000	184-249	3	Y200L1-6/18.5
				Y200L2-6/22
				Y225M-6/30
ZJB1300	Φ1300	152-200	3	Y250M-6/37
				Y280S-6/45
				Y280M-6/55
ZJB1600	Φ1600	120-180	3	Y315S-8/55
				Y315M-8/75
				Y315L1-8/90
				Y315L2-8/110

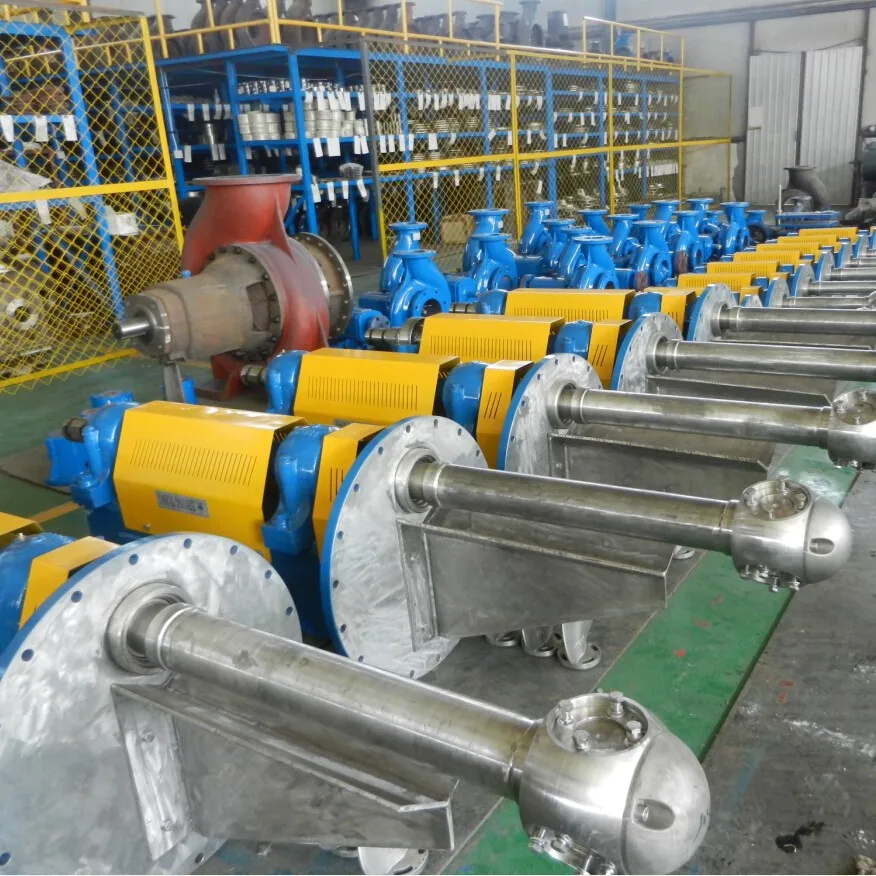

Structure Features:

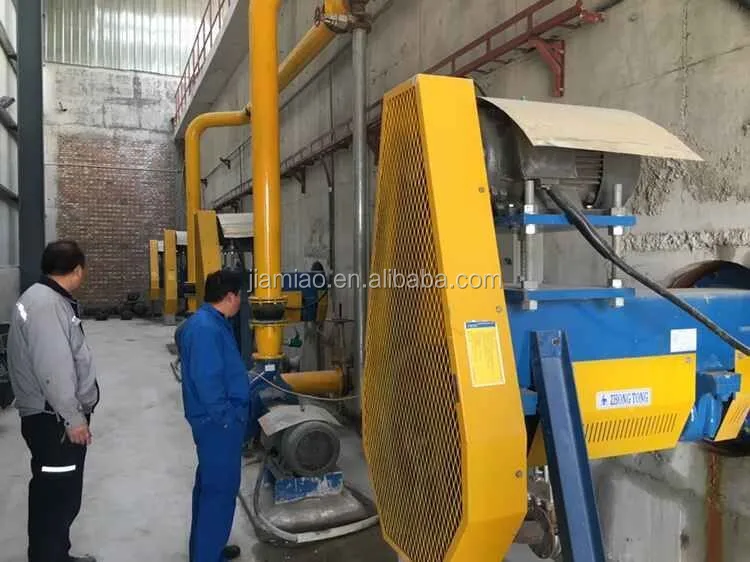

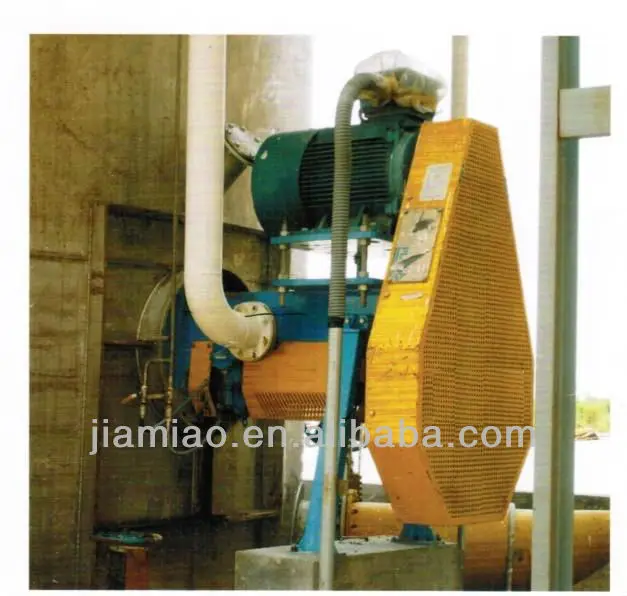

1.ZJB agitator is cantilever flange connection structure, which can be fixed on the wall of pulp chest without seperate foundation, it's easy to install.

2.It is driven by triangle belt, which helps to install and dismantle easily.

3.The impeller is stainless steel precision casted, which ensure the accuracy and make the operation smooth and stable.

4.The blades and hub are changeable constructure, the blades angle can be adjusted to meet different working condition.

5.The bearing has stong bearing capacity and it's easy to install. The external design of bearing can be changed conveniently without the condition of draining the pulp.

6. The special design of guiding plate avoid the impurity   and improves mixing efficiency meanwhile.

7. Shaft protection sleeve prevent the shaft from abrasion and corrosion.

8. Shaft seal: single mechnical seal and packing seal.



Material Configuration:





component	category1	category2	category3
blade/ axie cover/ hub	304	two-phase stainless steel	316L
guiding plate	Q235A	304	316L
packing box	ZG270-500	304	316L
packing cover/ packing ring	304	304	316L
shaft protection sleeve	Q235A	304	316L
shaft sleeve	45"	304	316L
shaft	40Cr	40Cr	40Cr
frame	Q235A	Q235A	Q235A
tension sleeve	HT250	HT250	HT250







Company Profile:

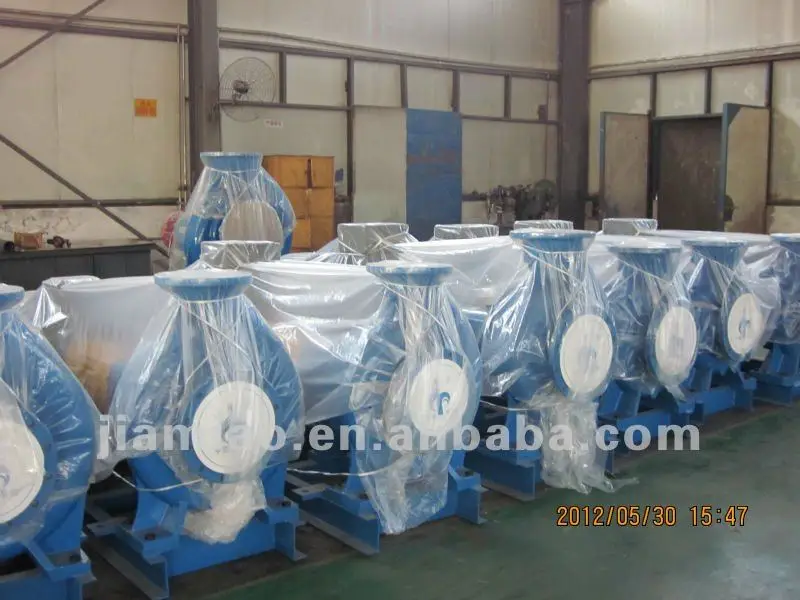

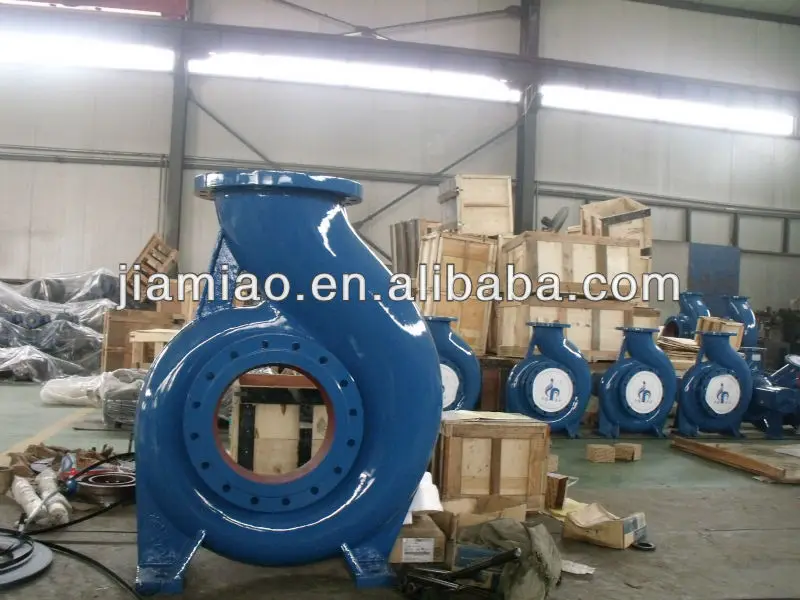

We, Jiamiao, have nearly 20 years' experience of developing and manufacturing centrifugal pulp pump, which are specially used for paper & pulp making industry. Our pumps can runp more stably and efficiently. They have been exported to many countries, such as UAE, Sweden, Russia, Thailand, Singapore, etc. We sincerely expect to provide our best quality and service for your esteemed company, and establish long-term business relationship. Welcome to visit our factory for business negotiation.

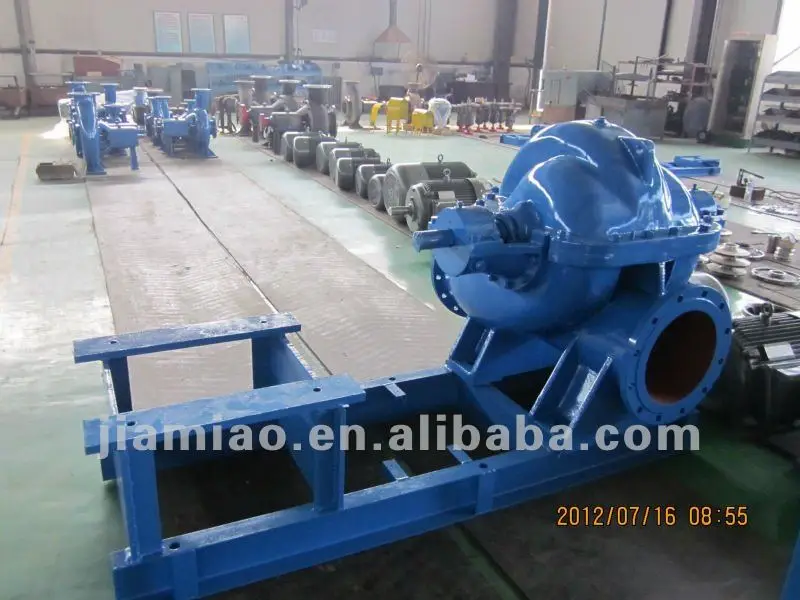

 Double-suction Split Casing
