Milky White IR Quartz Heat Lamp, Far Infrared Quartz Heater Tube

Product Overview

Description

Milky White IR Quartz Heat Lamp, Far Infrared Quartz Heater Tube



The lamps have strong transmission at far infrared, Environmental protecting, no UV radiation, the radiation energy is particularly remarkable.

Tubular lamps are high-powered heat sources incorporating a tungsten filament within a quartz

envelope. The lamps are of the halogen type, which avoids blackening of the tube and consequently infrared depreciation over the lamp lifetime.

Full power is reached within a second of switching on. Similarly, no power is emitted within a second of switching off.



Technical Parameters:

Voltage	100-480V		Color temperature	700-1500K
Power	200-5000W		Electric heat transformation ratio	>98%
HZ	50-60HZ		Low temperature(surface)	400-600C
Lifetime	6000hrs		mid temperature(surface)	600-800C
Operating temperature	<1800C		high temperature(surface)	800-900C
Spectral region	2.5-6um		Electricity saving ratio	30%



Profits and advantages:

- No emissions or noise

- Direct heating - heats objects not air.

- No preheating giving efficient heating.

- Ease of installation

- Save 85% savings compared to bottled gas in running costs



Application:

- Automotive: Primer coat,Color coat,Clear coat,Powder coat,Seat de-wrinkling,Head liner forming

- Plastics: Welding,Forming,Softening,Curing,Drying

- Printing: Ink drying,Silk Screening,Bindings,Glue drying

- Food: Baking,Browning,Dehydrating,Pasteurizing

- Electronics: Re-flow soldering,Water dry-off,Silk screening

- Textiles: Web Drying,Finishing,Pre-shrinking

- Glass-Ceramics: Heating safety glass,Drying mirrors,Drying frit

- Farm: Space heating,Incubating,Brooders

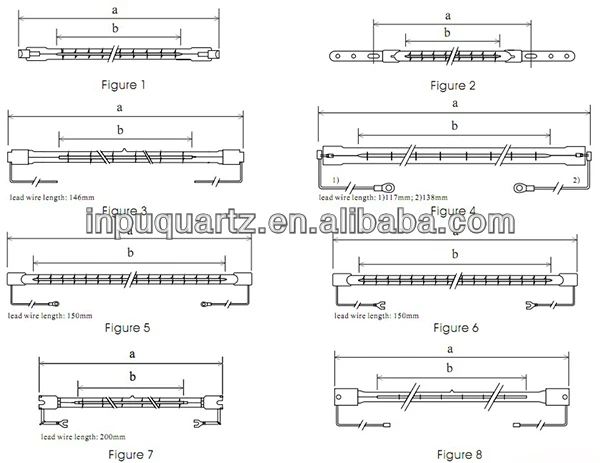

Drawing for reference



Certifications



Lianyungang Inpu Quartz Co.,Ltd
