D80 Gold Mining Gravity Sorter Separator Machine
- Category: >>>
- Supplier: Jiangxi Jinshibao Mining Machinery Manufacturing Co. Ltd.
Share on (1071878120):
Product Overview
Description
D80 Gold Mining Gravity Sorter Separator Machine
Product Description
CC (Centrifugal Concentrator) is a new type of gravity concentration equipment for concentrating gold and other high density minerals. It gets many competitive advantages compared with other concentration machines which create high returns for the investors. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
As a gravity separation equipment, CC enlarges the specific gravity differences of different minerals with the help of centrifugal force, thus it has a much better separation efficiency than other traditional equipment.
For alluvial gold processing, the concentrator is usually applied after the gold trommel to enrich the heavy minerals.
Technical Parameter
Model | D20 | D30 | D60 | D80 | D100 |
Capacity (T/H) | 1-3 | 2-7 | 15-30 | 30-70 | 60-100 |
Feeding size (mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-6 |
Feeding density | <50% | <50% | <50% | <50% | <50% |
Fluidization water(m3/H) | 1-2 | 4-6 | 10-20 | 20-35 | 40-60 |
Concentrates weight(kg) | 2-3 | 8-15 | 30-40 | 60-70 | 70-80 |
Water pressure(Mpa) | 0.06-0.1 | 0.1-0.15 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
Motor power(kw) | 0.75 | 1.5 | 4 | 11 | 18.5 |
Dimension(mm) | 800×700×980 | 1050×900×1150 | 1600×1400×1800 | 2100×1800×2100 | 2300×2000×2200 |
Weight(kg) | 270 | 420 | 1600 | 2400 | 3500 |
Gravity Gold Concentrator Gravity Gold Concentrator Gravity Gold Concentrator
Why choose us
In order to supply the best product to the customer, we are always dedicating to improving the centrifugal concentrator, including its efficiency, recovery rate, operation convenience, concentrates discharging time, and so on. In these years, our CC has been improved for several times. With the efforts of our technical team, our CC has been furtherly improved again.
1. 100% FULL AUTOMATIC OPERATION is realized by adopting the PLC system, with achieving non-attended, remote control system
2. The complete new-type filter provides the machine with more stable performance and longer service life.
Engineer cases

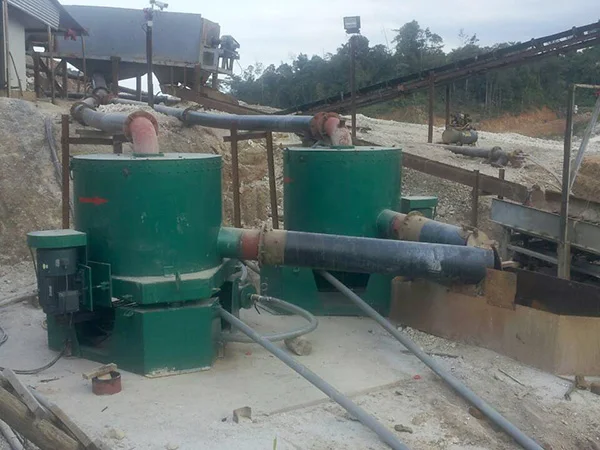

Jinshibao centrifugal concentrators have been widely applied on different mining sites and gotten very good feedbacks from customers.
Gravity Gold Concentrator Gravity Gold Concentrator Gravity Gold Concentrator
Packaging & Shipping

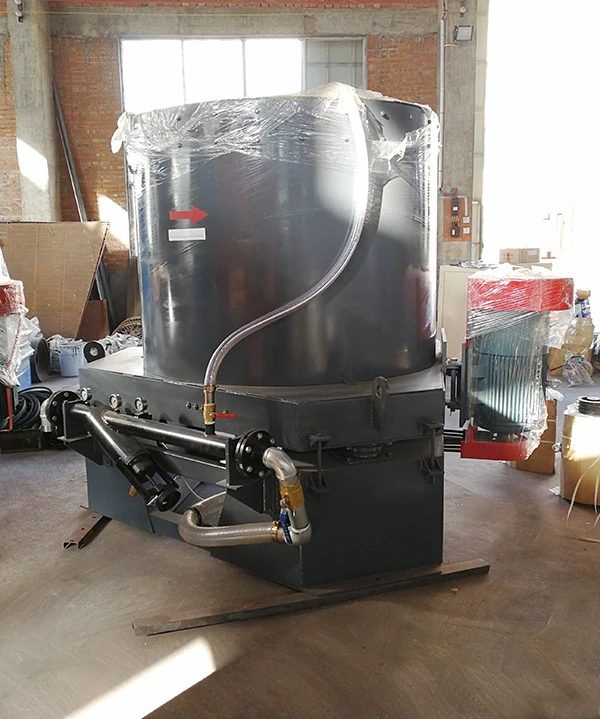

LCL: The machine body is usually packed in steel frame together with plywood. The convertor is packed in plywood box.
FCL: The concentrator is fixed in the container after wrapped by thin film.
Company Information
Jiangxi Jinshibao Mining Machinery Manufacturing Co, Ltd was founded in 2001. It is mainly engaged in:
1. Mining machinery manufacturing
2. Experimental analysis on sample ore
3. Flow chart designing
4. Installation and debugging
5. Technical support services
Its main products contain shaking table, ore washing machine, centrifugal concentrator, spiral chute, crusher, ball mill, vibrating screen, classifier, flotation machine, Jigger and so on.
