Copper Air Conditioner Condenser

Product Overview

Description

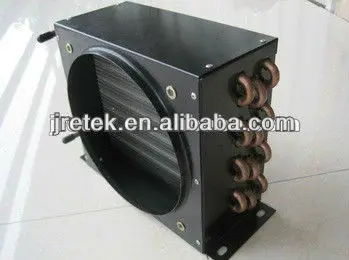

Copper Air Conditioner Condenser



Made of copper pipe & alu.fin
widely use High-tech and Economical Copper tube Condenser d in freezer,cold room,condensing unit..

High-tech High-tech and Economical Copper tube Condenser and Economical Copper tube Condenser  Refrigerator air cooled copper condenser,Copper tube Condenser



Raw Material : copper tube , aluminium fin , galvnized plate and stainless steel plate

1 Size of copper pipe :diameter :7/7.94/9.52mm ,Inner Grooved Or smooth tube High-tech and Economical Copper tube Condenser  .

2 Auminium foil : Hydrophilic or bare

3 Fin type :Louver Fin , Flat fin , corrugated fin

4 Pitch of fins can be adjusted between 1.8-5.8mm

5 Pitch of holes and pitch of rows :25x21.65mm,19.05x12.7mm,25.4x22mm ,25.4X19.05mm,25.4X15.88mm,50x50mm,38x33mm,31.75x27.5mm,21x12.7mm

6 3.0MPA Air Pressure bitrogen test leaklees .



copper tube diameter	holds and rows pitch	fin space	holds array	fin surface	fin edge type	defrost heater
Φ15.88mm	50×50mm	4-10mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ15.88mm	38Χ33mm	2.5-4mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ12.7mm	31.75Χ27.5mm	3-9mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ9.52mm	25Χ21.65mm	1.5-6mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ9.52mm	31.75Χ27.5mm	2.5-7.5mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ9.52mm	25χ21.65mm	1.5-2.5mm	equilateral triangle	louver	flat	without
Φ7.94mm	25χ21.65mm	1.5-3.5mm	equilateral triangle	flat	flat+wave	without
Φ7.0mm	21×12.7mm	1.3-1.8mm	equilateral triangle	louver	flat	without
