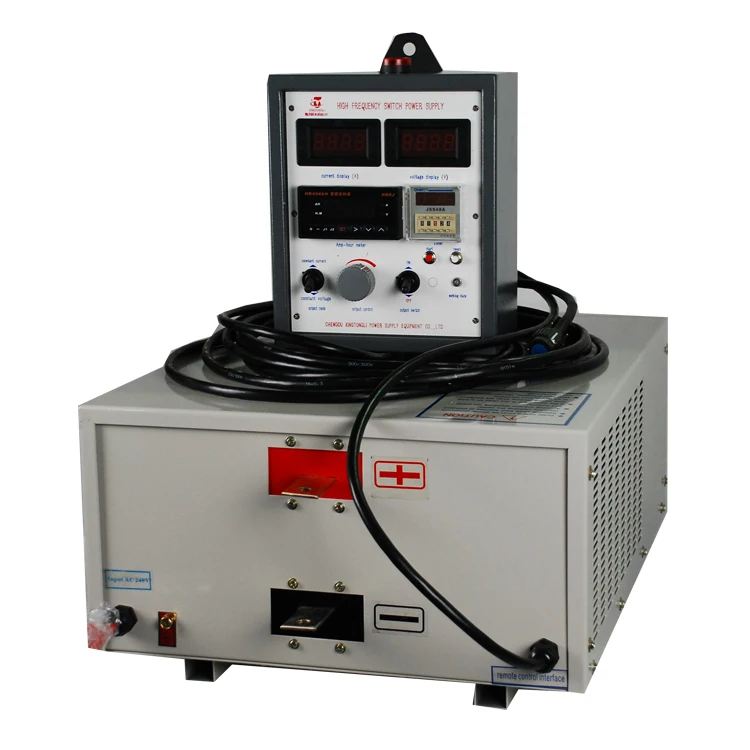

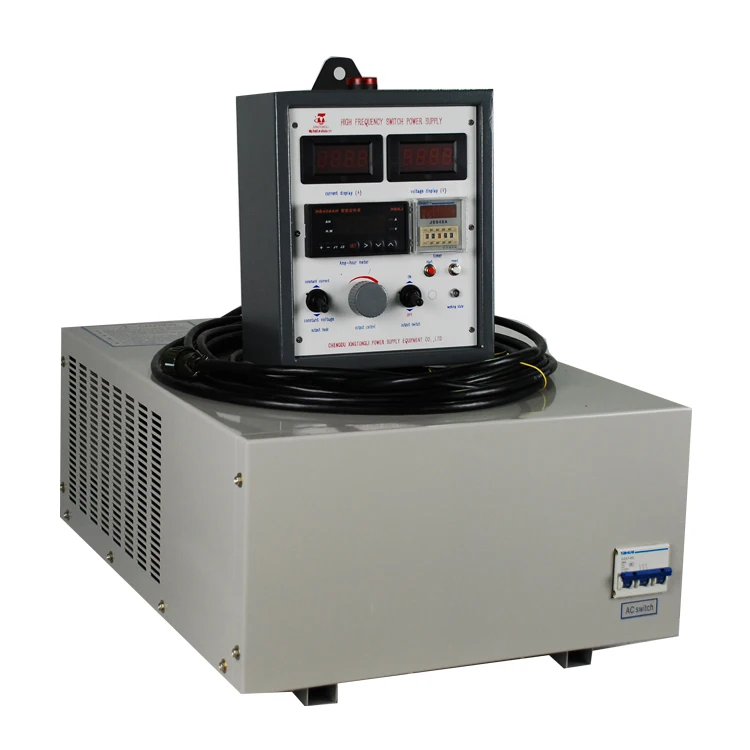

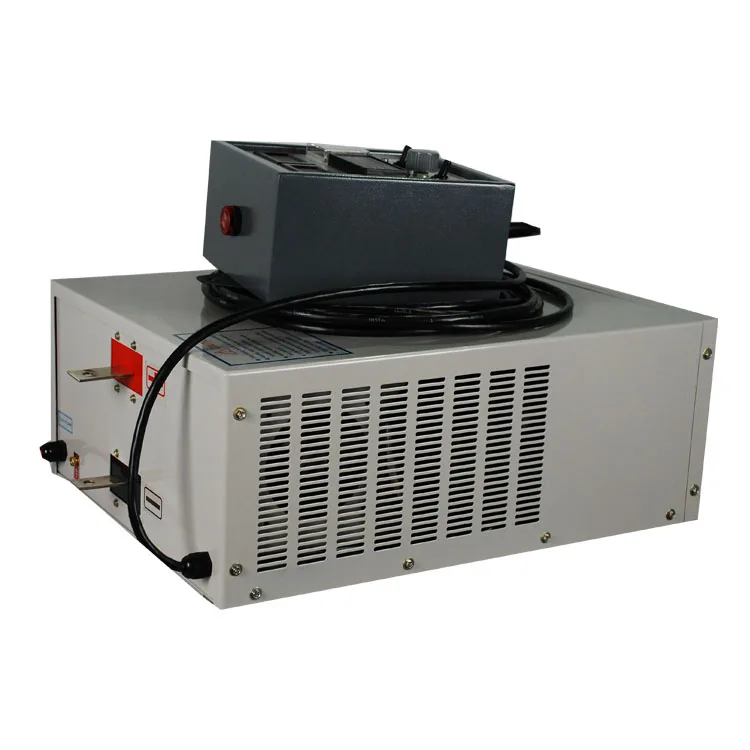

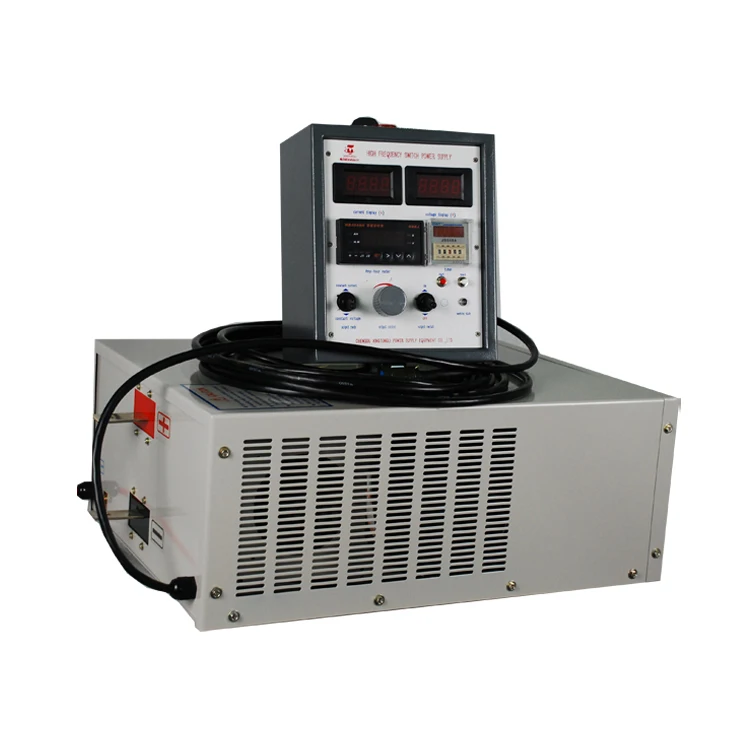

18V 1000A Switch Mode Aluminium Anodizing Rectifier Single Output
- Category: >>>
- Supplier: Chengdu Xingtongli Power Supply Equipment Co. Ltd.
Share on (1073411205):
Product Overview
Description
18v 1000a aluminum anodizing rectifier
Product Description
GENRAL SEPCIFICATION aluminum anodizing rectifier
| AC Input | voltage | 220v/380v/415v/450v |
| frequency | 50/60hz | |
| phase | single phase : power <5kw three phase : power ≥5kw | |
| output | current | 0~5000a optional |
| voltage | 6V/12V/15V/18V/24V/36V/48V optional or according to customers’ request | |
| frequency | 40khz | |
effiencicy | ≥89% | |
| voltage stability | ≤1% | |
| current stability | ≤1% | |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | |
| adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | |
| control part | cooling system | air cooling /water cooling/mixed water & air cooling |
| control method | local panel control/remote control box/ PLC | |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | |
| Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | |
| use environment | Operating temperature | -20-50℃ |
| Ambient temperature | 30-65℃ | |
| Ambient humidity | ≤90% | |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
OPTIONAL FEATURE:
| Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point |
| Polarity Reversing | manual reverse or automatic reverse |
| Digital Ampere-Hour / Minute Meter | achieve the current hour,current minute control,achieve the chemical solution automatically add |
| Computer analog Interface | 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost |
PLC +HMI control | RS 485,Profibus,Profinet international standard interface |
| multi-period Timer | Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle |

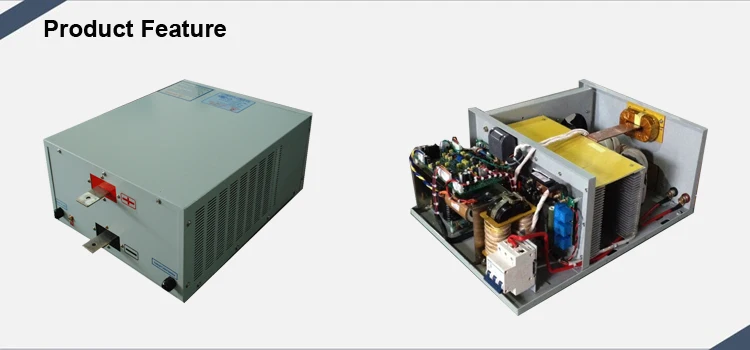

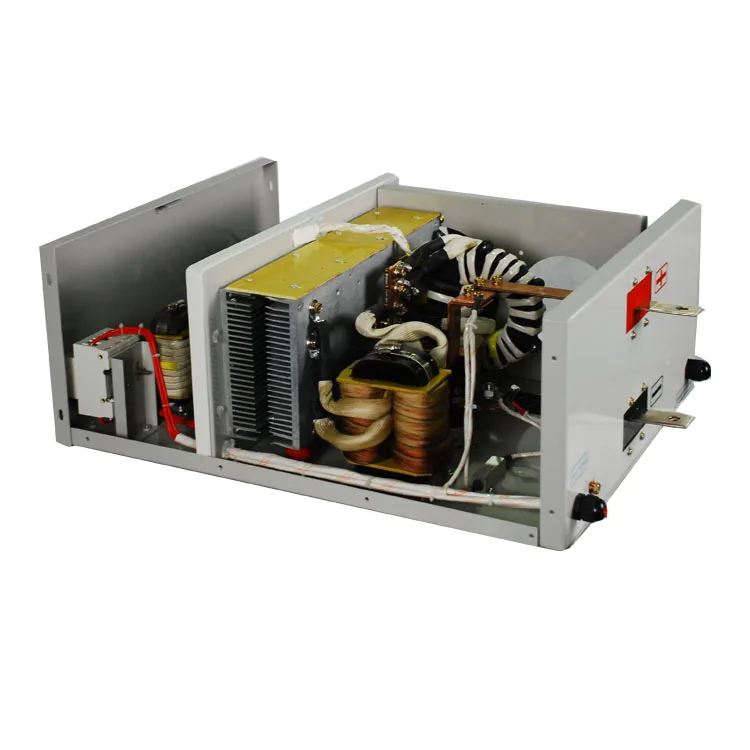

Cabinet: anodizing rectifier Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting | Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect | switch control way: anodizing rectifier adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
Main transformer: aluminum anodizing rectifier adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability | Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
Board : all control boards did anticorrosion treatment with imported three defense lacquer | IGBT: aluminum anodizing rectifier IGBT capacity expanded 3 times,make the power supply more reliable |
Packaging & Shipping
we adopt plywood case package with free-fumigation package featuring water-proof, anti collision, good fixation, which will be strong and durable during transportation . We can also pack aluminum anodizing rectifier according to clients' special requirements.

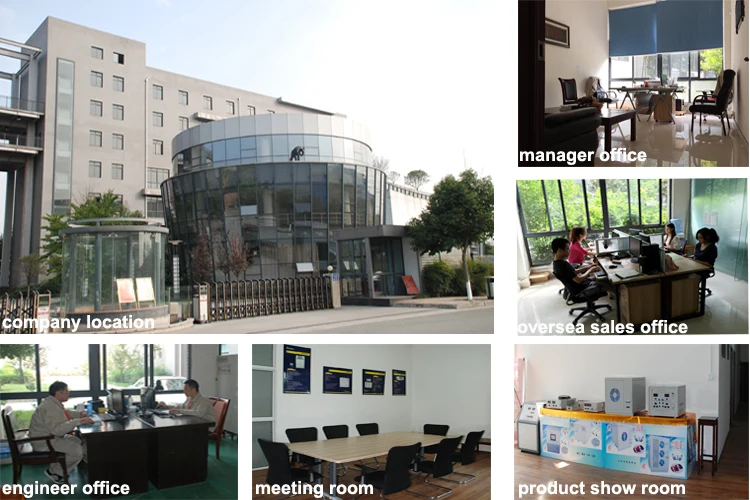

Company Information

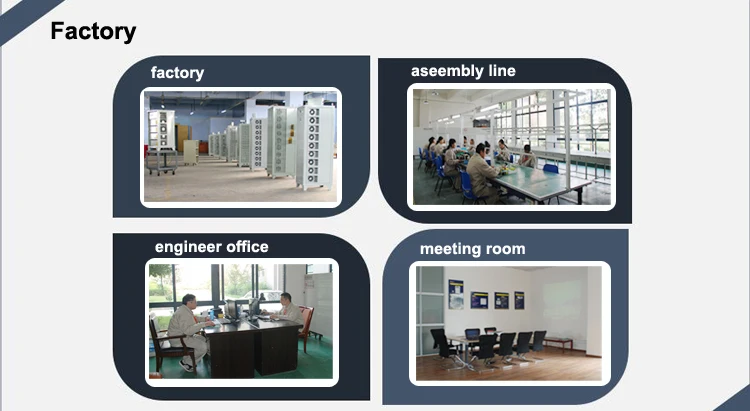

CHENGDU XINGTONGLI Power Supply Equipment Co., Ltd. was set up in 1995. We are a high technology company dedicating to the design and manufacture of switched-mode power supply(rectifier). We are experienced in the field of power electronics, energy transforming technology and industry control system. The performance of switching power supply we designed is excellent. It is safe, green and reliable. With these advantages, our products are widely used in aerospace, military industry, railway transportation, electric power industry, automobile manufacturing, shipbuilding, petroleum industry and some other industries. Now we have already held a big market share of the power supply in metal surface finishing field. We are one of the main vendors of electroplating power supply in China.
FAQ
18v 1000a aluminum anodizing rectifier
1. Q: Are u factory or trading company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when will come to our company,then we will pick up at the Chengdu airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL and FeDex four transporting ways. If u order big rectifier and it’s not urgent, shipping is the best way. If u order small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex. If there is no transporting way you want to choose, pls tell me.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly pls resolve the problems according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, pls contact us immediatly. Our engineers are on standby.
customer
Installation
| 1,Placing 18v 1000a aluminum anodizing rectifier and keep the body stability; ensure good ventilation. |
| 2,Checking anodizing rectifier out cover if loosing. |
| 3,Connecting shell to ground to prevent static electricity. |
| 4,Conecting the AC input wire |
| 5,Connecting the DC output copper bars |
| 6,Connecting the remote control box,if local control ,skip this step |
| 7,Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
| 10,Disconnect the air switch, turn off the power |
