Tobee Effluent Handling
$12,600
12V or 24V High Performance 12v electrical piston pump
- Category: >>>
- Supplier: Changsha Tops Industry & Technology Co. Ltd.
Share on (1075499316):
Product Overview
Description

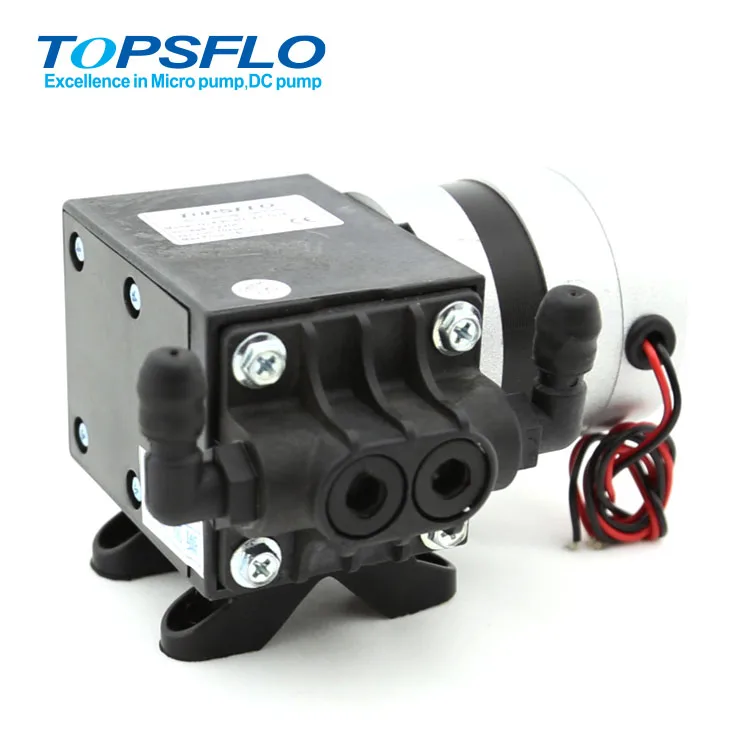

12V or 24V High Performance 12v electrical piston pump
Specification
Name | DC Brusheless motor 12V Mini Piston Pump |
Material | pump head Nylon, piston PTFE PTFE : Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity. |
Operating voltage range(v) | DC12 / 24V |
Starting time(s) | ≤0.02 |
I max. (A) | 1.5 / 1 |
Max. Gas flow(l/min) | 15L |
Max vacuum( kpa) | 70kpa |
Ambient temperature(°C) | 40 |
Low noise(dB) | < 50dB from 1 Meter |
Size (mm) | 130*90*75mm |
Inlet&Outlet: | OD 10mm/ID 6mm,hose suggestion:ID 8.0mm |
Weight(g) | 900g |
Lifetime(h) | 10000hour |
Description
1. Small and powerful
2. Extreme chemical resistance
3. Brush and brushless direct current motor for selection
4. Dry running, durable and maintenance free
5. Self-priming and excellent for pressure
6. Low noise, longer endurance lifetime than other normal membrane pump
Technical features
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. Long life,High efficiency
5. Compact size, Low Weight
6. Low noise level&vibration
7. Maintaince free.
8. High level of water tightness thanks to the closed
diaphragm surface and special sealing system.
9. Can operate in any installed position
Application
The versatility of TOPSFLO Diaphragm vacuum pumps allows a wide field of applications to be covered.
Over many years our pumps have proved themselves in the following areas:
Analysis
| · Medical / pharmaceutical · Environmental / water treatment · Food / toxicology |
Laboratory
| · Filtration · Chromatography |
Cleaning industry
| · Cuvette cleaning · Sterilization · Industrial washing machines |
Other applications | · Fuel cells, hydrogen generators, CD coating, dental technology, Airpler Vacuum transfer , Aatic Tourniquet Autoclave, Beauty equipment textiles and so on. |
For more detail, pls feel free contact us !
