Slide Wear Plates for die & mould industry

Product Overview

Description

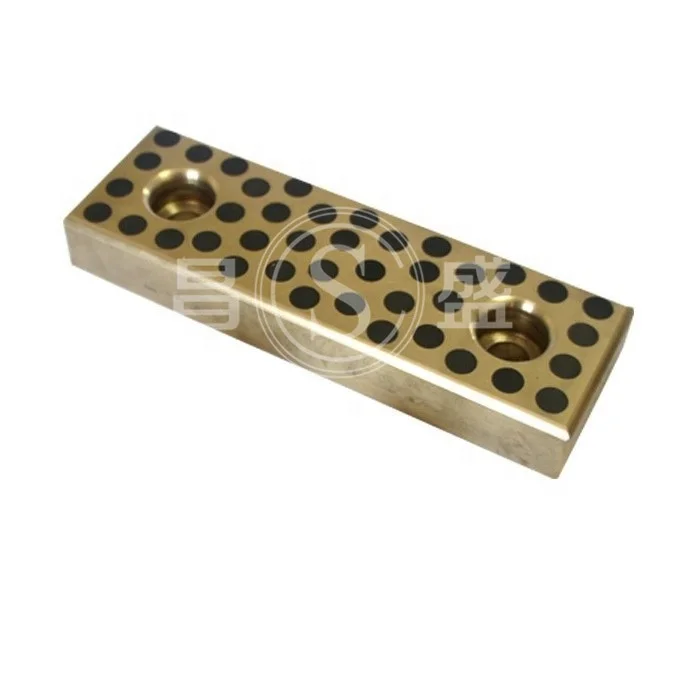

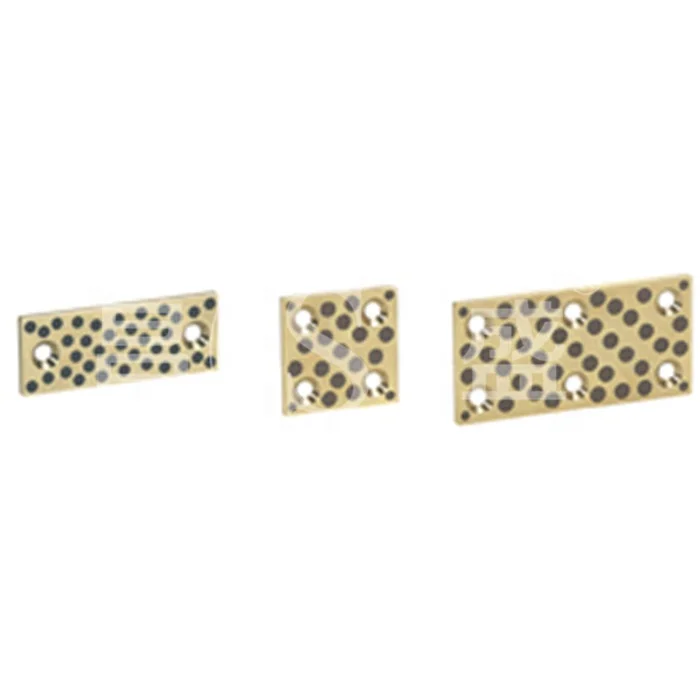

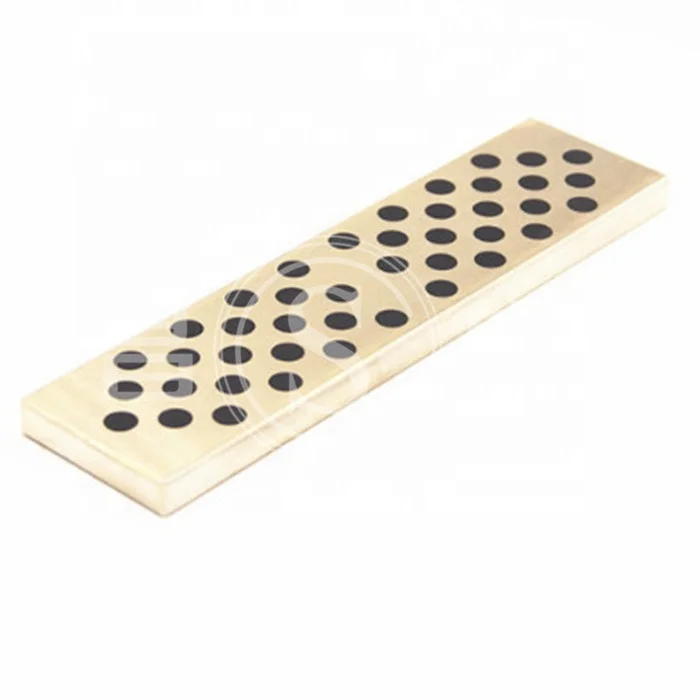

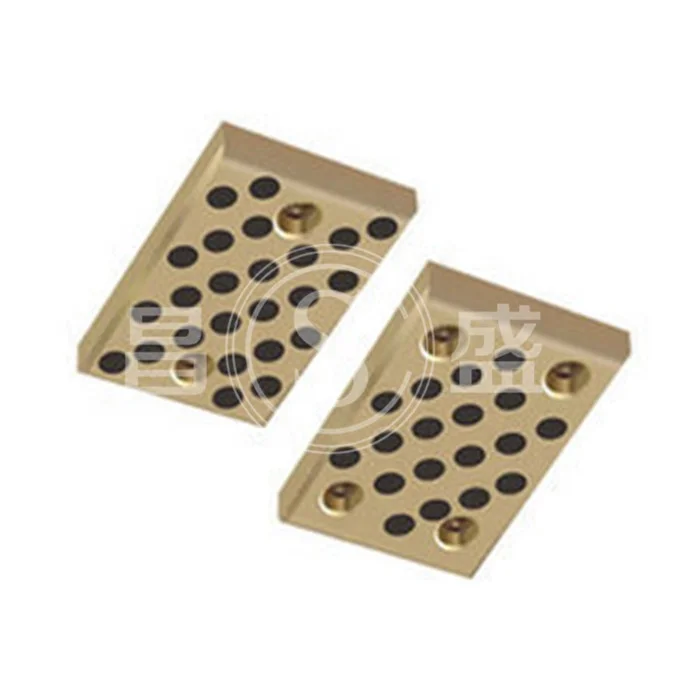

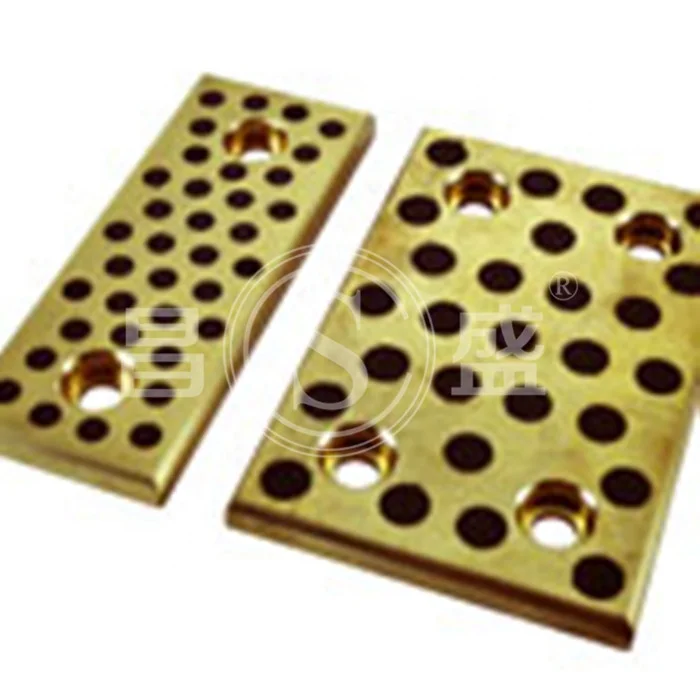

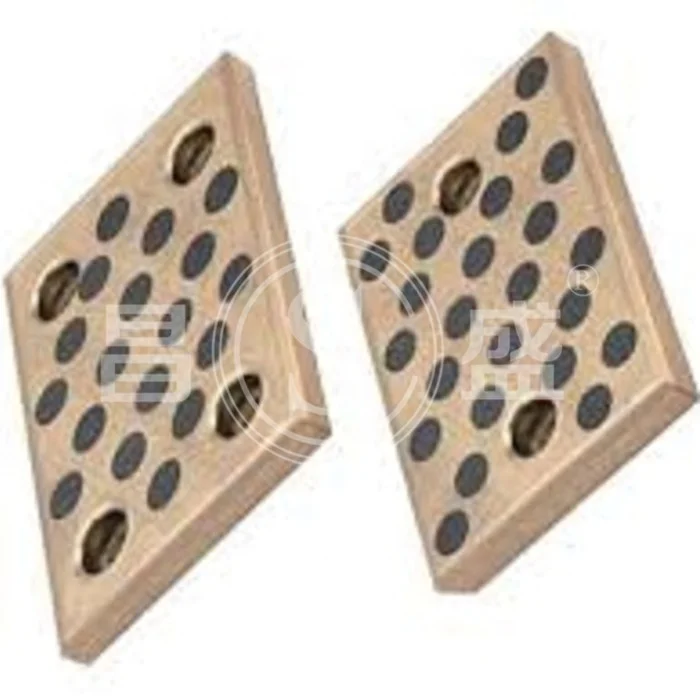

Slide Wear Plates for die & mould industry



Specifications

Wear plate for die & mould industry

Producing all kinds of oilless bearings
Good quality,competitive price, fast delivery

 Slide Wear Plates for die & mould industry



• Introduction

Slide Wear Plates for die & mould industry are made of strong cast brass with graphite lubricating. The base brass can withstand high load and the solid lubricants will provide self-lubricating when using.



Slide Wear Plates for die & mould industry are widely used in machinery industry, such as casting machine, mining machinery, shipping, steam turbine, etc.



• Features:

1. Without pre-lubrication required

2. Able to working under extreme high/low temperature with low speed



• Specifications:

Material	Bronze	CuZn25Al6Fe3Mn3 + Graphite
	Iron	Cast-iron + Graphite
Density		8.2g/cm3
Tensile Strength		>=755N/mm2
Anti-compact Tenacity		>=400~500KJ/m3
Hardness		>=200HB
Max Load Pressure		100N/mm2
Speed Limit		0.5m/s
PV value limit		1.65N/mm2.m/s
Friction coef	Oil Lubrication	0.03
	Dry Friction	0.16
Working temperature		-40~+300°C
