cow mat anti slip sheet carpet o ring seal gasket two roll rubber mixing mill miller mixer with CE ISO9001 certificate

Product Overview

Description



WELCOME TO OUR FACTORY VISIT AND NEGOTIATION



This machine is suitable for reclaimed rubber plants, transmission belt factory, conveyor belting factory, rubber products factory, shoe factory,cable factory, rubber hose factory, seals and rubber related industry.It is mainly used for the mixing of natural rubber or reclaimed rubber after desulphurization to mixing ,plastic refining and tablet.

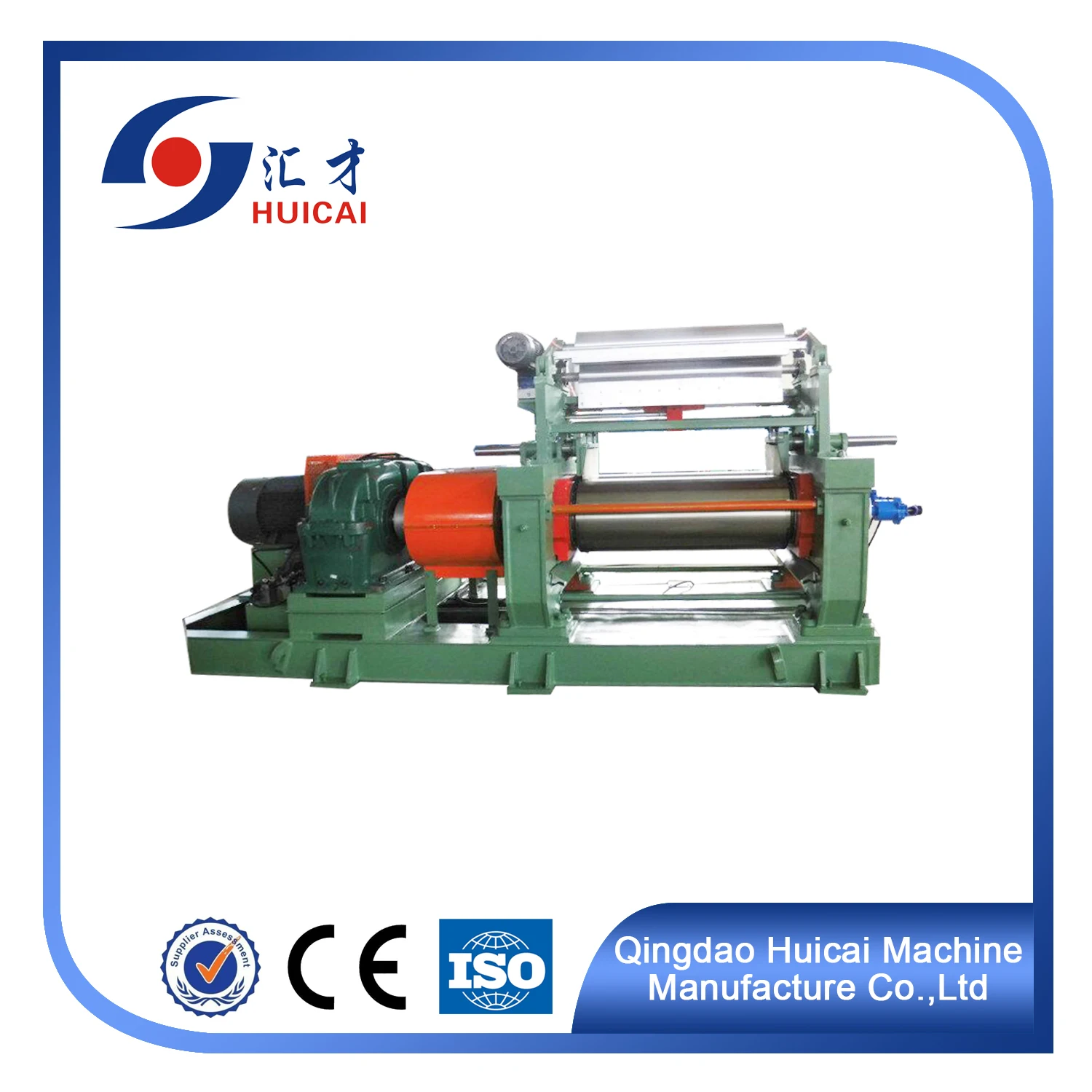

XK-400 Open Mixing Mill/Two Roll Mixing Mill/Rubber Mixing Mill

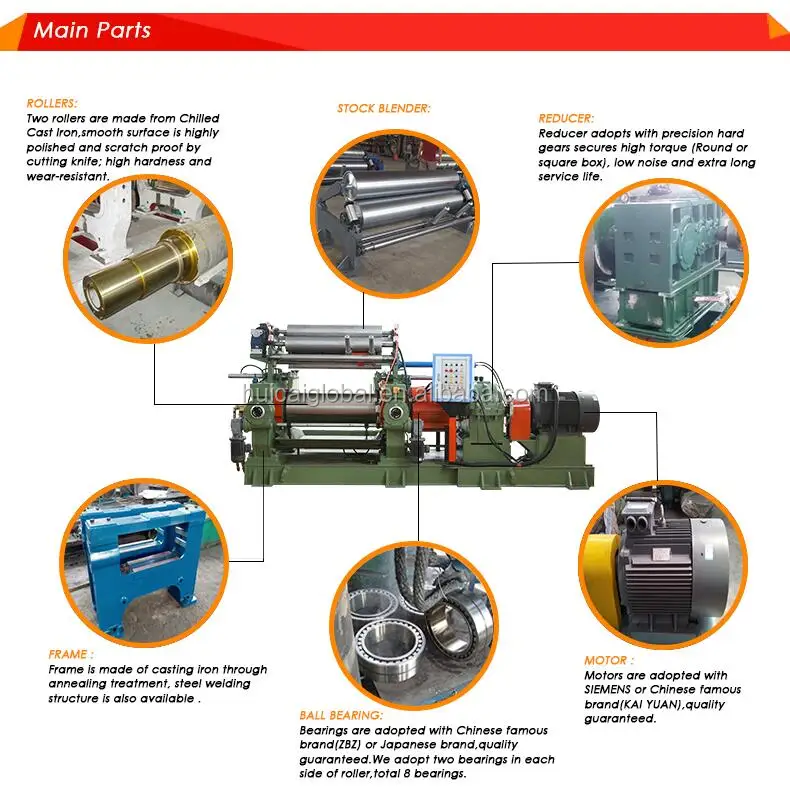

The feature of rubber open mixing mill.



1.The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity  is processed to make temperature well proportioned on the roll surface.



2. The machine is equipped with an overload protection device to prevent the main components from being damaged.



Rubber Machine & Rubber Machinery



1)Tailored structure, easy to operate.



2)There are many speeds and speed ratios available, which can satisfy most customers’ formula and processing requirements.



3)Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.



4)Chilled alloy cast iron roll is abrasion resistant with long service life.



5)The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.



6)terials of Rolls :Cast iron alloy (LTG-H), after quenching and precision processing,hardness HS,68~75.



7)in bearing : Dual-listed rolling bearings, which reduces energy consumption by 30%.



8)ll gap adjustment : electric automatic



9)tor: Frequency control of motor speed



10)ducer: Airtight leaching oil type, ZSYE reducer (There are a variety of choice, the price is different), Almost no noise, safety



Handle safty



1.Electrical protection: When the equipment overloading, equipment parking.



2. roller safety device: when the device instantly over the pressure of the roller, the insurance for the safety film sit automatically paragraph crack. To protect the rollers and other major parts (XK-400 is no such device) to make the machine run more reliable and maintenance costs to a minimum.



3. machine equipped with a brake device, in case of emergency, pull the safety lever to immediately brake, thereby reducing the occurrence of the accident.









Type		XK-150	XK-250	XK-300	XK-360	X(S)K-400	X(S)K-450	X(S)K-560
Working diameter of rolls (mm)		Ø150	Ø250	Ø300	Ø360	Ø400	Ø450	Ø560
Working length of rolls (mm)		320	620	750	900	1000	1200	1530
Working linear speed of front roll(m/min)		8	15.1	15.1	16.25	18.65	24.5	27.7
Max gap (mm)		10	10	10	10	15	15	15
Capacity per.batch(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	95
Overall dimension (mm)	L	1080	3400	3580	3940	4250	5200	6120
	W	796	1350	1550	1780	1850	2380	2280
	H	1415	1500	1695	1740	1870	1770	2000
Weight (kg)		1100	3500	5205	5670	7600	13000	22000
Notes		Bearing	Nylon bush grease LUB Copper sleeve oil LUB					Nylon bush grease LUB





We are professional manufacturer of machinery



About us--

Qingdao HUICAI Machine Manufacture Co., LTD.



1. has specialized in  machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press,  Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line,  Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;

6.our machine are welcome by the world,popular in lots of markets















About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.



Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends  on detailed parameter

Packing:bare packing, some parts are packed in wooden case.

Import duties, taxes,charges,and all the things to clear the custom are not included in the item price or shipping charges.These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
If the items are damaged and lost during the shipping, we are not responsible of that. Please contact the shipping company.

You also can ask us to buy the insurance for you. Thank you for your cooperation.
