High speed with low noise pillow block bearing housings UCP205 UCF205 UCT205 for agricultural machinery

Share on (1076588450):


Price:$1.48 - $1.50

Quantity:


Product Overview

Description


High speed with low noise pillow block bearing housings UCP205 UCF205 UCT205 for machinery



Product details


 Specification of pillow block bearing:




1.Series:UCF series,UCP series,UCFL series,UC series,etc.


2.Tolerance:ABEC-1 ABEC-3 ABEC-5


3.Bore size:0 to 25 mm;Outside diameter:0 to 140 mm


4.Sealing:OPEN,Z,ZZ,RZ,2RZ,RS,2RS


5.Noise Level:EMQ V1 Z2,EMQ V2 Z3,EMQ V3 Z4,EMQ V4


6.Low vibration, Low noise, High precision and durable


7.Material:Chrome steel ,carbon steel ,Gcr15


Technical data sheets of pillow block bearing:


















































































































































































































































































































































Unit No.Dimensions(mm) Bolt SizeBearing No.Housing No
 daeiglsztBn
UCF201128664151226123337.53112.7M10 UC201 F204
UCF202158664151226123337.53112.7M10 UC202 F204
UCF203 178664151226123337.53112.7M10 UC203F204
UCF204 208664151226123337.53414.3M10 UC204 F204
UCF205 2595701614271236403414.3M10 UC205 F205
UCF206 3010883181431124044.53815.9M10 UC206 F206
UCF207 3511792191634144448.54317.5M12 UC207 F207
UCF208 40130102211636165155.54919M14 UC208 F208
UCF209 45137105221838165256.54919M14 UC209 F209
UCF210 50143111221840165559.55219M16 UC210 F210
UCF211 551621302520431958635622.2M16 UC211 F211
UCF212 60175143292048196973.56525.4M16 UC212 F212
UCF213 65187149302250197074.56525.4M16 UC213 F213
UCF214 70193152312254197581.57530.2M16 UC214 F214
UCF215 75200159342256197983.57833.3M16 UC215 F215
UCF216 80208165342258238388.58333.3M20 UC216 F216
UCF217 85220175362463238892.68634.1M20 UC217F217
UCF2189023518740246823961029639.7M20UC218F218

 Drawing of pillow block bearing:

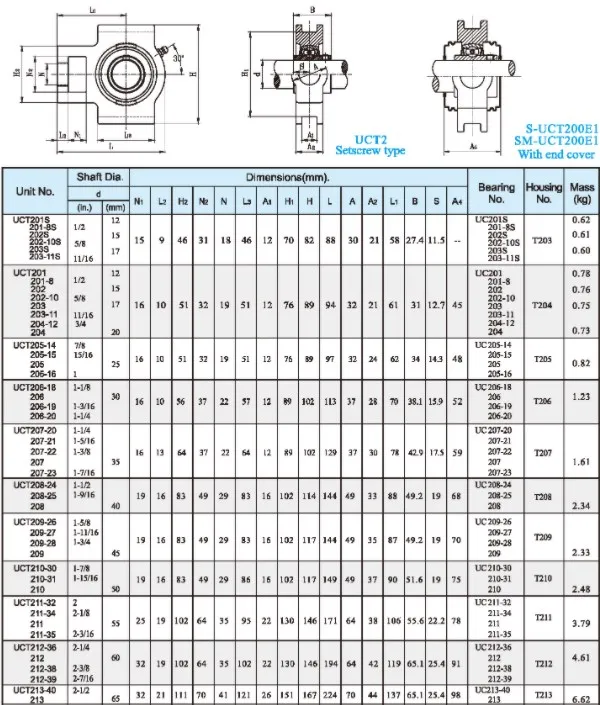

Drawing of UCP.jpg

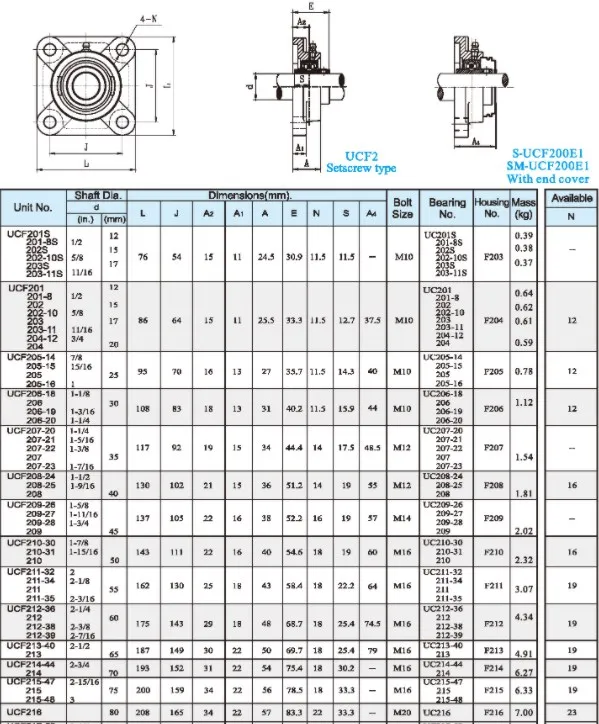

Drawing of UCF205-16.jpg

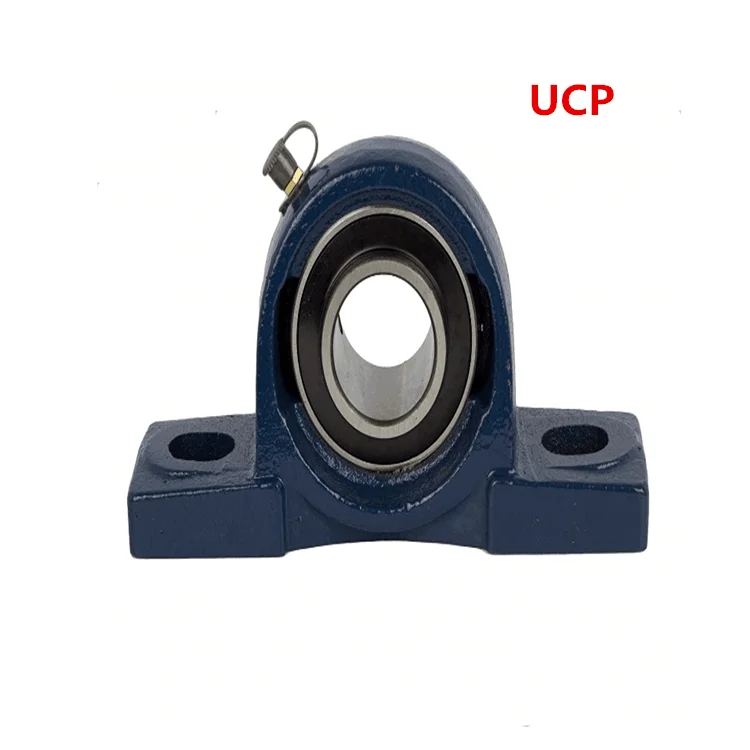

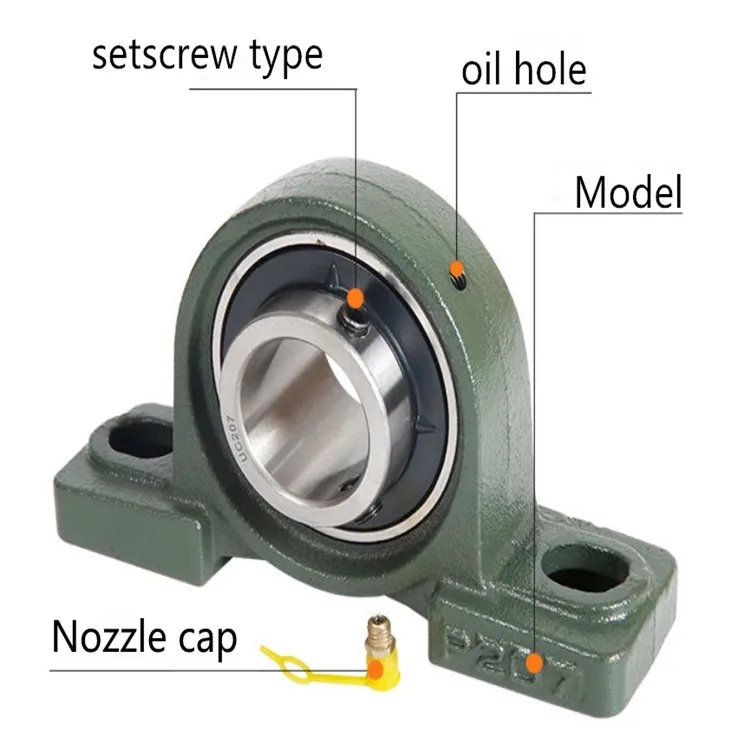

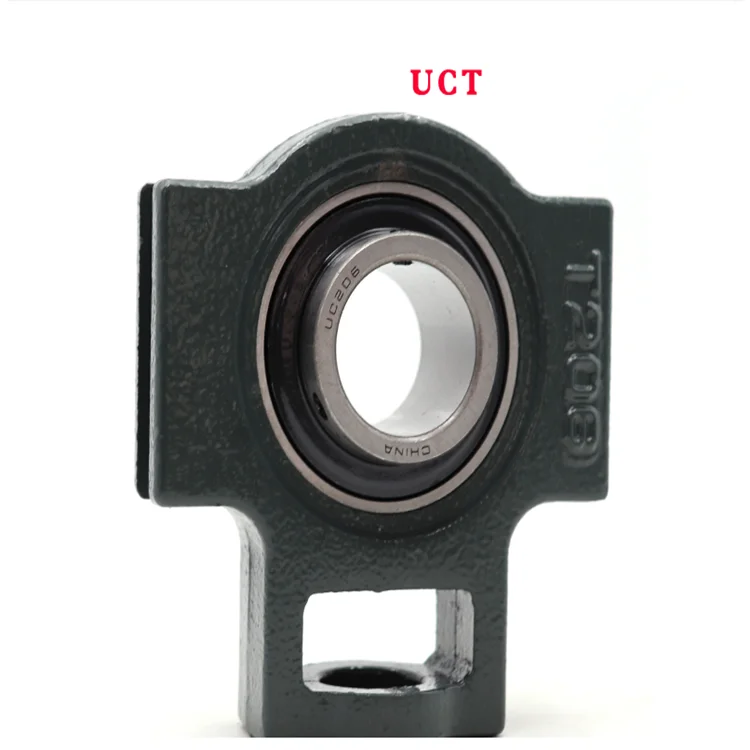

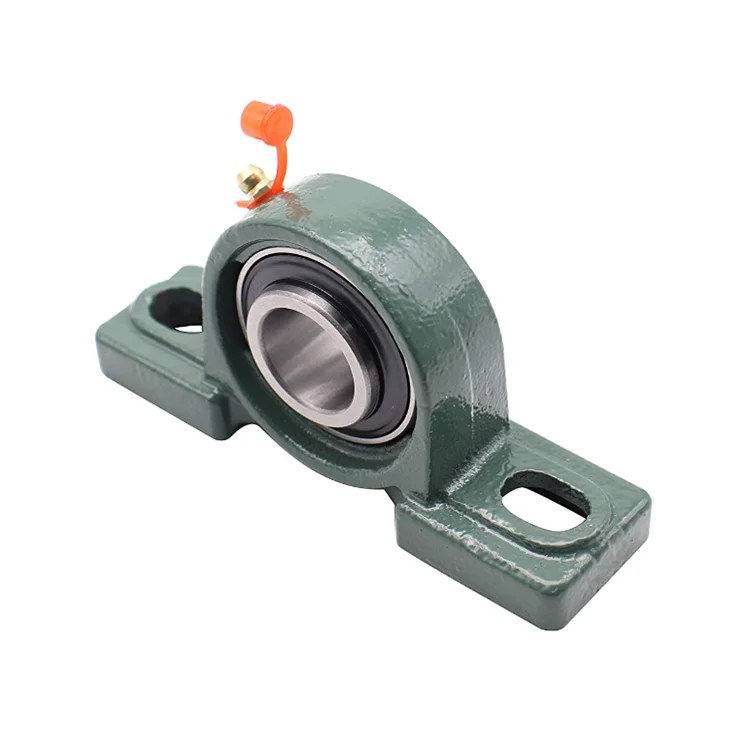

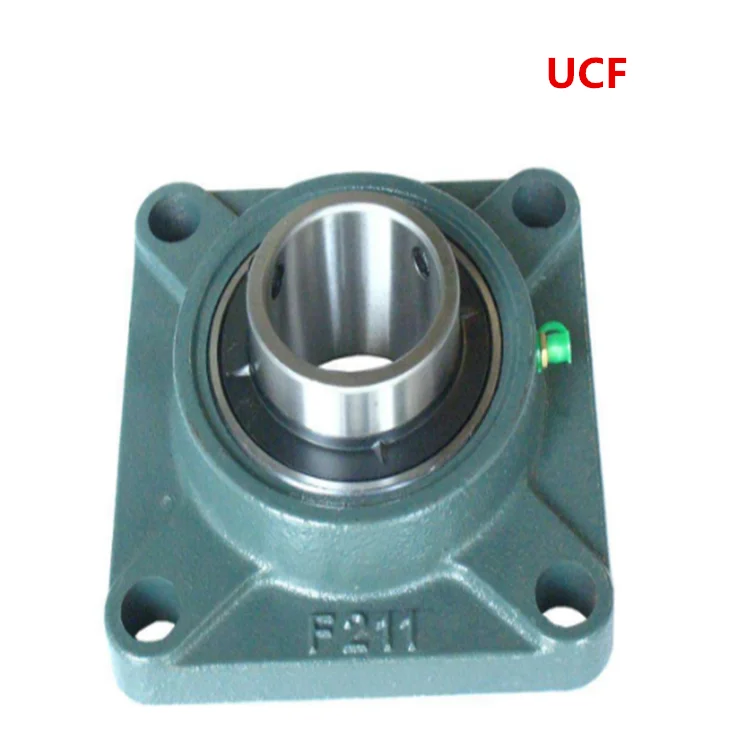

 Photos of pillow block bearing:


pillow block bearing 11.jpg






pillow block bearing2.png













Packaging & Shipping


Packaging:


1.barreled package+outer carton+pallets
2.single box+outer carton+pallets
3.tube package+middle box+outer carton+pallets
4.or as per your request


  Shipping:


     1.For small order,we suggest that send the goods to you by express. Such as UPS,DHL,FEDEX,TNT OR             EMS.


       2.If your order is big,we will advise you use Air Freight or Sea Freight. It depends on your order quantity.              We will calculate the freight charges which one is suit for you that transport these goods.


      3.In generally,we delivery the goods within 3-7days or based on your order quantity.

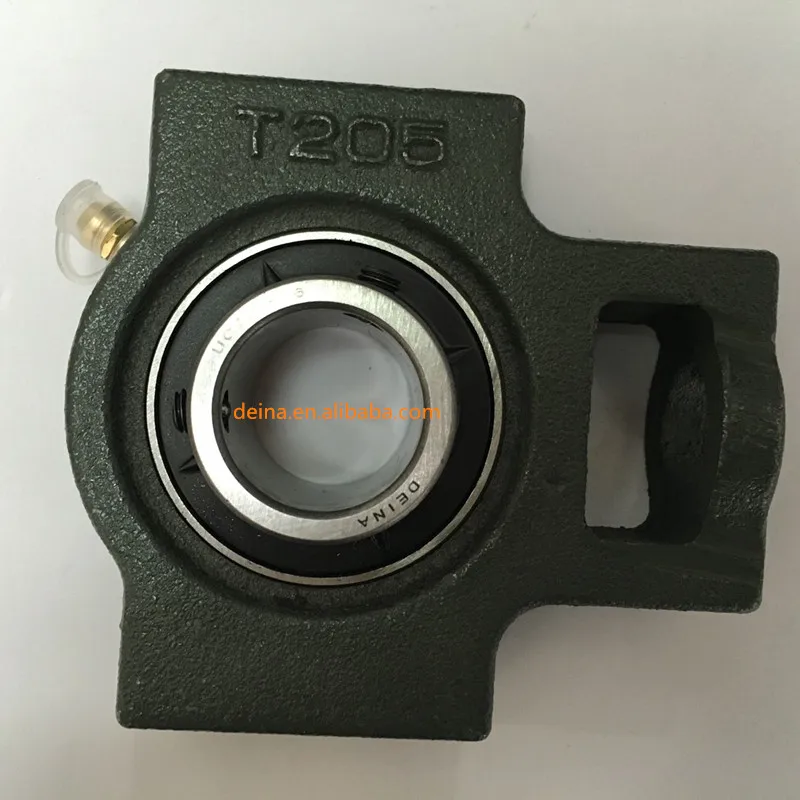

 UCT205-16-15_.jpgShipment photos1.jpgshipment.pngshipment1.jpg








Our Services





      1.We can supply you technical support


2.We can provide drawingto you as per your request.


3.We have strict quality control teams
4.We can accept small quantity
5.We may supply other globle brand bearings


6. We can provide OEM service
7. We can provide 24hours servic





Company Information





     Tianjin Deina Bearing Sales Co.,Ltd has established in 1999. We are a professional supplier of standand bearing and special bearings and pillow block bearing and bearing units.We have been in this line for 20 years.We are mainly export United Kingdom, United states,Australia , Mexico, Canada, India,and so on.


     Our products mainly include ball bearings, roller bearings, combined bearings, bearing units and so on.


     By the way, we have professional engineer.He do this line for 30 years. He know bearing knowledge well. He can recommend some type as per your application or give you some advise that how to do use bearing.


     What’s more, we have very strict Quality Control Group. After the goods produce well, they will inspect them. When it is qualified, we will provide them to our customers. Pls be assured that the quality of our bearings. As the goal of our company is quality is the first.


factory 3.jpg





Why choose us?


1.Before-sale service


We have professional technical engineer who can provide customers with necessary drawing or technical service.


2. Strong Suppling Capacity


We are direct factory in China for 20 years that produce Several hundreds of bearing types. Our common goal is that 5billion sets items as produced year and the output value more than 5 billion US dollars in the past year.


We can complete excellently all the items about orders with some advanced equipments in China.


3. Know the market very well


Cooperating with the customers all over the world and knowing the markets very well


4.Strict Quality Control System


We have very strict quality control systems and testing equipments and experienced engineers


We have professional QC worker to inspect the goods one by one before the goods leave the factory. We make sure each products that is qualified before leaving our factory.


5.After-Services


After-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.


Any problems and feedbacks will be answered in a short of time.








FAQ


1. Could you provide OEM service or as per customer’s requirements?


 Yes, it is no problem for us. We can provide bearings as per your drawing or as per your samples  or as customer's request.


2. Could you supply samples to us?


 Yes, we can provide free samples, But we do not pay for the freight charges.


3. Could you tell me how is the packaging for bearings?


        Inner by Single plastic bag,Plastic tube, Outer by Paper Carton or as per your request.


4. How is your bearings’s life time?


The life time is from 6 months to 36 months for different products.


5. Are you a factory or trader?


 We are a direct factory. Pls be assured that we have been in this line for 20 years. Our type is factory +trade


6.Could you tell me what's your payment terms of your company?


TT, Western union, Credit Card and so on
