Humanity HM C200B EOP 4E1 to Ethernet converter

Product Overview

Description

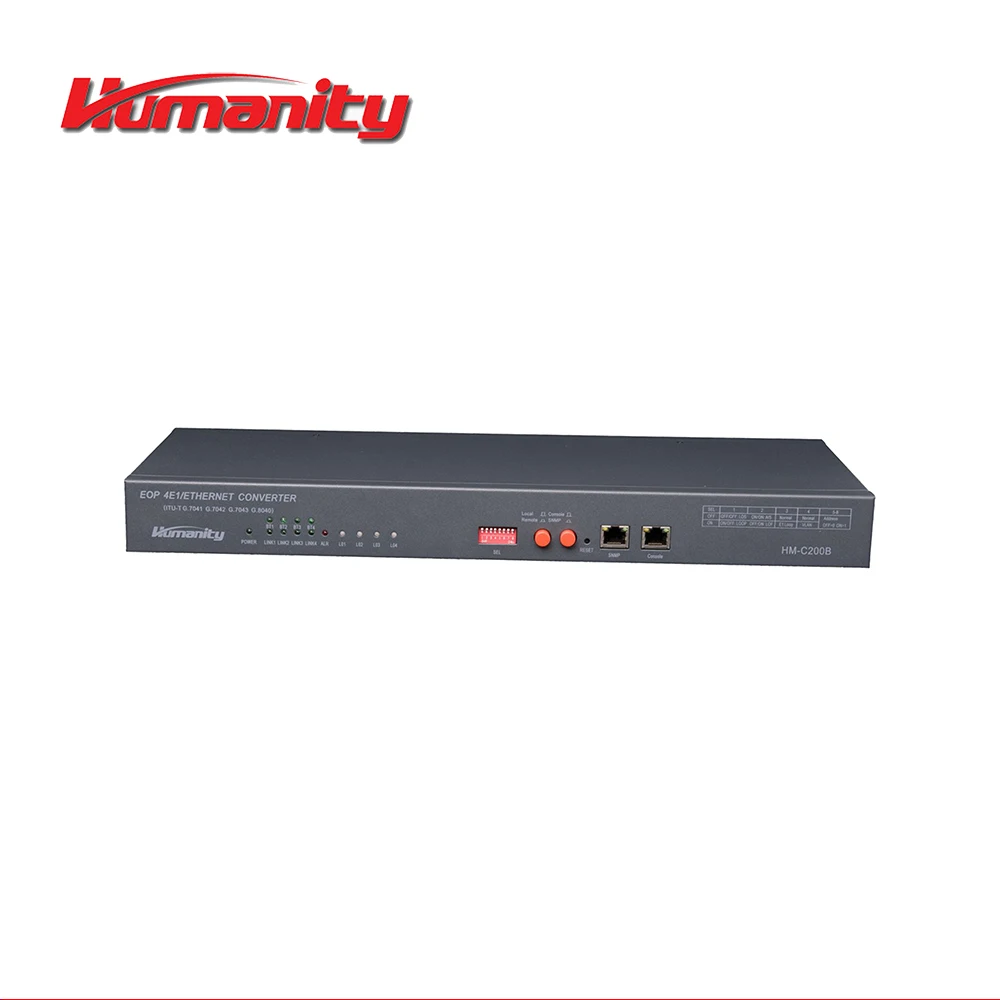

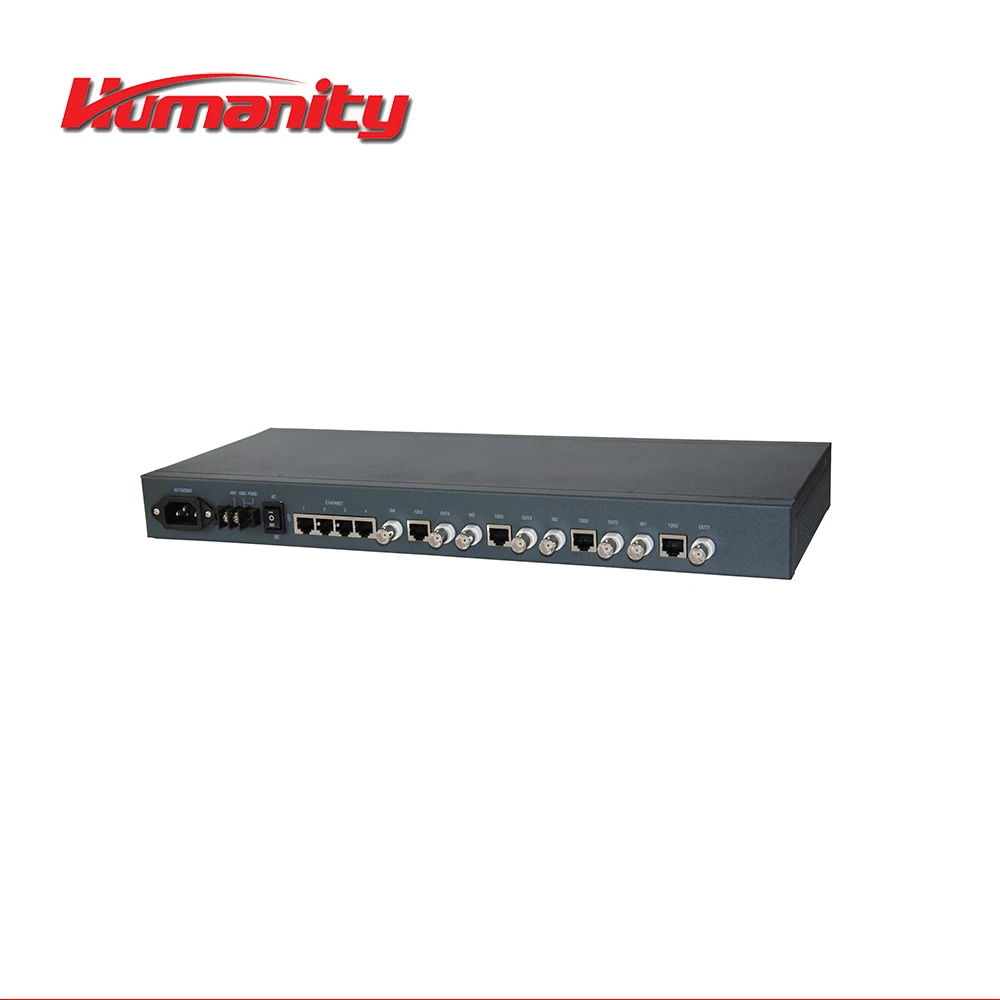

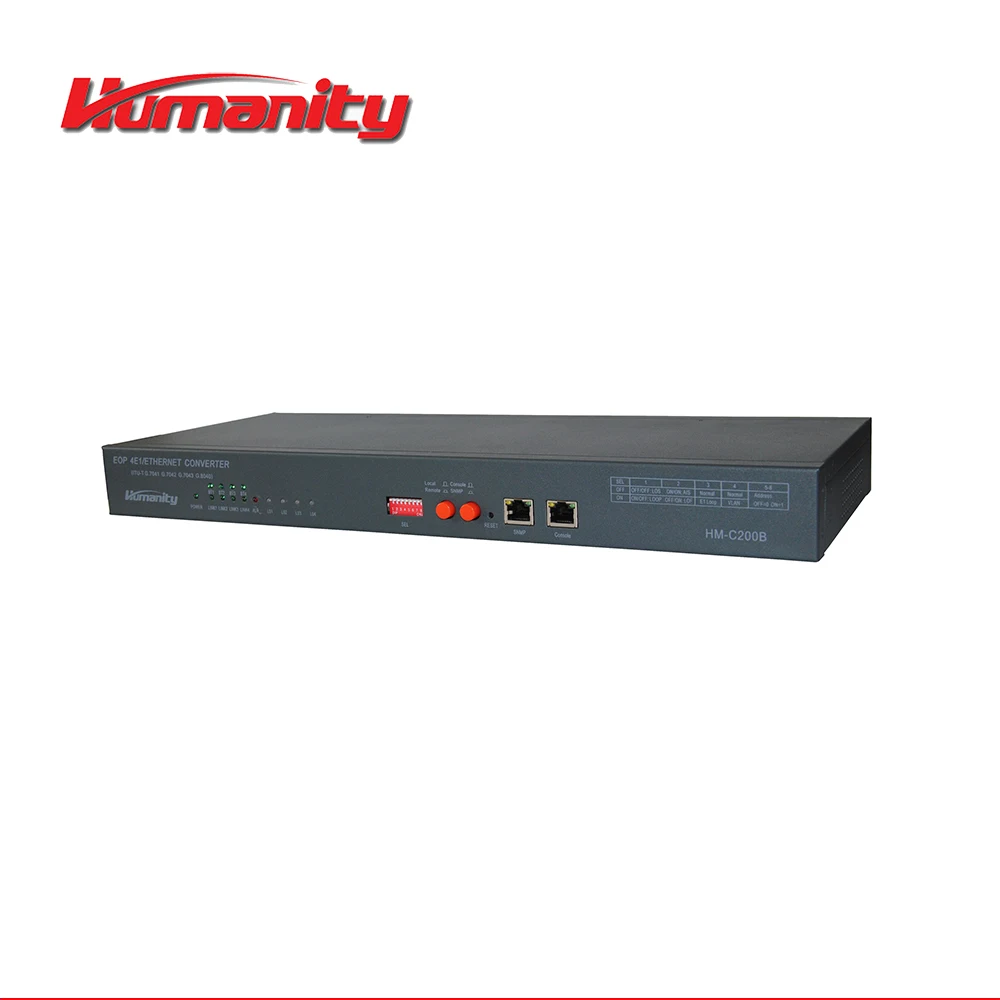

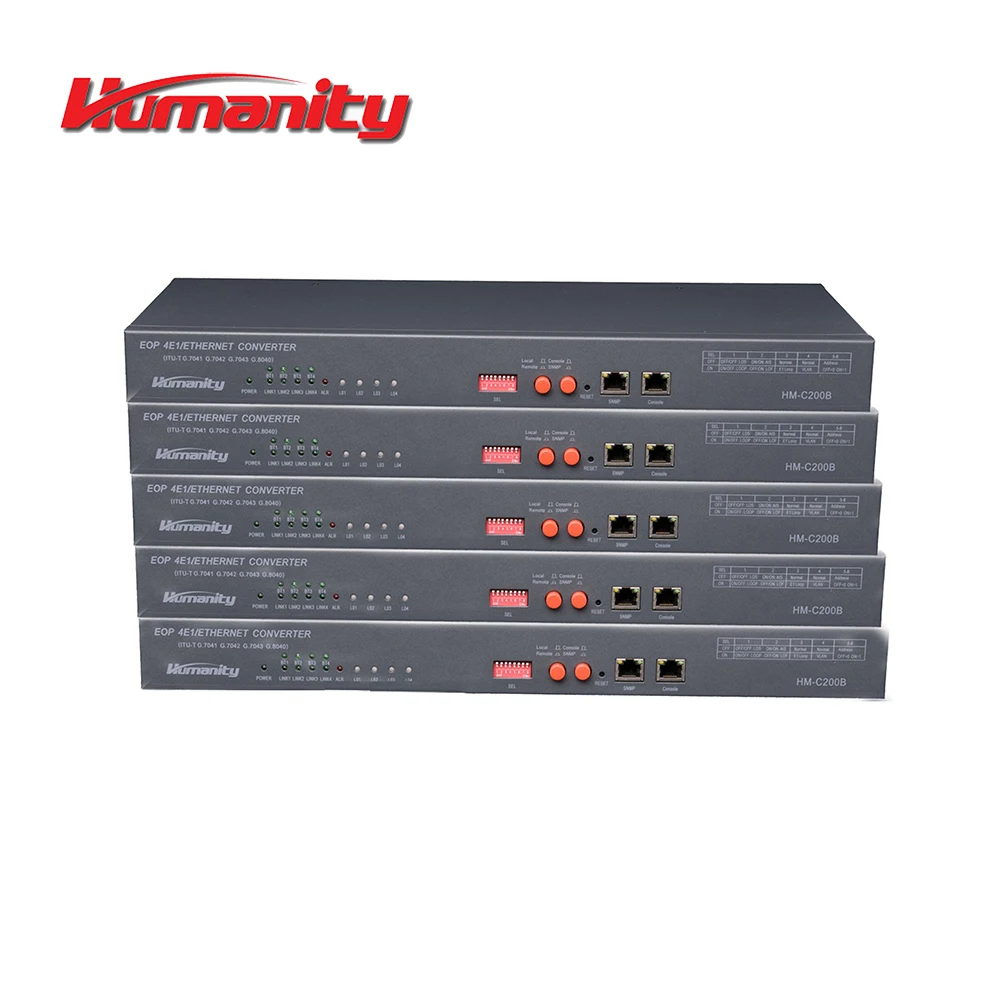

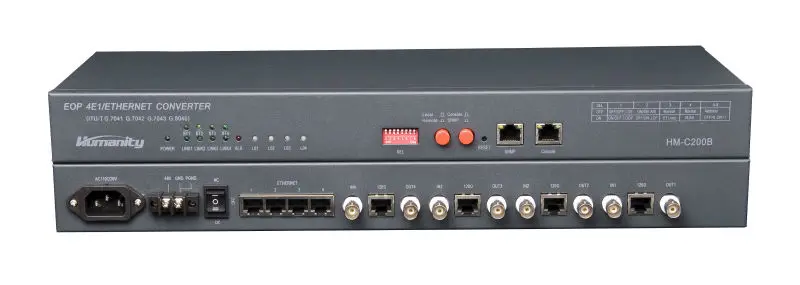

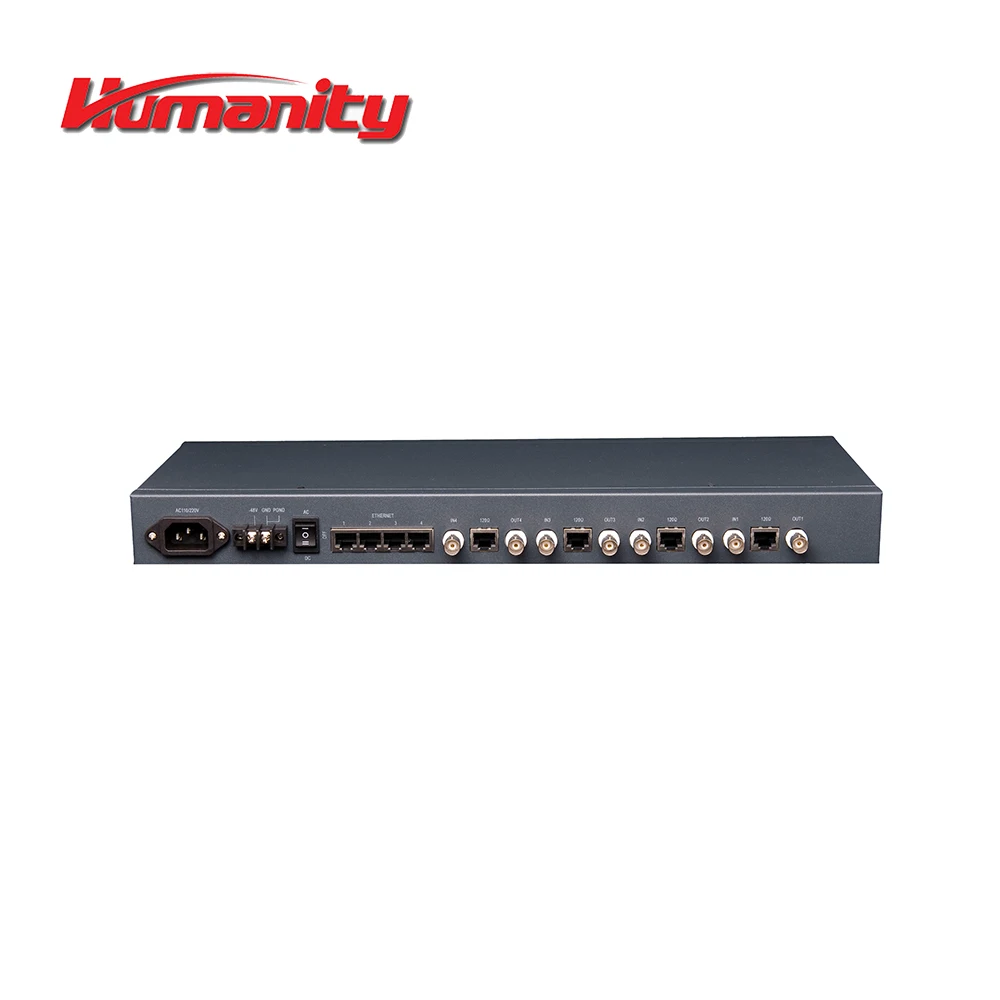

Humanity HM-C200B EOP 4E1 to Ethernet Converter





Humanity HM-C200B EOP 4E1 to Ethernet Converter  realizes 1~4Ethernet transmission over 1~4E1. This series converter comply with ITU-T G.7041, G.7042, G.7043, G.8040 and able to work with third party devices following same protocols. It is with integration, low power consumption, stable performance and easy to use.



Main Features

• 1~4Ethernet transmission over 1~4E1
• Comply with ITU-T G.7041, G.7042, G.7043, G.8040
• Auto delete the fault E1channel and auto reuse after fault clearance
• E1 loop back function offered for easy maintenance
• The E1 spur track on both sides cna be connected not according to the serial number. If one E1 channel fails, the rest channels can still work
• RS232 hyper terminal or SNMP optional
• Alarm switch offered to display local/remote alarm for 8E1 to 4Ethernet converters
• Ethernet port supports VLAN and flow control

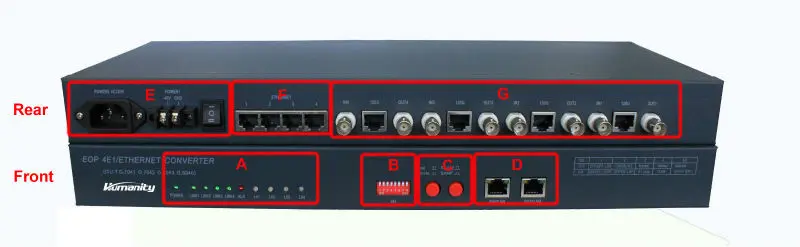

                   A: Indicators for monitor and easy maintenance.

                         B: SEL switch for alarm, loop, VLAN division setting.

                         C: Local or remote alarm choose button & RS232 or SNMP NMS choose button.

                         D: RS232 or SNMP NMS inerface.

                   E:  Power interface. AC or DC optional

                         F: 4Ethernet with RJ45.

                         G: 1~4E1 interface with BNC and RJ45



Technical Specifications

E1	1~4E1 available
	Comply with ITU-T G.703, G.823
	Both offer BNC and RJ45
	BNC for 75Ohm, RJ45 for 120Ohm
Ethernet	Comply with IEEE802.3
	1~4Ethernet with VLAN
	Auto adapt full/half duplex, MDI/MDIX, 10/100M
	Frame length: 64bytes~1916bytes
	Connector: RJ45
Management	Default with RS232 hyper terminal NMS
	SNMP (optional)
Power	Voltage: AC110/220V and DC-48V
	Power consumption: less than 10W
Environment	Operating temperature: -5°C~50°C
	Storage temperature: -40°C~70°C
	Relative humidity: less than95%, non-condensing
Dimensions	483*175*44mm
Weight	Net weight: 2.78kg/pc
	Gross weight: 3.2kg/pc

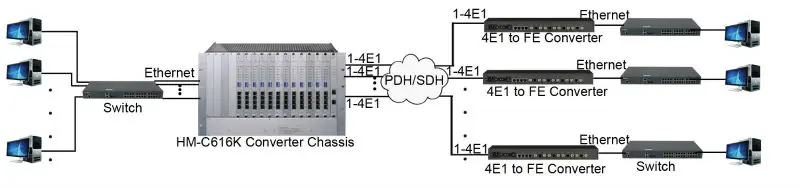

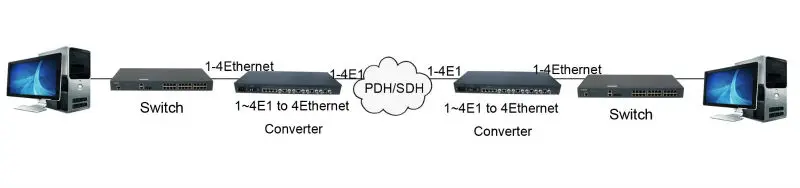

Typical Application





Order Information

P/N	Product Information	Management
HM-C200B	4E1 to 4Ethernet Converter, AC and DC power	RS232 or SNMP optional
HM-C800E	8E1 to Ethernet Converter, AC and DC power	RS232
HM-C800B	84E1 to 4Ethernet Converter, AC and DC power	RS232 or SNMP optional
HM-C1600	16E1 to 4Ethernet Converter, AC and DC power	RS232 or SNMP optional
