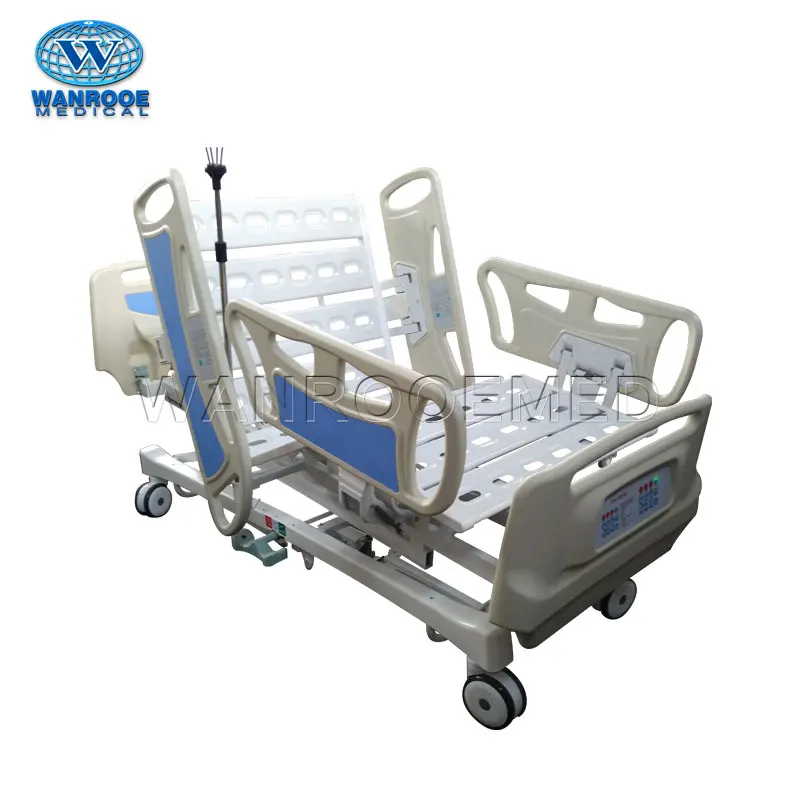

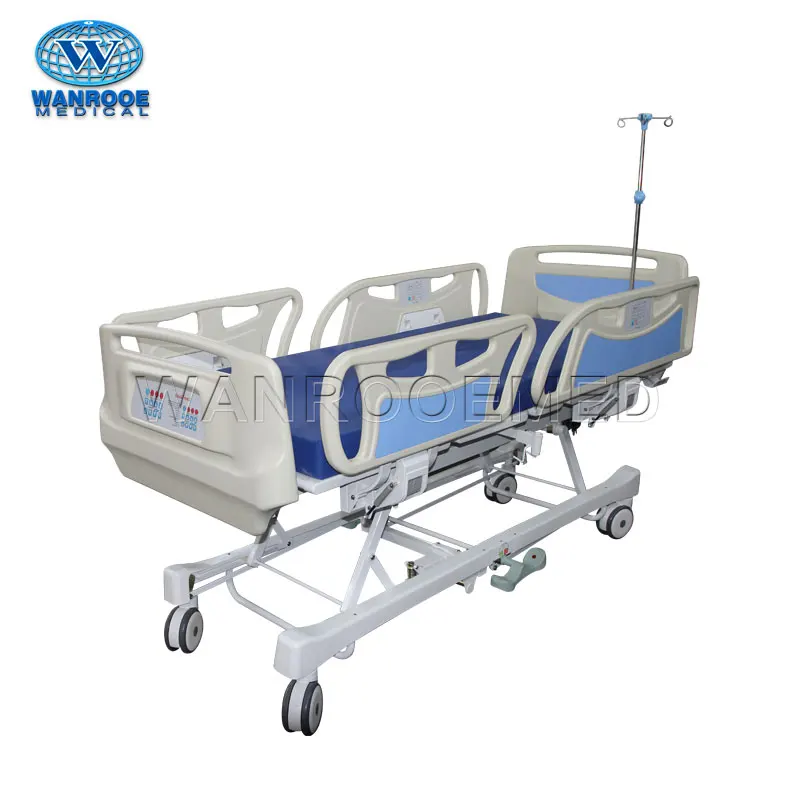

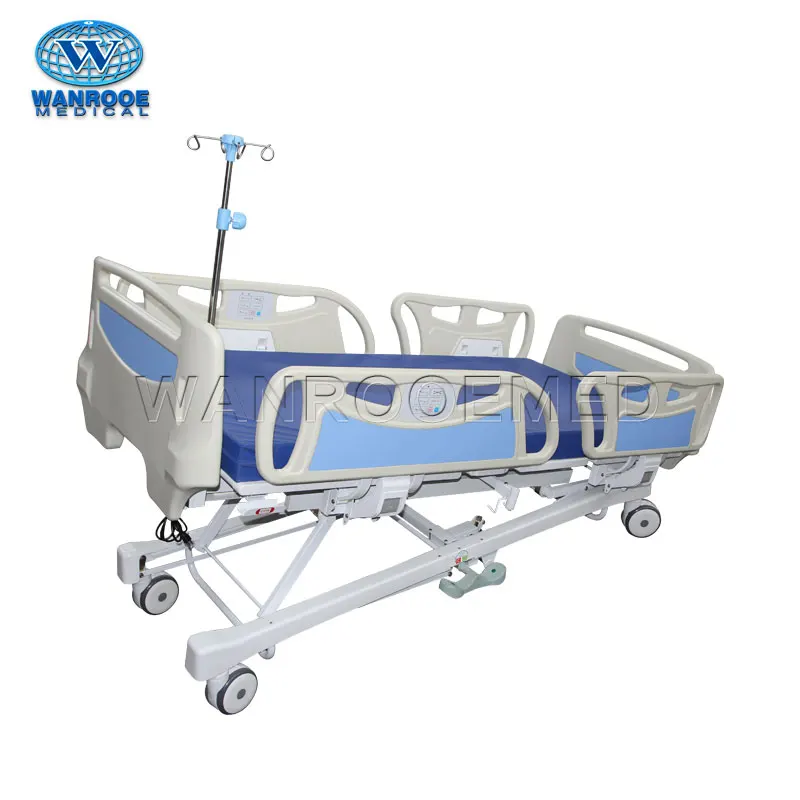

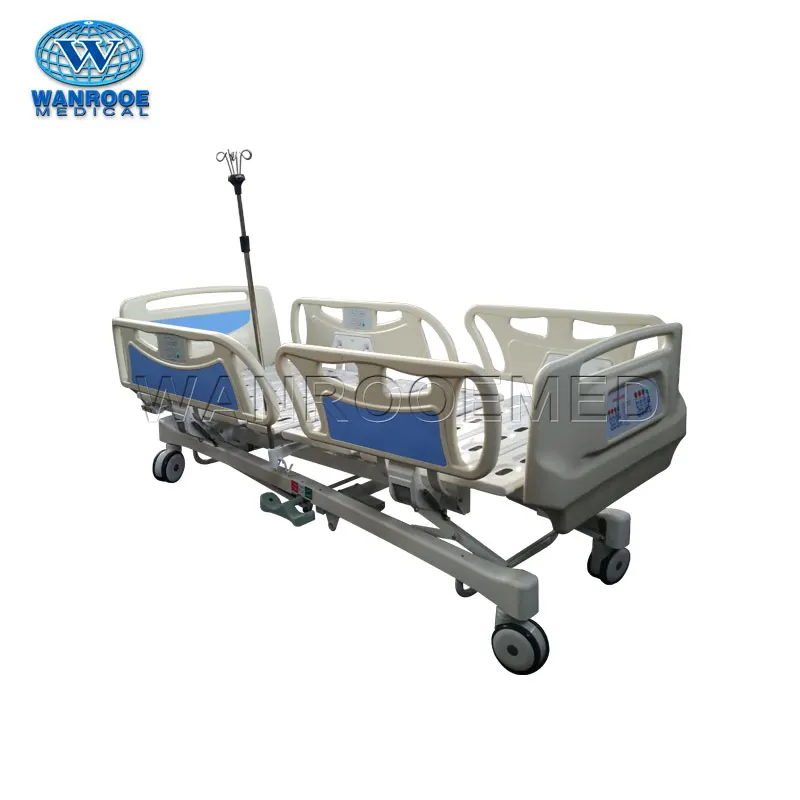

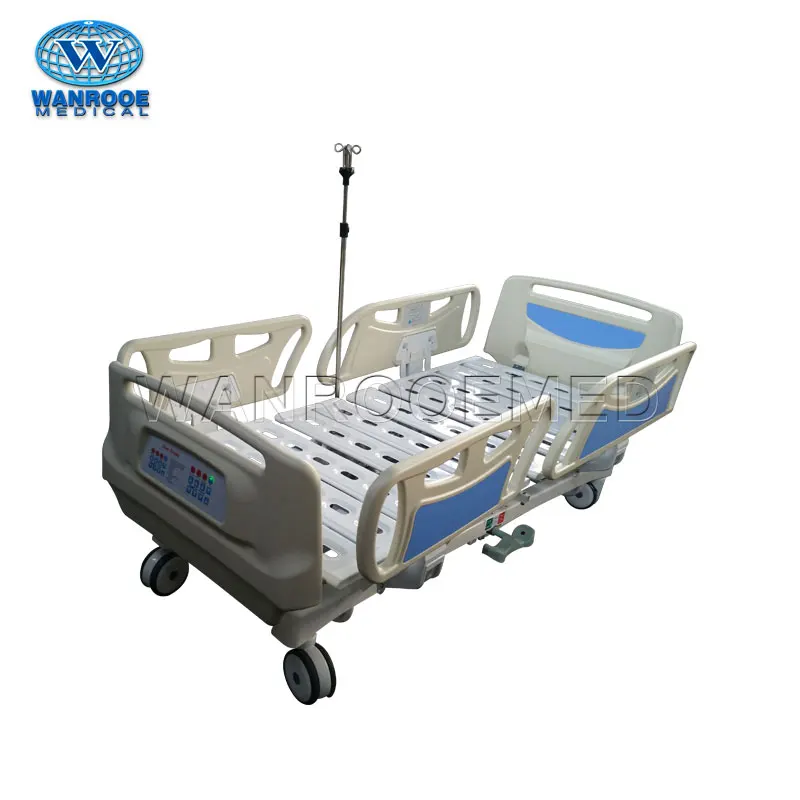

Malaysia Hospital Adjustable Electric Patient Care ICU Buy Medical Bed Backrest

Model number

BAE500

General Description:

This type of Hospital bed consists of Cold-rolled steel plate and four pcs of long PP siderails.

It is mainly used in ICU room. The most advantage is the embedded controller on the foot board and both two sides of the siderails, which allow caregivers to spend their time helping patients recover quickly in a secure and comforting environment.

Feature:

1.StayPut Retractable bed frame design(Patient will feel very convenient while be on drip or used the heart monitor since it won’t need to change patient position when the bed back section rise and low.)-optional

2.Central braking system-6 inch diameter castor/fifth castor for direction all reached by foot pedal located in middle of bed.

3.Made of superior cold-rolled steel

4.One step forming sleeping bed

5.Treated by shot blasting, electrophoresis and powder  coating

6.Four pieces of PP complete side rails, full protection with zero gap, tuck-away

7.Nurse controls on footboard and siderails

8.Fixed patient controls on siderails

9.Electronic function lockout controls on footboard
10.Degree indicator for head elevation and leg section

11.Four independent motors, standard: LINAK brand

12.Automatic Weighting-optional

13.CPR quick release handles on both side of bed

14.battery back up

15.auto contour feature simultaneously raises both the head and the knees

16.Wire hidden

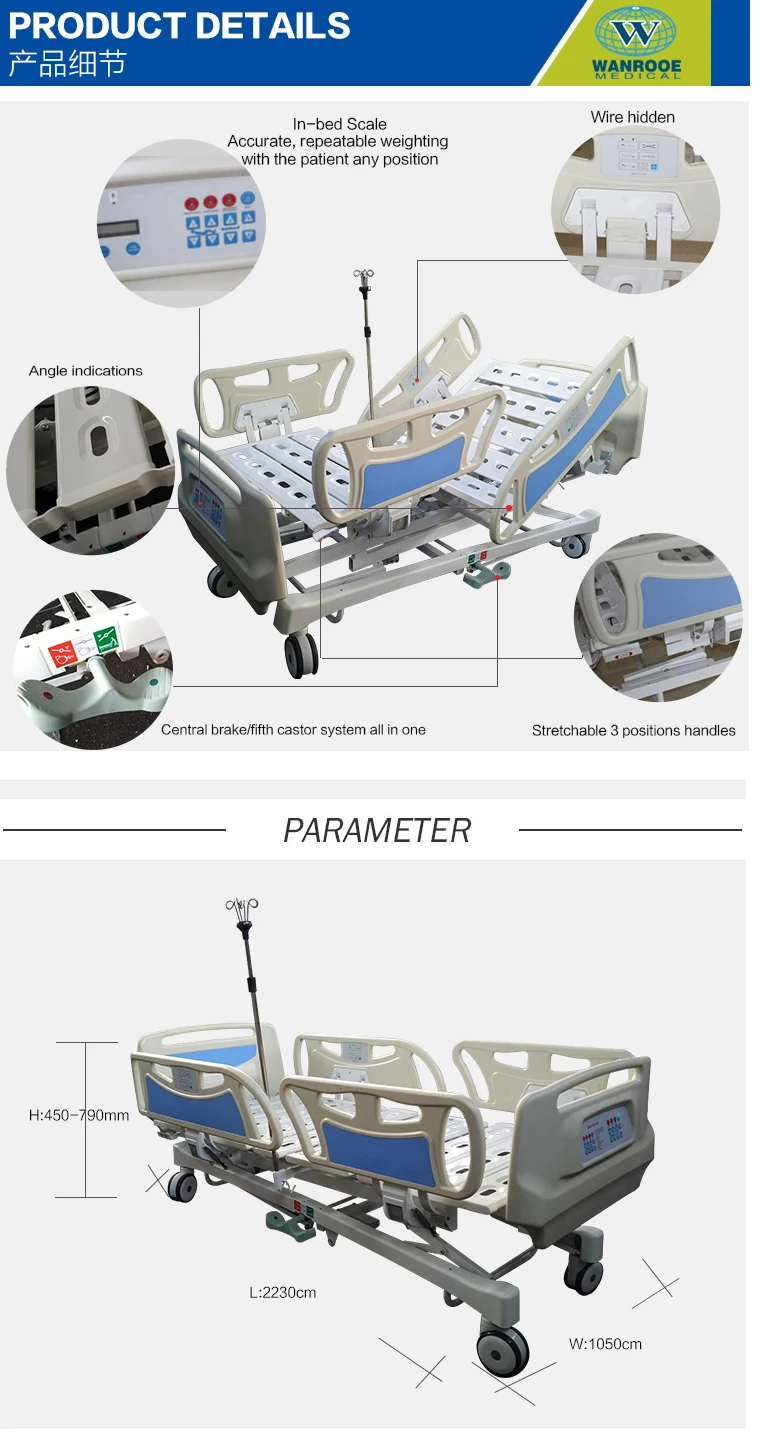

Measurement

Overall size(L*W*H): 2230*1050*450-790mm(with 6 inch diameter castor)
Patient Touching surface: 1960*900mm

Weight Load

Fully tested sturdy construction capable of taking a maximum user weight of up to
250kg

Function

Backrest max upward angle: 75°

Footrest max upward angle: 40°

Height: 450-790mm (castor diameter:6 inch)

Trend/Reverse Trend.±12°

Power

220VAC or 110VAC    Frequency: 50-60HZ
Power Plug: EU type standard if other type, confirm each order

Headboard/Footboard

1 set

Siderails

4 pcs

I.V pole

1 piece

Castor

4 pieces/5 inch

Drainage Hook

2 pieces/each side, total of 4pcs of hooks

Motor

4 pcs
