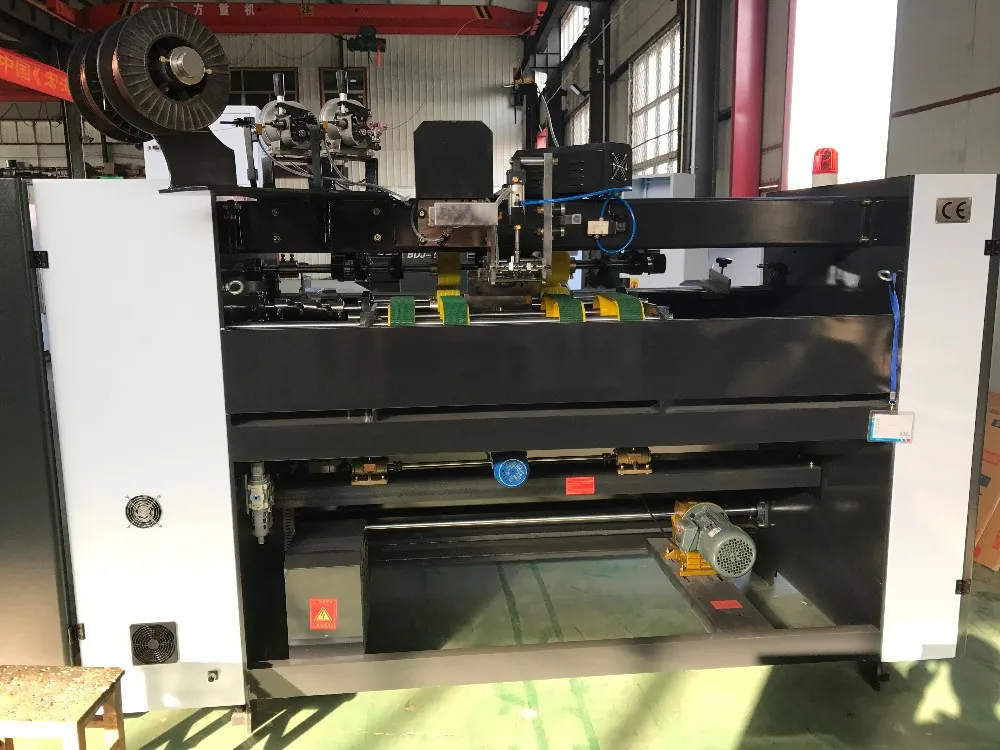

semi auto double servo control stitcher (stitching) machinery
Product Description
Machine Features:
1, Dual-servo-drive imported from Yaskawa, Japan, High precision, Low fault rate while reducing the mechanical transmission part. 2, Wei Lun touch screen operation, Conveniently adjustment like nail distance, nail number, nail types & tail gate.
3, The whole control system is Omron PLC control system.
4, The back electric block board is stepper motor-driven which has high precision, and is quick and convenient in adjustment.
5, The contactor in the control box is Siemens brand. 6
, The photoelectric and proximity switches are Schneider brand.
7, The under mold and blades are made of tungsten steel made in Japan (wearable)
8, The whole nail heads are made of special steel, precision making of the computer gong.
9, Suitable for single nail, Dual nail, strengthen nails, Dual nail on both sides and single nail in the middle ). Completed at one time. Meet the request of different customer requirements.
10, The changement of the box dimention and adjustment of the nail distance will be completed in only 1 minute which is quick and easy in operation.
11, Suitable for both kinds of boxes that with or without the covers but need to clarify if you have the without cover orders when book the machine.
12, Department of automatic counting, feed units equipped with photoelectric sensors, when feeding, table automatically rise.
13, Auto counting of the paper feeding part. Equipped with the photoelectric equipment in the paper feeding department. Auto lifting when feeding.
14, Auto counting of the rear part, The completed products will be sent to the machine end according to the set amount ( 1-99 ) which make it easier for binding.
15, Mechanical speed: 450 nails / min
16, Nail distance: 30-120mm
17, Work table lifting Height: : 900mm
18, Machine dimention: 2.8x2.7x2 m
19, Weight: 2T
Machine Technical Parameter:
Model
QS-2000
MAX Cardboard Size
1515mmx2460mm
Machine Speed
450pins/min
MIN Cardboard Size
300mmx606mm
Pin Distance
30mm-120mm
Total Power
6Hp
Pin NO.
1-99pin
Height
900mm
Pin Species
Single, double, strong pin
Machine Size(LxW)
2800mmx2600mm
Pin Line Specofocation
2.0mmx(0.65mmto 0.75mm)
Machine Weight
2000kgs
Company Information
Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the ceo of the company, has always helped inovercoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients. Quality Assurance At XinYu company, quality is our prime forte. Keeping this in mind, we havedirected all our endeavours to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest qualty of material. Client Satisfation We provide quick solutions to clients for their feedback and queries,Morever,we facilite our client with easy payment modes.
Packaging & Shipping
Our Services
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
