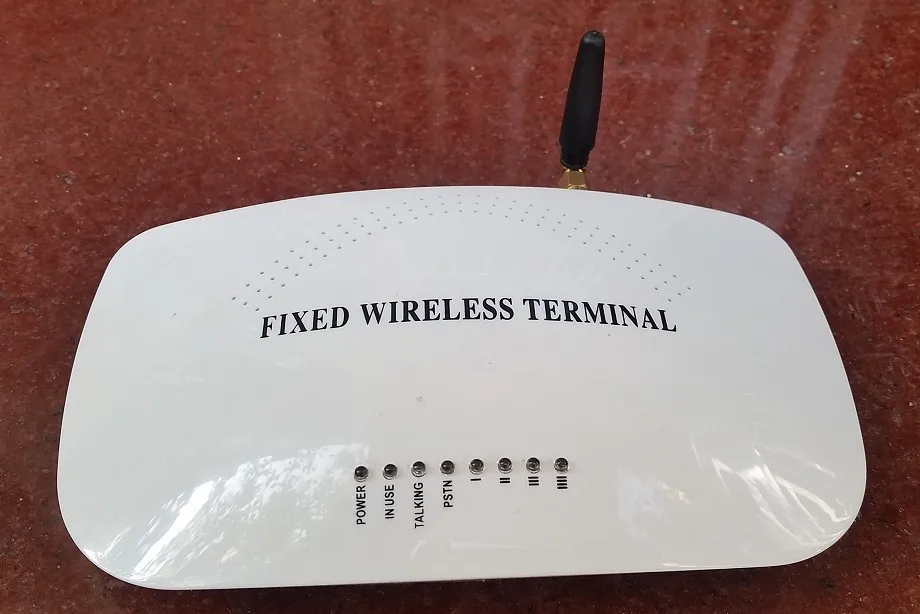

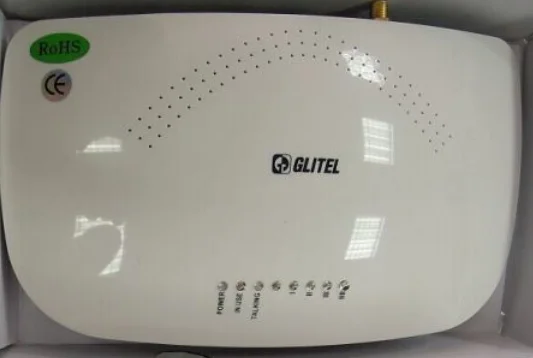

perfect quality WCDMA/GSM dialer FWT gateway just for alarm system

Product Overview

Description

 Perfect quality and cheaper WCDMA/GSM fixed wireless termina. can adapter all of telephone,PBX,POS mathine,and alarm systems.



Can send a SMS alarm to your mobile when it cannot connect to a alarm device.
 Support LCR(Least Cost Routing) capabilities between the PSTN and GSM network. Auto switch the router and dialing the number.(option)
 The auto switch to PSTN when Power off or GSM problems for Connect to Alarm systems to realize wireless alarm(for security use) and it will auto send a alarm SMS to your mobile group

  The FWT will auto switch to GSM router when the PSTN is disconnect,cannot dialing out,no charged and etc. and auto send a alarm SMS to your mobile groups.

 The FWT with battery will auto send a alarm SMS to your mobiles when power off or power on.(option)

  The FWT will auto reply a message sms(include working status signal volume and etc.) to your mobile when you send a check SMS to the FWT. so you donot need to goto a far a way to check it.

   The FWT will reset when it recieve your SMS reset command. and another act command.
  The online sound of dial, busy sound.
  Caller ID. with FSK/DTMF Can been showed to telephone or PBX or a VOIP GATEWAY.
  Provides reversal polarity or 12k/16khz signal for metering .
  Compatible to most telephones, PBX and VoIP gateways (for call Termination)
  Steady NEW ZTE industrial module and reliable design ensures good performance.
   Auto add/del the numbler of Local code set, solid long-distance, cellphone’s IP(prefix number),eg:17951,17911,193,different area the products   automatic insert different Ip.
   Dial free number directly,eg:110,119,120;You can set pay counter freely, Ip, free number.
   Provide Strong signals .Can use for weaker signal place
      Suitable for wide voltage range and low power consumption
   GPRS function(optional)
   Support IMEI change(optional)
    Back up li-ion battery(optional)

application

 Wireless business
 The business enterprise lead-in connect into the business
 Alarm systems to realize wireless alarm(for security use)
 In mountain area where is hard to spread the line region to fix the telephone business
 The steamer, train etc. moves to carry the communication business

Specifications
 Air interface standard: GSM 900/1800/850/1900/2100 MHz Phase 2+
 Sensitivity: -104dB
 Peak power consumption: 2W
 Operating environment requirements:
 Temperature: 0C - +40C
 Relative humidity: 45% - 90%

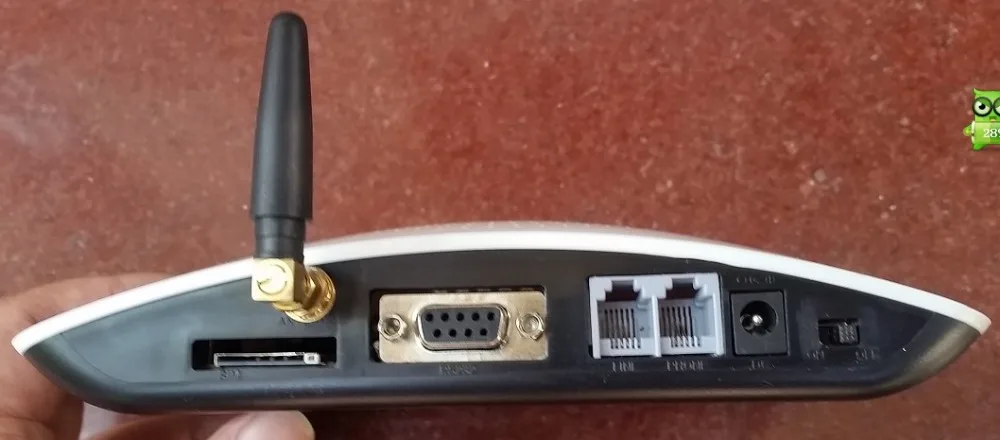

 Connectors: SMA antenna connector (TNC optional)
 Atmospheric pressure: 86~106Pka
 Power consumption: static<25 mA, emission<500 mA
 Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
 Power supply:
 AC220V±10% 47-54Hz AC110V/60Hz
 DC12V (optional)
Back up power supply: LION, storage battery(optional)

 Talking time: 3 hours
 Standby time: 18 hours



Packing:

Product dimension: L 170x W112 x H28 mm
Gift box dimension: L 340x W177x H44mm
Carton dimension: L 480x W360 x H380 mm 20pcs/carton
            N.W:0.54KG G.W: 12KG
