Product Overview

Description

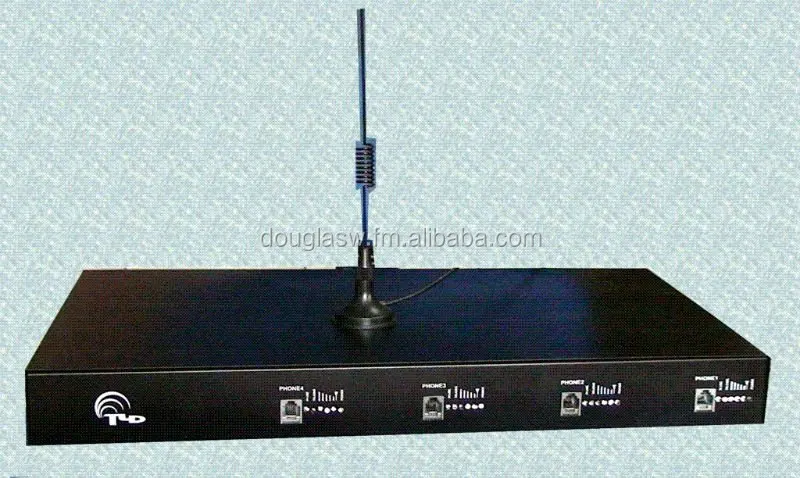

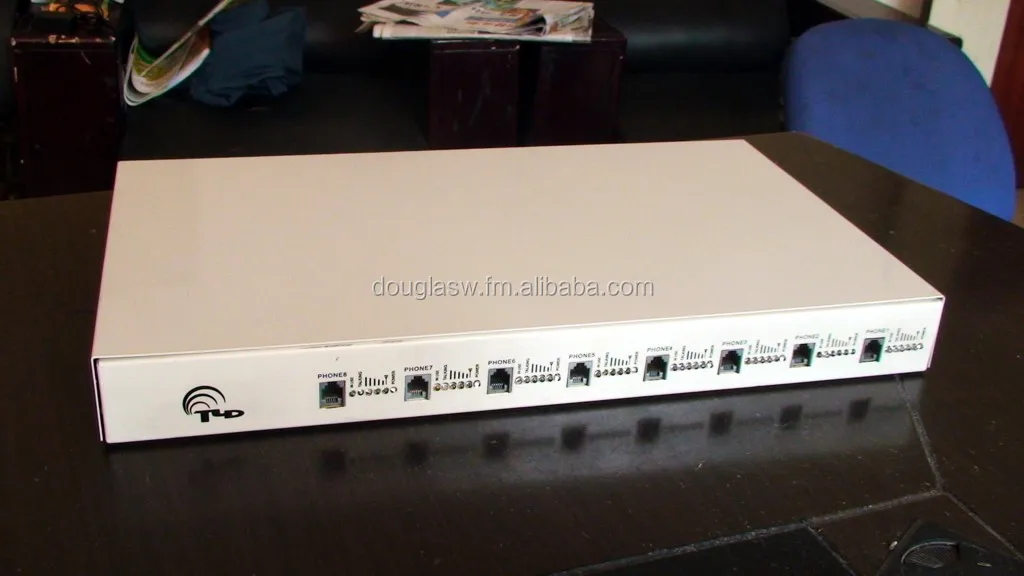

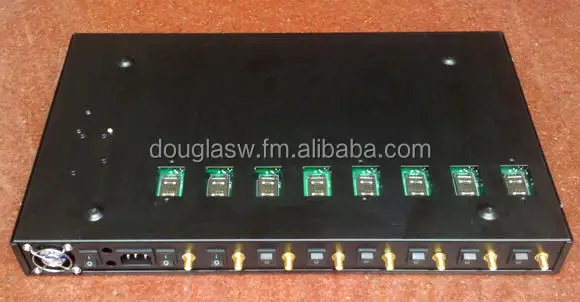

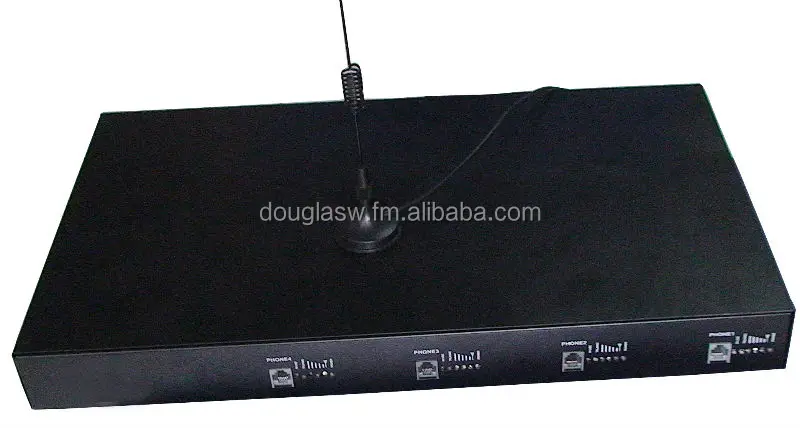

Product: GSM gateways	Model name:TLD SX01G-8ways
Place of Origin: China	Brand Name: TELESTAR
Quality/Safety Certifications: CCC,CE	Price Terms: FOB ShenZhen
Minimum Order: 1 units	Payment Terms: T/T in advance
Delivery Lead Time: 3 days	Supply Ability: 2,000 units/month



Features:

• Providing 900mhz and 1800mhz GSM connectivity. 850mhz/1900mhz
• watch Dog function.

It will auto reset if it find the device have problems. So our gsm gateway cal working fine with a long time donot need to power off and power on. It never been dead status.

• Auto or manual IMEI changed (optin)

     You can set difference IMEI for every SIM card or set the device make a random IMEI for erery sim cards.

• Auto Forward the Message received to your mobile(optin)

The GSM operator will send a message to the SIM if they find your talking bill is too large, They will lock your SIM if you donot reply his message. So this function can help you reply the message check of gsm operator. It is useful functions

• Standard FXS (RJ11) interface  same as a PSTN.Compatible to PABX,VOIP gateway, IP PBX, Call back system, cord phone, Voice system, and  etc.
• Very clear voice. No echo and noise.
• Delay reversal polarith  or accuracy Polarity reversal signal for metering
• Simple to install/easy to maintain
• Allow PIN code entering and reciprocal phone-card lock
• Provide optimized circuit directly connecting the exchange device for extensions
• Signal is strong with 3.5dBi gain antenna
• Standard parameters of Dialing tone  and busy tone
• Call back function
• Provide auto add Prefix number function
• Forbid incoming call.
• DTMF Dialing , Support 2nd Stage Dialing
• Display Incoming caller ID. With dtmf or fsk
• Hide calling out number(CLIR).
• Set rapid reaction when detecting busy signal
• Can set dial speed, quck dial and slow dial.(dial delay time)





Chearly show Working state and signal indicator with perfect quality LED

• Remote Update the program(option)

  You can connect to a cable to a computer, run a software to update the software remote



Specifications:

• Air interface standard: GSM 900/1800 MHz Phase 2+
• Frequency ranges:

GSM900:

§       Transmit: 890~915MHz; Receive: 935~960MHz

GSM1800:

§       Transmit: 1710~1785MHz; Receive: 1805~1880MHz

• Channel space: 200KHz
• Sensitivity: -104dB
• Peak power consumption: 16W
• Phone interface:supply RJ-11 Phone Interface
• Hanging voltage: 48V.                                                                     Dialing tone Frequency:450Hz
• Operating environment requirements:
  • Temperature: 0°C - +40°C
  • Relative humidity: 45% - 90%
• Connectors: SMA antenna connector
• Atmospheric pressure: 86~106Pka
• Power consumption: static≤ 200 mA, emission≤ 4000 mA
• Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
• Power supply:
  • AC220V±10% 47-54Hz  AC110V/60Hz( optional)
  • DC12V ( optional)

Packing:

• Product dimension: L 440x W260 x H48 mm (1U)
• Carton dimension: L 495x W325 x H110 mm    1pcs/carton
• G.W: 3.6Kg
