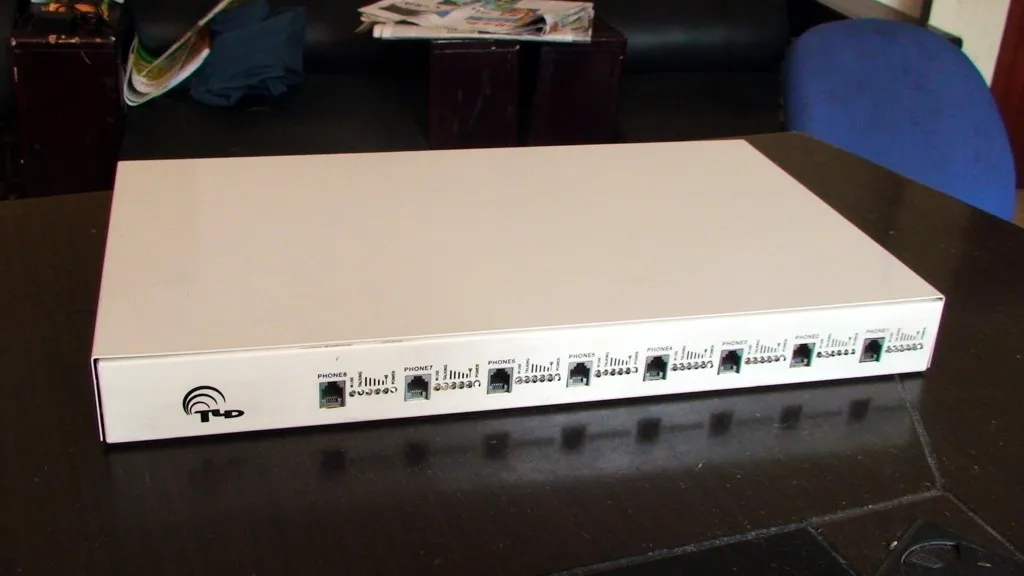

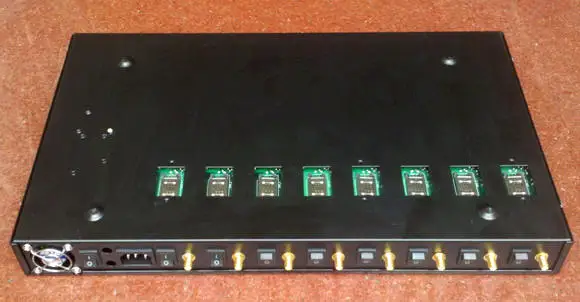

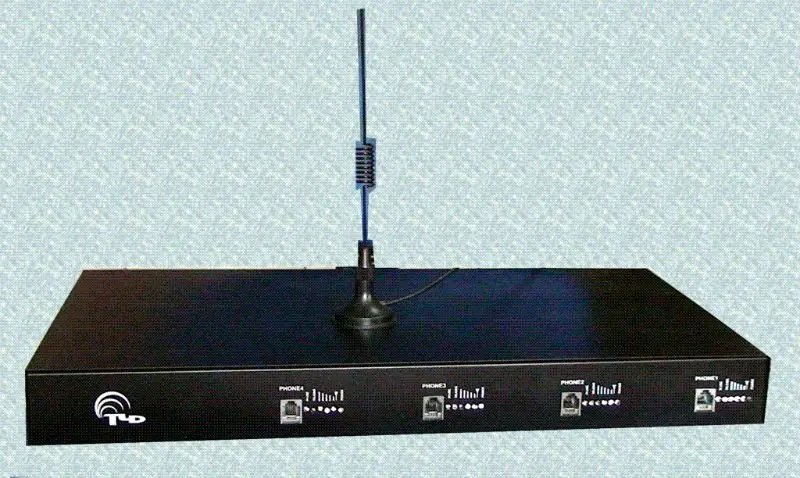

8 PORTS CDMA FWT gateway

Product Overview

Description





CDMA multi ports  Fixed Wireless Terminal
CDMA 800MHZ 2000 1X
MIN,ESN,AKEY and etc parameters changing (Special Optional)





01)  CDMA 800MHz 1900MHz(option) 450mhz(option)



02)  Standard PSTN FXS with RJ-11 to telephone or voip gateway & PABX

03)  regulation 450Hz Dial-tone and Busy-tone 350ms on 350ms off , Disconnect Tone

04)  50V in idle and 75V in ringing and 9-12V in talking

05)  DTMF detector in RJ-11

06)  Provide accurity polarity reverse

07)  Caller ID (DTMF,after ONE Ring) or FSK(option)

08)  One Number Unified
09)  CLIR(Calling Line Identification Restriction)

10)  Separate Power On/Off

11)  LED indicating Hook On/Off,Talking,Signal Intensity,Power On/Off

12)  Settable dialing delay time

13)  Settable automatic dialing

14)  Support to dial all number including of * #

15)  DTMF Automaticly dialing to CDMA , to voip gateway , PABX(Optional)

16)  SPK & MIC volume regulate

17)  Provide accumulator charger interface (Optional)

18)  Multiparty Calling teleconference (Special Optional)
19)  Setable Maxim talking time to  warn of exchanger card (Special Optional)

20)  4SIM Rotator Automaticly (Special Optional)

21)  Radio Bases Changing Automaticly to simulate movement (Special Optional)

22)  Simple to install and easy to maintain

23)  Steady module & reliable design ensures good performance

24)  Strong signals with high gain antenna

25)  No noise & Clear voice

26)  Suitable for wide voltage range & Low power consumption

27)  Suitable for all kinds of weather & environment

28)  Offer keypad command sets to define functions
