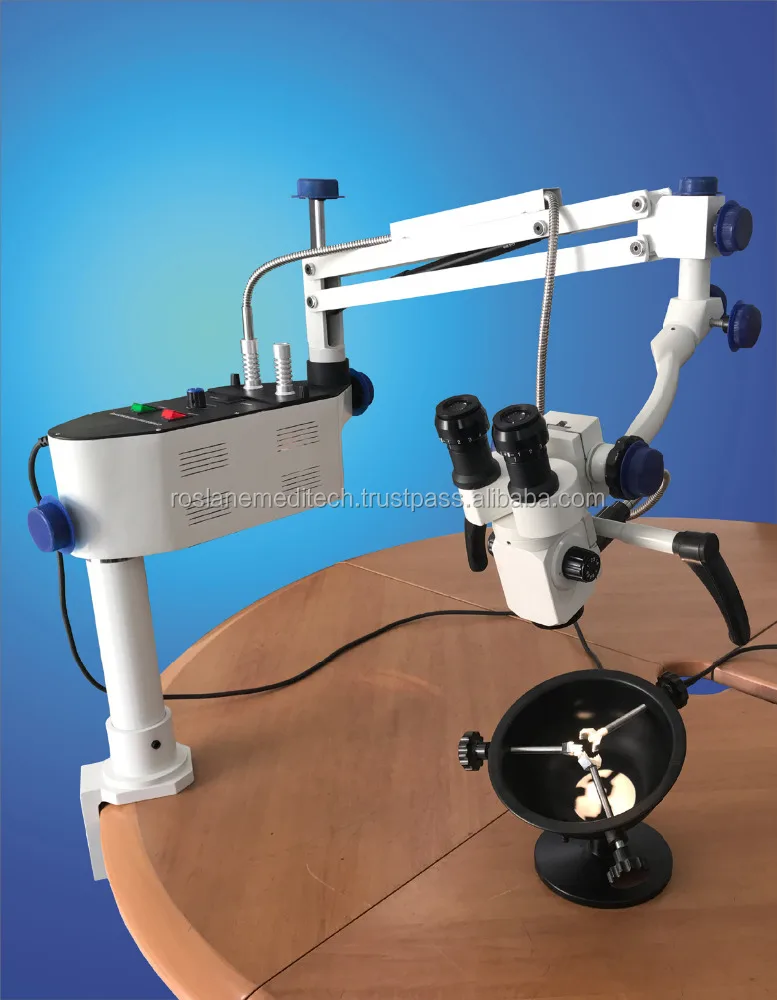

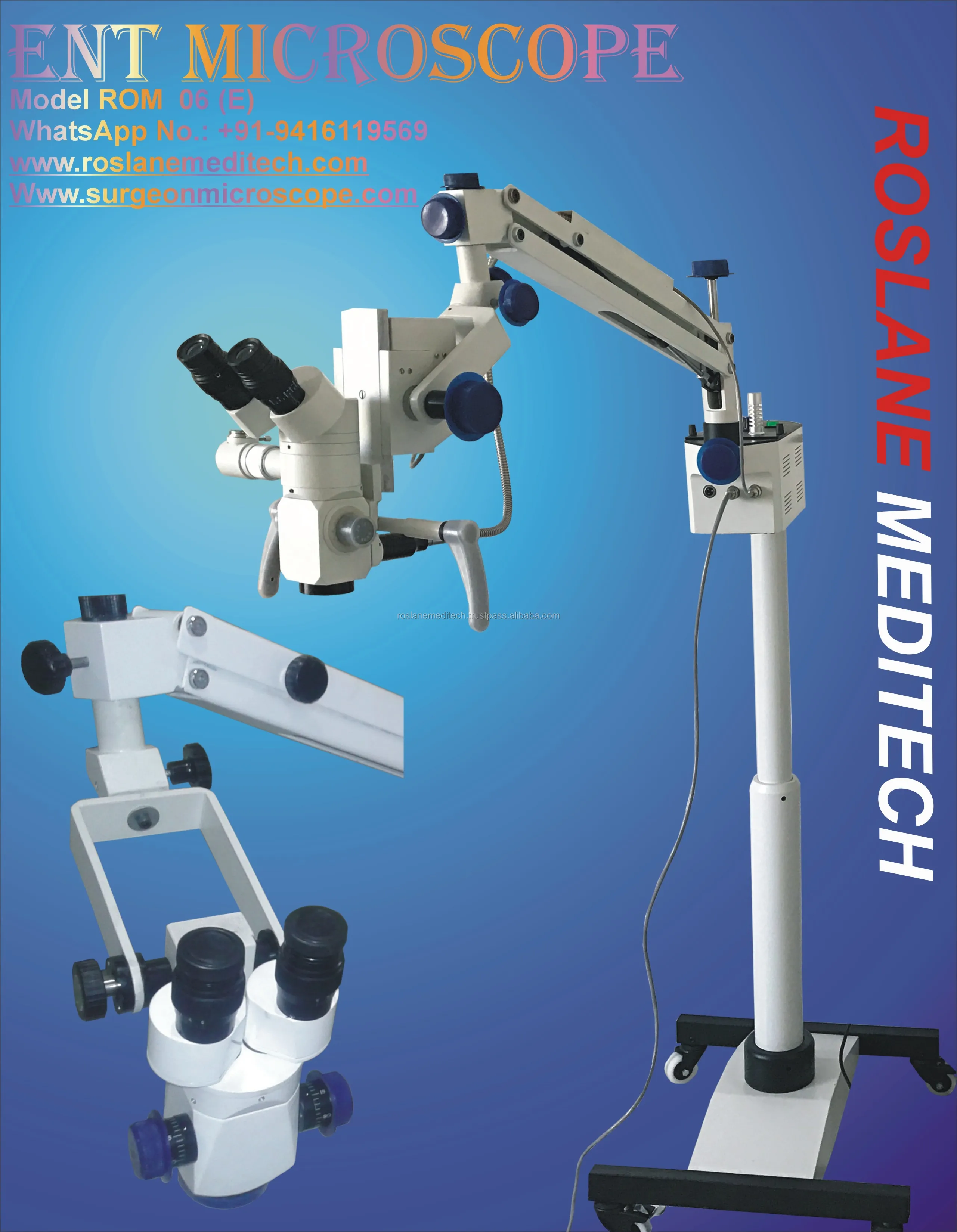

ENT Microscope CE Certified / ENT Surgical Microscope/ ENT Operation Microscope

Product Overview

Description

Roslane Meditech offers various models of Export Quality ENT Operating Microscopes at most affordable price.



Here, we are submitting the ENT Operating Microscope, Model ROM 6(E) as per the specifications given below:-

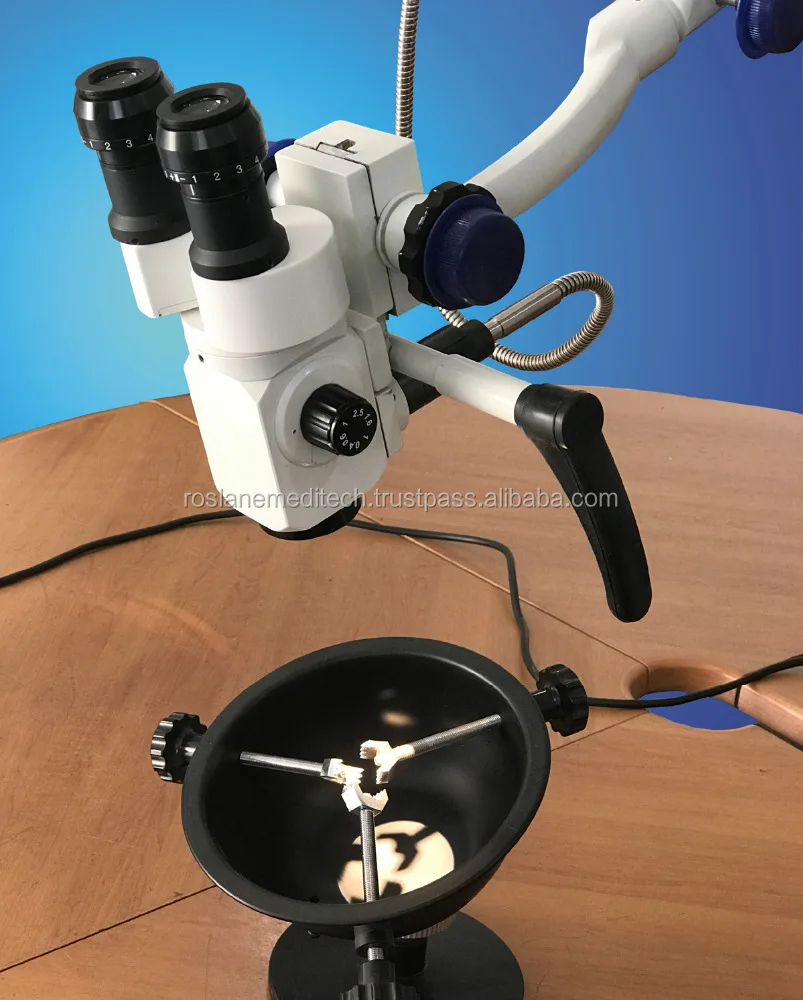

MICROSCOPE SECTION
90 Degree Straight Binocular Tubes
12.5x W.F.Eye Piece / 16mm Dioptric Adjustment
3 Step Magnification (7.5x, 12.5x & 20x) or

5 Step Magnification (5x, 7.5x, 12.5x, 20x &30x)
Objective   : F= 200/250/300/400mm
Working Distance  : 200/250/300/400mm
Inter pupillary Distance
Adjustment:  55mm to 75mm
Motorized Foot Focusing System

ILLUMINATION SECTION
Type:  By Optical Light Guide System
Light Source: 24V/250W Halogen Lamp
Illumination Control :  Continuous Adjustment
Field of Illumination:  70mm
Filter:  Cobalt Blue, Red-Free, Heat Absorbing Filter

STAND SECTION
Type:Floor Stand
Vertical Range of Counter Balanced Arm:  400mm

GENERAL INFORMATION
Base Size: 600mm x 550mm
Weight : 50kg Approx.
Height  : 1550mm
Electrical Power : AC 220/110V



OPTIONAL ACCESSORIES:-
1. Beam Splitter with Camera Mount
2. CCD Camera
