SCISSORS AERIAL WORK PLATFORM
- Category: >>>
- Supplier: Wuxi Samcy Equipment Co. Ltd.
Share on (1081507653):
Product Overview
Description

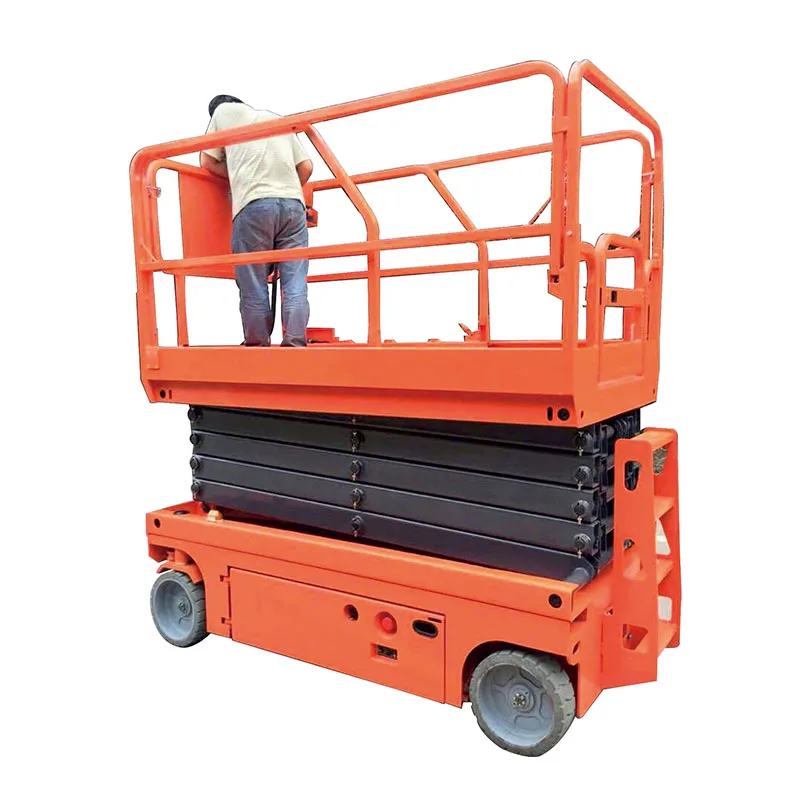

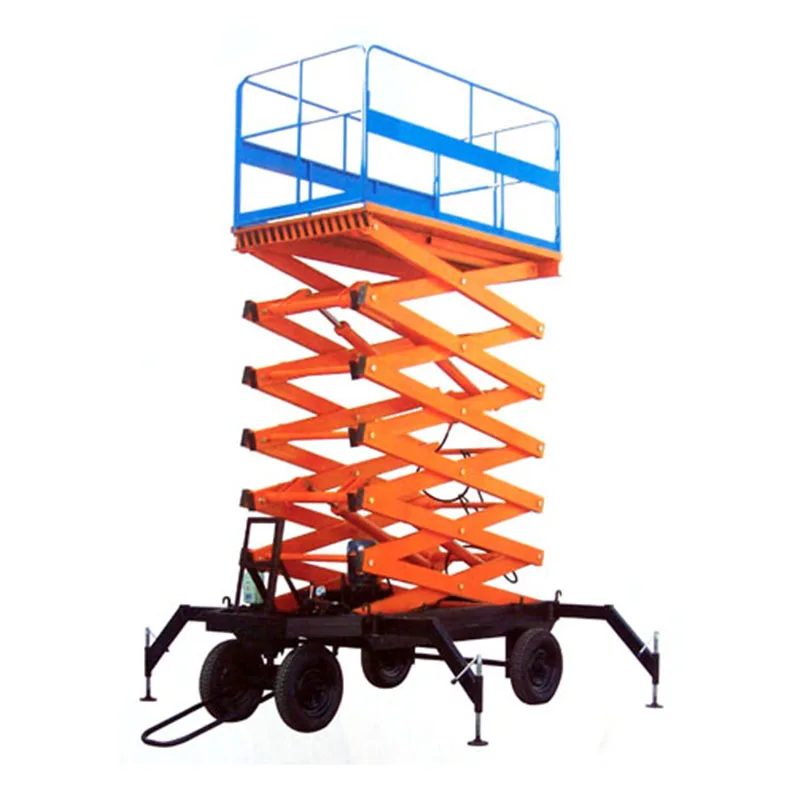

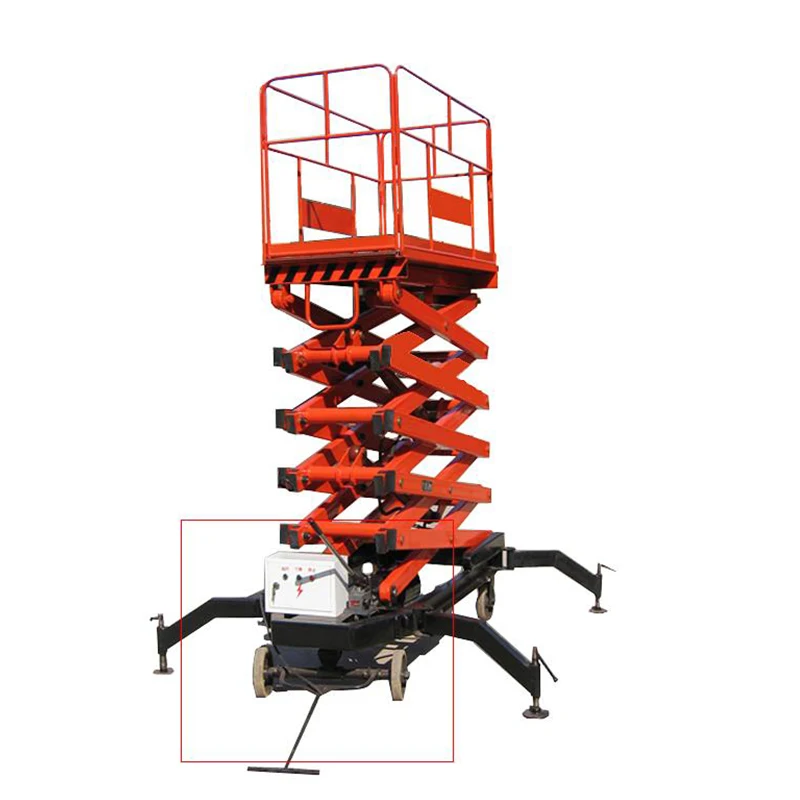

Scissor hydraulic elevating aerial work platform
This kind of working platform is elevated by the hydraulic system, Easy to control and could be moved easily,common tool, widely used in workshop. the elevating height could reach 14000mm.
there are two kinds of platform: mobile and stationary type working platform. besides we can also design the platform as your special demand.
The specification parameters are as following:
specification | Height (mm) | capacity | Size(table) mm | Overall Dimension | Power kw | Weight (kg) |
SJY-H-4 | 4000 | 300 | 1700*1080 | 1820*1400*1180 | 2.2 | 660 |
SJY-H-6 | 6000 | 300 | 1700*1080 | 1820*1400*1280 | 2.2 | 750 |
SJY-H-8 | 8000 | 300 | 1800*1060 | 1900*1380*1460 | 2.2 | 850 |
SJY-H-8 | 8000 | 1000 | 1940*1280 | 1920*1630*1980 | 3.0 | 1050 |
SJY-H-10 | 10000 | 300 | 1920*1260 | 2040*1580*1660 | 2.2 | 1120 |
SJY-H-10 | 10000 | 1000 | 1920*1300 | 2060*1630*1980 | 3.0 | 1240 |
SJY-H-12 | 12000 | 300 | 2370*1300 | 2510*1630*1980 | 2.2 | 1420 |
SJY-H-12 | 12000 | 1000 | 2400*1300 | 2530*1630*2000 | 3.0 | 1700 |
SJY-H-14 | 14000 | 300 | 2650*1300 | 2800*1660*1980 | 2.2 | 1800 |
