Wet or dry magnetic separator concentrator/ iron ore beneficiation plant

Product Overview

Description

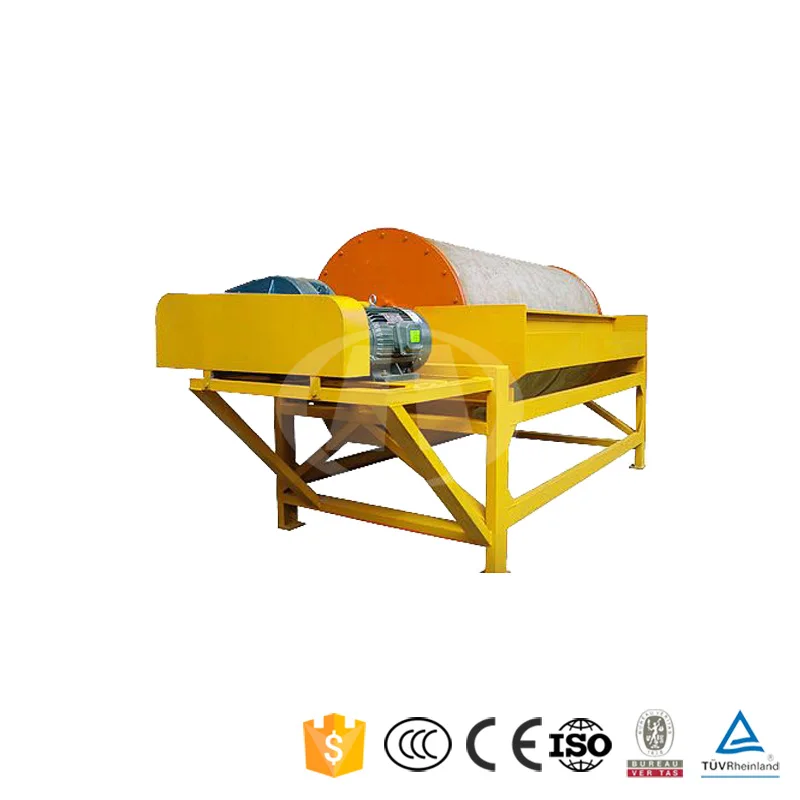

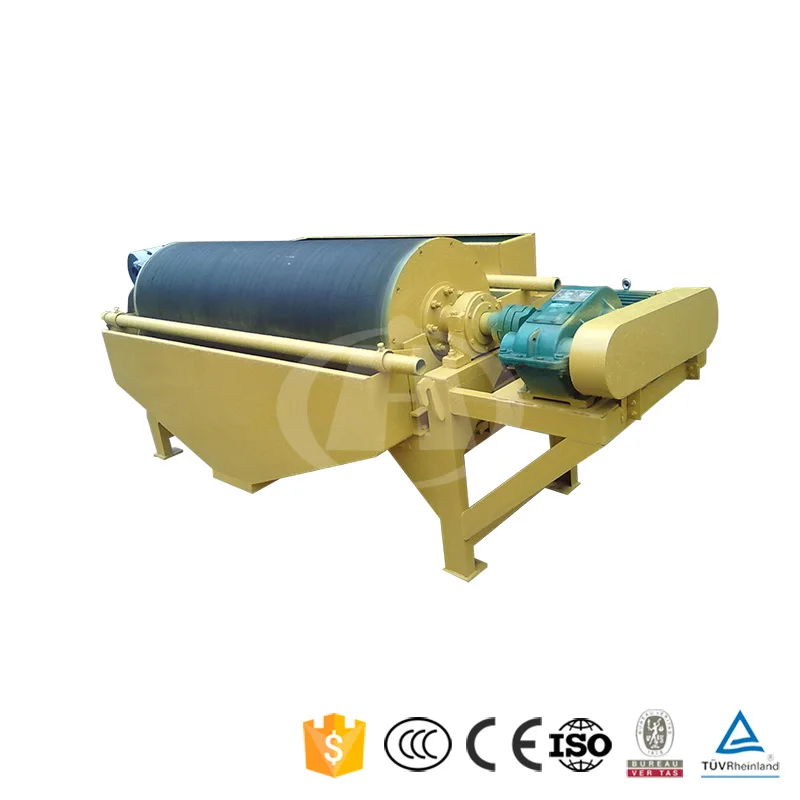

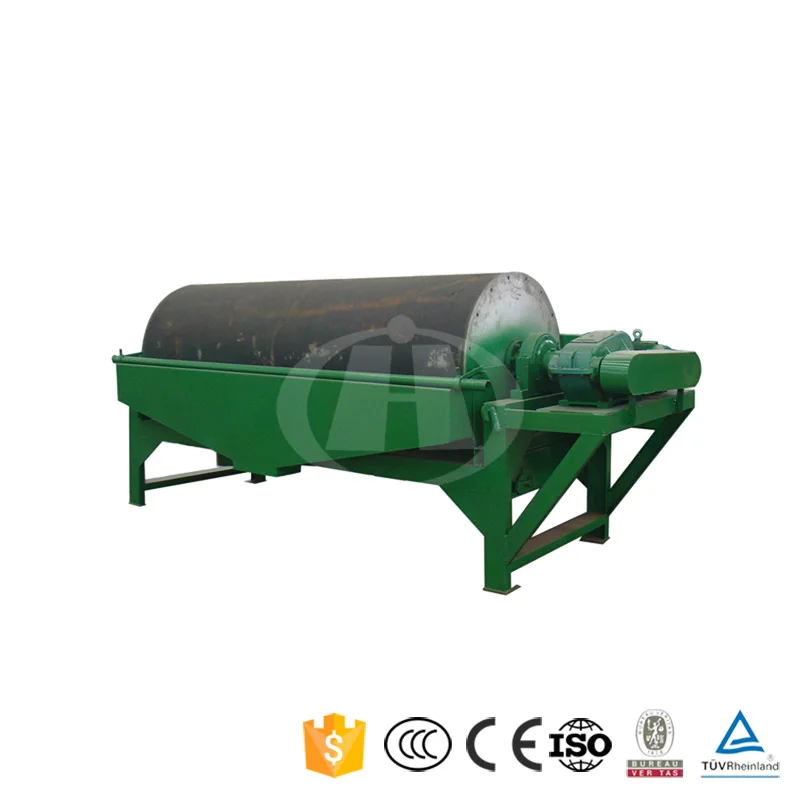

Wet or dry magnetic separator concentrator/ iron ore beneficiation plant

Magnetic Separator Introduction:



Magnetic Separator is widely used in mineral processing, coal washing and chemical industry, for sorting the wet particle size of 6-10mm. The strong magnetic minerals and magnetic minerals are divided into two kinds of material: non-magnetic material and megnetic material. Magnetic separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries.

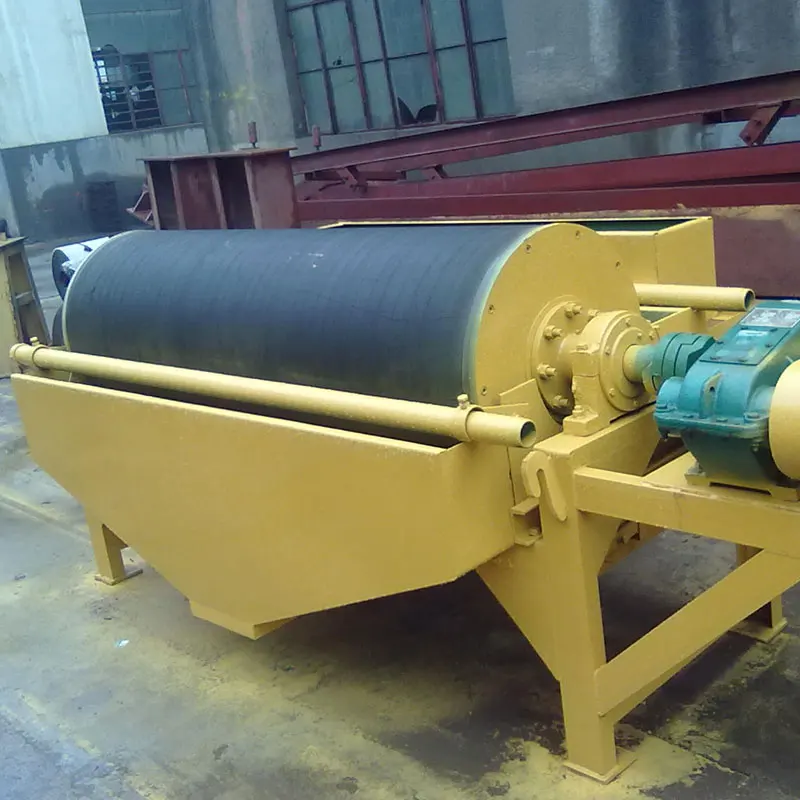

The magnetic system is made from high quality ferrite magnetic materials or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mT. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as the concentrating equipment in place of magnetic dewatering cell.



Company Introduction:



Magnetic Separator is hongji's major product, professional technology support and all-around service can be offered to you, we also can made according to your special requirments. Welcome you visit our company to know more about us!





 Features of Magnetic Separator:



1) High magnet intensity;
2) Low energy consumption;
3) High efficiency;
4) Simple structure;
5) Easy to operate and convenient to maintain.





Wet magnetic separator technical specification :



Model	Dia. of shell (mm)	Length of shell (mm)	Rotary speed of shell (mm)	Feeding size (mm)	Capacity (t/h)	Power (kw)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5

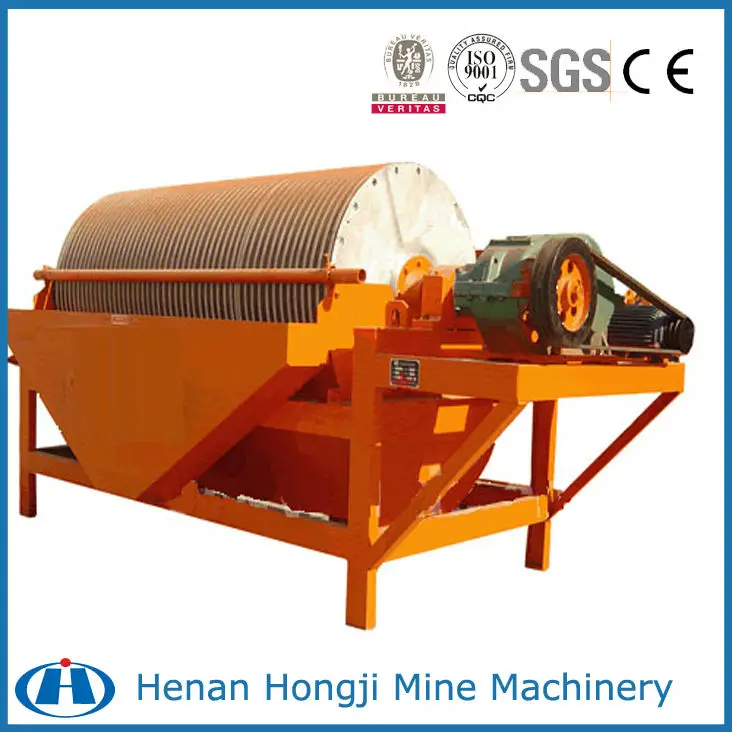

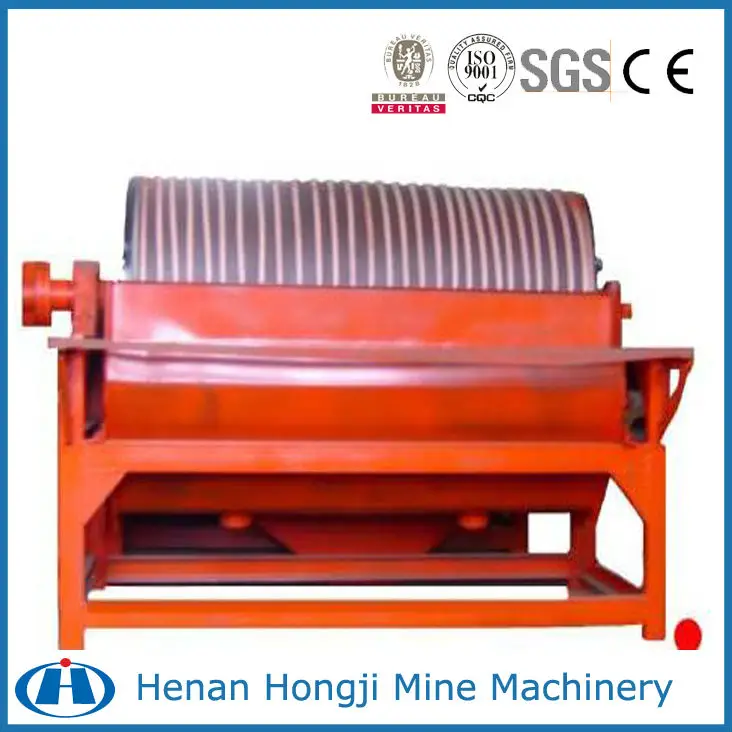

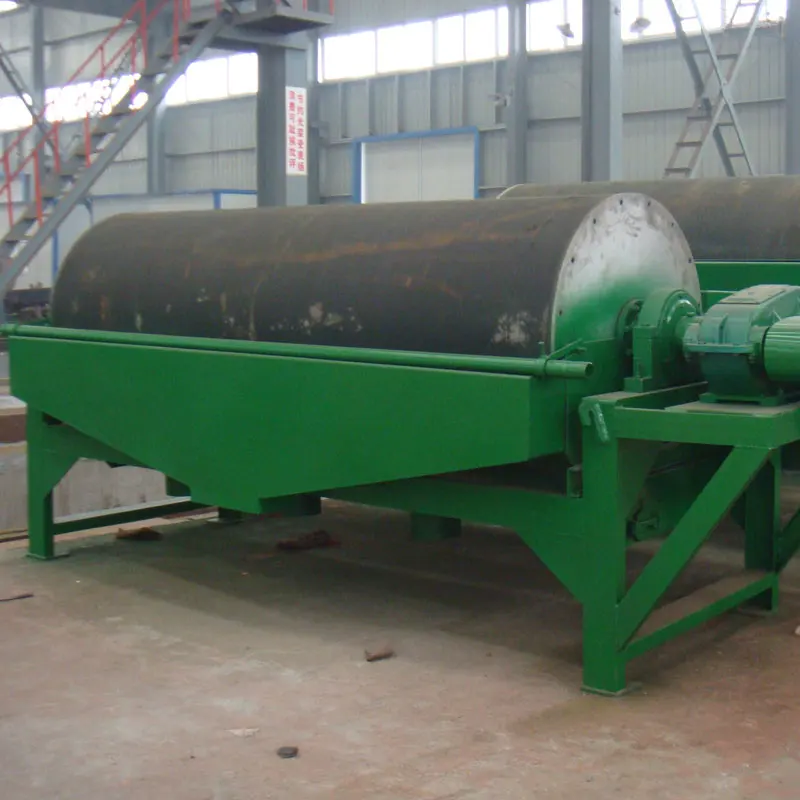

 Product Show





Certificate and honour:







Looking forward to hearing from you and welcome to visit our factory!
