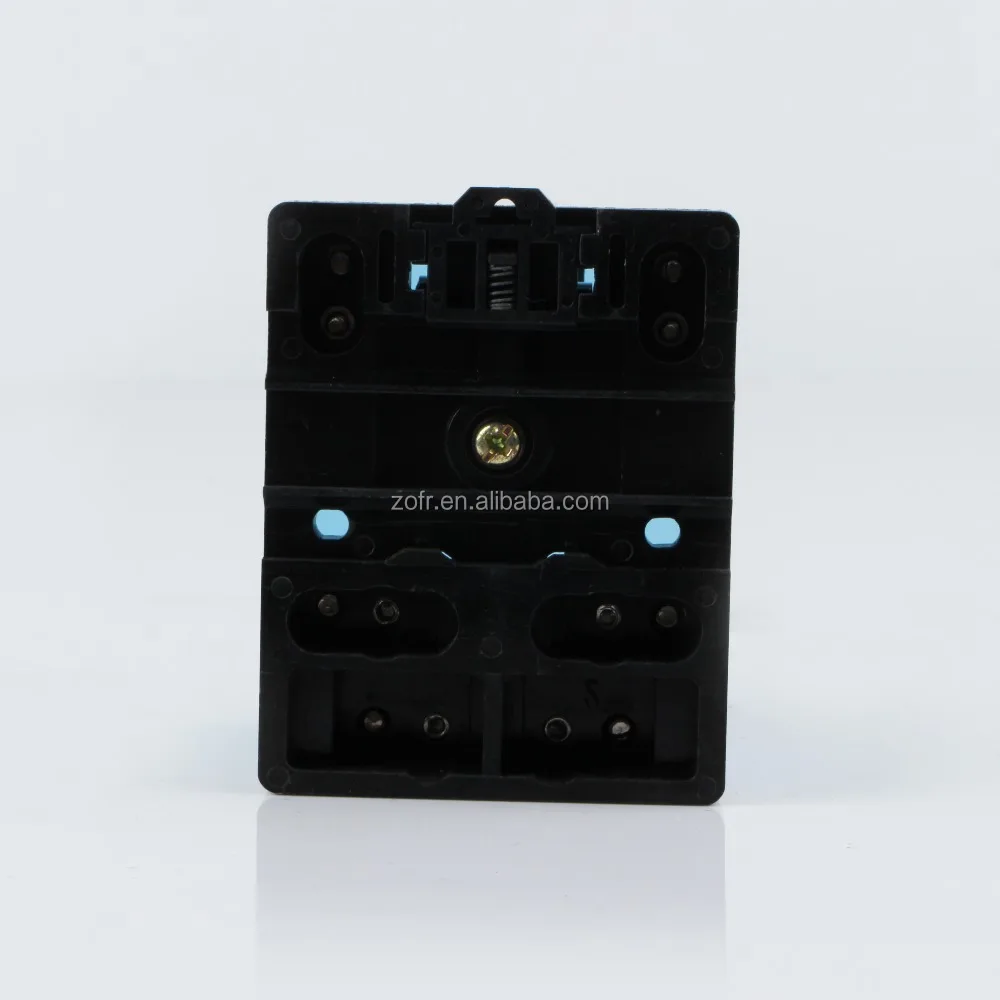

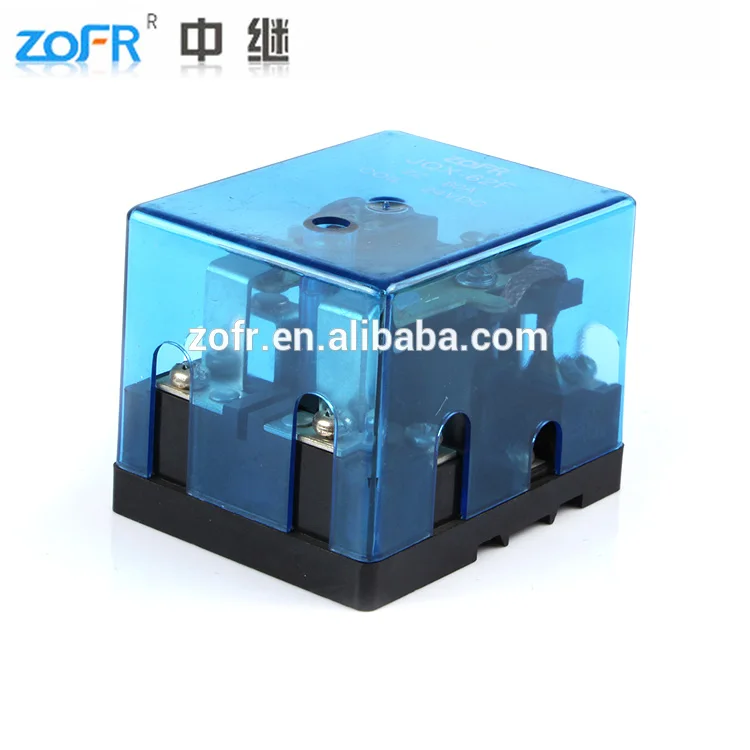

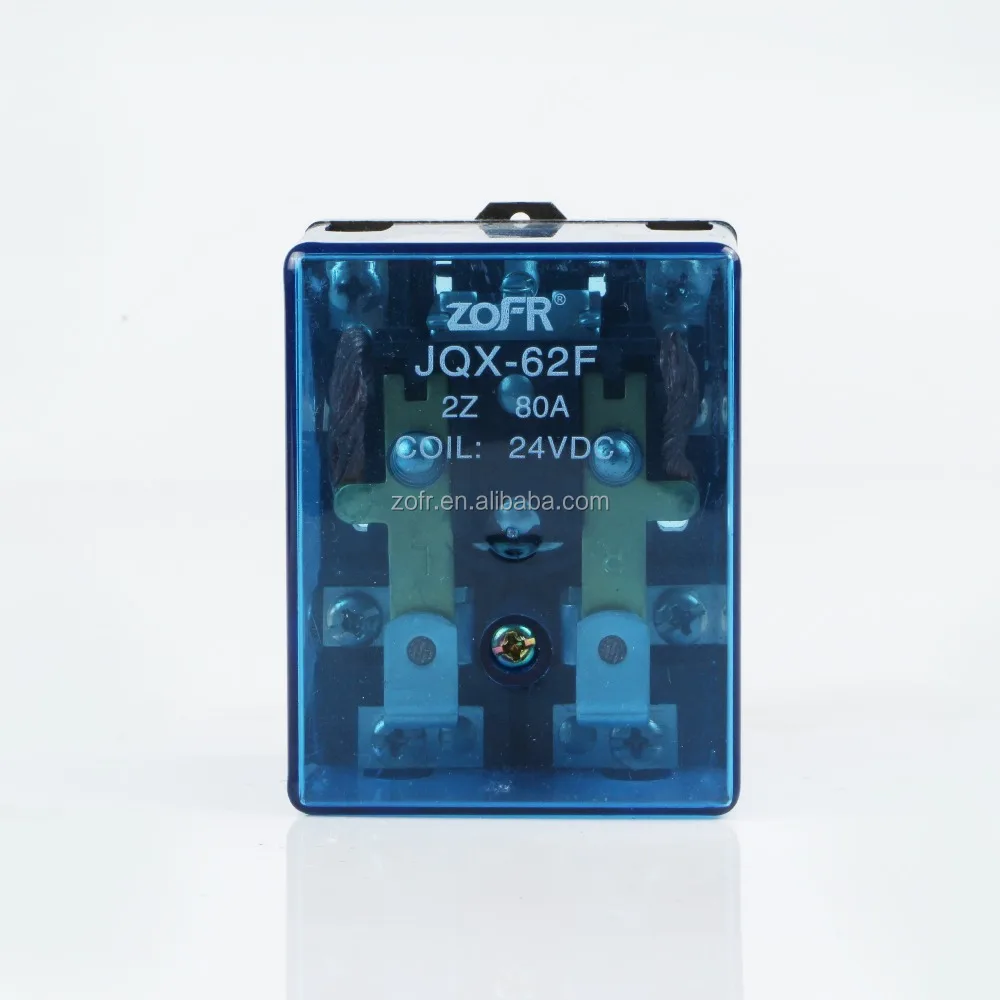

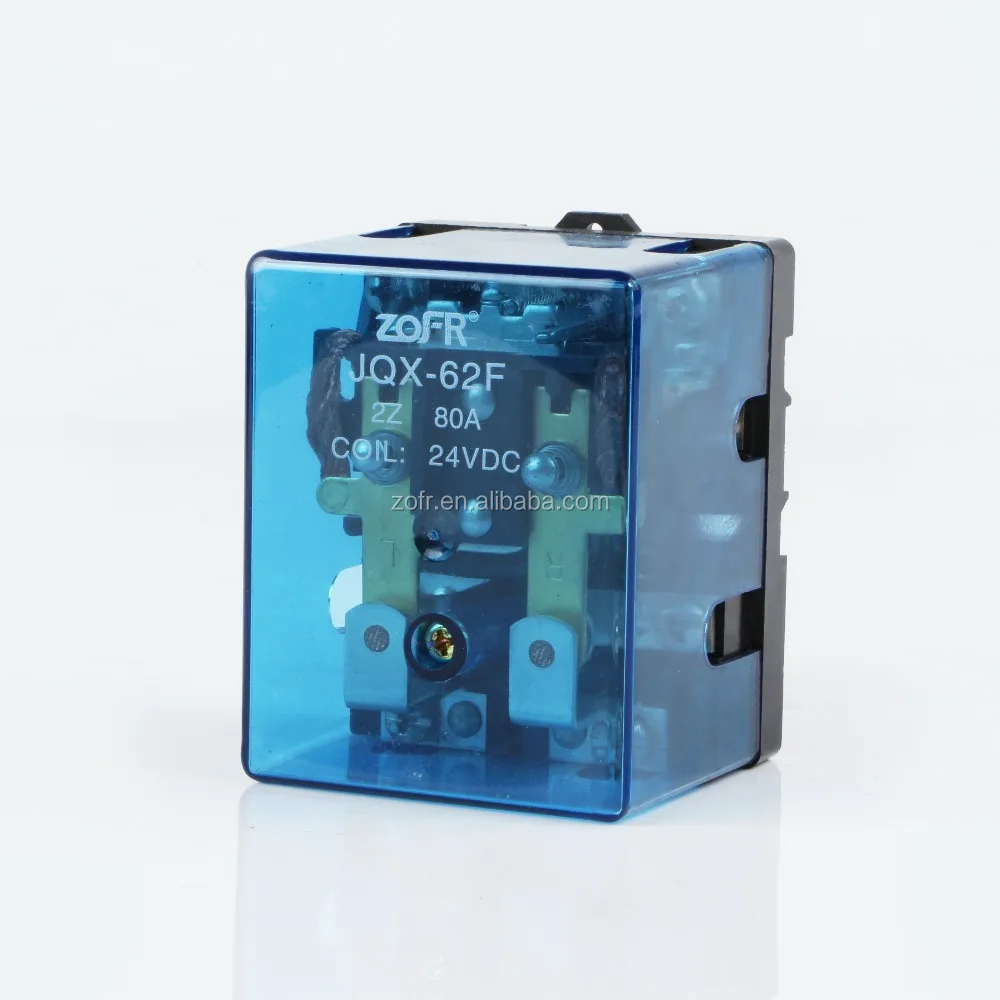

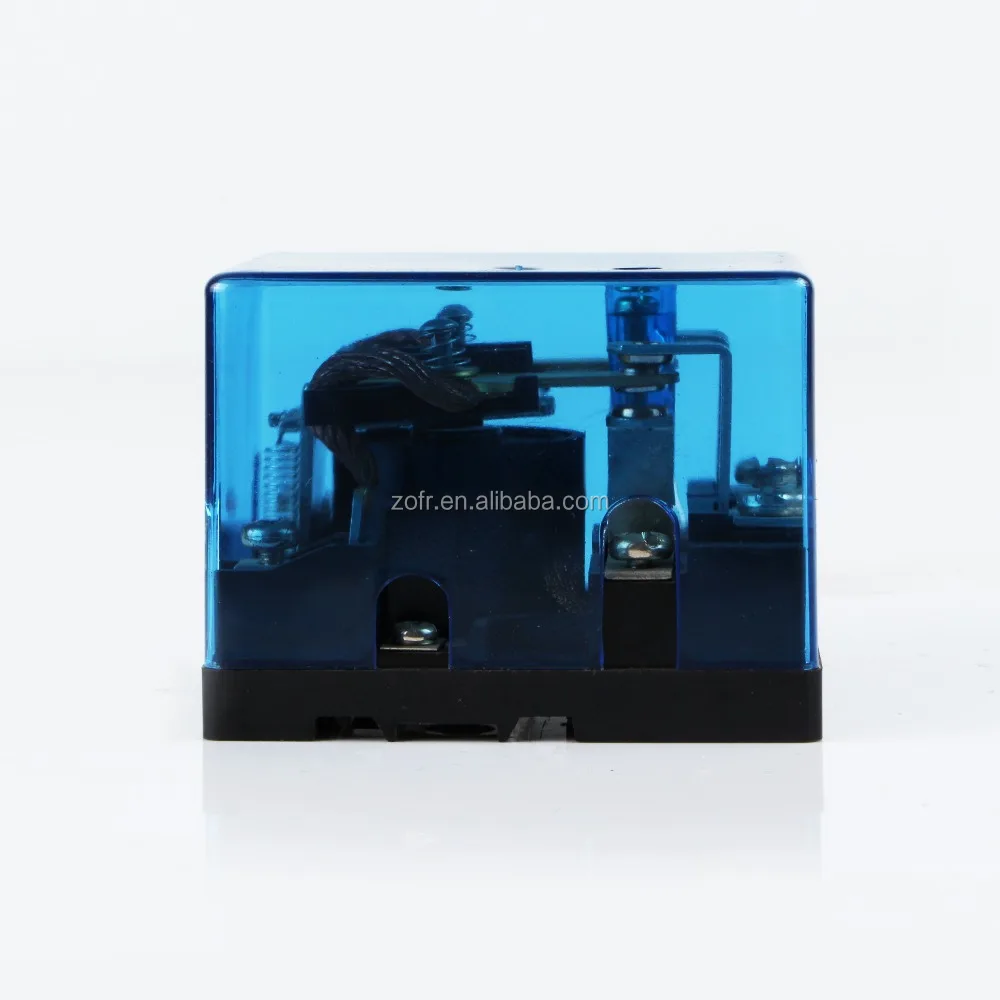

120A 220VAC power relay JQX 62F 2Z
- Category: >>>
- Supplier: Zhejiang Zhongji Technology Co. Ltd.
Share on (1084188169):
Product Overview
Description
Product Description
Features:
Power relay
1) Outline dimensions: 69.0*68.2*62
2) Contact data:
a) Contact arrangement: 1Z(1D 1H)
b) Material: silver alloy
3 Max. switching current: 120A
4)Max. switching voltage: 30V DC / 250V AC
5) Coil data:
a) Nominal voltage: 6 - 220V DC / 6 - 380V AC
b) Pick-up voltage: AC≤90%, DC≤75%
c)Drop-out voltage: AC≥30% DC≥10%
d) Coil power: 2.0W / 10VA
6) Specifications data:
a) Contact resistance: ≤50mΩ
b) Insulation resistance:≥500MΩ
c) Dielectric strength Vr.m.s:
i) Between open contacts: ≥1,500VAC
ii) Between coil and contacts: ≥2,000VAC
iii) Between contacts form:
d) Ambient temperature: -45 - +70oC
e) /Operation/release time: ≤20/20ms
Wiring Diagram:
| 1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products? A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue. |
2. Q: I need your price list of all your products, do you have a price list ? to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon! |
| 3. Q: I can’t find the product on your catalogue, can you make this product for me? A: Our catalogue shows most of our products,but not and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30-40days. |
4. Q : Can you make customized products and customized packing? put your Logo or other info on the packing.There is no problem. |
| 5. Q: Can you provide samples ? Are the samples free ? A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking. But you have to pay for the shipping cos.If you need many items, or need more qty for each item, we will charge for the samples. |
6. Q: What kind of payment do you accept ? Can I pay RMB ? In RMB. No problem. |
| 7. Q : What about your delivery time? A: We have a lot of products in stock.We can send the stock products within THREE working days. If without stock,or stock is not enough, we will check the delivery time with you. |
| 8. Q : How to ship my order ? Is it safe? A: For small package, we will send it by Express,such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service. For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery. |
| 9. Q: Do youu have a guarantee of your product quality? A: We have a guarantee of one year. |
| 10. Q: Can I become an Agent / Dealer of KINKONG products? A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us. |
