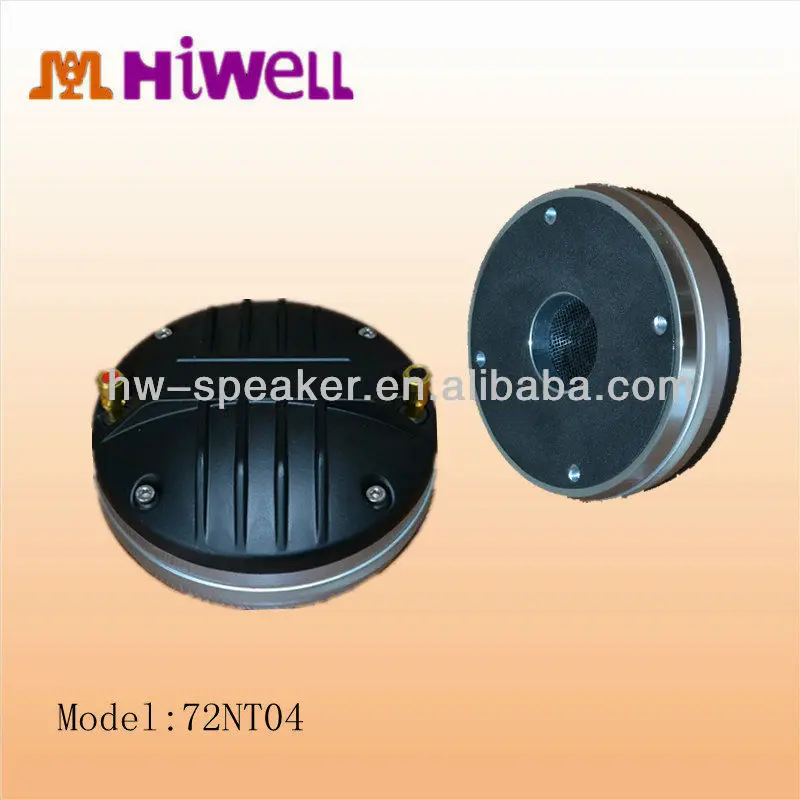

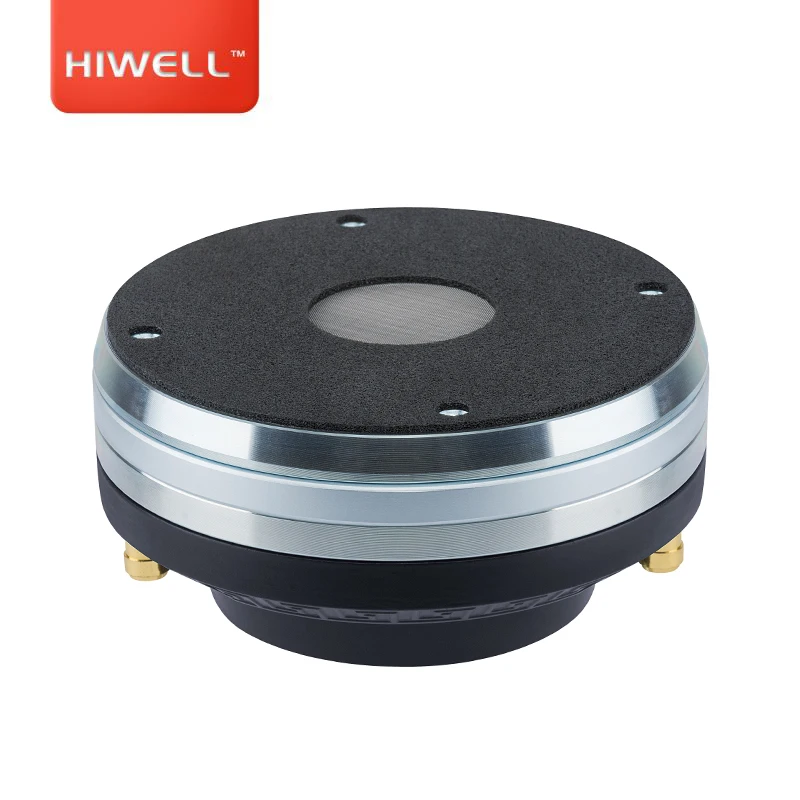

1.5inch throat 16ohm neodymium magnet tweeter speaker

Product Overview

Description







1. titanium diaphragm makes good performance and light tweeter
2. similar speaker is availble,72NT04A



Specifications	72NT04	72NT04A
Nominal Diameter	124/4.9	124/4.9	mm/inch
Nominal Impedance	16	8	Ohm
Minimum Impedance	12	6.3	Ohm
Power handling
(1.2kHz-20kHz)
Nominall	110	110	Watt
Continuous Program	220	220	Watt
Sensitivity (1W/1m)3	110	110	dB
Frequency Range	750-1800	750-1800	Hz
Voice Coil Diameter	72.2/2.8	72.2/2.8	mm/inch
Winding Material	CCAW	ALR
Former Marerial	KSV	KSV
Recommended Crossover5	1.2	1.2	kHz
Re	12	6	Ohm
Le	0.13	0.13	mH
Exit Throat Size	37/1.5	37/1.5	mm/inch

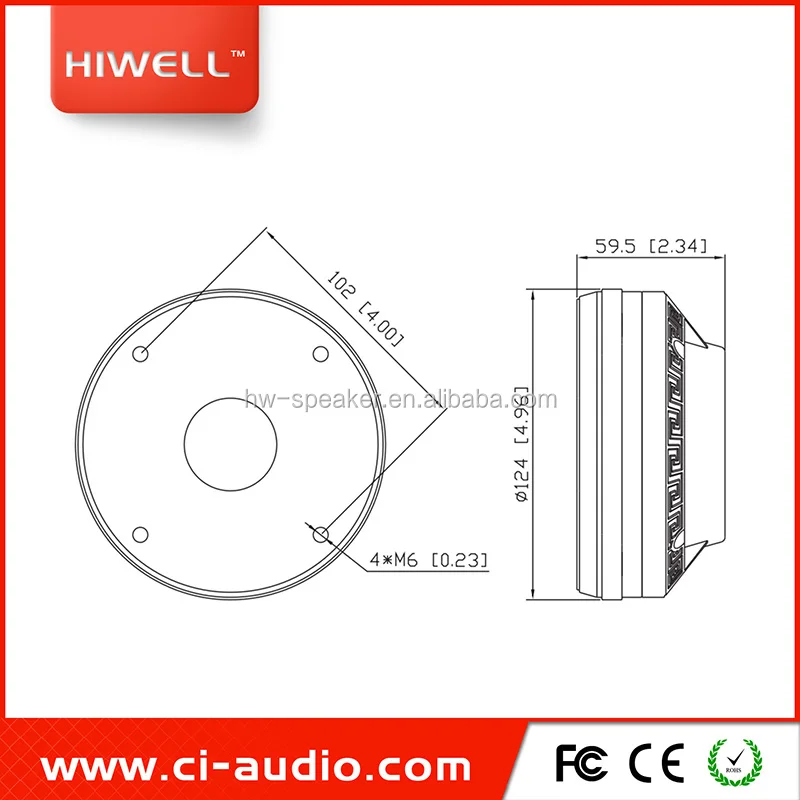

Mounting and Shipping Information
Baffie Cutout Diameter	124/4.9	124/4.9	mm/inch
Flang and Gasket Tickness	55/2.2	55/2.2	mm/inch
Net Weight	2.2	2.2	Kg
Shipping Weight	2.3	2.3	Kg
Shipping BOX	180*180*80	180*180*80	mm
Magnet Size	124*80*8	124*80*8	mm
