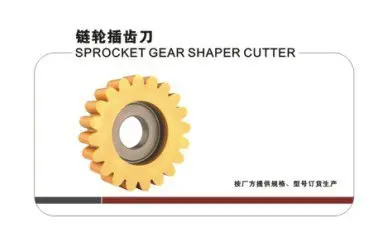

DISC SPROCKET GEAR SHAPING CUTTER

Product Overview

Description










SPECIFICATION	OD	TEETH NO.
6*4	φ90	45
	φ100	50
6.35*3.3	φ90	45
	φ100	48
8*5	φ90	34
	φ100	38
9.525**5.08	φ90	28
	φ100	31
9.525*6.35	φ90	28
	φ100	31
12.7*7.8	φ90	20
	φ100	23
	φ110	25
12.7*7.94	φ90	20
	φ100	23
	φ110	25
12.7*8.51	φ90	20
	φ100	23
	φ110	25
15.875*10.16	φ90	16
	φ100	18
	φ110	20
19.05*11.91	φ110	16
19.05*12.07	φ110	16
25.4*15.88	φ120	12
31.75*19.05	φ140	12
38.1*22.23	φ140	9
38.1*25.4	φ140	9
44.45*25.4	φ160	9
44.45*27.94	φ160	9

 The sprocket aslo have disc type and bowl tybe two kinhs , We also can do the Non-standard ones .If you have need ,pls caontact with us without hesitate
