CE stainless flexible annual corrugated bellows hose for water

Product Overview

Description



STAINLESS  STEEL FLEXIBLE CORRUGATED WATER HOSE



Non-toxic flame-proof shrink-wrapping, polyolefin-made.

Product application
They can be used for connections to the gas system from domestic devices, cookers, boilers, water heaters with 35 kW max.

 • Caratteristiche fornitura

Packaging: in skinpack
• Caratteristiche costruttive

Hose: stainless steel AISI 304 with parallel waves
Thickness: > 0,20mm
Male:steel Hi speed stainless steel AISI 304. Threading: UNI-ISO 7/1
End fitting: hi speed stainless steel AISI 304

Nut: steel Hi speed stainless steel AISI 304. Threading UNI-ISO 228/1
External covering: polyolefin, completely flame proof, non-toxic and yellow coloured
Internal diameter (passaggio): 12 mm
Thermal treatment: vacuum heat treatment
Welding: Without addition of material

• Caratteristiche tecniche

Type: Flexible extensible with external plastic sheating
Maximum pressure exercise: 6 bar
Exercise temperature: -20 °C / +120 °C
Minimum curving ray: 1,5 times the external diameter
Material in contact with gas: stainless steel

• Collaudo

Test: under 6 bar pressure in immersion, with helium spectrometer and computerized static pressurized seal.

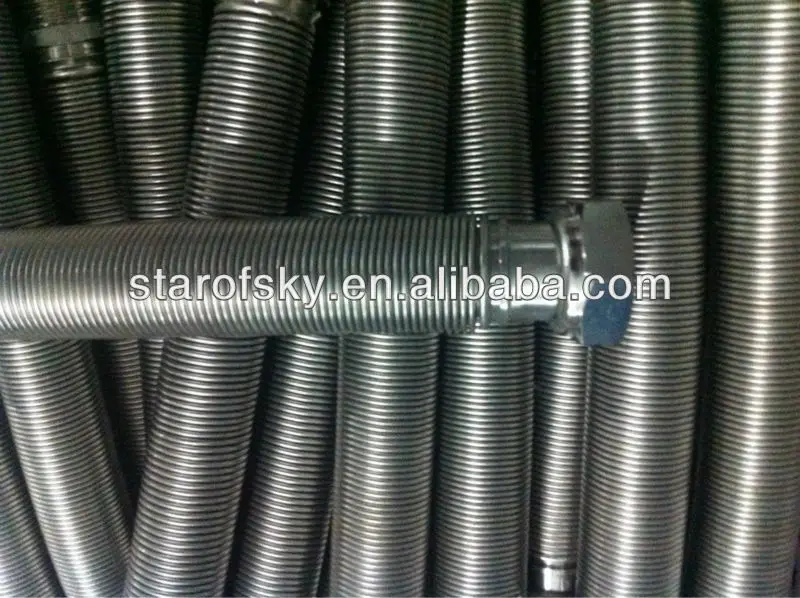

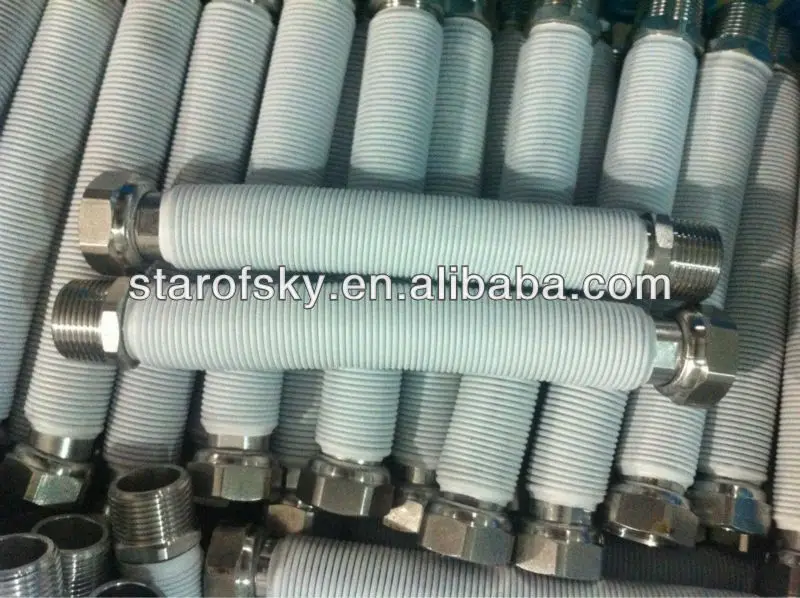

PRODUCT DETAILS:

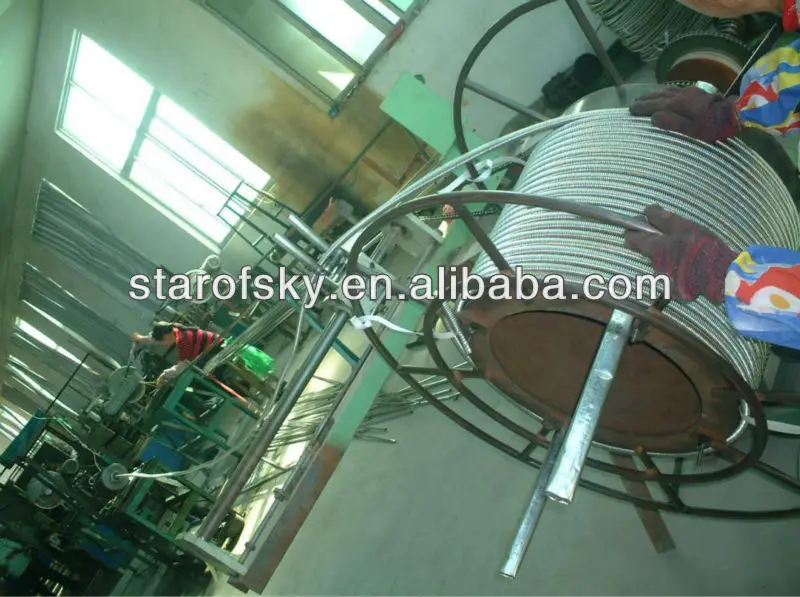

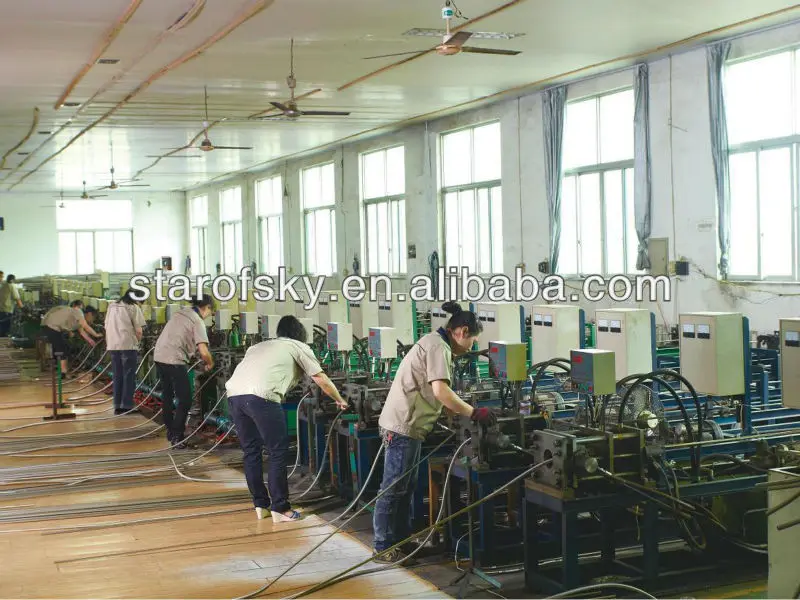

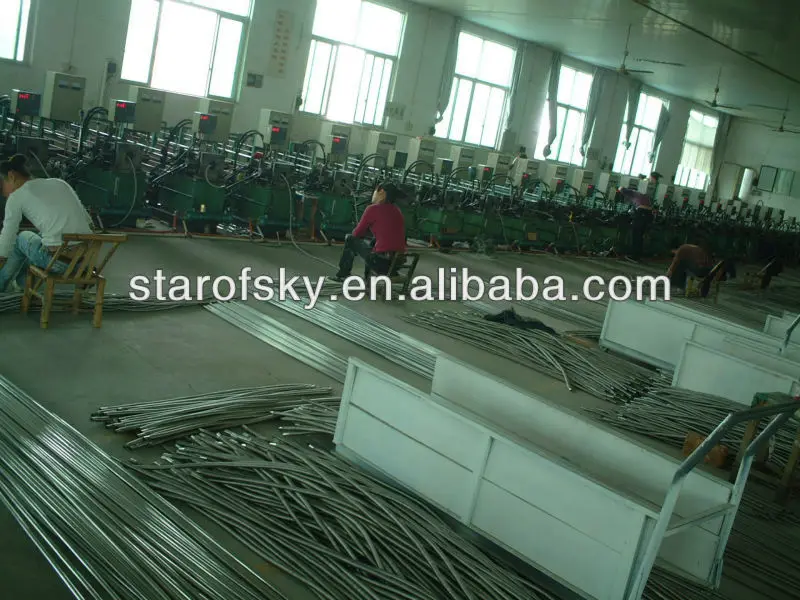

PIPE SYSTEM WORKSHOP:

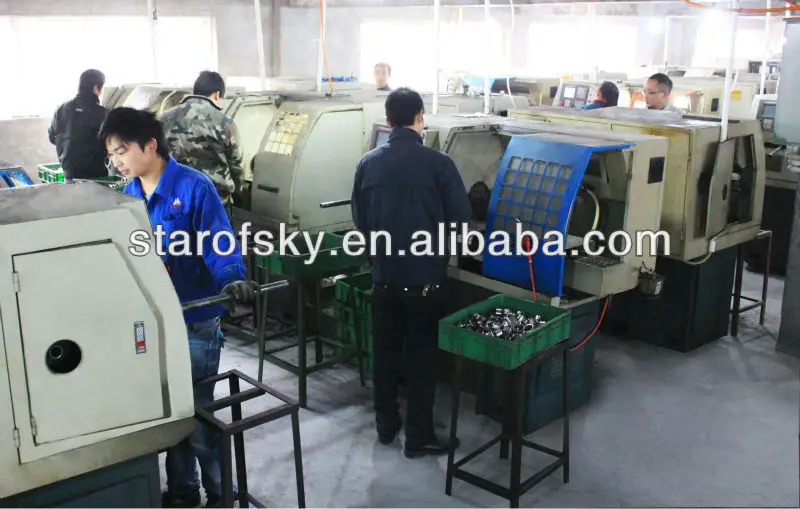

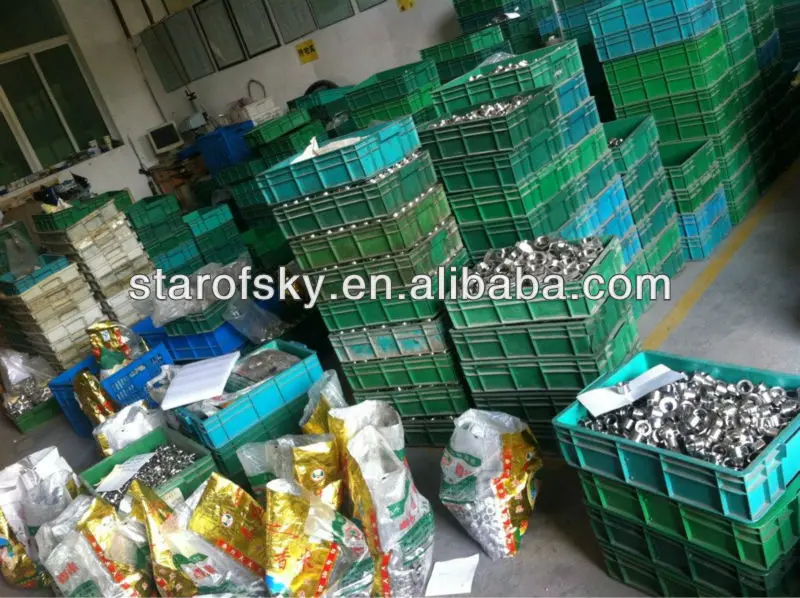

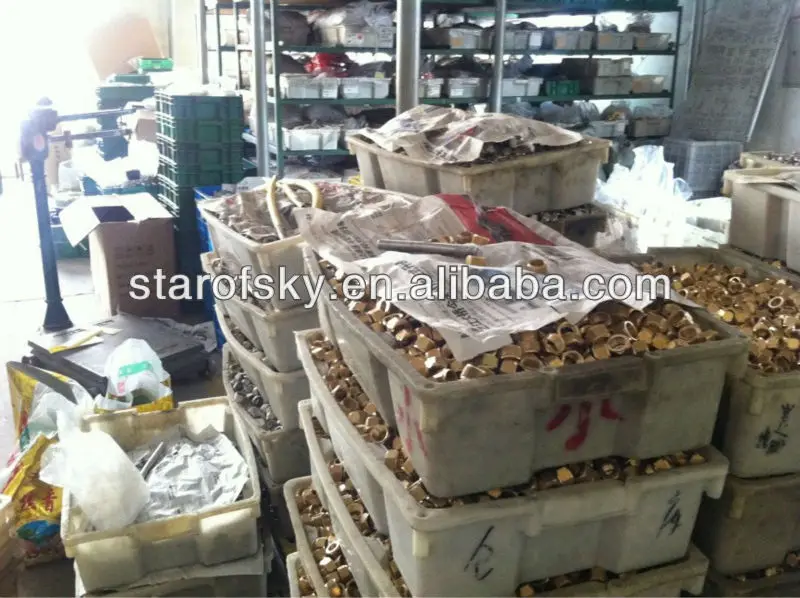

COMPONENT WORKSHOP & WAREHOUSE:

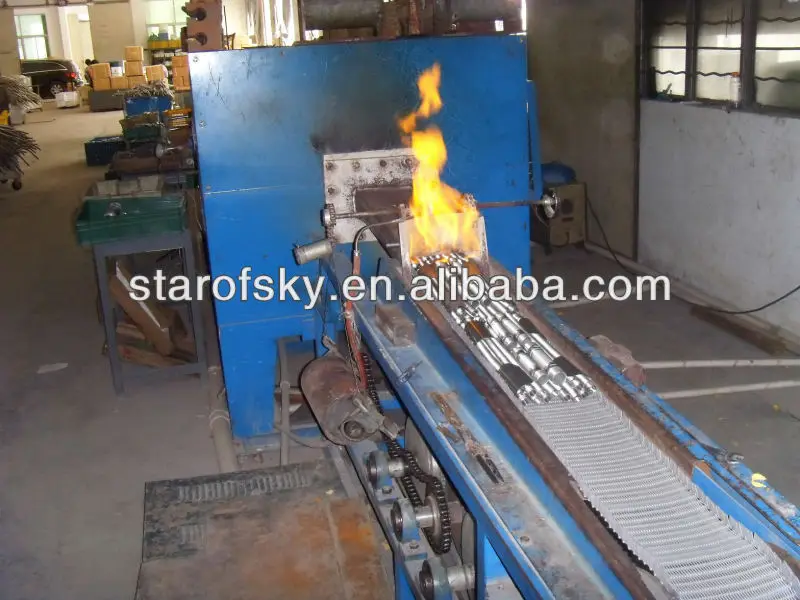

HEAT TREATMENT & ANNEAL:

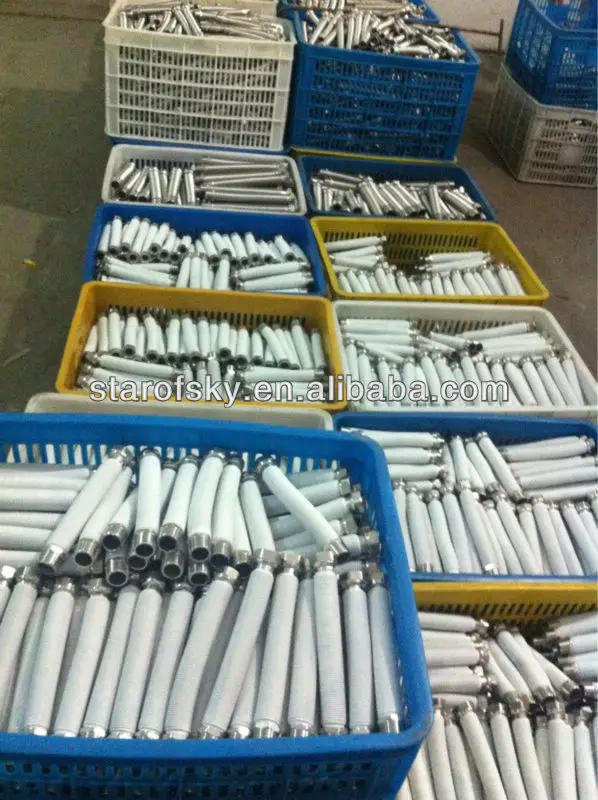

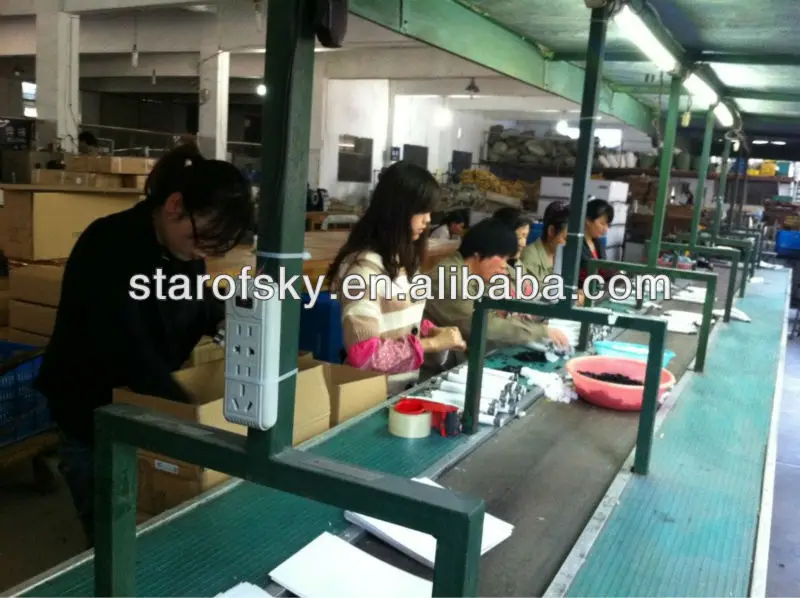

PACKING LINE:

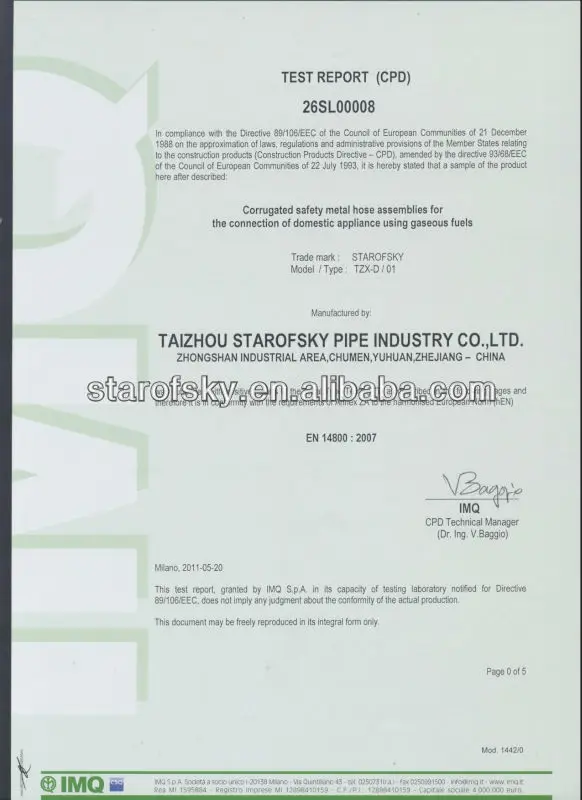

CERTIFICATES:
