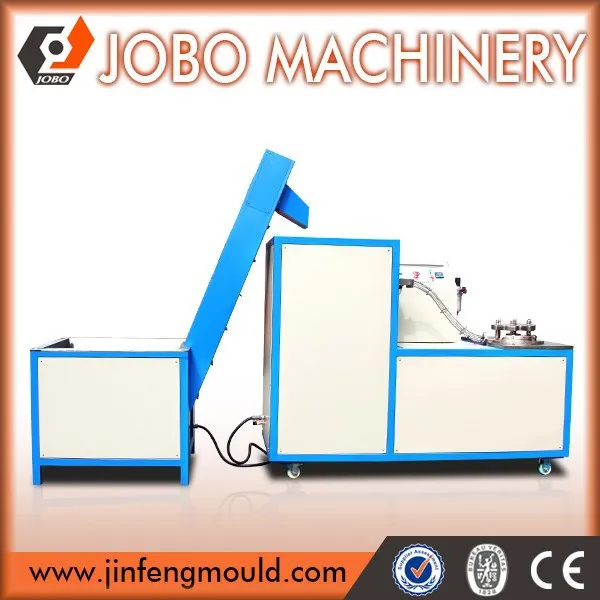

2015 NEW JOBO MACHINERY plastic bottle cap slitting machine
1. Detailed Product Description
The machine is used to cut bottle cap anti-theft ring.The machine combined with gas system,
PLC automatic control to tidy cap and output cap, and also adjusts the depth of kerfs,and guard against theft
ring height. The cap made by this type of machine will be more beautiful.
The development of this machine could greatly increased the production efficiency, and effectively solves the inner pad health and leakage problems.
The advancement of this machine is small-size, high-produce efficiency and easy-operated.
The cap liner made by this machine can be even more smooth and beautiful, it also will be accord with national food hygiene standards for the good leak proof performance and strong pressure resistance.
Specification
2. Specifications
Type: JF-28
Cap diameter: 25-65 mm
Cap height: 10-30 mm
Capacity: 17000-22000 pcs/hr
Installed electrical power: 1 KW
Total power: 0.7 KW
Supply voltage: 220V,50Hz
Compressed air consumption: up to 600N1/min
Machine weight: 180 KG
Machine size: 1670mm×670mm×1280mm
JOBO MACHINERY remarks : The above configuration is only for your reference, particular configuration will be confirmed according to customers' actual needs.
Process Flow
3. Process Flow
The company has successfully developed different specification of hydraulic cap compression molding machine, attaching cap folding machine,automatic cap slitting machine and automatic cap lining machine . The type of JF-30BY hydraulic bottle cap molding machine has applied for national patent.
After many years of production practice, the company qiaobo accumulated the rich cap machinery manufacturing experience. In order to make the ‘made in JOBO’ become the industry benchmark, the company has invested a lot of money and equipped with advanced mechanical processing equipment, imported and cultivated the professional and technical personnel. Actively improved the production technology and made continuous innovation.
Company Introduction
4. Company Introduction
Taizhou Jobo Machinery Mould Co., Ltd. is located in the East China Sea, which is the renowned land of orange in the country and the hometown of mould. Ningbo port in the north, the south according to Huangyan airport, the transportation of the company is convenient for highway and railway. The company got a total investment of $3 million, and covers an area of ten thousand square meters. The company's product marketing structure is mainly for export. At present, the product have good sales in more than twenty countries, such as the middle east, Africa, the Americas and so on, and enjoy good public praise and reputation in worldwide.
The company adheres to the business philosophy of “Honesty pragmatic, Quality first, Customer focus, Beyond the ordinary.” According the request of different customer, the company provides a full range services of design, product, commissioning and after-sale technical support. We warmly welcome friends both at home and abroad to negotiate. Sincerely hope to establish good, reliable and stable relations of cooperation with every customer, and got common development!
We can manufacture multicavity injection mold according to your requirement or sample,especially injection cap mold and preform mold. Welcome to visit our factory,sincerely hope to cooperate with you. Material of cap mould: 1- Cores & cavities:S136HH,or according to customers demand.Hardness:52-54 2- Sleeves:S136HH,or according to customers demand.Hardness:52-54
3- Heat treatment hardness:66-69
4- Oprating life:at least 20 million shot times 5- Customer service:two years free warranty, life-long technical support service. Advocating high quality products and efficient quality customer service is our source of development and foundation of existence. Sincerely hope to cooperate with you.
