Metal Recycling Line Siemens Motor Scrap Metal Shredder Machine for Kobe Steel

Product Overview

Description

Dura-Shred Metal Shredding System:

are designed with American technologies by our US technical company with an aggressive low RPM, high torque shredding technology. Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tires and thick steel beads. The shredder blade thickness ranges from 25 mm to 152 mm(1”-6”) depending on the type of metal, throughput, and desired end product.



Shedder machine for metal we designed is energy-saving,low-noise,automatic in normal temperature condition with the best quality guarantee and equipped with best equipment such as Siemens Motor and FAG bearings,controlled by Siemens PLC with SKD-11 steel heated by Bodycote.



This shredding machinery system we manufactured for Kobe Steel located in Japan, it is one of Fortune 500 biggest companies of the world,we help to to design this shredding system to shred scrap metal into pieces, then melt again to build new metals.



Equipment Specifications

Metal Shredder	TSD2471	TSD1663	TSD1651	TSD1347	TSD1340	TSD1332	TSD832
Motor Spec	2*Siemens  Eletric	2*Siemens Eletric	2*Siemens Eletric	2*Siemens Eletric	2*Siemens Eletric	2*Siemens Eletri	2*Siemens Eletric
Power	55Kw*2	45Kw*2	37Kw*2	22Kw*2	22Kw*2	15Kw*2	7.5Kw*2
Cutting chamber  L*W(mm)	1804*1410	1604*858	1304*858	1204*686	1004*686	804*686	804*460
Equipment Dimensions L*W*H(mm)	5876*2310 *3493	5464*2624 *3040	4280*2206 *2492	4092*1416 *2163	3892*1416 *2163	3327*1030 *2075	2796*1256 *2311
Equipment Weight	22400Kg	13700Kg	12500Kg	6300Kg	5800Kg	4700Kg	2000Kg
Hopper Opening L*W*H(mm)	3711*2438 *1046	2835*1628 *770	2335*1628 *770	1521*1416 *685	1321*1416 *695	1120*1257 *800	1120*1256 *800
Product size(mm)	100-50mm	100-50mm	100-50mm	100-50mm	100-50mm	100-50mm	100-50mm

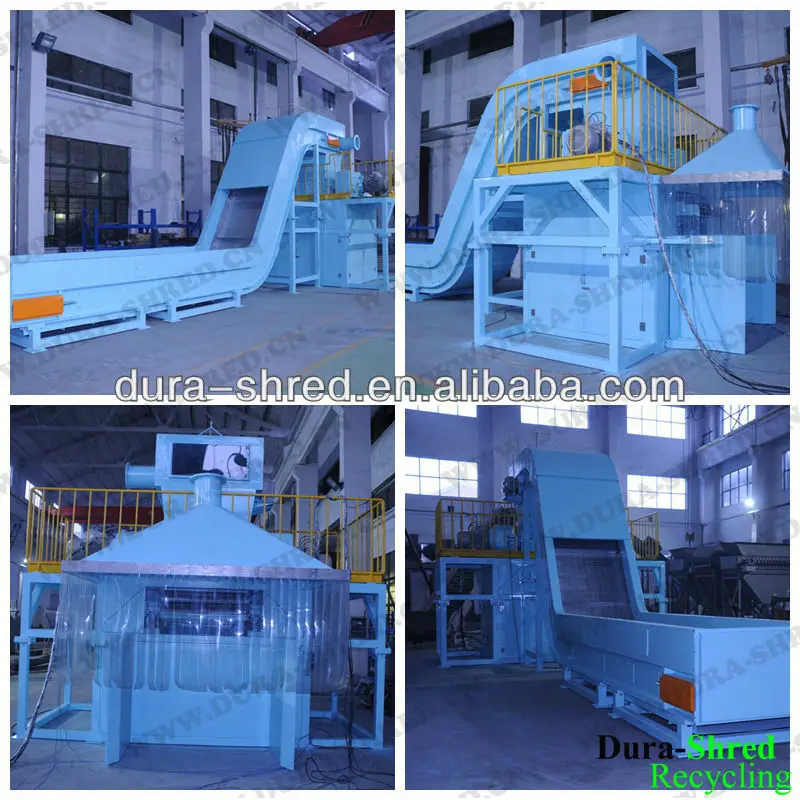

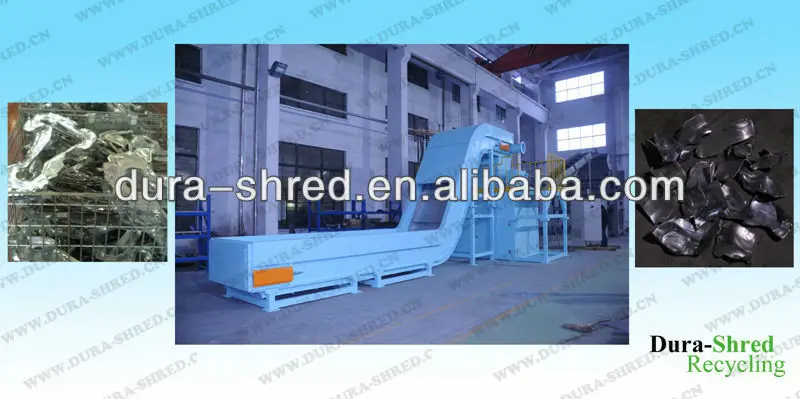

Metal Shredding System in workshop:

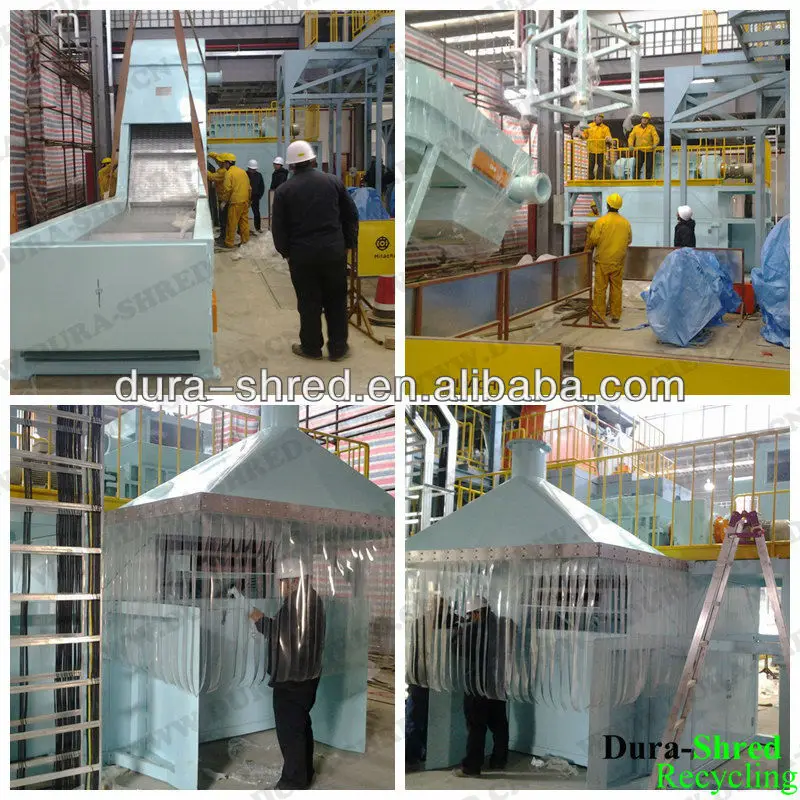

 Metal Shredding system in Kobe Steel factory:

Dura-shred's advantage

• Exclusive Control System --- Controls and operates the entire plant from its centrally lacated position and provides instant visibility to what each machine is doing in real time.
• Uniq Stop/ Auto reversal Feature --- Protects against overfeeding and damage by non-processable items.
• Advanced Bearing Housing --- Isolates bearings from cutting chamber contamination and protects agaist bearing failure.
• Premier Full Turnkey Systems --- Plant is manufactured, shipped, installed and ready to start recycling.
• Warranty --- One of the best warrantees in the industry.

If you have any questions, please inquire us freely!
