CV4YQ 04R2G джойстик переключатель двухосевая миниатюрный переключатель APEM джойстики
- Category: Other Electronic Accessories >>>
- Supplier: Yueqing Omter Electronic & Technology Co. Ltd.
Share on (1088726957):
Product Overview
Description
Products Description
Mechanical character: | |||||
Control range of the joystick | X. Y two axis: Starting from the central location approx ±12° | ||||
Operating pressure: | with spring return device | ||||
X.Y axis : | approx 1N ~1.2N (l00gf~120gf) | ||||
Operating temperature range: | -20°C~+65°C | ||||
Vibration: | 10~55Hz 98m/S2 | ||||
Impact: | 294m/S2 | ||||
Protection class: | IP65 (above the mounting panel) | ||||
Life expectancy: | approximately 200,000 times | ||||
Quality: | about 40g | ||||
Electrical function: | |||||
Handle button switch contact capacity: | 50VDC/0. 1A | ||||
Micro Switch contact capacity: | 250VAC/5A | ||||
Light emitting diode (LED) rating: | 2VDC, 20mA | ||||
Optional special specifications: | |||||
Special mechanical structure; special handle; special rod length; special spring return force; special dust cover | |||||
Could choose handle button switch; could choose micro switch contact capacity(250VAC/10A); could choose signal level switch. If in bigger quantity, could provide specific OEM products | |||||

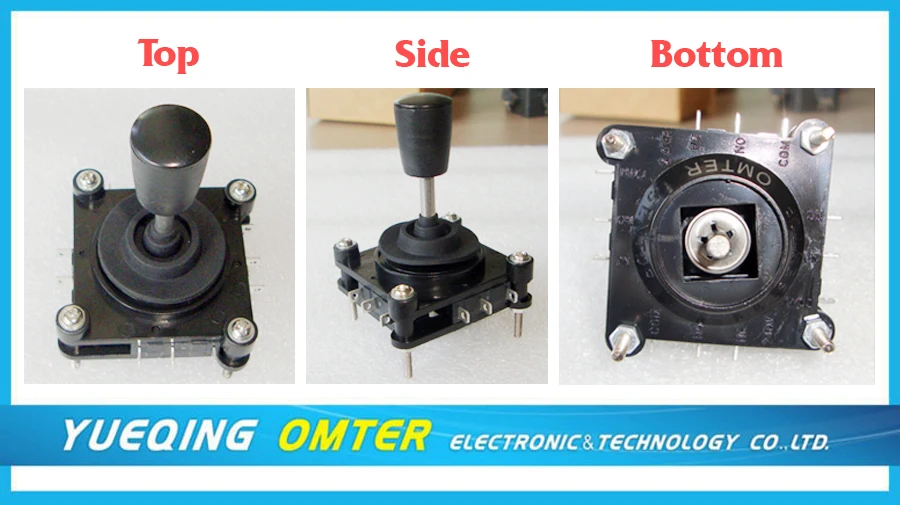

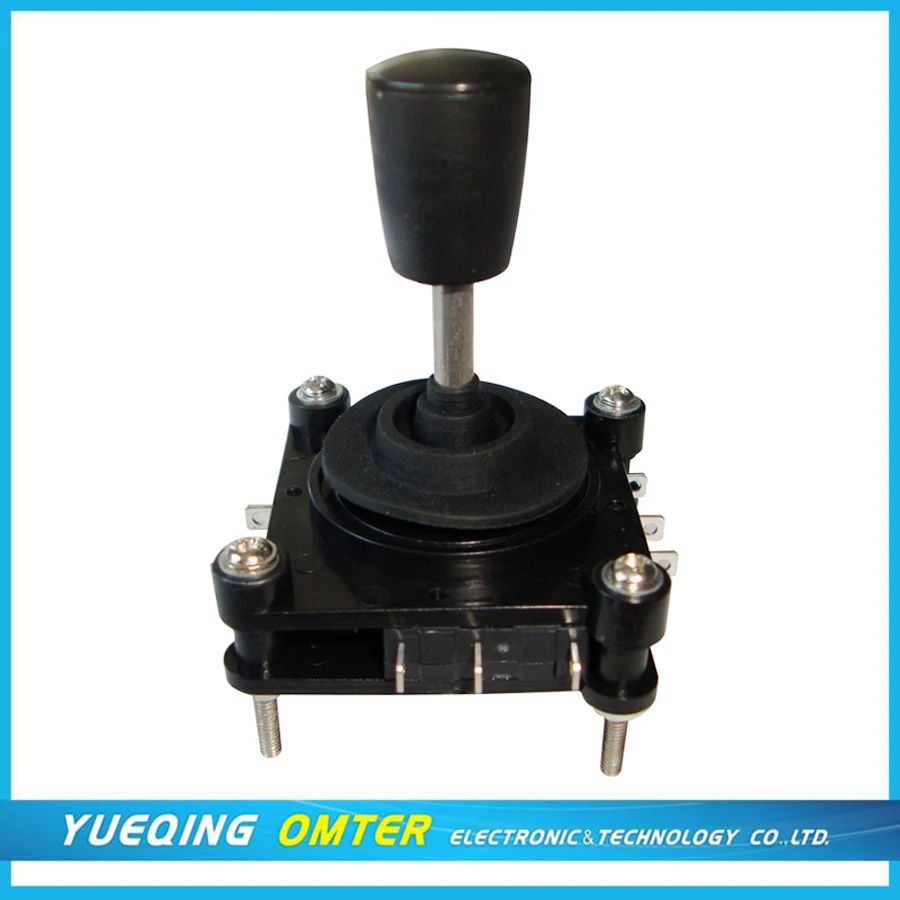

Product Show
Company Profile
Certifications
Packing & Shipping
Order Guide
1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
