HSS spline gear milling cutter

Product Overview

Description

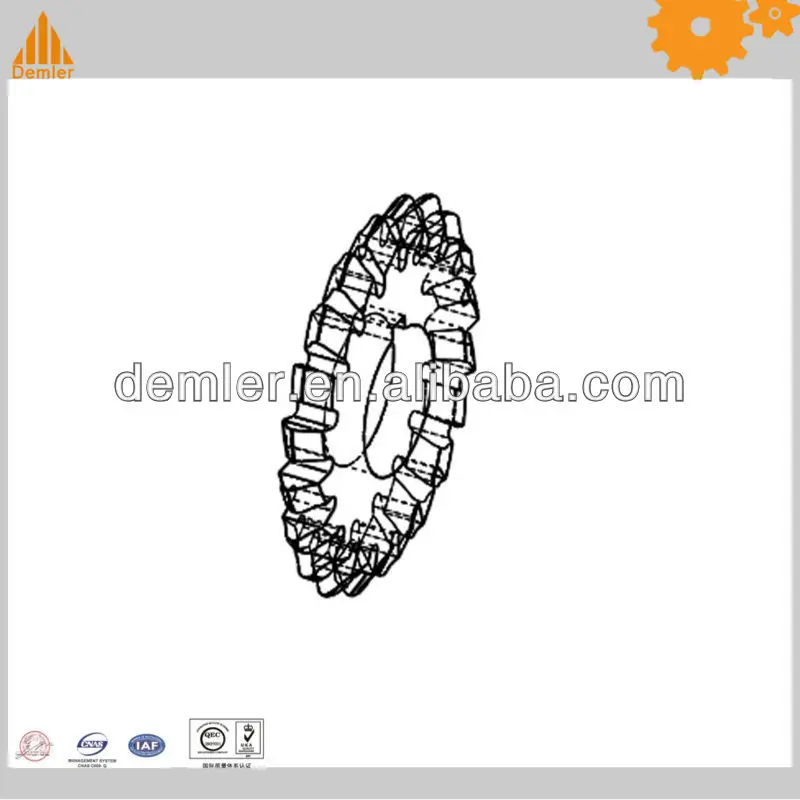

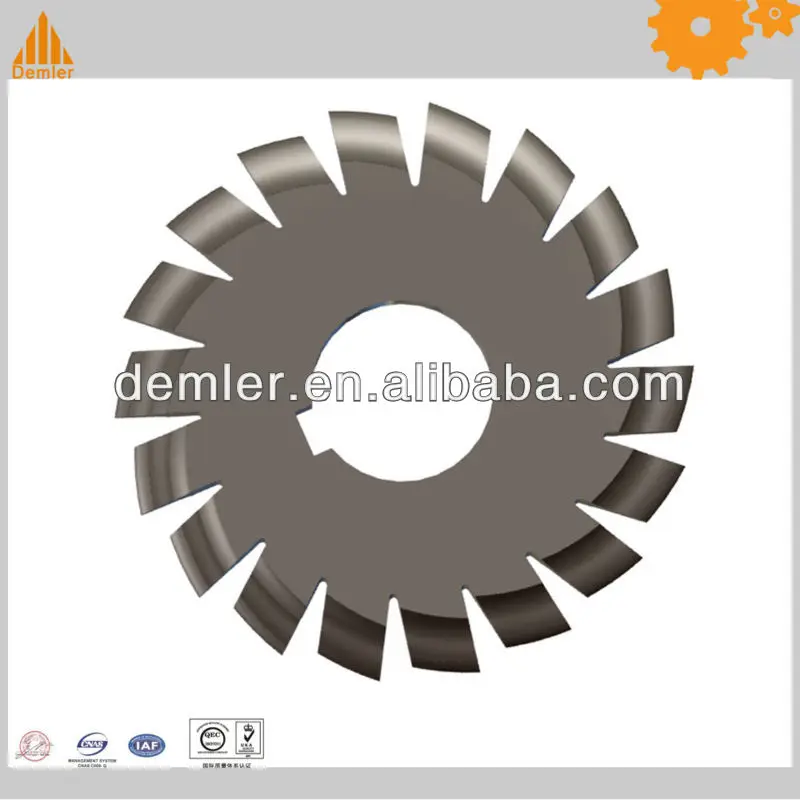

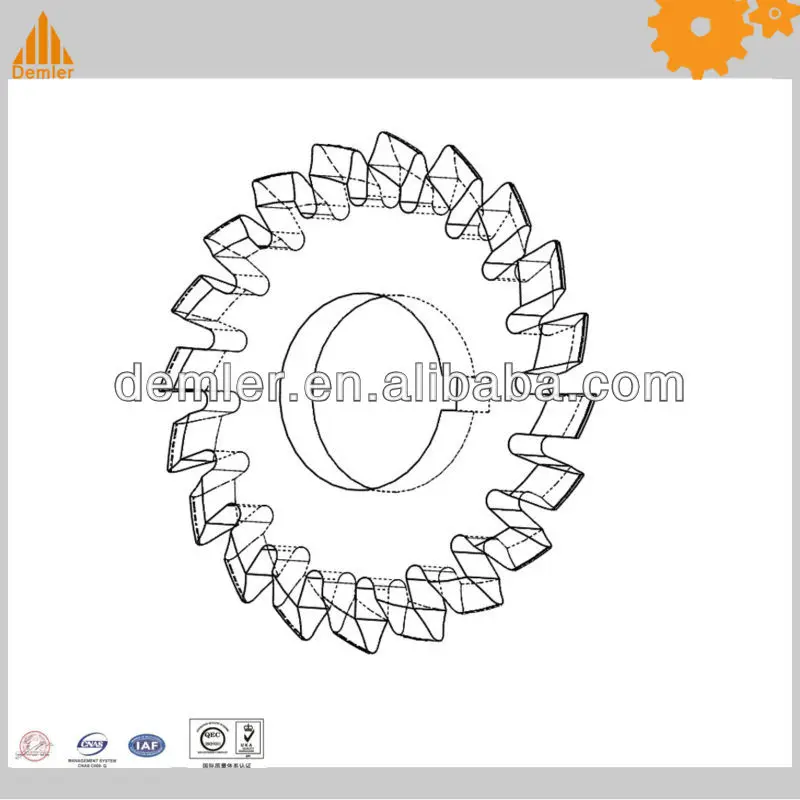

HSS spline gear milling cutter

Specifications

1. Accuracy: Class A

2.Delivery Times: 25days.

3.16 years manufacture of gear hobs, Shaving butter, shaper cutter, milling cutter and broaches.

4.Type:  spline gear milling cutter

Announcements for Customers

Please tell us those important data!

1.What's the module, pressure angle, outside diameter, keysize, bore diameter, with, diection of turning for nonstandard or your standard  spline gear milling cutter ?

2.What's the material?

We provide you HSS M2(W6Mo5Cr4V2), HSS M35(S705), W9341, and power metallurgy(S390)

3. What's the coating?

We provide you TIN couting, TIAIN Coating or uncoated

4.What's the Accuracy level?

You can have  Accuracy gade AA and Accuracy gade A

5.Which do you perfer, standard  spline gear milling cutter or Non-standard ge spline gear milling cutter ?





Technical Specification

1. Module: m0.3~m16

2. Material: Steel  M2 (W6Mo5Cr4V2)

3. Accuracy: Class A

4. Pressure Angle: 20°,

5.Direction: Right-handed

6.Teeth quantity:

7. Type: Disk gear mill cutter

Coating and material

(for material weprovide you material as follows you reference)



For Material



1.High speed Steel M2 .

Component: W6Mo5Cr4V2, .

Delivery Hardness ≤ 255HB .

Harding Temperature: 1220-1240 Degrees .

Hardness ≤ 63 .

Common Used Material



2. High Speed Steel M35(S705) Provided by the Bohler in Austria.

Co4.8% .Hardness≥ 64HRC .

High Toughness HSS .

High wearability .

High Pressure Resistant .

Resistance to Sintering .

Better Material



3. Powder Metallurgy .The Best Material



For Coating

TiN Coating Microhardness(HV): 2300

Coefficient of Friction(COF): 0.40

Innerstress(Gpa): -2.5

Maximum Reaction Temperature: 600

Centigrade Color: Golden Yellow

Coating Structure: Monolayer .



TiALN Coating Microhardness(HV): 3300

Coefficient of Friction(COF): 0.30-0.35

Innerstress(Gpa): -1.3/-1.5

Maximum Reaction Temperature: 900 Centigrade

Color: Purplish Gray

Coating Structure: Nano-Stuture

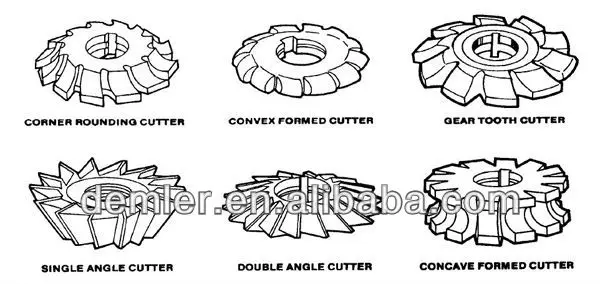

Wide Range of Option gear milling cutter

Moldue gear milling cutter

DP gear milling cutter

Sprocket gear milling cutter

Spline gear milling cutter

involve gear miling cutter

convex milling ctter

Gear tooth gear milling cutter

Bevel gear milling cutter

helical gear milling cutter.

chamfer milling cutter

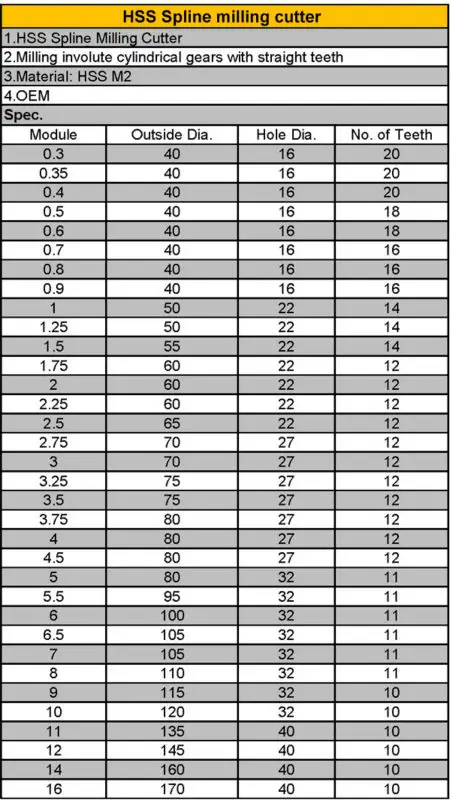

Specification of spline gear milling cutter







Production Process& Brief view of the factory

Taizhou Sudi tools factory is a professional manufacture, Which is  famous for standard and non-standard Hobs, various types of broaches an milling cutter, it was established in 1997,with16 years history in metal ctting Tools field.





Packing &Shipping

.For Packing .The products are wrapped with Oiledpaper and the bittle box as inner packing.

. The products are wrapped with Cartons as outside packing . If you have special requirements, such as wooden cases, please    mention that in advance.



. For Shipping .We provide air transportation and ocean transportation.

.Port of Shanghai or Ningbo is our port of loading, because the factory closes to those two city.
