Product Overview
Description

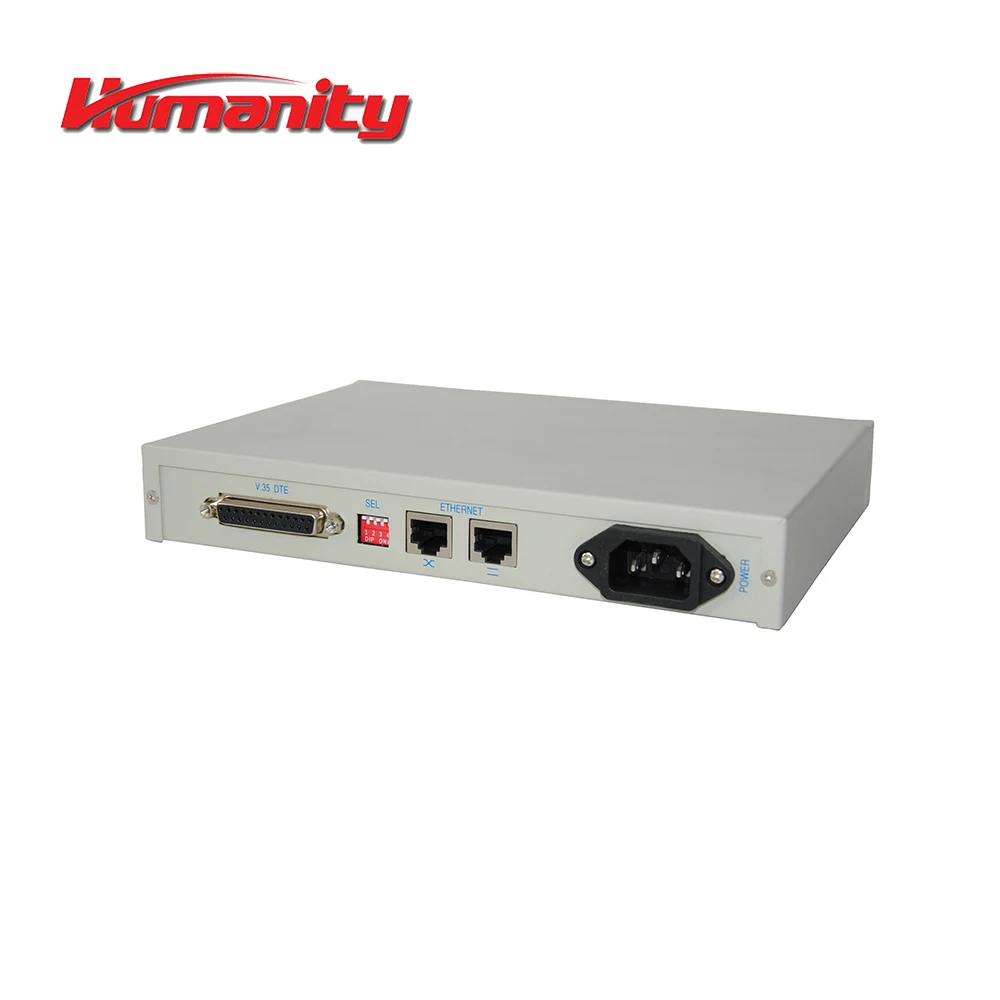

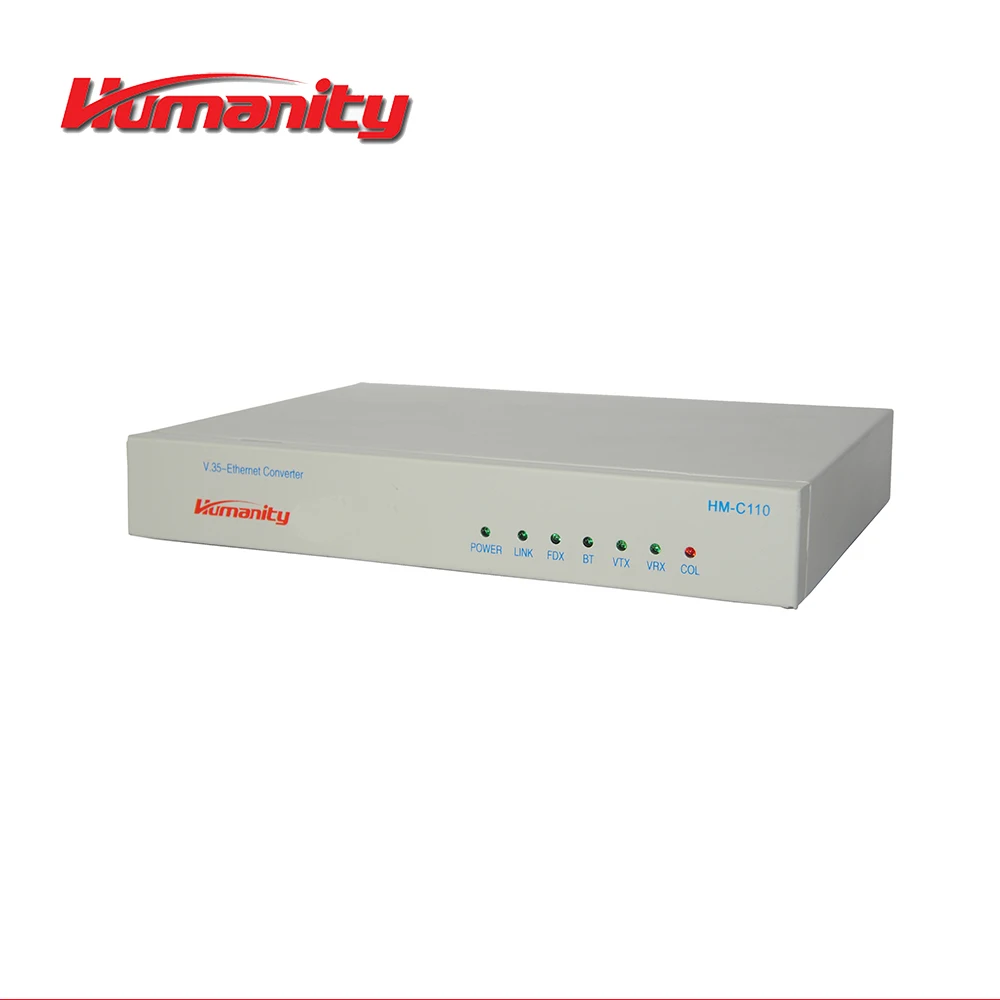

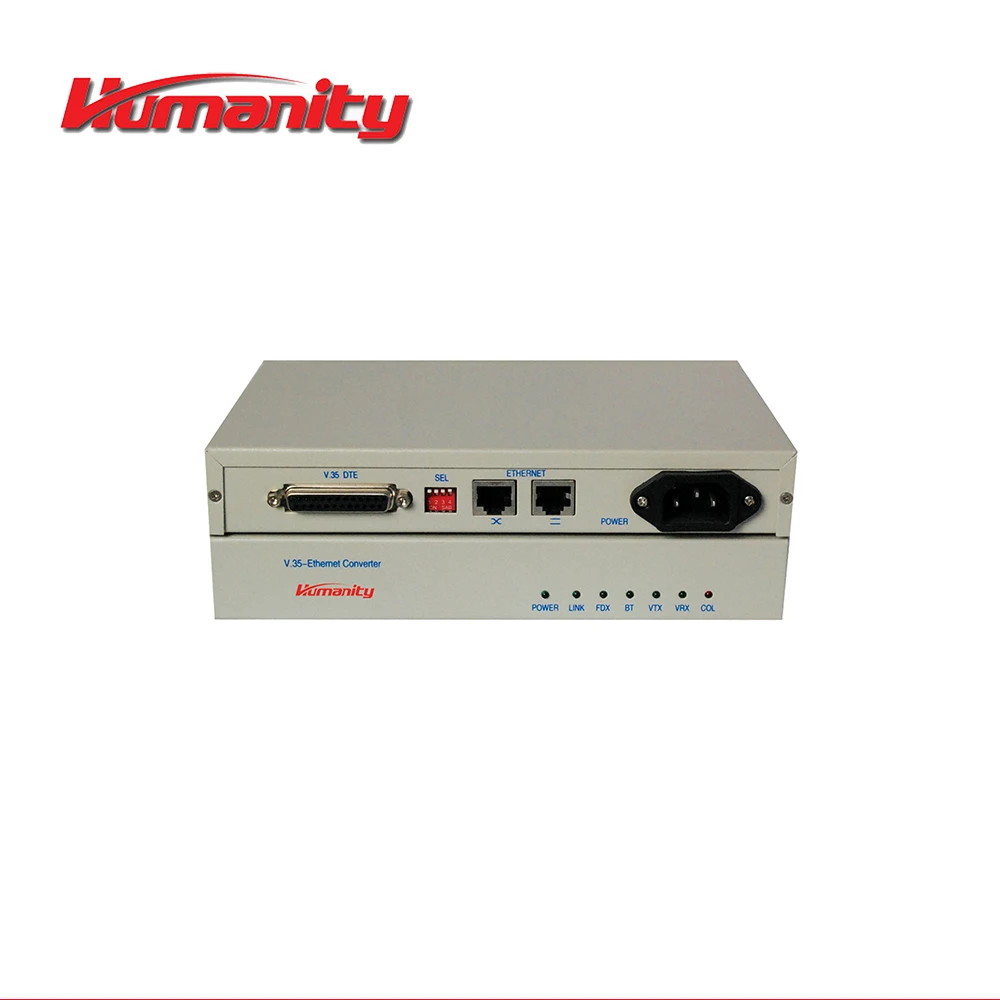

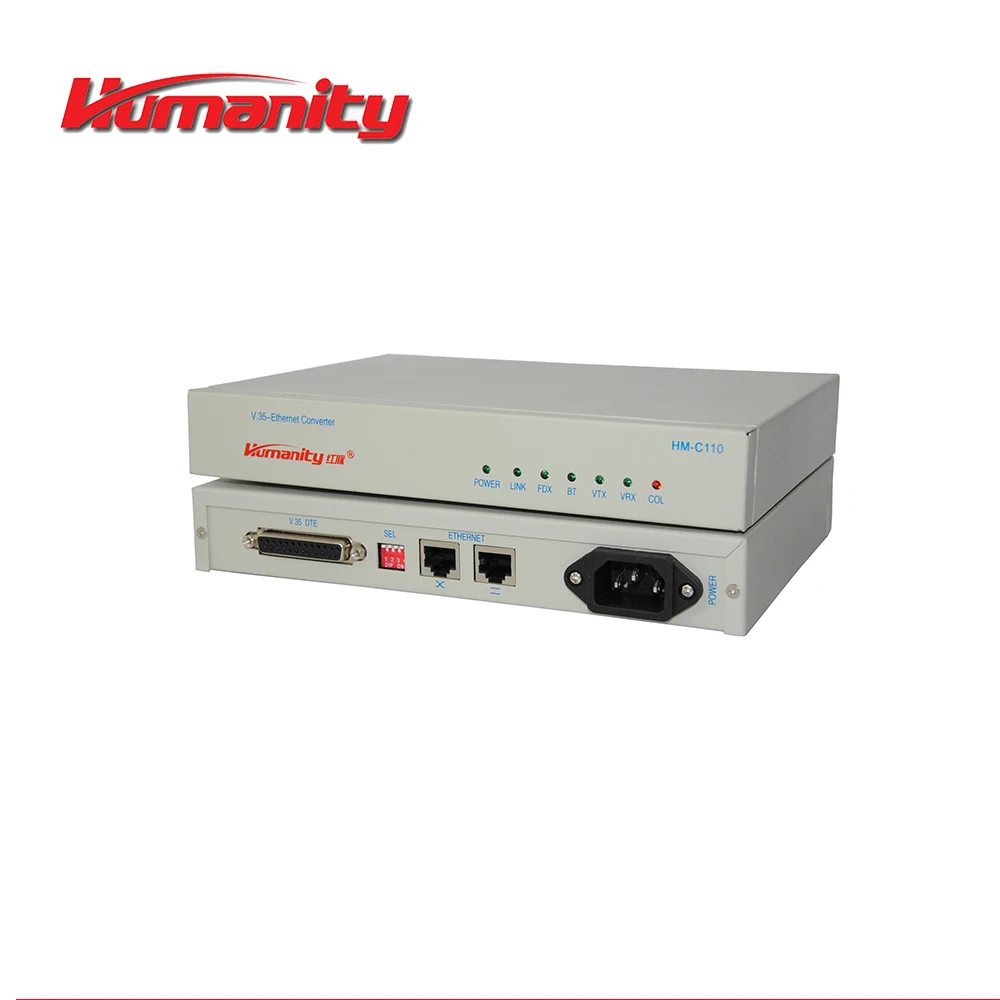

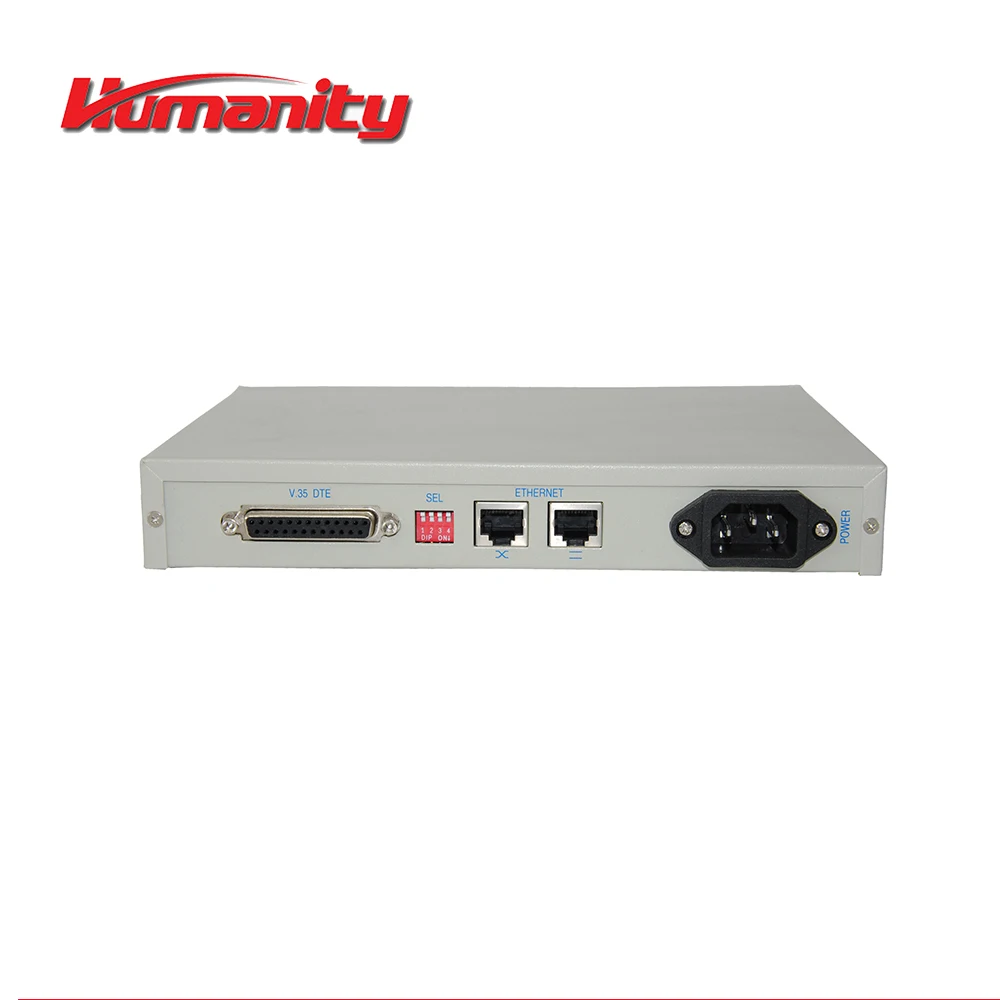

HM-C110 Humanity V.35 to Ethernet Protocol Converter
Humanity V.35 to Ethernet protocol converter realizes Ethernet transmission over V.35.
It is widely used in data communication such as the connection between the Base band modem and LAN.
Main Features
- Ethernet transmission over V.35.
- V.35 with DTE mode and work with DCE devices.
- Ethernet available for MDI/MDIX option

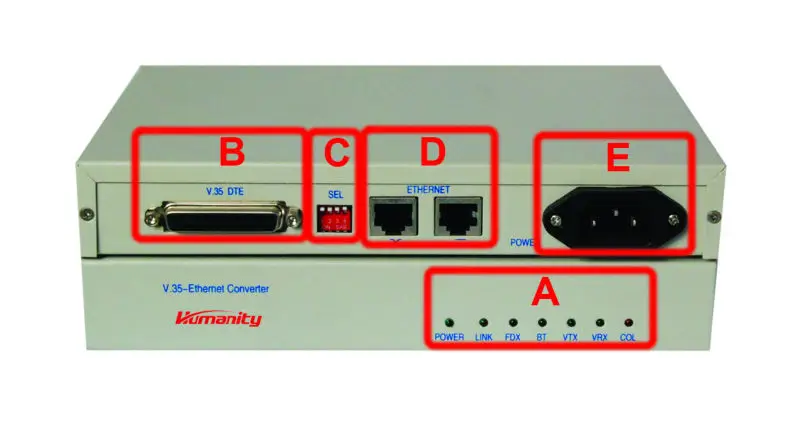

A: Indicator Lights for easy maintenance
B: V.35 Interface. With DTE mode.
C: DIP Switch for configuration
D: Ethernet Interface. MDI/MDIX option
E: Power Interface. AC or DC power option
Technical Parameters
V.35 interface | Connector: DB25 |
Interface mode: DTE | |
Rate: 0~10Mbps | |
Ethernet interface | Fully comply with IEEE802.3(2000) |
MDI/MDIX optional | |
Auto-adapt full/half duplex. 10/100M | |
Indicator light | POWER: power indicator light |
LINK: Ethernet connection indicator light. | |
FDX: full/half duplex | |
BT: Ethernet rate indicator light | |
VTX: V.35 data transmitting indicator light | |
VRX: V.35 data receiving indicator light | |
COL: Ethernet conflict indicator light. Valid in half duplex | |
DIP SEL switch | SEL1: big/small cache switch |
SEL2: reserve switch | |
SEL3: clock rising/falling edge send data choice | |
SEL4: data sending from DTE when clock falling/rising edge is acceptable choice | |
Environment | Voltage: AC220V±20% or DC –48V(DC-36 ~ -72V) |
Power consumption: less than 5W | |
Operating temperature: 0°C~50°C |

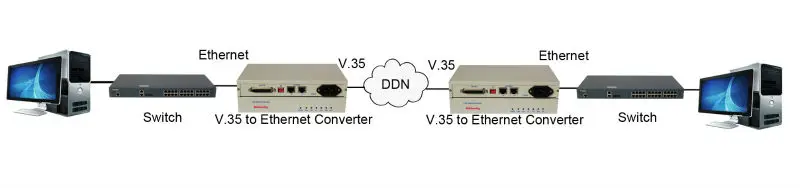

Typical Application
