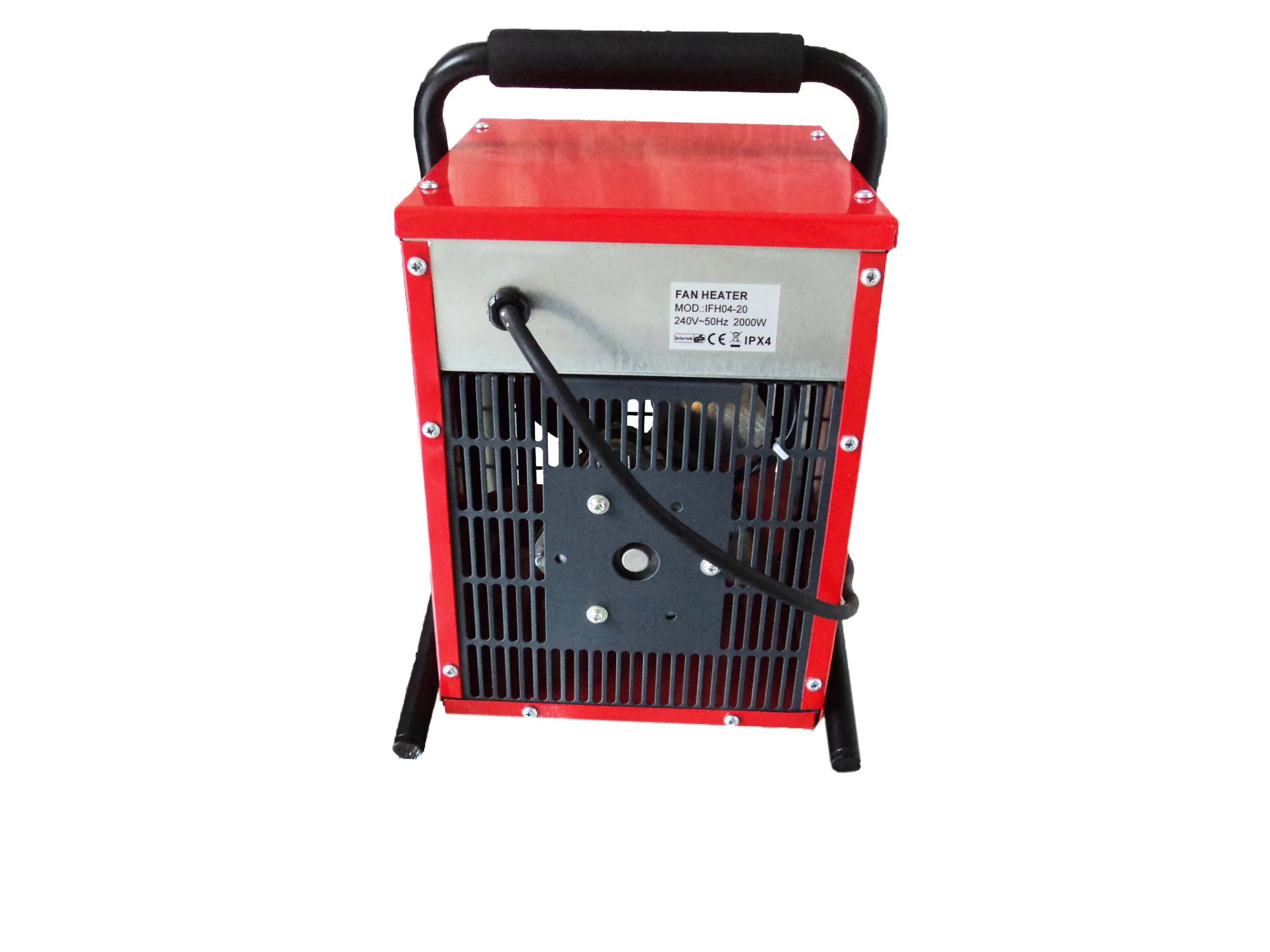

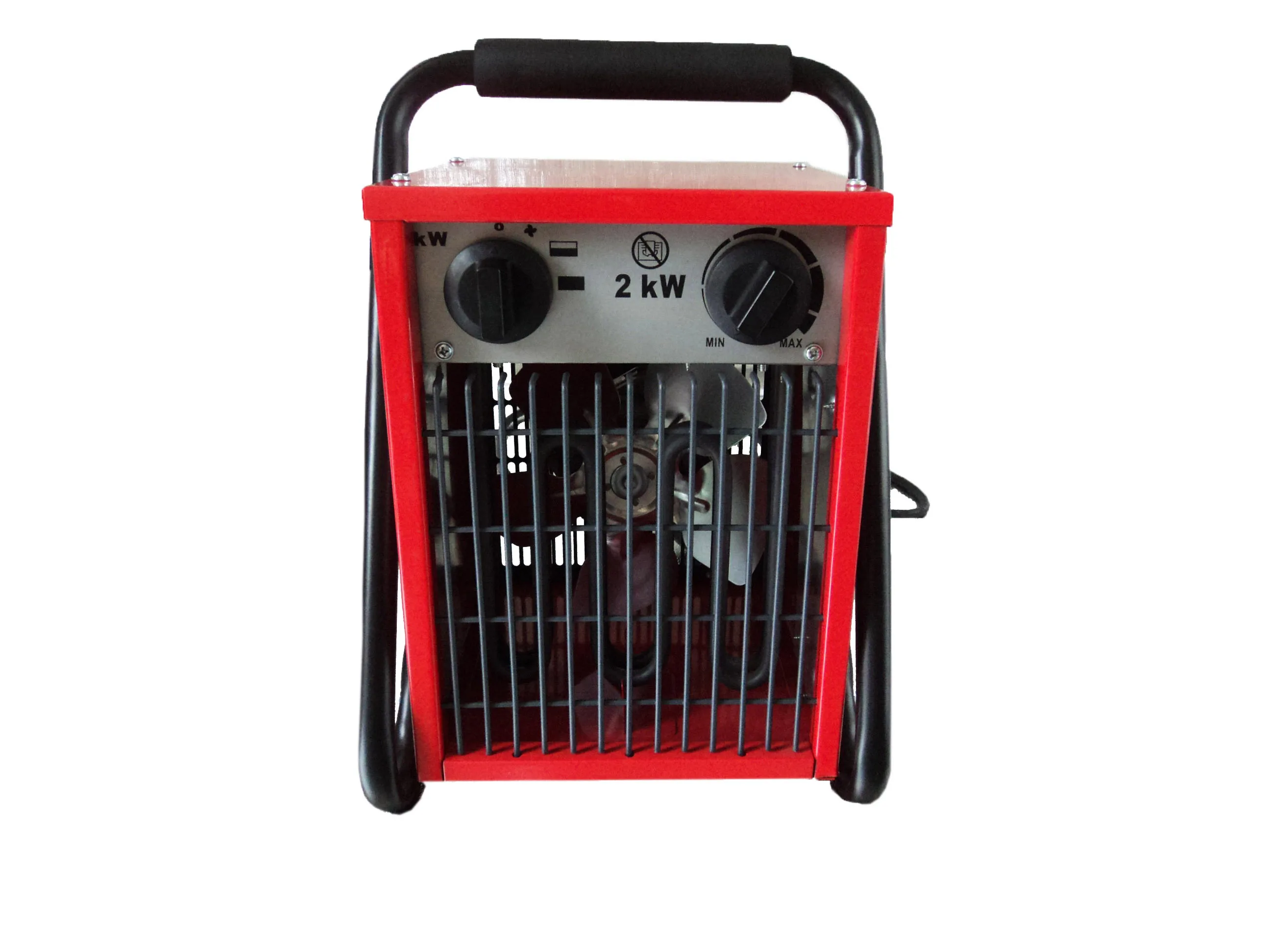

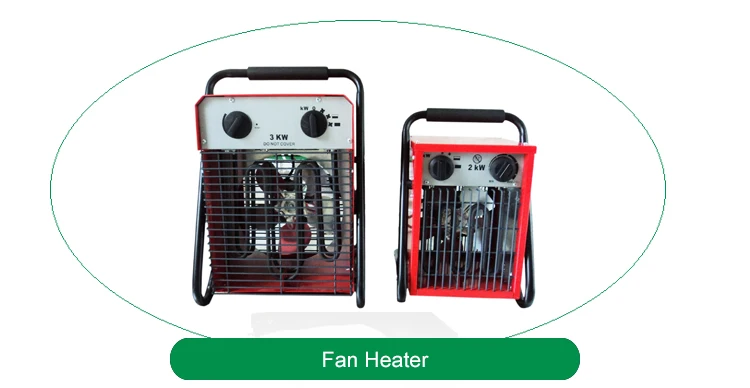

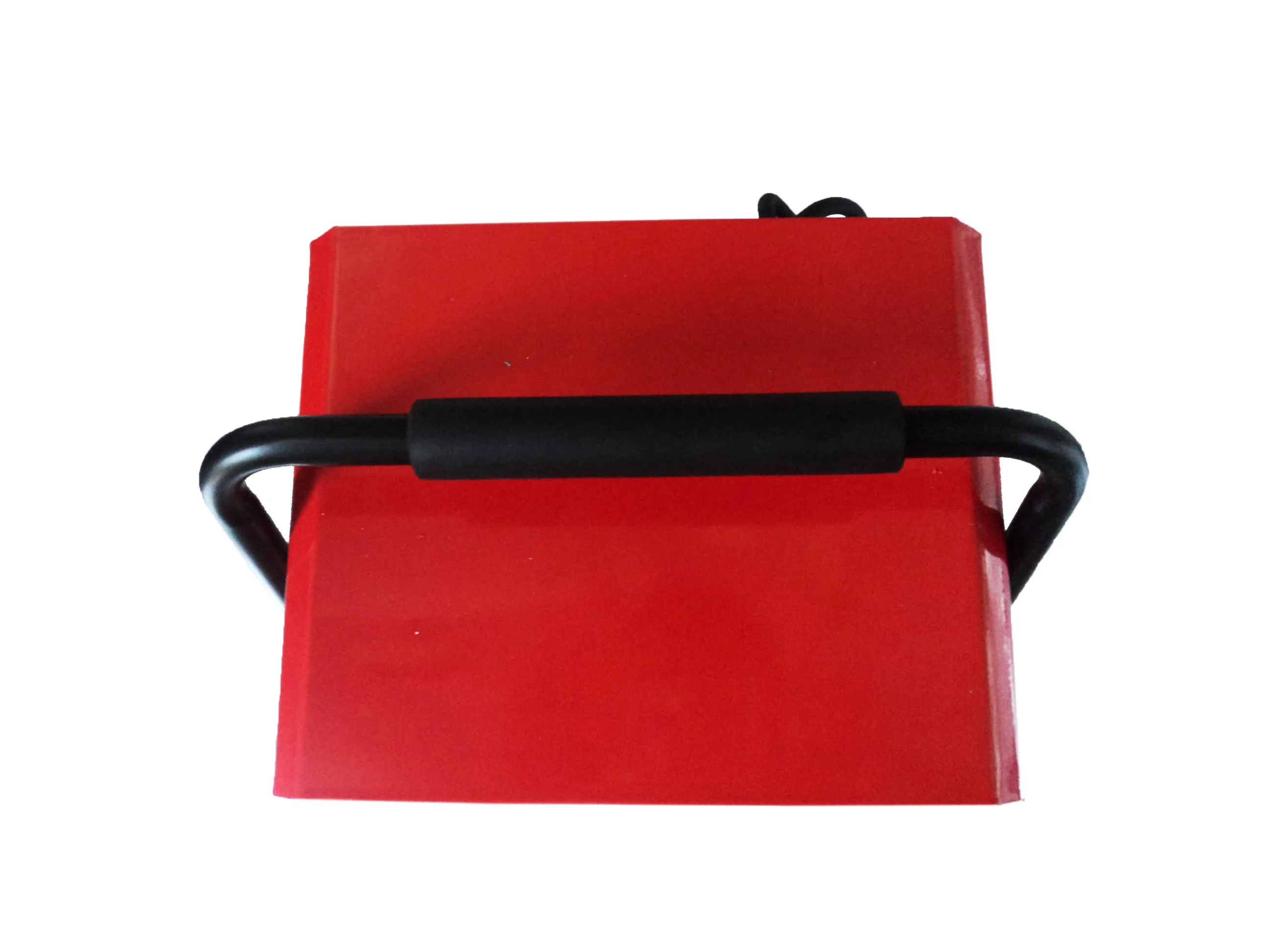

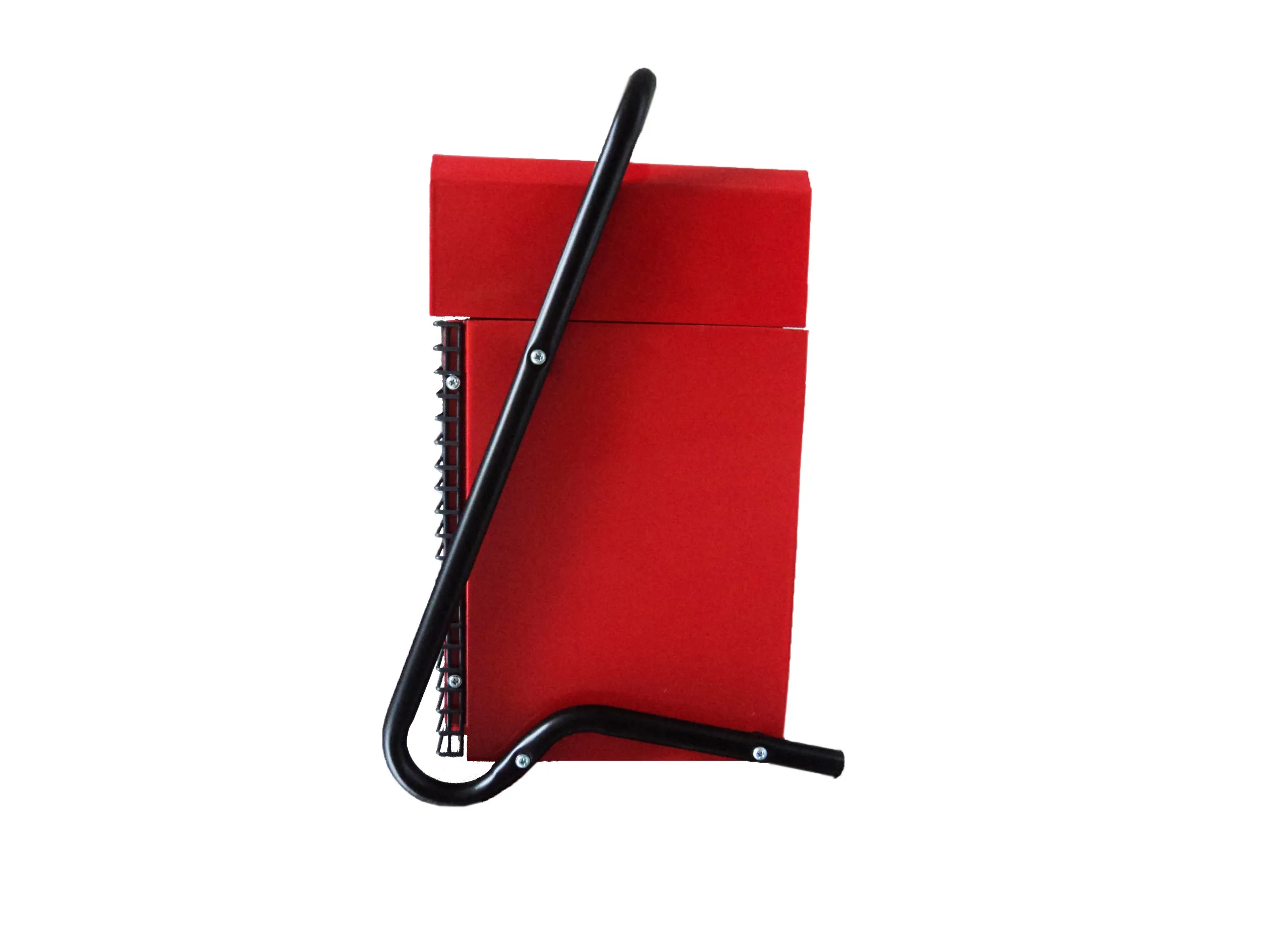

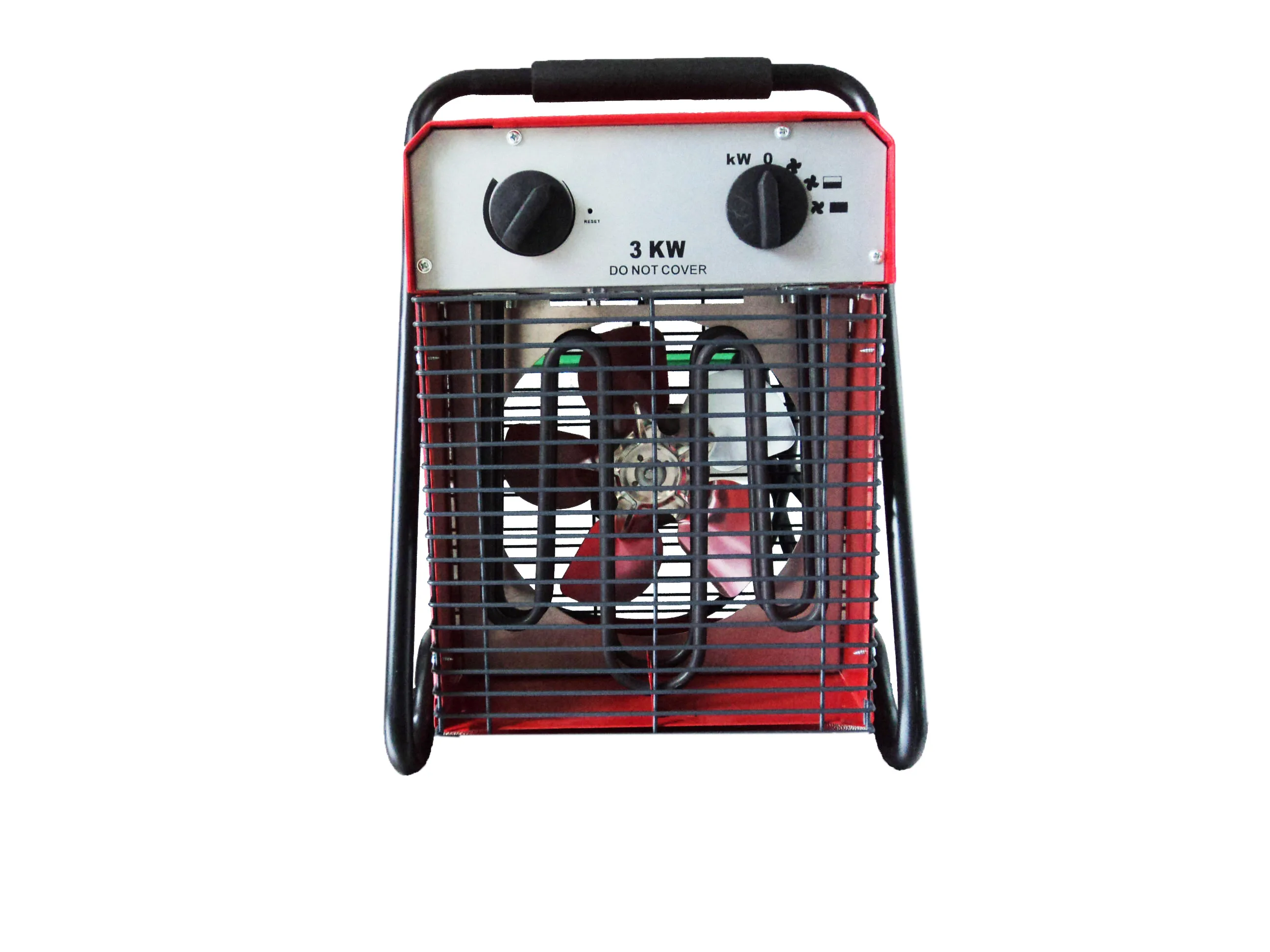

3000w electric fan heater for greenhouse

Product Overview

Description

1. Heating element : Stainless steel
2. Adjustable thermostat control
3. Overheat protection
4. With fan
5. Free standing & portable type
6. No fumes, no odours, no humidity
7. Strong and long lasting construction
8. 5 / 9KW with relay
9. Waterproof class IPX4

Certificates:
CE / GS / LVD / EMC / RoHS approved .





Quality control system:

IQC (Incoming Quality Control)
IPQC (In Process Quality Control)
PQC (Process Quality Control)
FQC (Final Quality Control)
OQC (Out-going Quality Control)





Features :

Model	TDFH2000	TDFH3000	TDFH5000	TDFH9000
Electric supply	230V ~50Hz	230V ~50Hz	400V ~50Hz	400V ~50Hz
Heating setting	650/1300/2000W	30/1500/3000W	30/2500/5000W	52/4500/9000W
Capacity	2KW	3KW	5KW	9KW
	6825 Btu/h	10250 Btu/h	17060 Btu/h	30706 Btu/h
	1720 Kcal/h	2579.4 Kcal/h	4299 Kcal/h	7738.2 Kcal/h
Air Output	186 m³/h	540 m³/h	530 m³/h	1086 m³/h
Outlet temperature	75 °C	51 °C	87 °C	91 °C
Suggestion using area	20 sq.m.	40 sq.m.	60 sq.m.	80 sq.m.
Packing	1 pcs/ctn	1 pcs/ctn	1 pcs/ctn	1 pcs/ctn
Product Meast	235x255x335mm	300x260x420mm	300x260x420mm	360x395x520mm
Packing Meast	265x245x370mm	310x290x450mm	310x290x450mm	400x400x565mm
N.W.	4.2 kgs	5.6 kgs	6.1 kgs	11.3 kgs
G.W.	5.0kgs	6.8 kgs	6.9 kgs	12.5 kgs
Qty/20'	1187 pcs	700 pcs	700 pcs	305 pcs
Qty/40'	2438 pcs	1450 pcs	1450 pcs	630 pcs
Qty/40'HQ	2835 pcs	1700 pcs	1700 pcs	744 pcs
